Wellington: Pahiatua Details

PropertyValue
Rupture Count91,786
Ruptures Above Sect Min Mag91,781
Ruptures w/ Nonzero Rates361
Magnitude Range[6.82, 8.50]
Length Range[21, 1,119] km
Total Rate0.003939244 /yr
Multi-Fault Rate0.003939244 /yr (100.00%)
Directly-Connected Faults8
All Co-Rupturing Faults139

Table Of Contents

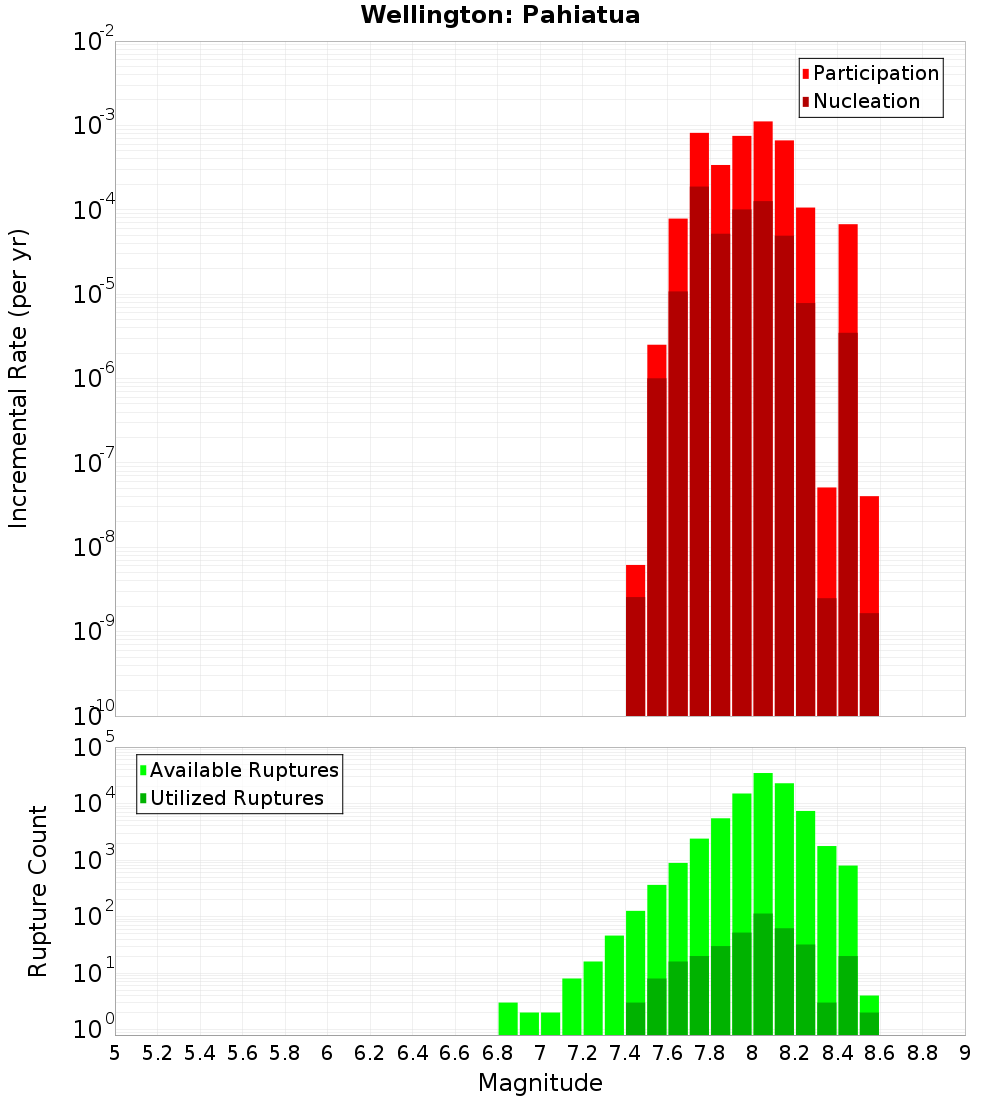

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

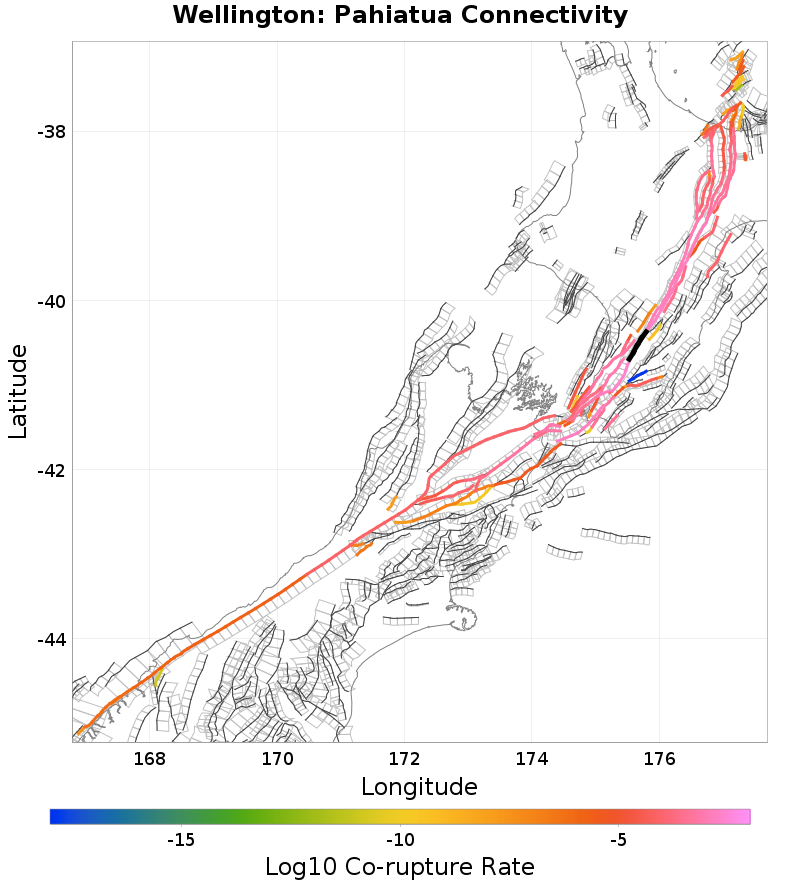

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Mohaka: South, 0 km awayWairarapa: 3, 13.85 km away
Ruahine: South, 0 km awayDreyers Rock, 15.65 km away
Wellington: Tararua 3, 0.03 km awayMaunga, 17.38 km away
Tokomaru, 0.13 km awayAlfredton South, 18.67 km away
Northern Ohariu, 2.46 km awayMakuri - Waewaepa, 18.97 km away
Otaki Forks: 2, 4.69 km awayAlfredton North, 19 km away
Woodville, 5.06 km awayPa Valley, 19.21 km away
Pahiatua, 5.58 km awayLevin Anticline, 19.3 km away
Pohangina, 9.35 km away

Mohaka: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYwODEuMGRlM0hx
Connected?true
Directly Connected?true
Co-rupture Count64,610
Co-rupture Rate0.002568185

Ruahine: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYwODEuMGRlM0hx
Connected?true
Directly Connected?true
Co-rupture Count39,103
Co-rupture Rate0.0011951653

Wellington: Tararua 3, 0.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYwODEuMGRlM0hx
Connected?true
Directly Connected?true
Co-rupture Count54,651
Co-rupture Rate0.002421914

Tokomaru, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYwODEuMGRlM0hx
Connected?true
Directly Connected?true
Co-rupture Count5,758
Co-rupture Rate2.0884145E-4

Northern Ohariu, 2.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYwODEuMGRlM0hx
Connected?true
Directly Connected?true
Co-rupture Count14,095
Co-rupture Rate5.8544416E-4

Otaki Forks: 2, 4.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYwODEuMGRlM0hx
Connected?true
Directly Connected?true
Co-rupture Count18,970
Co-rupture Rate9.6130325E-4

Woodville, 5.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYwODEuMGRlM0hx
Connected?true
Directly Connected?true
Co-rupture Count13
Co-rupture Rate0.0

Pahiatua, 5.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYwODEuMGRlM0hx
Connected?true
Directly Connected?false
Co-rupture Count172
Co-rupture Rate6.0197075E-10

Pohangina, 9.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYwODEuMGRlM0hx
Connected?true
Directly Connected?true
Co-rupture Count587
Co-rupture Rate1.4212257E-7

Wairarapa: 3, 13.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYwODEuMGRlM0hx
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dreyers Rock, 15.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYwODEuMGRlM0hx
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Maunga, 17.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYwODEuMGRlM0hx
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Alfredton South, 18.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYwODEuMGRlM0hx
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Makuri - Waewaepa, 18.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYwODEuMGRlM0hx
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Alfredton North, 19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYwODEuMGRlM0hx
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pa Valley, 19.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYwODEuMGRlM0hx
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Levin Anticline, 19.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYwODEuMGRlM0hx
Connected?true
Directly Connected?false
Co-rupture Count157
Co-rupture Rate0.0
