Ohena 3 Details

PropertyValue
Rupture Count27
Ruptures Above Sect Min Mag24
Ruptures w/ Nonzero Rates8
Magnitude Range[6.71, 7.32]
Length Range[18, 74] km
Total Rate7.2552206E-4 /yr
Multi-Fault Rate7.2552206E-4 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults5

Table Of Contents

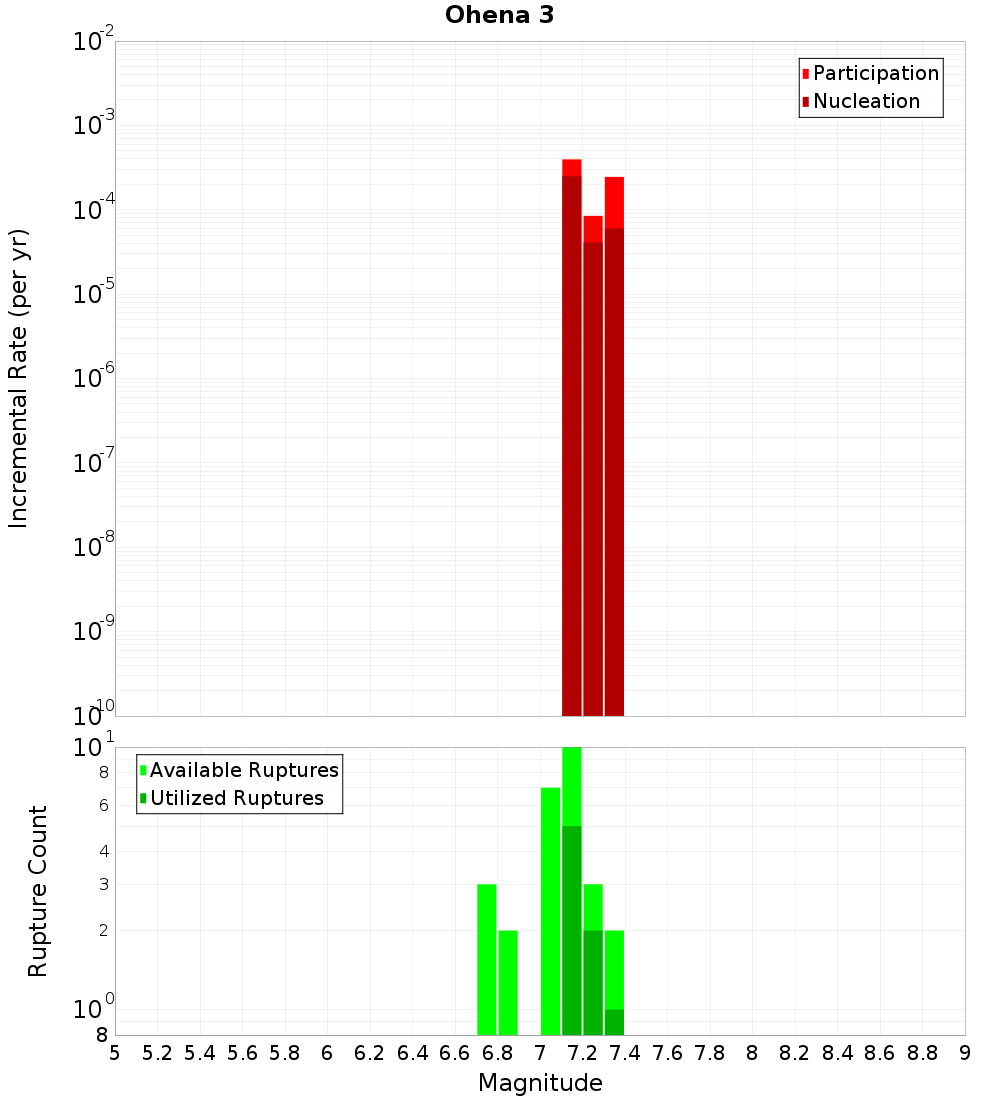

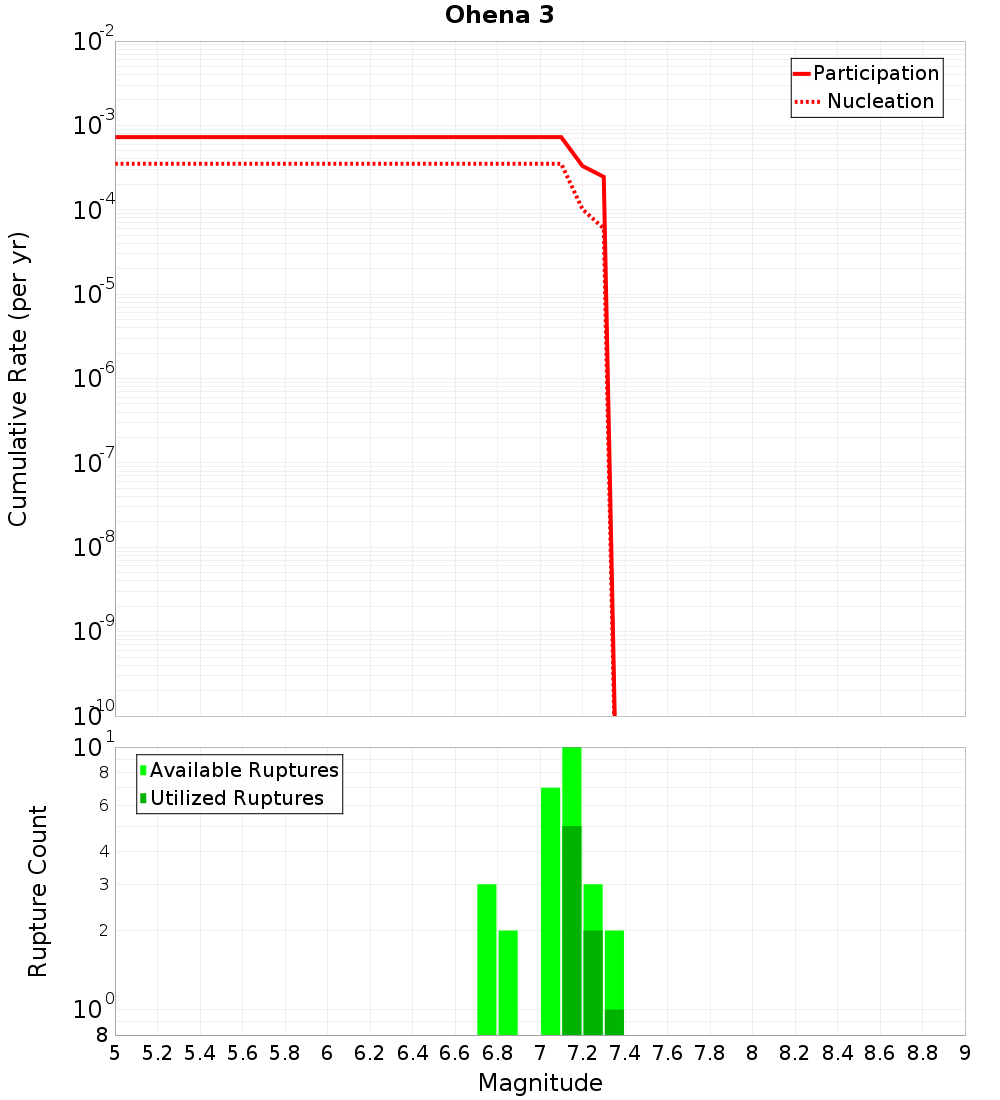

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

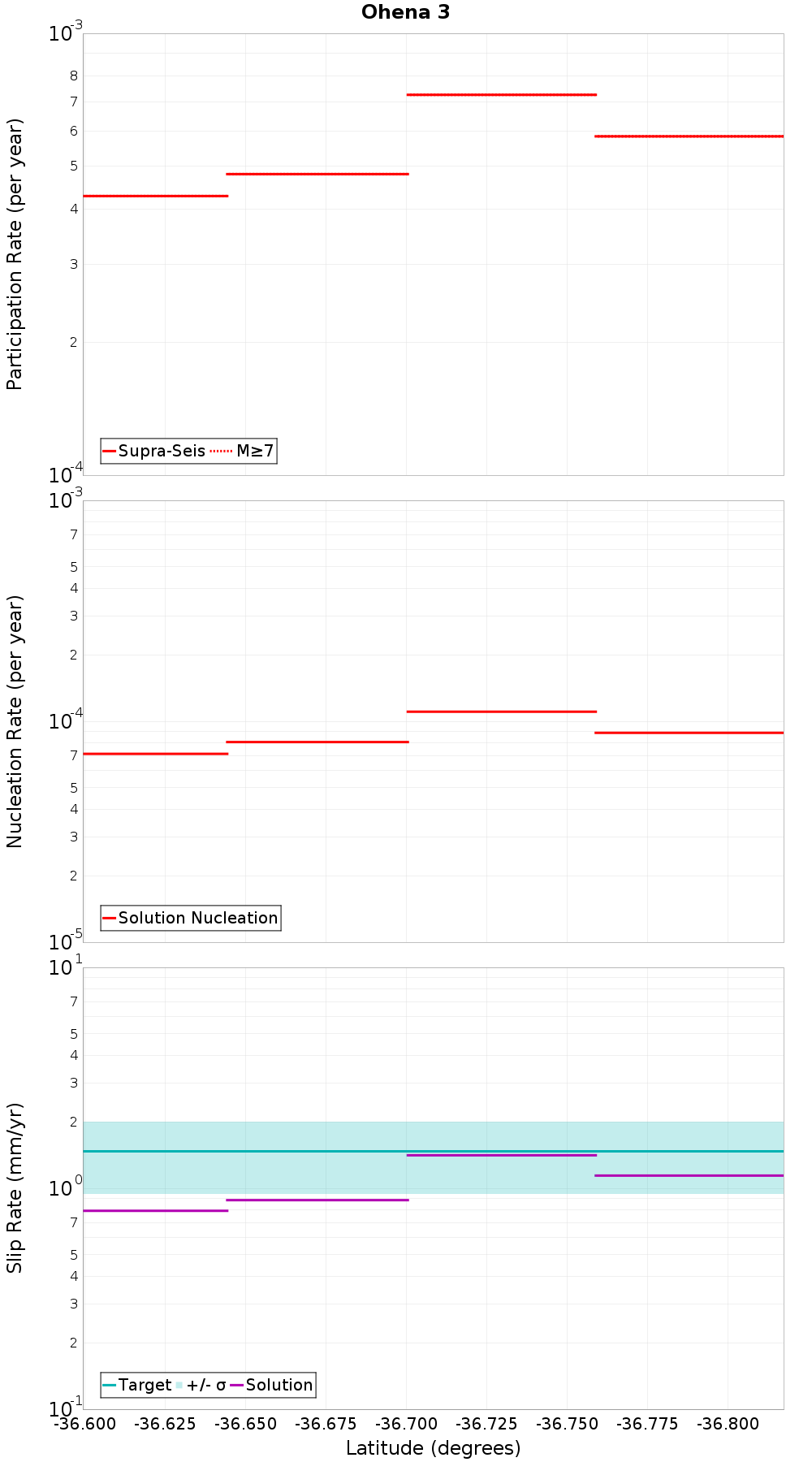

Along-Strike Values

(top)

Along-strike plot

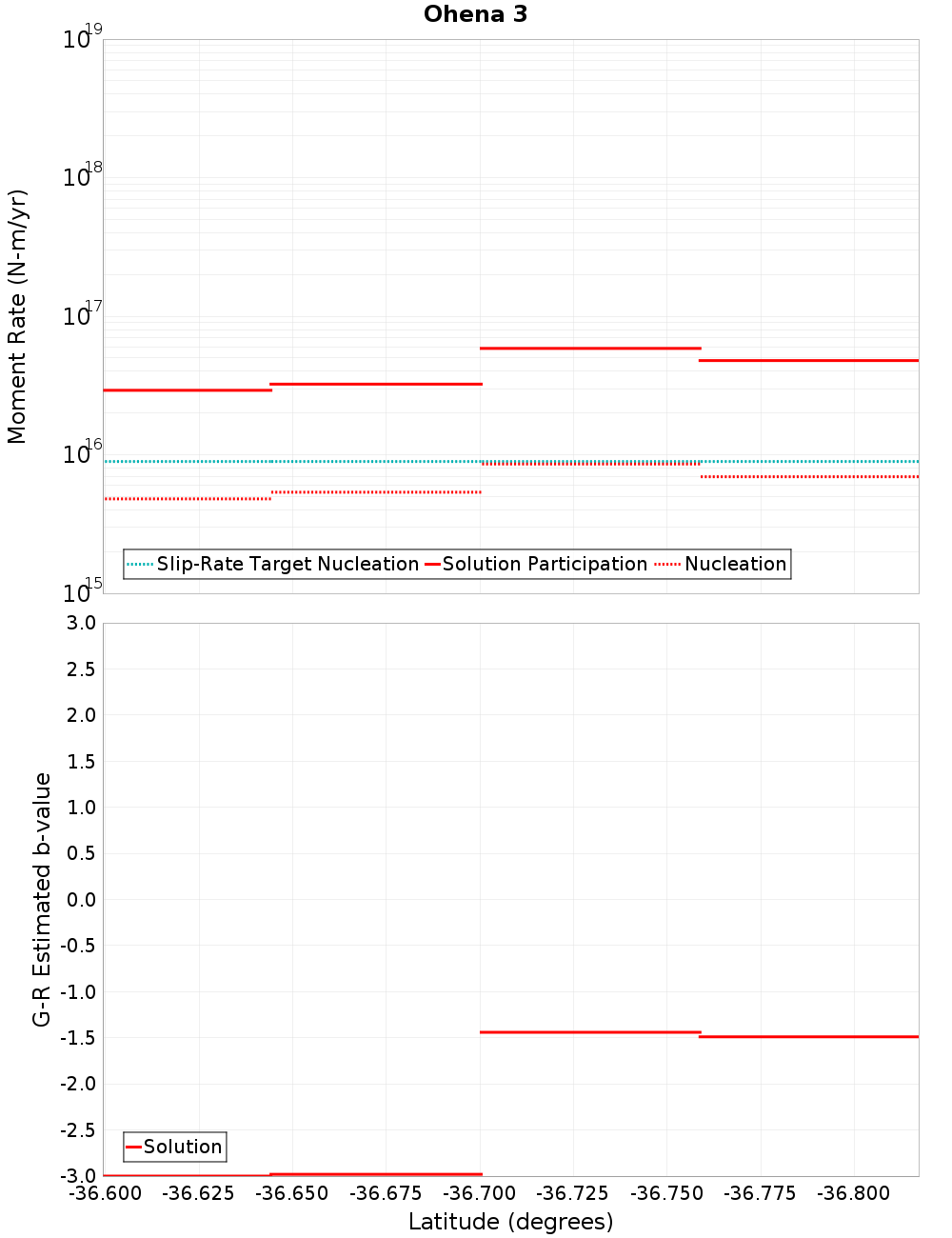

Moment-Rates and b-Values

(top)

Along-strike plot

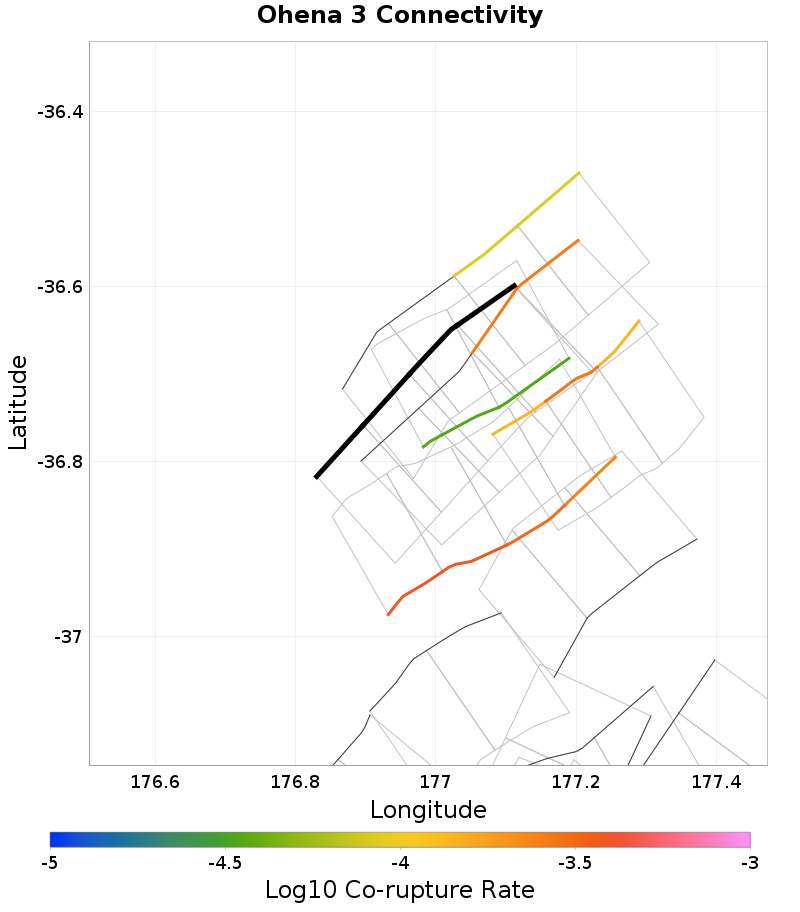

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Tauranga Trough West 2, 0.13 km away
Ngatoro South 5, 0.23 km away
Ohena 2, 0.49 km away
Ohena 4, 3.91 km away
Tauranga Trough East 2, 8.2 km away
Ngatoro South 2, 9.79 km away

Tauranga Trough West 2, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYwODUuMGdYR2RL
Connected?true
Directly Connected?true
Co-rupture Count10
Co-rupture Rate3.8643272E-4

Ngatoro South 5, 0.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYwODUuMGdYR2RL
Connected?true
Directly Connected?true
Co-rupture Count3
Co-rupture Rate3.4481014E-5

Ohena 2, 0.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYwODUuMGdYR2RL
Connected?true
Directly Connected?true
Co-rupture Count4
Co-rupture Rate2.628272E-4

Ohena 4, 3.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYwODUuMGdYR2RL
Connected?true
Directly Connected?true
Co-rupture Count6
Co-rupture Rate8.4716055E-5

Tauranga Trough East 2, 8.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYwODUuMGdYR2RL
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ngatoro South 2, 9.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYwODUuMGdYR2RL
Connected?true
Directly Connected?true
Co-rupture Count3
Co-rupture Rate2.7662443E-4
