Pisa Details

PropertyValue
Rupture Count1,486
Ruptures Above Sect Min Mag1,485
Ruptures w/ Nonzero Rates15
Magnitude Range[7.14, 8.37]
Length Range[32, 724] km
Total Rate1.7565269E-4 /yr
Multi-Fault Rate1.7565269E-4 /yr (100.00%)
Directly-Connected Faults8
All Co-Rupturing Faults51

Table Of Contents

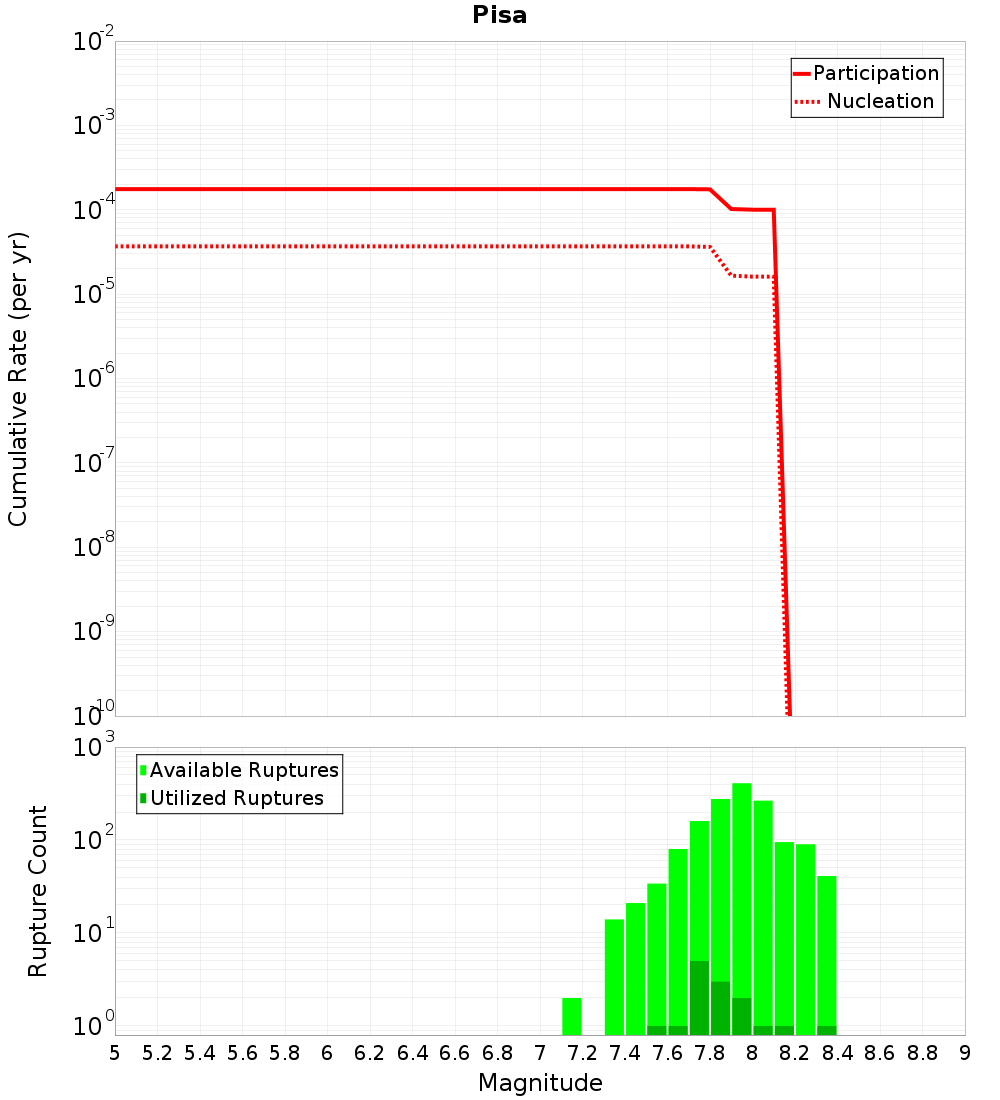

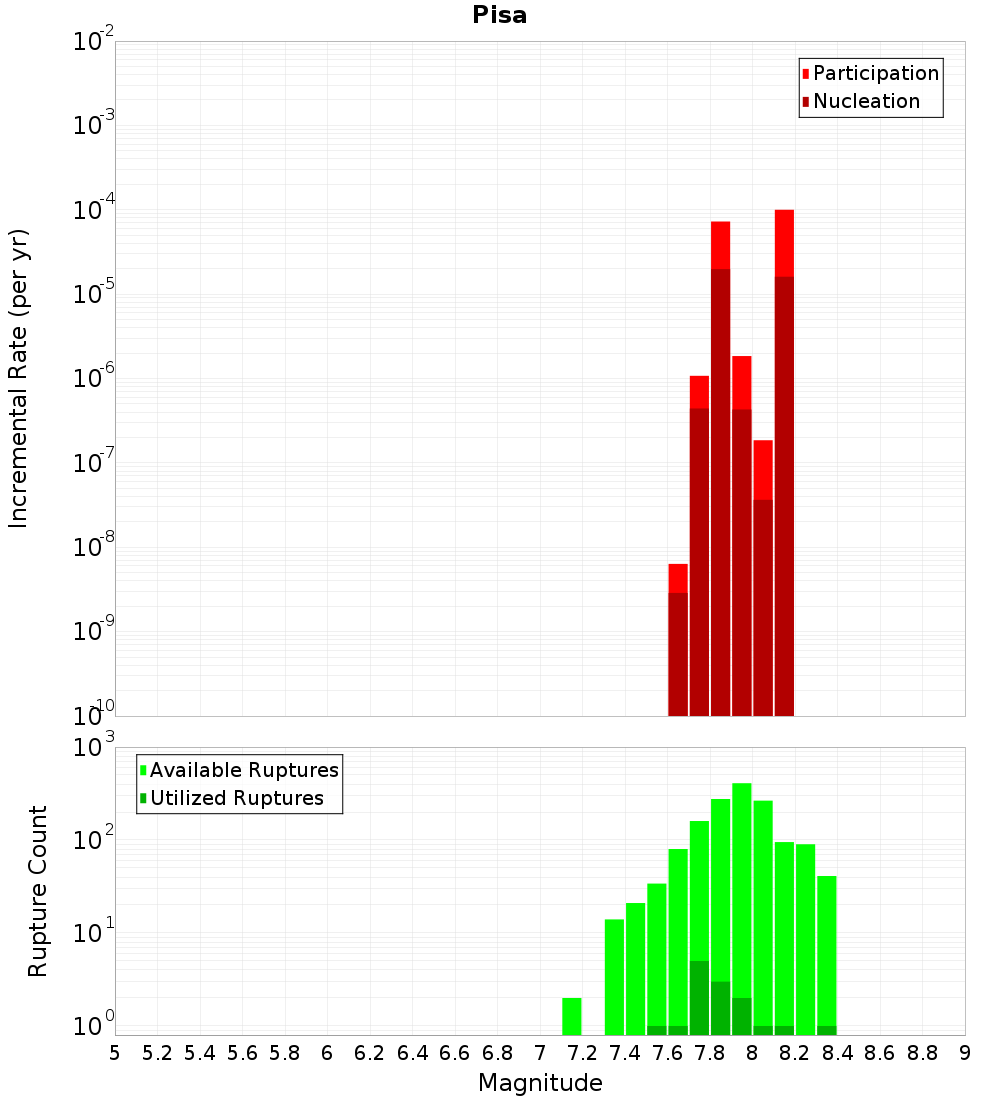

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

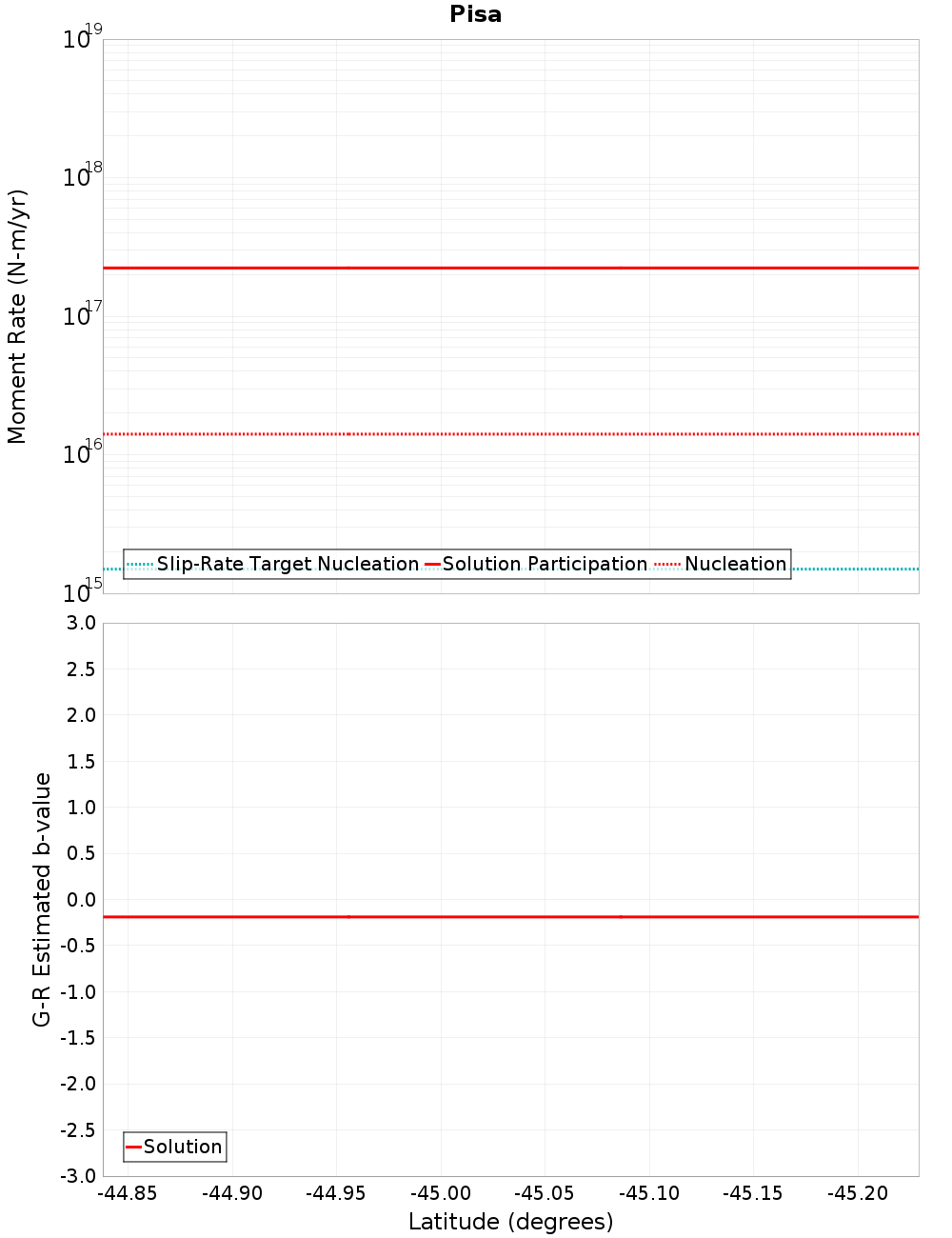

Moment-Rates and b-Values

(top)

Along-strike plot

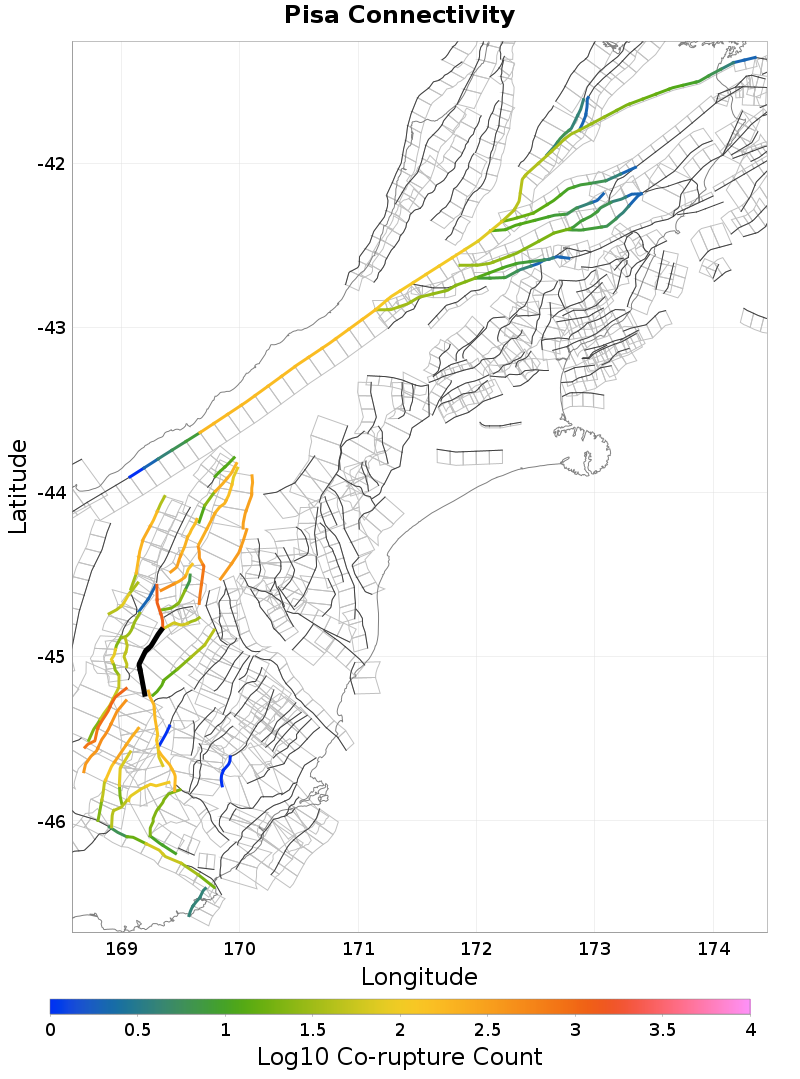

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Motatapu, 0.13 km awayNW Cardrona South, 5.46 km away
Roaring Meg, 0.18 km awayGoodger, 7.74 km away
Paddys Ridge, 0.29 km awayGalloway, 7.93 km away
Roaring Lion, 0.83 km awayGarvie, 8.36 km away
Grandview, 1.55 km awayNW Cardrona North, 9.29 km away
Old Man, 1.75 km awayNevis, 9.56 km away
Cluden, 1.98 km awayLindis River, 12.93 km away
Dunstan, 4.43 km awayCardrona - Hawea, 13.25 km away

Motatapu, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYwOTcuMExoQWZm
Connected?true
Directly Connected?true
Co-rupture Count79
Co-rupture Rate1.8545613E-7

Roaring Meg, 0.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYwOTcuMExoQWZm
Connected?true
Directly Connected?true
Co-rupture Count47
Co-rupture Rate0.0

Paddys Ridge, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYwOTcuMExoQWZm
Connected?true
Directly Connected?true
Co-rupture Count30
Co-rupture Rate0.0

Roaring Lion, 0.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYwOTcuMExoQWZm
Connected?true
Directly Connected?true
Co-rupture Count1,098
Co-rupture Rate1.7386334E-4

Grandview, 1.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYwOTcuMExoQWZm
Connected?true
Directly Connected?true
Co-rupture Count1,216
Co-rupture Rate1.7546723E-4

Old Man, 1.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYwOTcuMExoQWZm
Connected?true
Directly Connected?true
Co-rupture Count192
Co-rupture Rate1.781533E-6

Cluden, 1.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYwOTcuMExoQWZm
Connected?true
Directly Connected?true
Co-rupture Count61
Co-rupture Rate0.0

Dunstan, 4.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYwOTcuMExoQWZm
Connected?true
Directly Connected?false
Co-rupture Count43
Co-rupture Rate8.6495595E-11

NW Cardrona South, 5.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYwOTcuMExoQWZm
Connected?true
Directly Connected?true
Co-rupture Count87
Co-rupture Rate6.68984E-9

Goodger, 7.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYwOTcuMExoQWZm
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Galloway, 7.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYwOTcuMExoQWZm
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Garvie, 8.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYwOTcuMExoQWZm
Connected?true
Directly Connected?false
Co-rupture Count474
Co-rupture Rate7.185145E-5

NW Cardrona North, 9.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYwOTcuMExoQWZm
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Nevis, 9.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYwOTcuMExoQWZm
Connected?true
Directly Connected?false
Co-rupture Count51
Co-rupture Rate8.0608836E-10

Lindis River, 12.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYwOTcuMExoQWZm
Connected?true
Directly Connected?false
Co-rupture Count24
Co-rupture Rate1.0734401E-6

Cardrona - Hawea, 13.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYwOTcuMExoQWZm
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0
