Cape Egmont: Central Details

Property	Value
Rupture Count	345
Ruptures Above Sect Min Mag	345
Ruptures w/ Nonzero Rates	3
Magnitude Range	[6.83, 8.03]
Length Range	[13, 208] km
Total Rate	6.705508E-5 /yr
Multi-Fault Rate	6.705508E-5 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	13

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

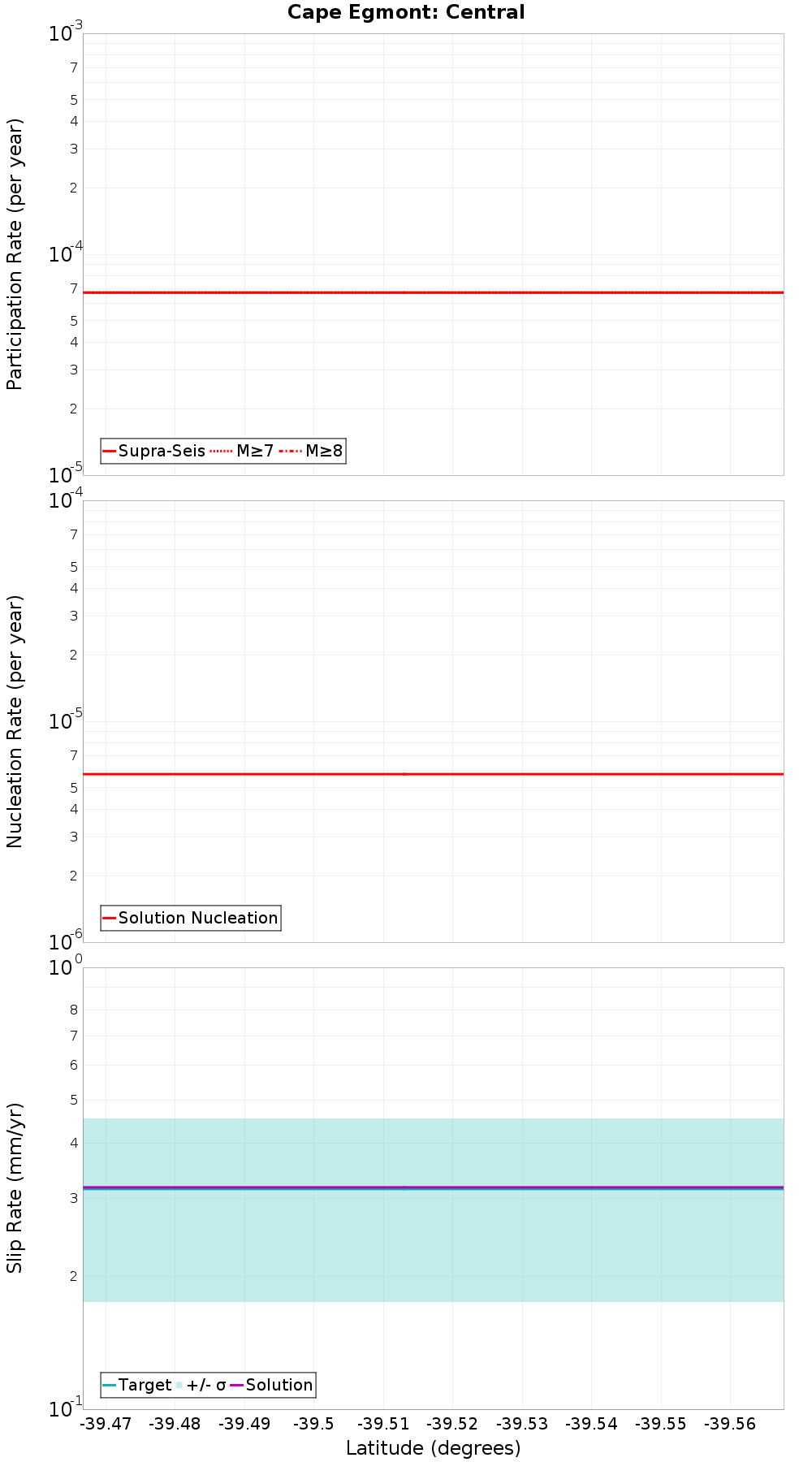

Along-Strike Values

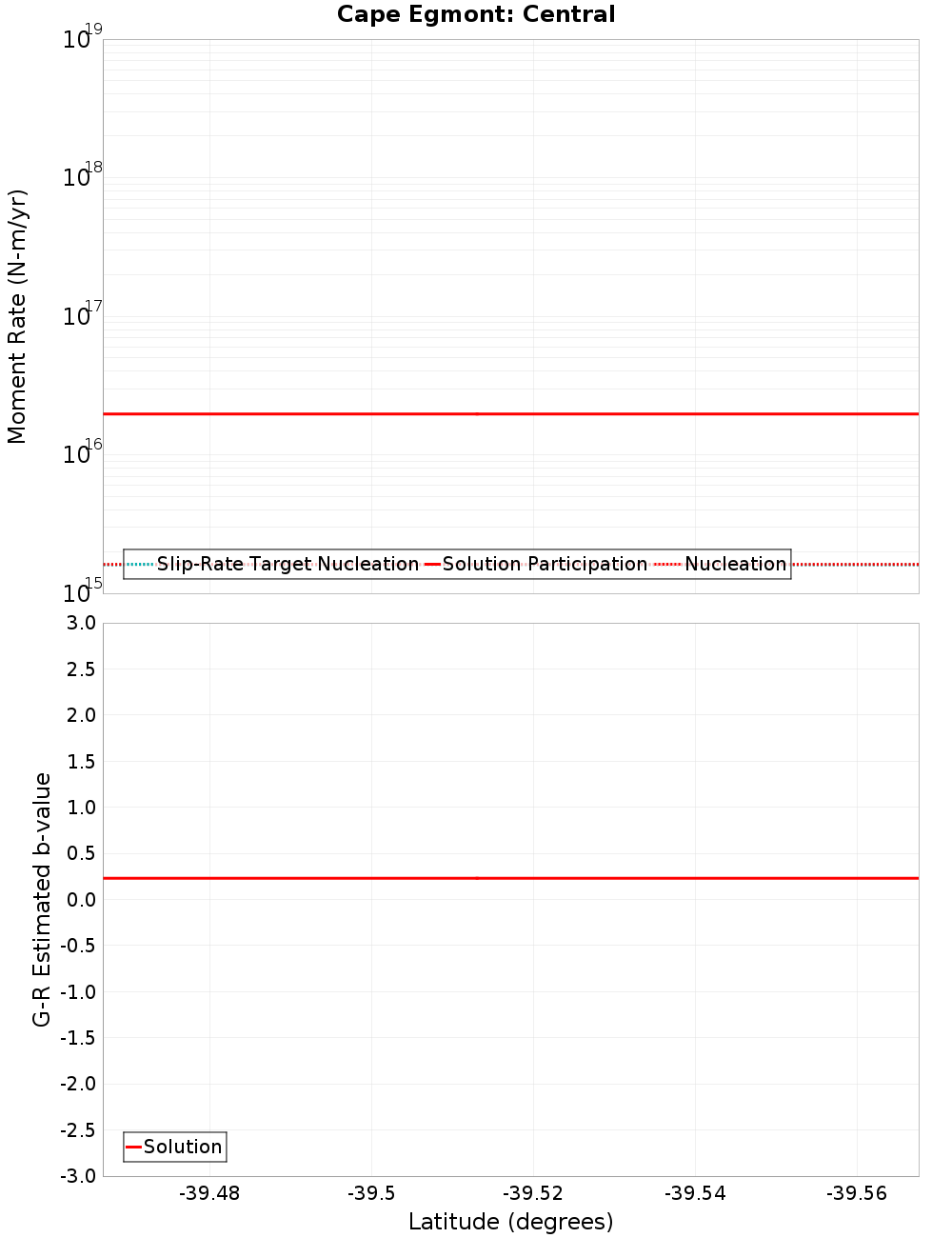

Moment-Rates and b-Values

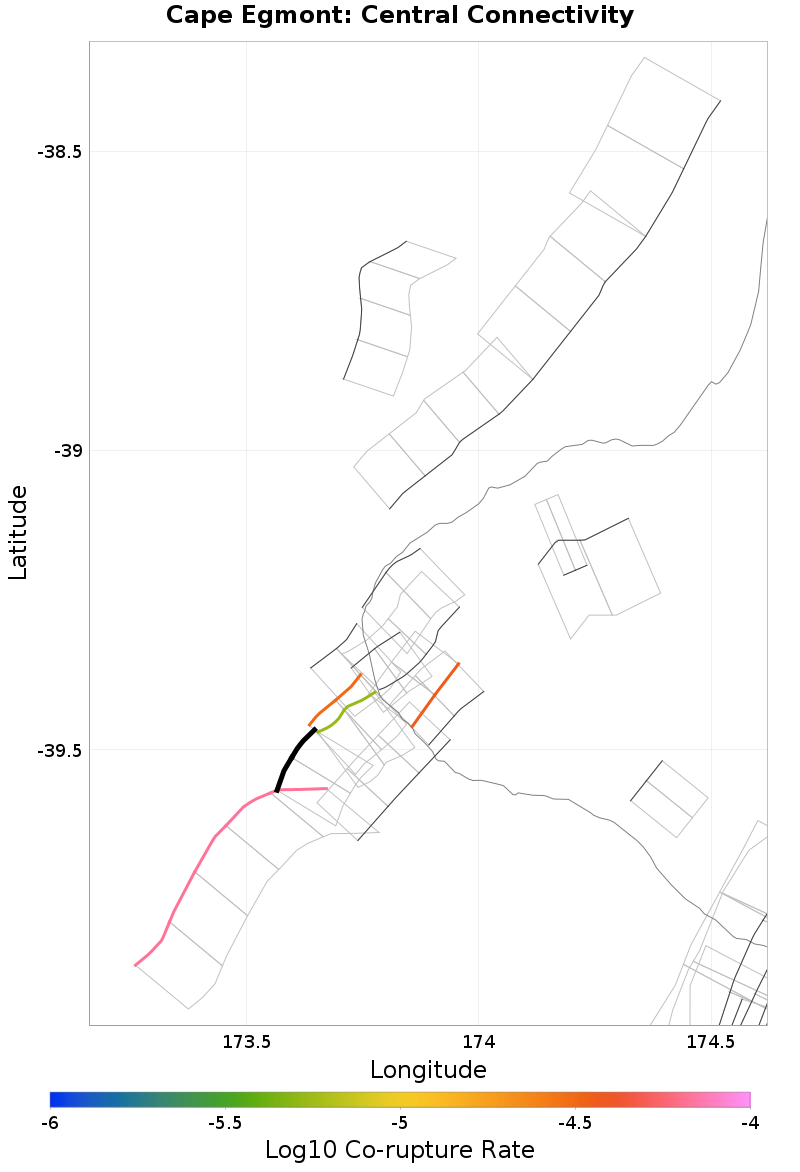

Connectivity

Nearby Sections

Fault Section
Cape Egmont: South, 0.35 km away
Pihama, 0.43 km away
Manahi 1, 0.67 km away
Cape Egmont: North, 0.88 km away
Manahi 2, 8.61 km away
Rahotu, 9.89 km away
Ihaia, 10.6 km away
Kiri, 10.8 km away
Oaonui, 13.19 km away

Cape Egmont: South, 0.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMTIuNXR0QzZp
Connected?	true
Directly Connected?	true
Co-rupture Count	241
Co-rupture Rate	6.705508E-5

Pihama, 0.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMTIuNXR0QzZp
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Manahi 1, 0.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMTIuNXR0QzZp
Connected?	true
Directly Connected?	true
Co-rupture Count	167
Co-rupture Rate	5.337107E-6

Cape Egmont: North, 0.88 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMTIuNXR0QzZp
Connected?	true
Directly Connected?	true
Co-rupture Count	229
Co-rupture Rate	3.1505428E-5

Manahi 2, 8.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMTIuNXR0QzZp
Connected?	true
Directly Connected?	false
Co-rupture Count	41
Co-rupture Rate	0.0

Rahotu, 9.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMTIuNXR0QzZp
Connected?	true
Directly Connected?	false
Co-rupture Count	28
Co-rupture Rate	0.0

Ihaia, 10.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMTIuNXR0QzZp
Connected?	true
Directly Connected?	false
Co-rupture Count	142
Co-rupture Rate	3.6842535E-5

Kiri, 10.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMTIuNXR0QzZp
Connected?	true
Directly Connected?	false
Co-rupture Count	129
Co-rupture Rate	0.0

Oaonui, 13.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMTIuNXR0QzZp
Connected?	true
Directly Connected?	false
Co-rupture Count	20
Co-rupture Rate	0.0
