Mohaka: North Details

PropertyValue
Rupture Count46,763
Ruptures Above Sect Min Mag46,760
Ruptures w/ Nonzero Rates16
Magnitude Range[6.98, 8.70]
Length Range[20, 1,119] km
Total Rate3.0650853E-4 /yr
Multi-Fault Rate3.0650853E-4 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults127

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

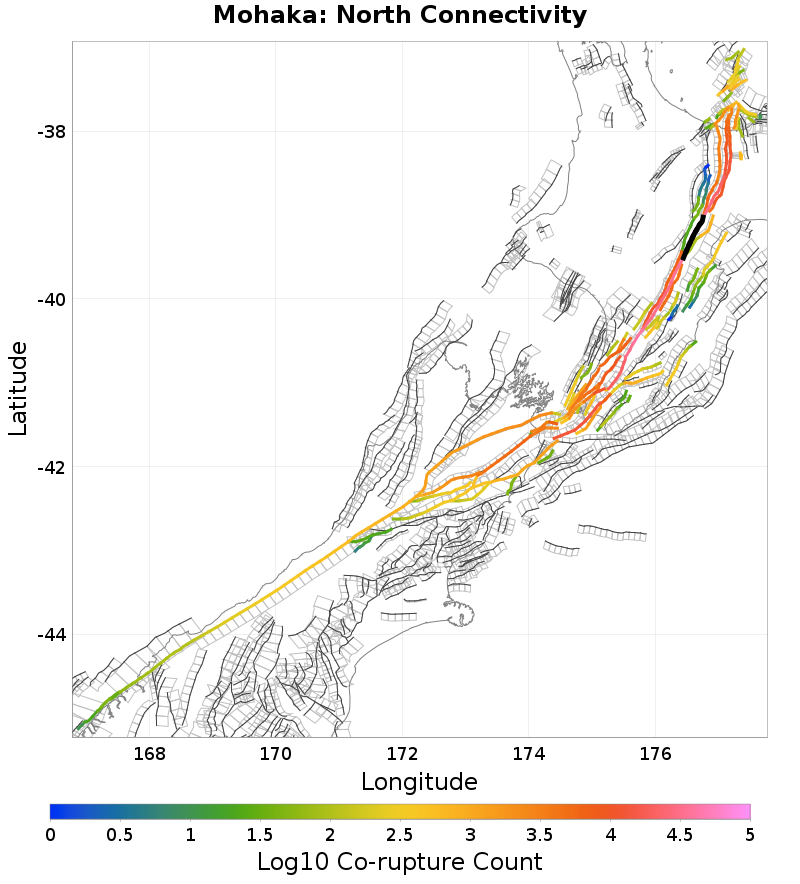

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Mohaka: South, 0 km away
Whakatane: South, 0 km away
Waimana: South, 0 km away
Patoka - Rangiora, 0.41 km away
Ruahine: North, 5.2 km away
Ruahine: Central, 7.58 km away
Waiohau: South, 8.1 km away
Wakarara, 9.63 km away
Kaweka, 10.6 km away
Awanui, 11.19 km away
Waiotahi: South, 11.48 km away
Wheao: South, 13.51 km away
Te Heka, 14.28 km away
Te Whaiti South, 15.34 km away

Mohaka: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMTIuNXR0QzZp
Connected?true
Directly Connected?true
Co-rupture Count45,766
Co-rupture Rate1.5325061E-4

Whakatane: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMTIuNXR0QzZp
Connected?true
Directly Connected?true
Co-rupture Count6,324
Co-rupture Rate7.631358E-5

Waimana: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMTIuNXR0QzZp
Connected?true
Directly Connected?true
Co-rupture Count30,233
Co-rupture Rate1.506578E-4

Patoka - Rangiora, 0.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMTIuNXR0QzZp
Connected?true
Directly Connected?true
Co-rupture Count822
Co-rupture Rate4.6090834E-5

Ruahine: North, 5.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMTIuNXR0QzZp
Connected?true
Directly Connected?true
Co-rupture Count6,572
Co-rupture Rate2.8424305E-5

Ruahine: Central, 7.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMTIuNXR0QzZp
Connected?true
Directly Connected?false
Co-rupture Count6,550
Co-rupture Rate2.8424305E-5

Waiohau: South, 8.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMTIuNXR0QzZp
Connected?true
Directly Connected?false
Co-rupture Count41
Co-rupture Rate0.0

Wakarara, 9.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMTIuNXR0QzZp
Connected?true
Directly Connected?false
Co-rupture Count4,507
Co-rupture Rate0.0

Kaweka, 10.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMTIuNXR0QzZp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Awanui, 11.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMTIuNXR0QzZp
Connected?true
Directly Connected?false
Co-rupture Count410
Co-rupture Rate4.6090834E-5

Waiotahi: South, 11.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMTIuNXR0QzZp
Connected?true
Directly Connected?true
Co-rupture Count10,254
Co-rupture Rate4.021604E-5

Wheao: South, 13.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMTIuNXR0QzZp
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Heka, 14.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMTIuNXR0QzZp
Connected?true
Directly Connected?false
Co-rupture Count39
Co-rupture Rate0.0

Te Whaiti South, 15.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMTIuNXR0QzZp
Connected?true
Directly Connected?false
Co-rupture Count37
Co-rupture Rate3.1621534E-5
