Opotiki 2 Details

Property	Value
Rupture Count	407
Ruptures Above Sect Min Mag	407
Ruptures w/ Nonzero Rates	6
Magnitude Range	[6.89, 8.40]
Length Range	[14, 528] km
Total Rate	5.1632163E-5 /yr
Multi-Fault Rate	5.1632163E-5 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	56

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

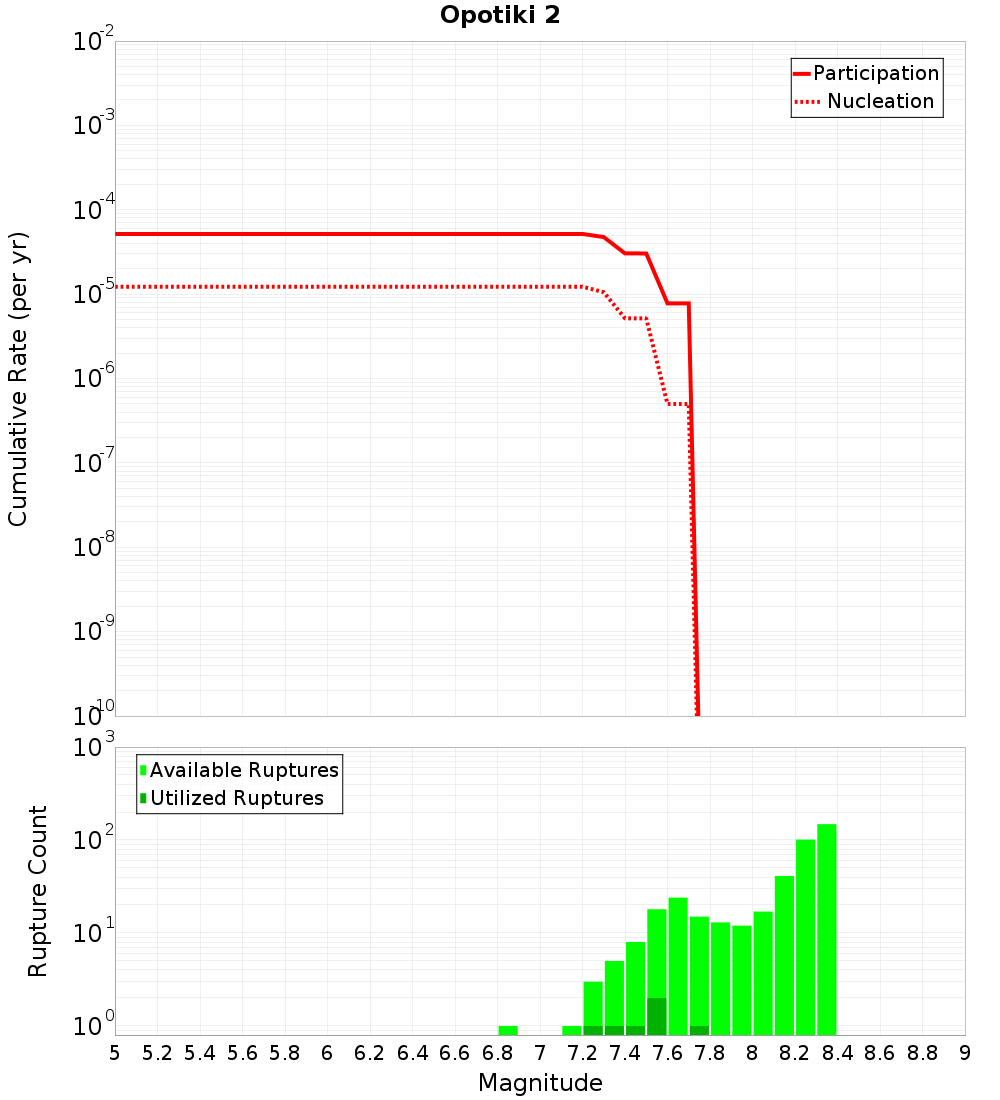

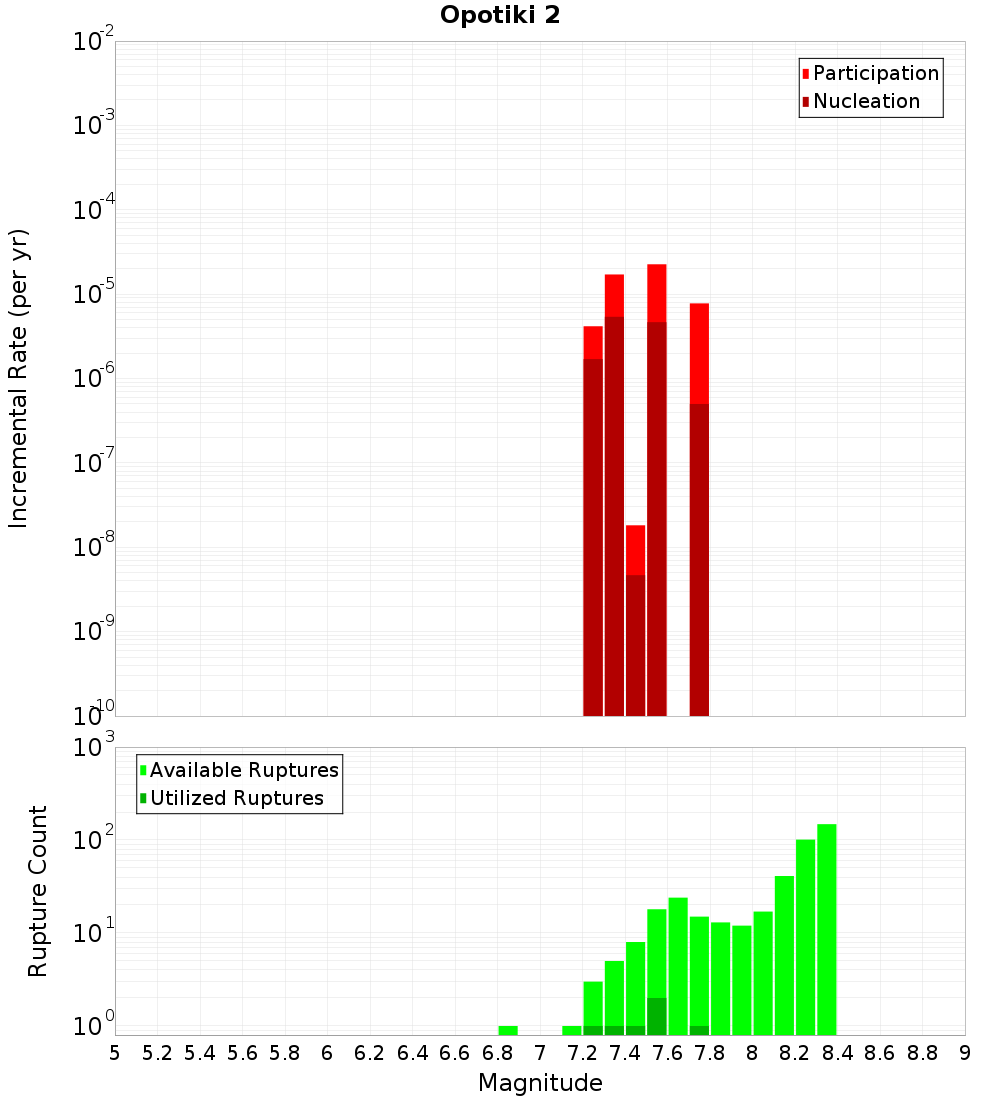

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

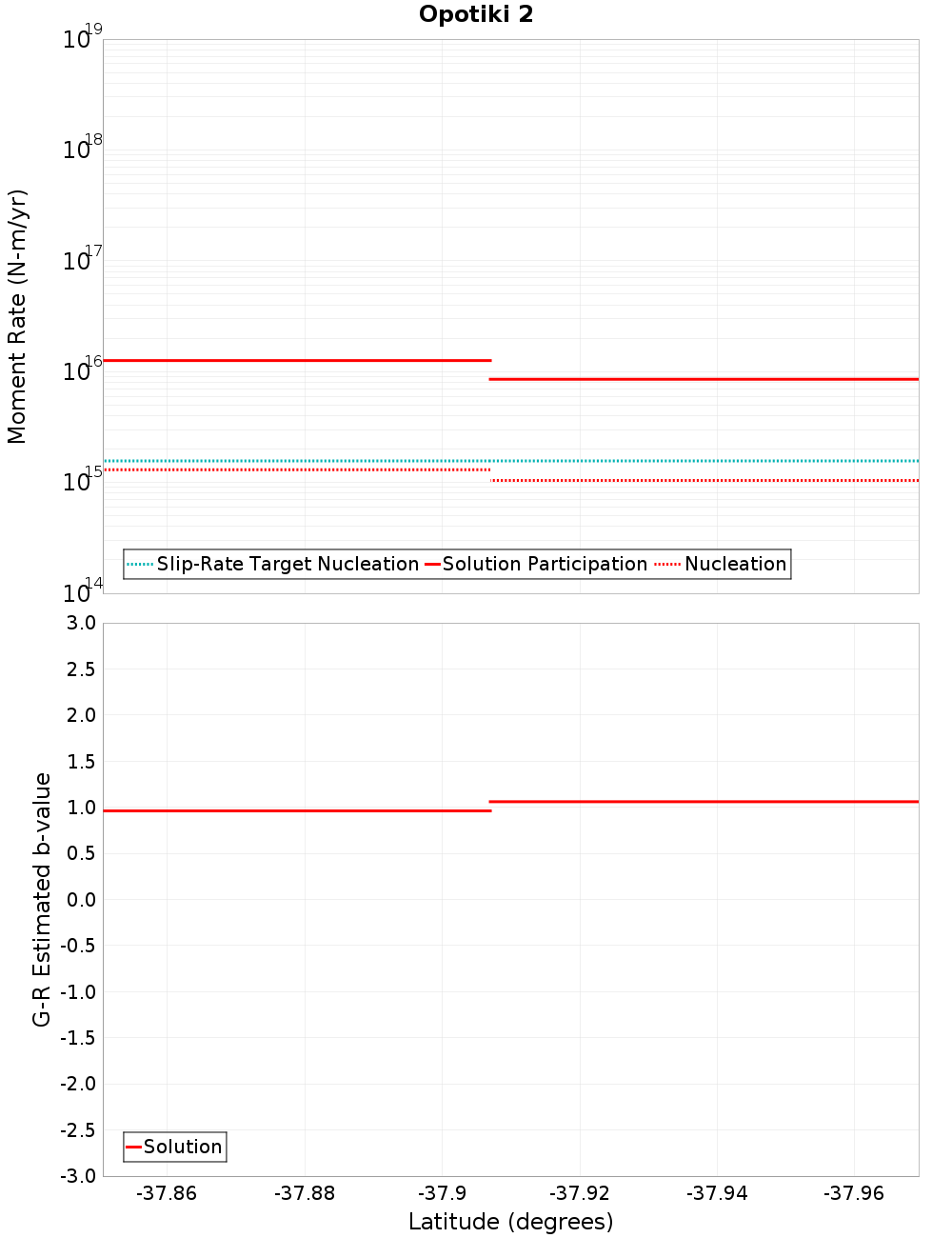

Moment-Rates and b-Values

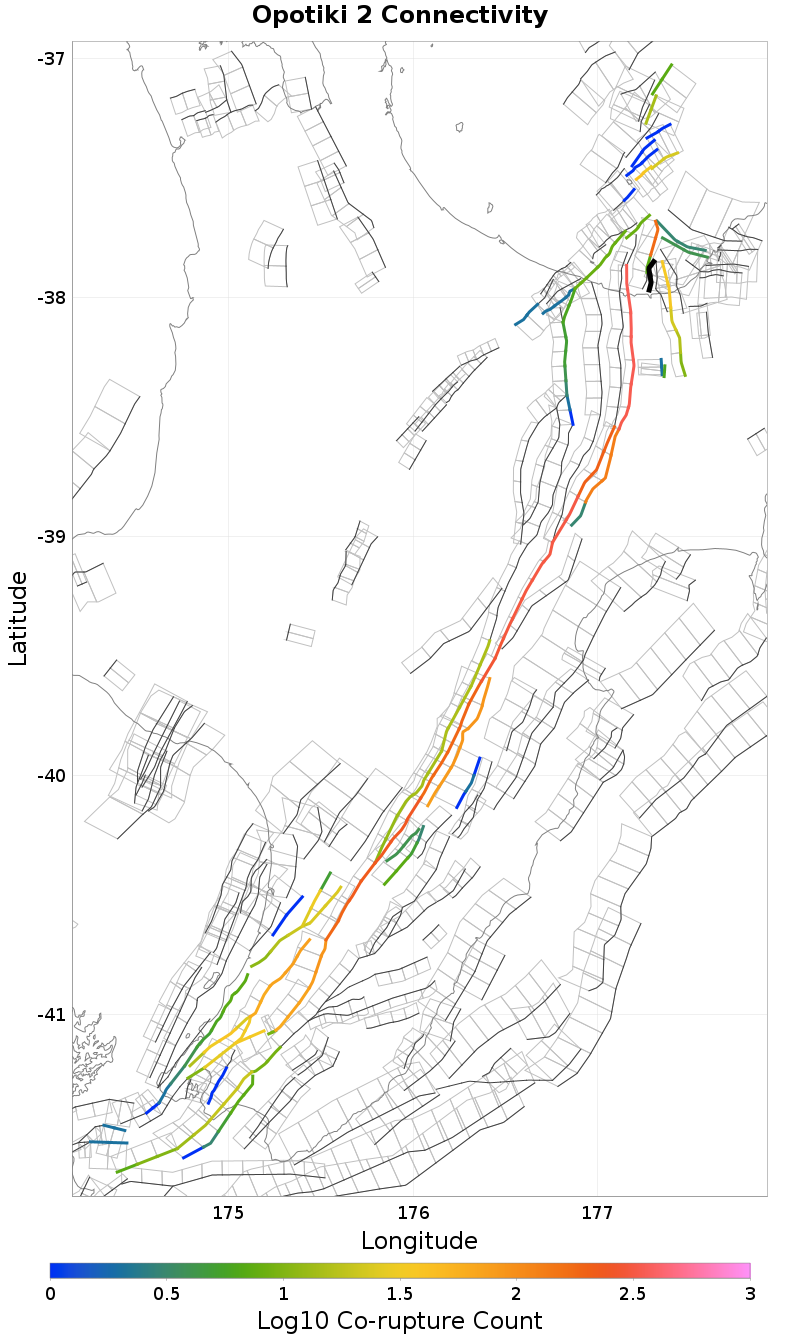

Connectivity

Nearby Sections

Fault Section	Fault Section
Kotare - Moutuhora, 0.14 km away	Ohae 3, 13.74 km away
Ohae 2, 0.15 km away	Raukumara 17, 14.02 km away
Ohae 1, 0.33 km away	Raukumara 18, 14.56 km away
Opotiki 3, 1.03 km away	Motu, 16.34 km away
Tirohanga, 1.15 km away	Motu River, 16.64 km away
Opape 1, 5.57 km away	White Island 2, 16.72 km away
Raukumara 20, 9.96 km away	Raukumara 16, 19.14 km away
Waiotahi: North, 10.14 km away	Ohiwa 1, 19.25 km away
Waimanawa - Waikaremoana, 10.21 km away	White Island 1, 19.47 km away
Waimana: North, 12.2 km away

Kotare - Moutuhora, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMTIuNXR0QzZp
Connected?	true
Directly Connected?	true
Co-rupture Count	35
Co-rupture Rate	5.1632163E-5

Ohae 2, 0.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMTIuNXR0QzZp
Connected?	true
Directly Connected?	false
Co-rupture Count	4
Co-rupture Rate	7.768921E-6

Ohae 1, 0.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMTIuNXR0QzZp
Connected?	true
Directly Connected?	false
Co-rupture Count	3
Co-rupture Rate	0.0

Opotiki 3, 1.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMTIuNXR0QzZp
Connected?	true
Directly Connected?	true
Co-rupture Count	175
Co-rupture Rate	7.768921E-6

Tirohanga, 1.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMTIuNXR0QzZp
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Opape 1, 5.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMTIuNXR0QzZp
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Raukumara 20, 9.96 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMTIuNXR0QzZp
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waiotahi: North, 10.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMTIuNXR0QzZp
Connected?	true
Directly Connected?	true
Co-rupture Count	355
Co-rupture Rate	0.0

Waimanawa - Waikaremoana, 10.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMTIuNXR0QzZp
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waimana: North, 12.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMTIuNXR0QzZp
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ohae 3, 13.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMTIuNXR0QzZp
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Raukumara 17, 14.02 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMTIuNXR0QzZp
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Raukumara 18, 14.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMTIuNXR0QzZp
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Motu, 16.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMTIuNXR0QzZp
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Motu River, 16.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMTIuNXR0QzZp
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

White Island 2, 16.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMTIuNXR0QzZp
Connected?	true
Directly Connected?	false
Co-rupture Count	8
Co-rupture Rate	0.0

Raukumara 16, 19.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMTIuNXR0QzZp
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ohiwa 1, 19.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMTIuNXR0QzZp
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

White Island 1, 19.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMTIuNXR0QzZp
Connected?	true
Directly Connected?	false
Co-rupture Count	8
Co-rupture Rate	0.0
