Timaru Creek Details
| Property | Value |
|---|---|
| Rupture Count | 630 |
| Ruptures Above Sect Min Mag | 629 |
| Ruptures w/ Nonzero Rates | 7 |
| Magnitude Range | [6.99, 8.32] |
| Length Range | [19, 324] km |
| Total Rate | 4.1120034E-5 /yr |
| Multi-Fault Rate | 1.5352798E-5 /yr (37.34%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 29 |
Table Of Contents

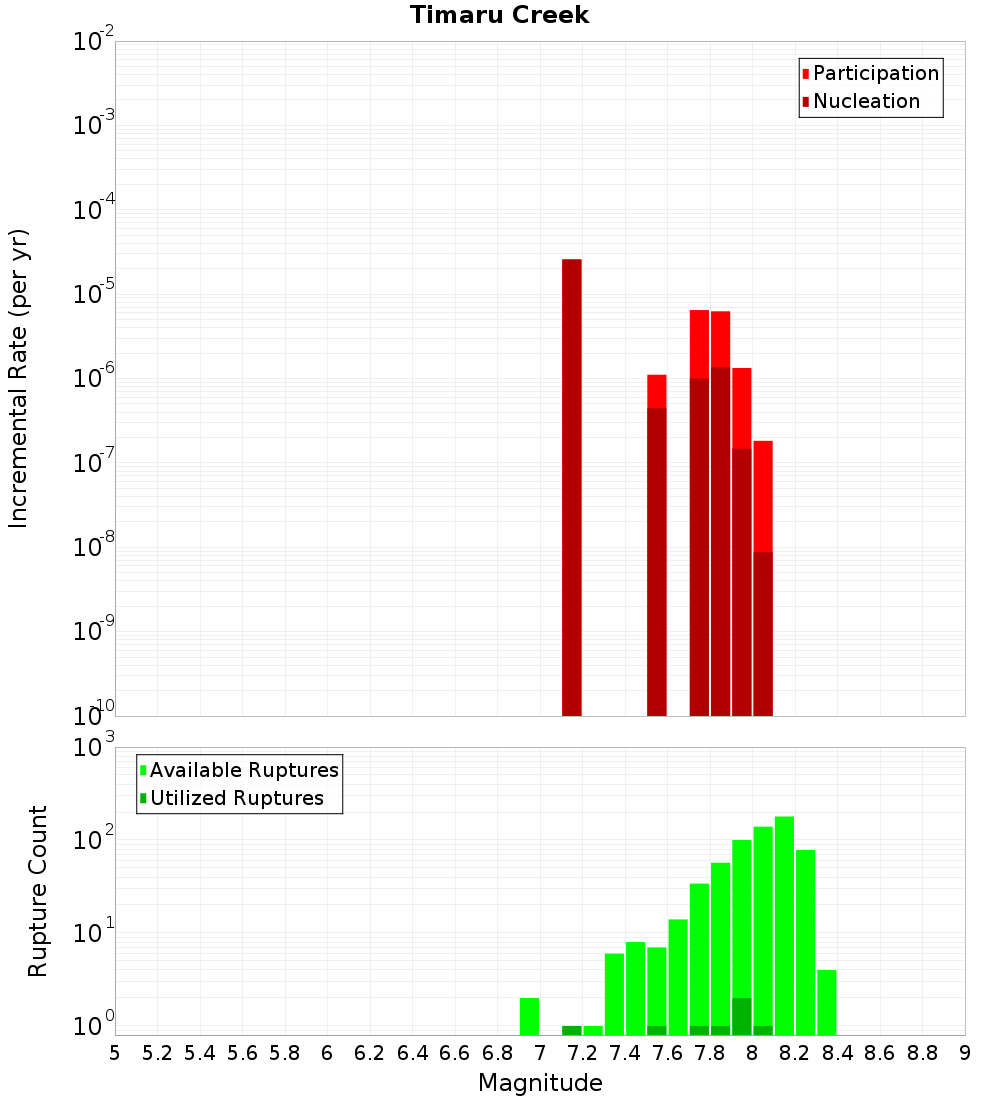

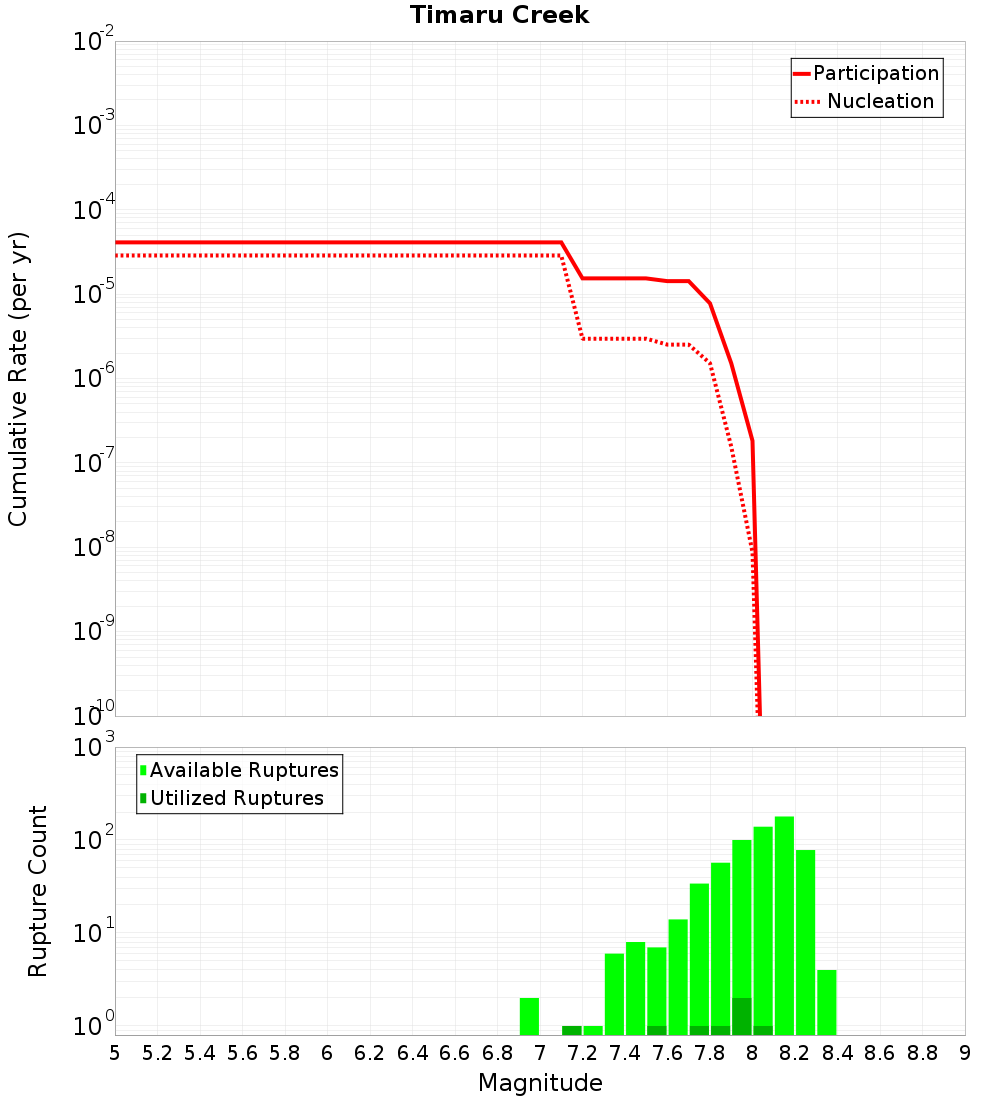

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

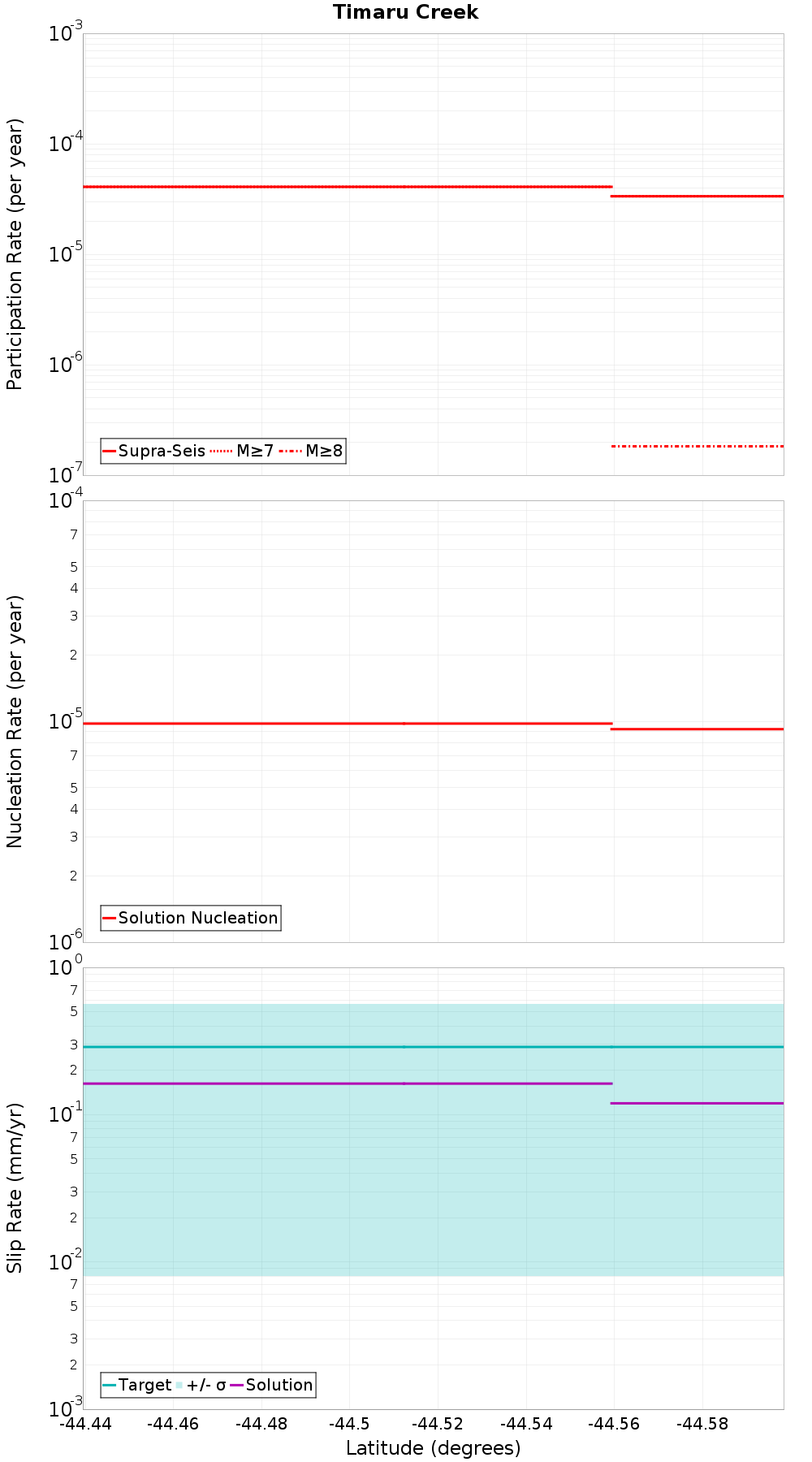

Along-Strike Values

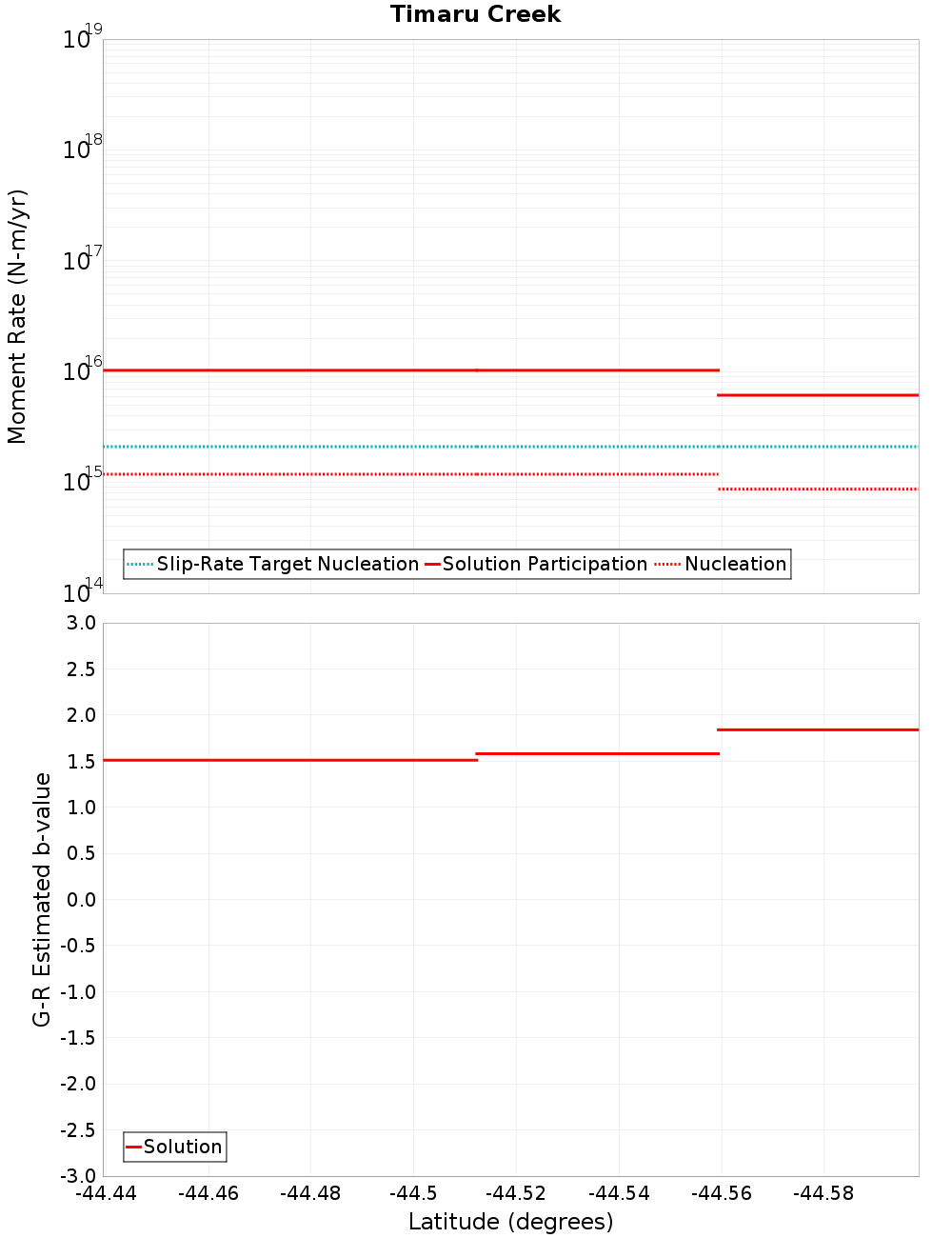

Moment-Rates and b-Values

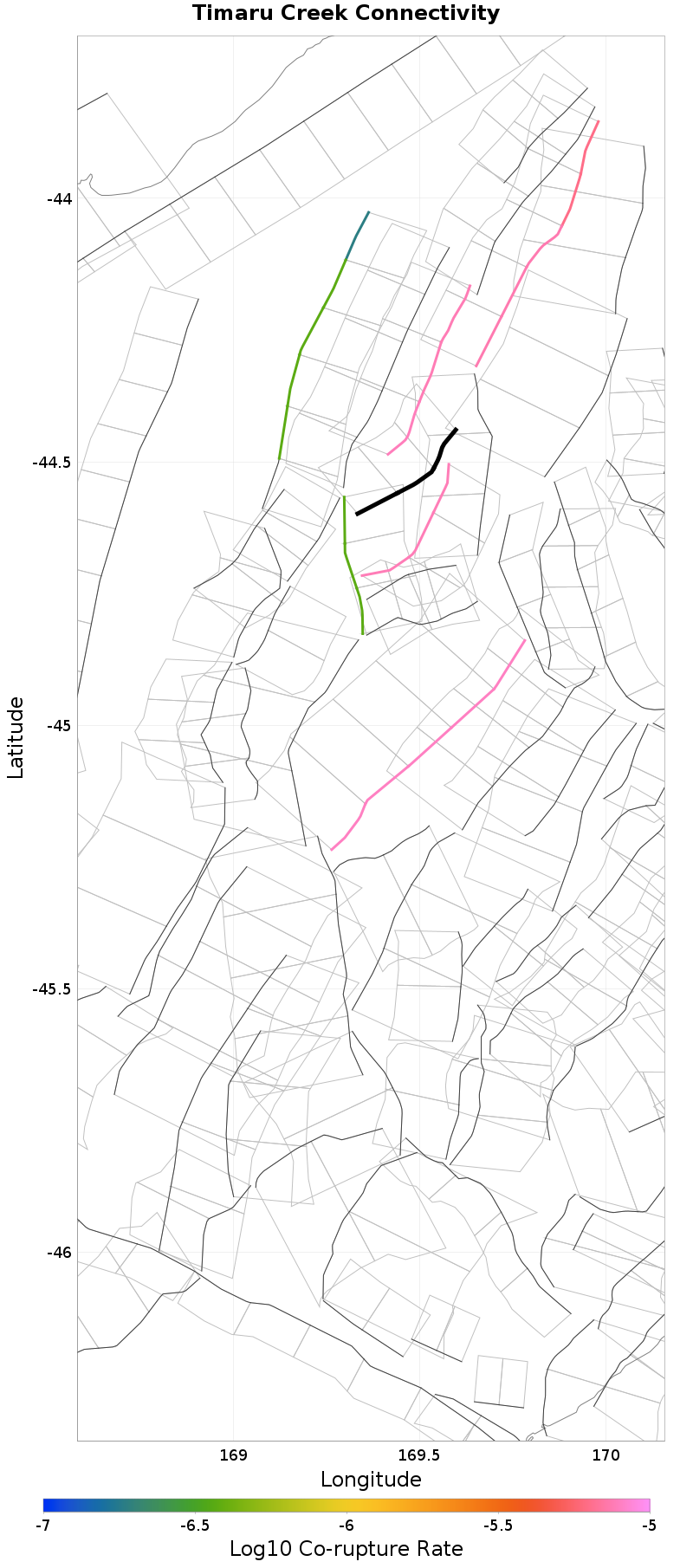

Connectivity
 |  |
|---|
Nearby Sections
Dromedary, 0.12 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMTIuNXR0QzZp | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 133 |
| Co-rupture Rate | 0.0 |
Grandview, 0.3 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMTIuNXR0QzZp | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 554 |
| Co-rupture Rate | 3.6913238E-7 |
Wanaka, 0.46 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMTIuNXR0QzZp | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 228 |
| Co-rupture Rate | 3.6913238E-7 |
Lindis River, 2.49 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMTIuNXR0QzZp | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 63 |
| Co-rupture Rate | 7.6161236E-6 |
Cardrona - Hawea, 4.34 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMTIuNXR0QzZp | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 2 |
| Co-rupture Rate | 0.0 |
Dingle, 4.92 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMTIuNXR0QzZp | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 328 |
| Co-rupture Rate | 7.919242E-6 |
Hunter Valley, 4.93 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMTIuNXR0QzZp | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Motatapu, 7.02 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMTIuNXR0QzZp | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 4 |
| Co-rupture Rate | 0.0 |
Barrier Range, 9.19 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMTIuNXR0QzZp | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 201 |
| Co-rupture Rate | 7.404419E-6 |
Ostler South, 9.79 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMTIuNXR0QzZp | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Goodger, 16.27 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMTIuNXR0QzZp | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 3 |
| Co-rupture Rate | 0.0 |
Blue Lake, 18.94 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMTIuNXR0QzZp | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
NW Cardrona North, 19.19 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMTIuNXR0QzZp | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
