Waverley - Okaia 1 Details
| Property | Value |
|---|---|
| Rupture Count | 31 |
| Ruptures Above Sect Min Mag | 30 |
| Ruptures w/ Nonzero Rates | 3 |
| Magnitude Range | [7.31, 7.98] |
| Length Range | [29, 143] km |
| Total Rate | 5.562566E-6 /yr |
| Multi-Fault Rate | 5.562566E-6 /yr (100.00%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 7 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

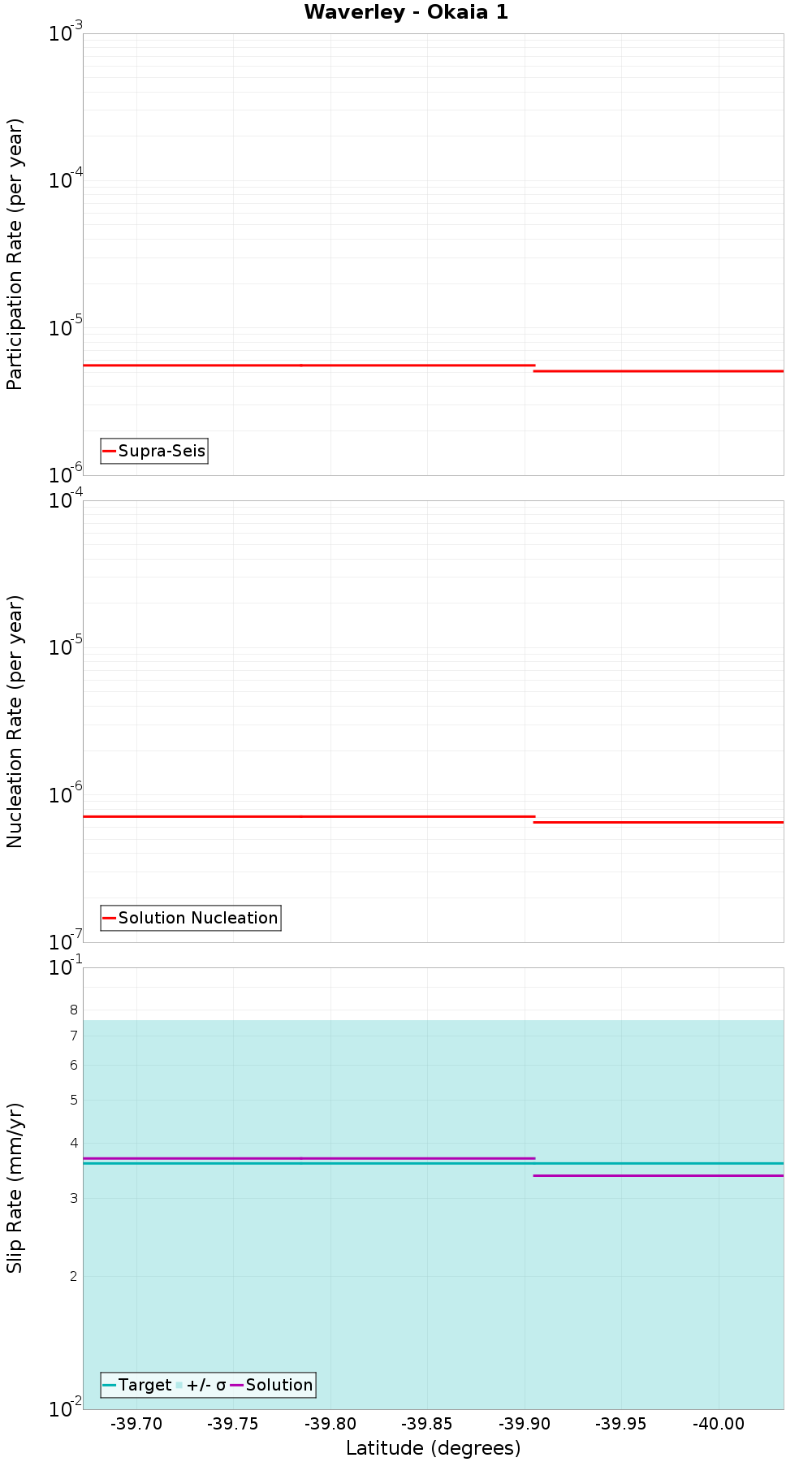

Along-Strike Values
Moment-Rates and b-Values

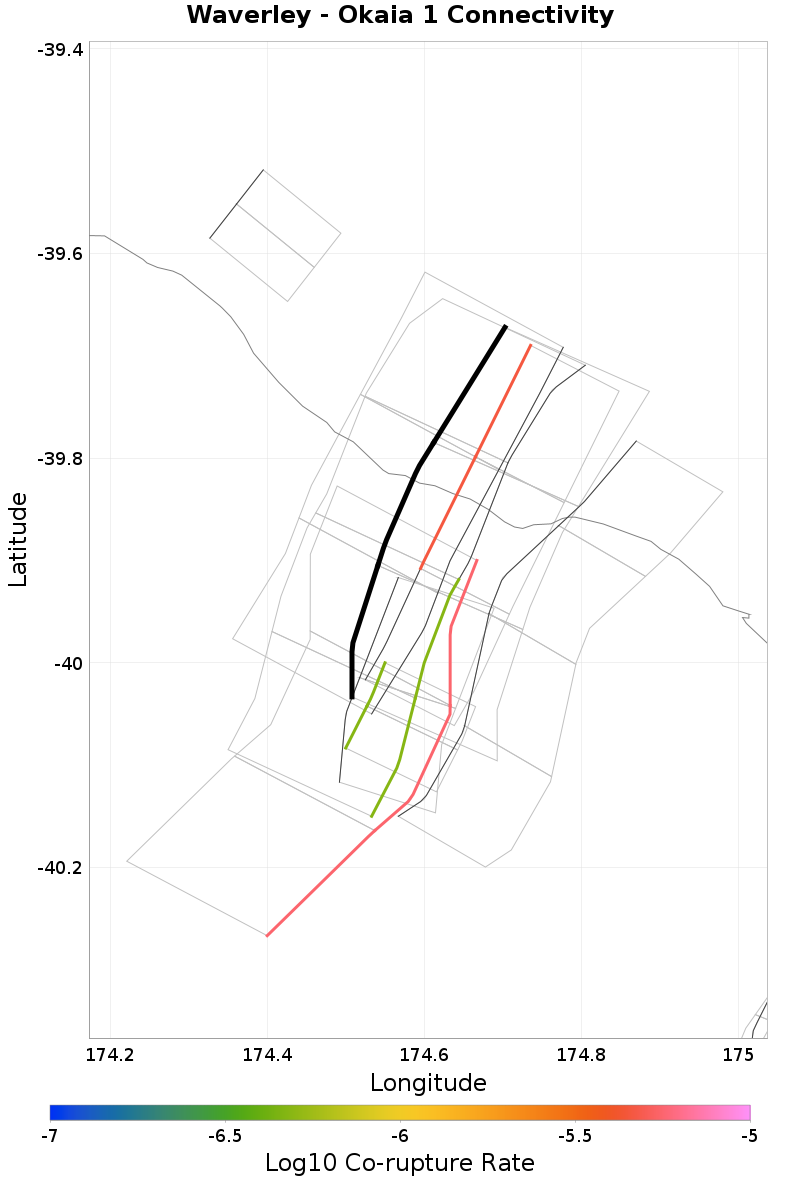

Connectivity
 |  |
|---|
Nearby Sections
Ridge Road - Okaia 2, 0.04 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMTIuNXR0QzZp | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3 |
| Co-rupture Rate | 0.0 |
Moumahaki - Okaia 4, 0.07 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMTIuNXR0QzZp | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 16 |
| Co-rupture Rate | 4.5823085E-6 |
Okaia 5, 0.09 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMTIuNXR0QzZp | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
Waitotara 8 & 9, 0.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMTIuNXR0QzZp | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 12 |
| Co-rupture Rate | 5.562566E-6 |
Waitotara 10 & 11, 0.14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMTIuNXR0QzZp | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 10 |
| Co-rupture Rate | 4.783975E-7 |
Okaia 3, 0.16 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMTIuNXR0QzZp | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 9 |
| Co-rupture Rate | 4.783975E-7 |
Nukumuru - Waitotara 1-6, 5.72 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMTIuNXR0QzZp | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
