Kekerengu Bank Details

PropertyValue
Rupture Count7,820
Ruptures Above Sect Min Mag7,799
Ruptures w/ Nonzero Rates288
Magnitude Range[6.80, 8.61]
Length Range[17, 967] km
Total Rate6.7597633E-4 /yr
Multi-Fault Rate6.670273E-4 /yr (98.68%)
Directly-Connected Faults9
All Co-Rupturing Faults64

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

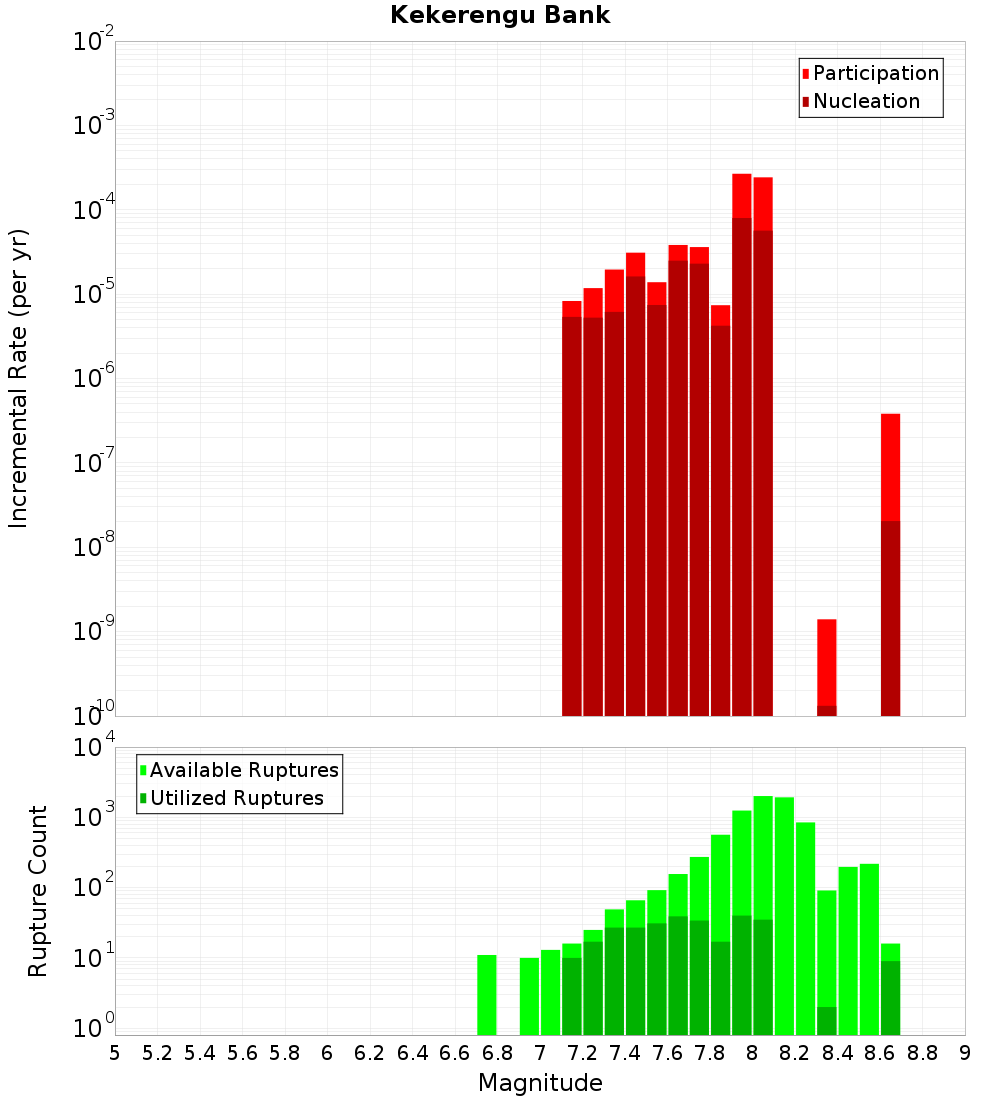

Incremental PlotCumulative Plot

Along-Strike Values

(top)

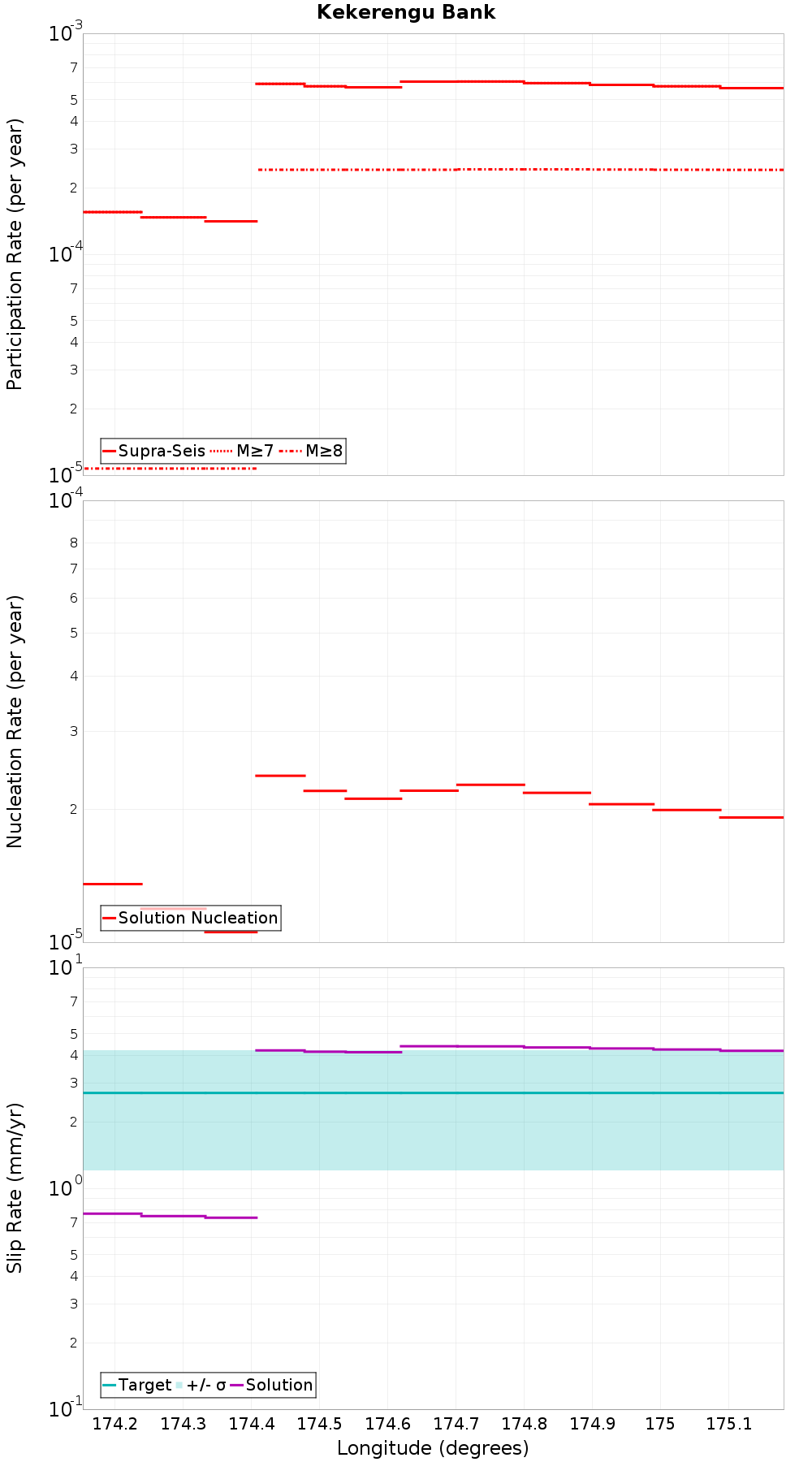

Along-strike plot

Moment-Rates and b-Values

(top)

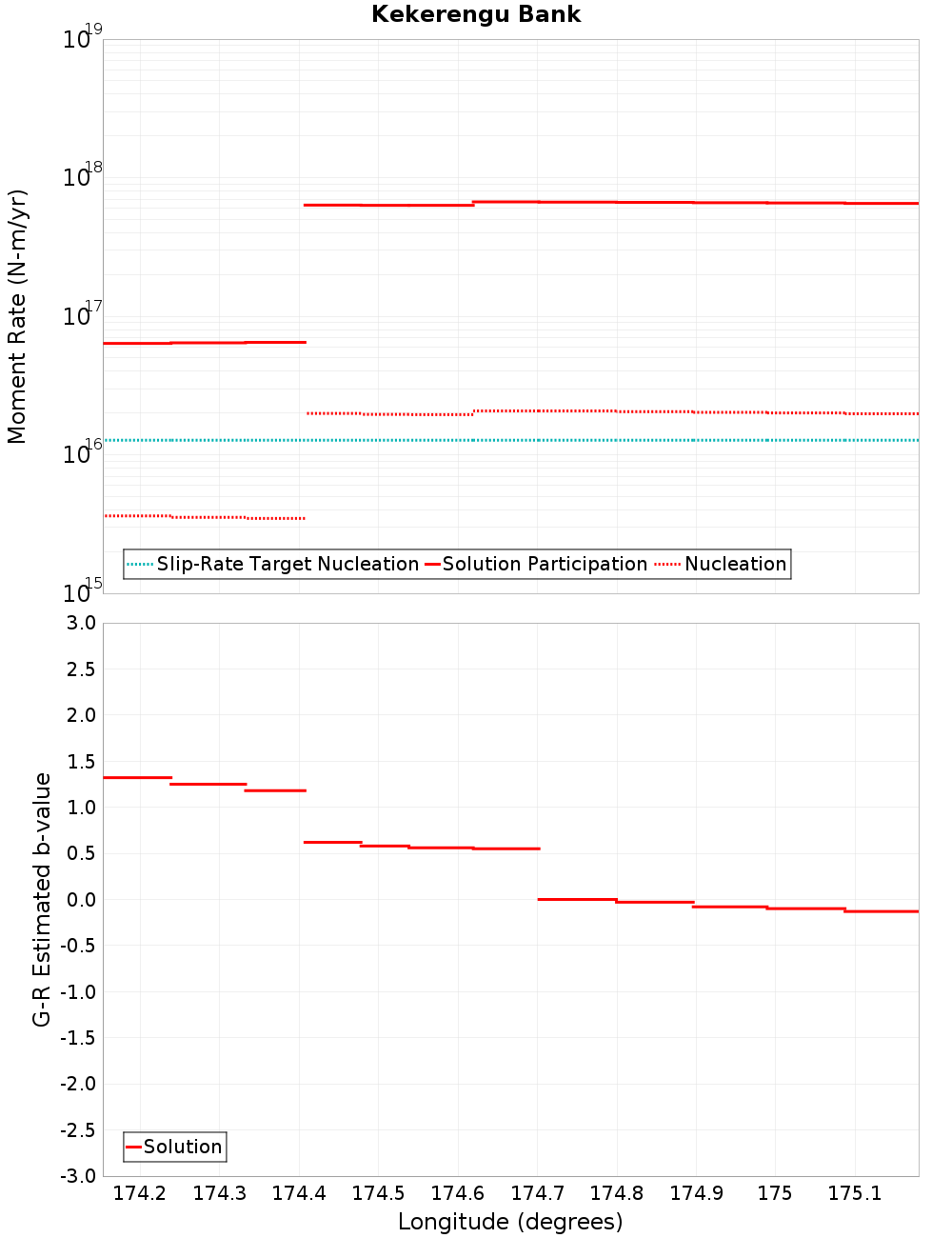

Along-strike plot

Connectivity

(top)

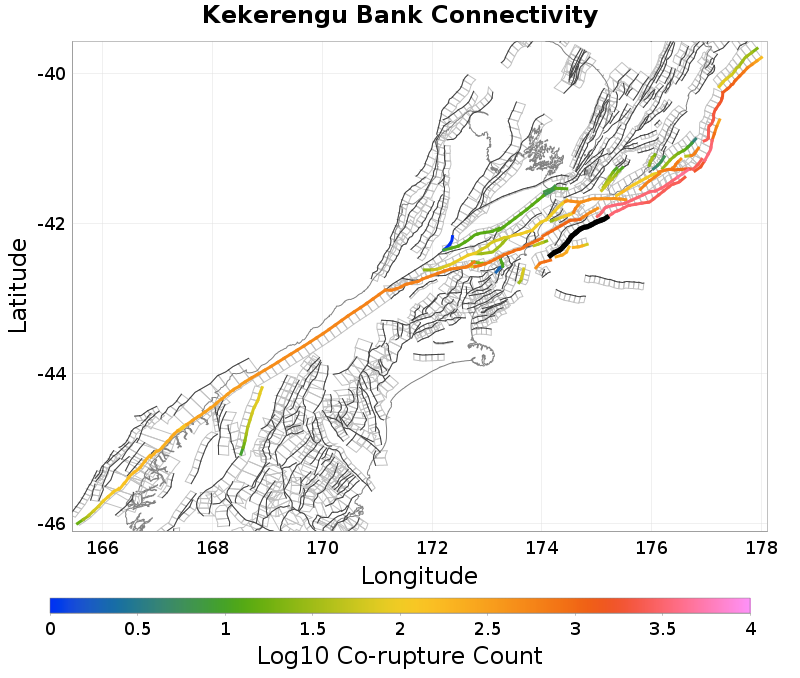

MapMap

Nearby Sections

(top)

Fault Section
Pahaua, 0 km away
Te Rapa 1, 3.06 km away
Marlborough Slope 2, 4.37 km away
Marlborough Slope 4, 4.72 km away
Te Rapa 2, 4.95 km away
Opouawe - Uruti, 5.25 km away
Upper Slope, 5.98 km away
Kaikoura - Mangamaunu, 7.75 km away
Campbell Bank, 8.08 km away
Hope: Te Rapa, 8.98 km away
Marlborough Slope 3, 10.31 km away
Chancet, 15.35 km away
Hope: Seaward, 17.14 km away
Wharanui, 17.38 km away
London Hill, 19.94 km away

Pahaua, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzEuMHRnSmI2
Connected?true
Directly Connected?true
Co-rupture Count3,508
Co-rupture Rate4.8106752E-4

Te Rapa 1, 3.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzEuMHRnSmI2
Connected?true
Directly Connected?true
Co-rupture Count1,131
Co-rupture Rate3.852493E-7

Marlborough Slope 2, 4.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzEuMHRnSmI2
Connected?true
Directly Connected?true
Co-rupture Count868
Co-rupture Rate1.1556276E-4

Marlborough Slope 4, 4.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzEuMHRnSmI2
Connected?true
Directly Connected?true
Co-rupture Count285
Co-rupture Rate4.435046E-5

Te Rapa 2, 4.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzEuMHRnSmI2
Connected?true
Directly Connected?true
Co-rupture Count597
Co-rupture Rate9.757717E-7

Opouawe - Uruti, 5.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzEuMHRnSmI2
Connected?true
Directly Connected?true
Co-rupture Count4,866
Co-rupture Rate6.632409E-5

Upper Slope, 5.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzEuMHRnSmI2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kaikoura - Mangamaunu, 7.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzEuMHRnSmI2
Connected?true
Directly Connected?false
Co-rupture Count47
Co-rupture Rate1.7954413E-5

Campbell Bank, 8.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzEuMHRnSmI2
Connected?true
Directly Connected?true
Co-rupture Count632
Co-rupture Rate8.137279E-6

Hope: Te Rapa, 8.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzEuMHRnSmI2
Connected?true
Directly Connected?true
Co-rupture Count1,112
Co-rupture Rate4.8448993E-7

Marlborough Slope 3, 10.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzEuMHRnSmI2
Connected?true
Directly Connected?true
Co-rupture Count212
Co-rupture Rate3.2969056E-5

Chancet, 15.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzEuMHRnSmI2
Connected?true
Directly Connected?false
Co-rupture Count123
Co-rupture Rate5.8282157E-9

Hope: Seaward, 17.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzEuMHRnSmI2
Connected?true
Directly Connected?false
Co-rupture Count950
Co-rupture Rate3.8522342E-7

Wharanui, 17.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzEuMHRnSmI2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

London Hill, 19.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzEuMHRnSmI2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
