Kirkliston Details

PropertyValue
Rupture Count171
Ruptures Above Sect Min Mag168
Ruptures w/ Nonzero Rates42
Magnitude Range[6.98, 8.01]
Length Range[19, 199] km
Total Rate3.3610406E-5 /yr
Multi-Fault Rate2.7520371E-5 /yr (81.88%)
Directly-Connected Faults5
All Co-Rupturing Faults14

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

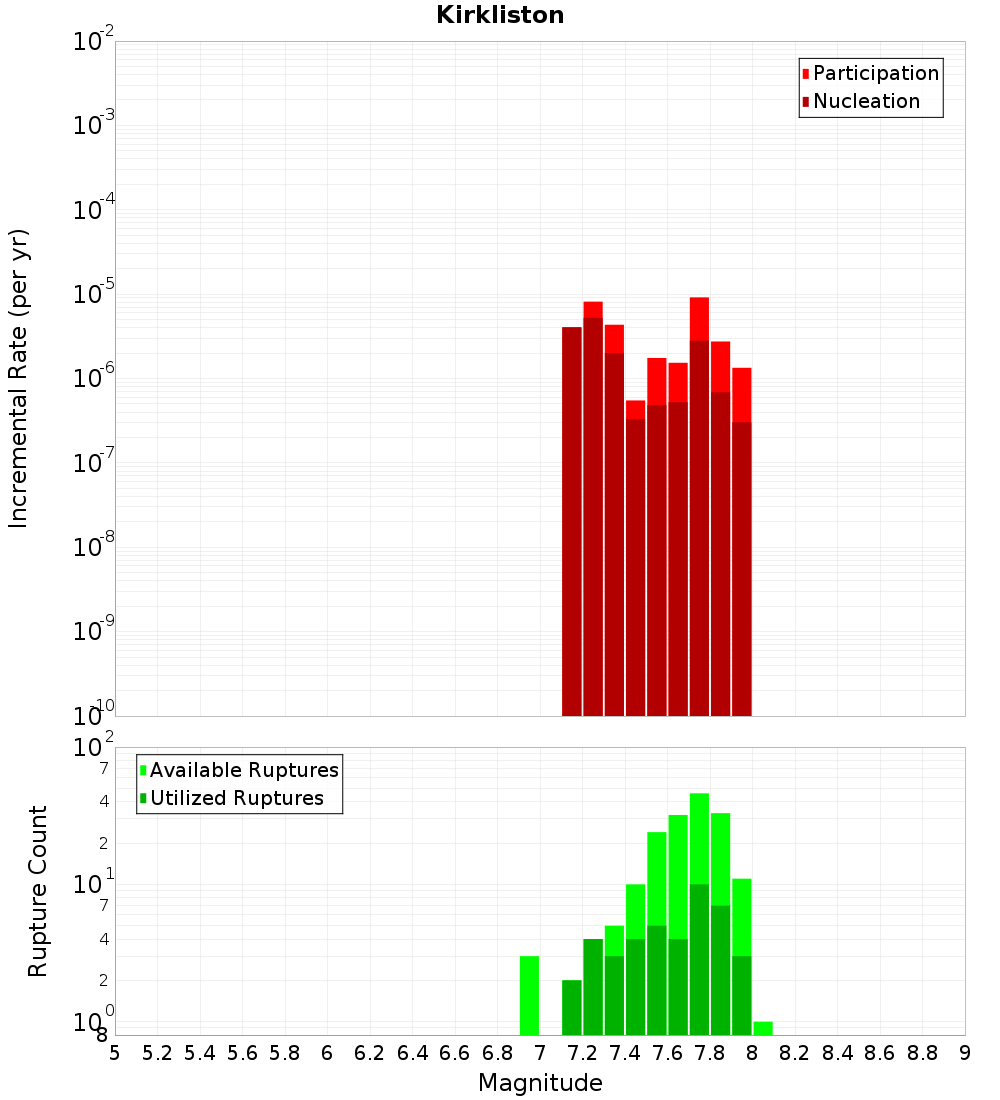

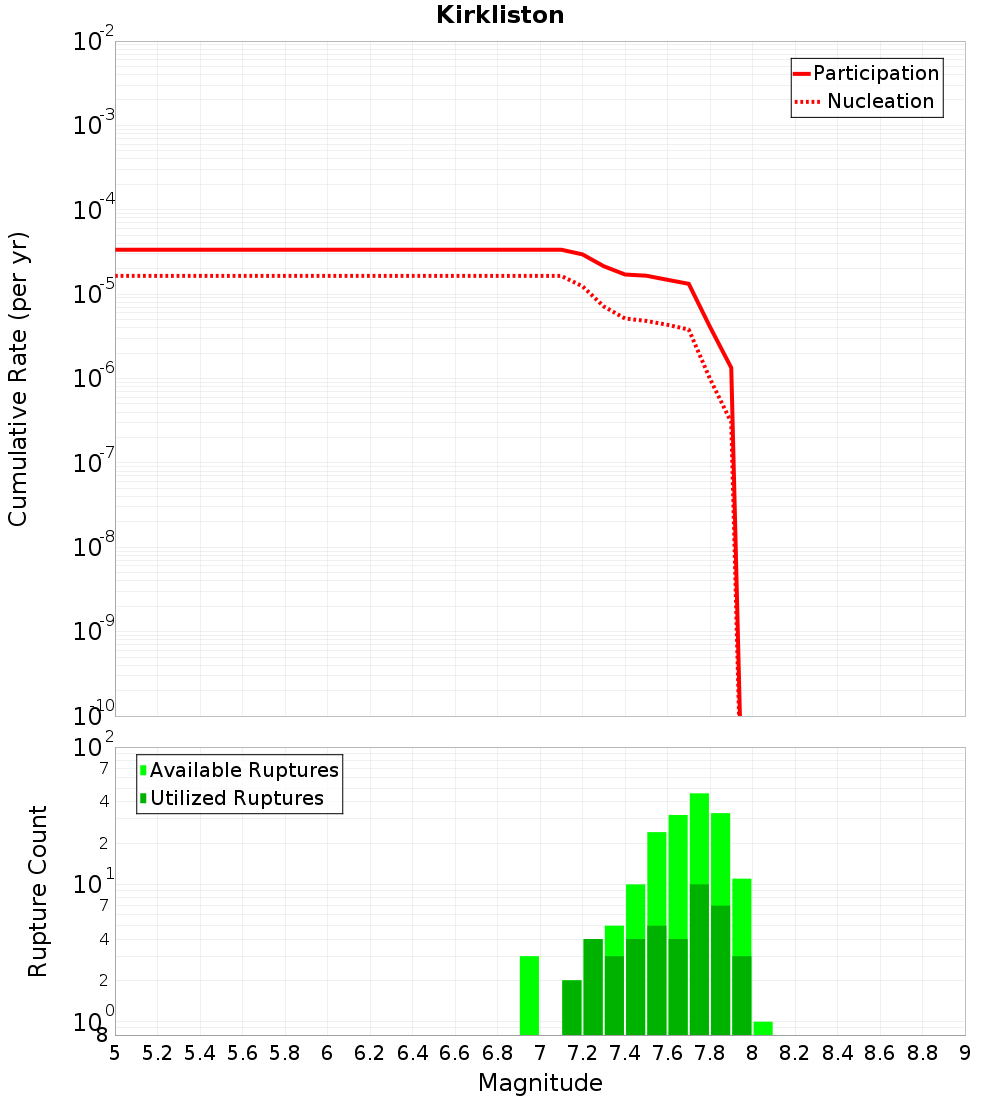

Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Dryburgh, 0.12 km away
Middle Range, 0.33 km away
Dalgety, 1.1 km away
Waitangi, 1.41 km away
Stonewall, 1.94 km away
Fern Gully, 3.19 km away
Grampian, 4.67 km away
Awahokomo, 5.59 km away
Campbell Hills, 6.26 km away
Mt Sutton, 9.08 km away
Chamberlain, 9.49 km away
Hunters, 14.9 km away
Gibson, 14.93 km away
Black Hill, 17.29 km away
Albury, 19.57 km away

Dryburgh, 0.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzEuMHRnSmI2
Connected?true
Directly Connected?true
Co-rupture Count26
Co-rupture Rate9.339468E-6

Middle Range, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzEuMHRnSmI2
Connected?true
Directly Connected?true
Co-rupture Count39
Co-rupture Rate4.977003E-6

Dalgety, 1.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzEuMHRnSmI2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waitangi, 1.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzEuMHRnSmI2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Stonewall, 1.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzEuMHRnSmI2
Connected?true
Directly Connected?true
Co-rupture Count102
Co-rupture Rate6.465811E-6

Fern Gully, 3.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzEuMHRnSmI2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Grampian, 4.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzEuMHRnSmI2
Connected?true
Directly Connected?true
Co-rupture Count96
Co-rupture Rate9.567159E-6

Awahokomo, 5.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzEuMHRnSmI2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Campbell Hills, 6.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzEuMHRnSmI2
Connected?true
Directly Connected?true
Co-rupture Count18
Co-rupture Rate6.4012443E-6

Mt Sutton, 9.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzEuMHRnSmI2
Connected?true
Directly Connected?false
Co-rupture Count25
Co-rupture Rate9.844263E-7

Chamberlain, 9.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzEuMHRnSmI2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hunters, 14.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzEuMHRnSmI2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Gibson, 14.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzEuMHRnSmI2
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Black Hill, 17.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzEuMHRnSmI2
Connected?true
Directly Connected?false
Co-rupture Count26
Co-rupture Rate2.0304897E-7

Albury, 19.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzEuMHRnSmI2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
