Puketerata Details

Property	Value
Rupture Count	3,620
Ruptures Above Sect Min Mag	3,345
Ruptures w/ Nonzero Rates	9
Magnitude Range	[6.34, 7.84]
Length Range	[10, 214] km
Total Rate	0.001163062 /yr
Multi-Fault Rate	0.001163062 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	28

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

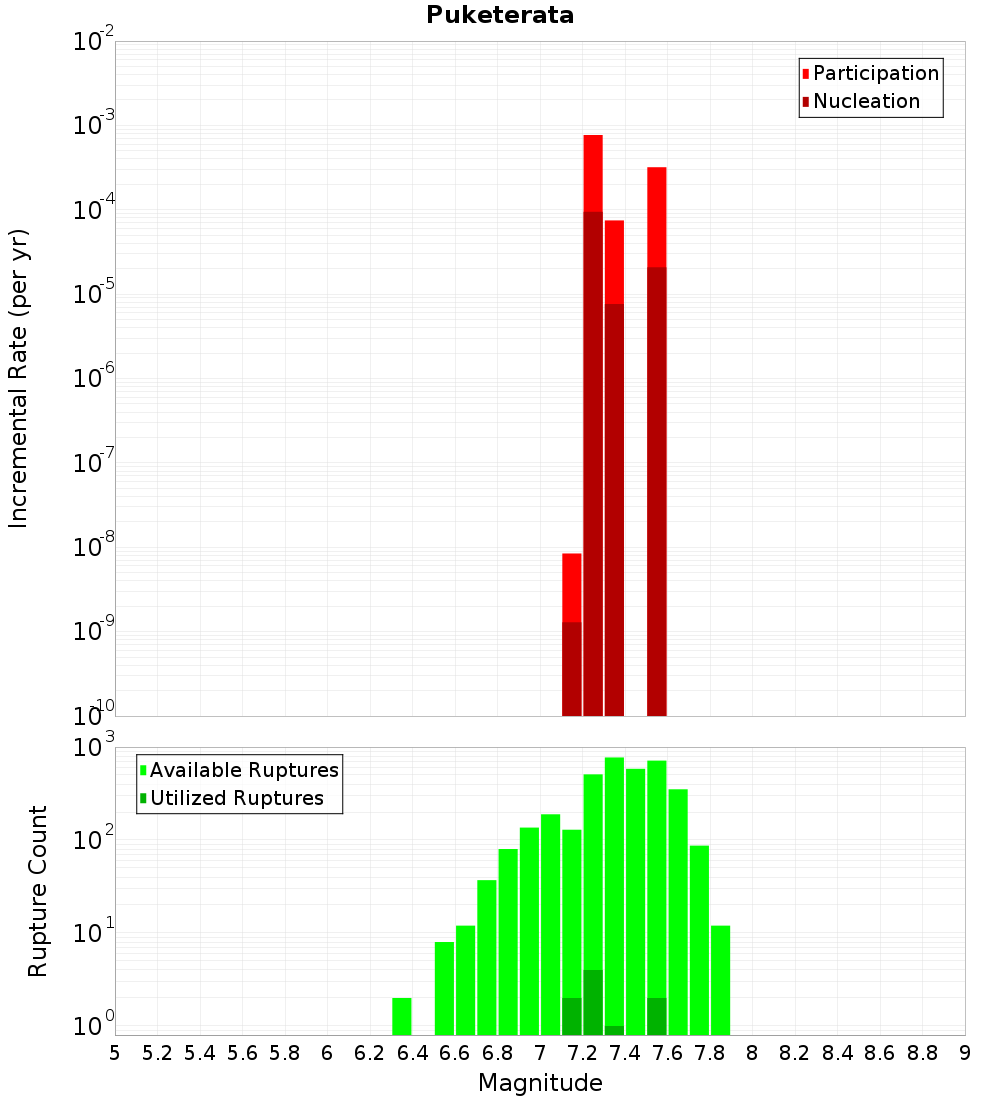

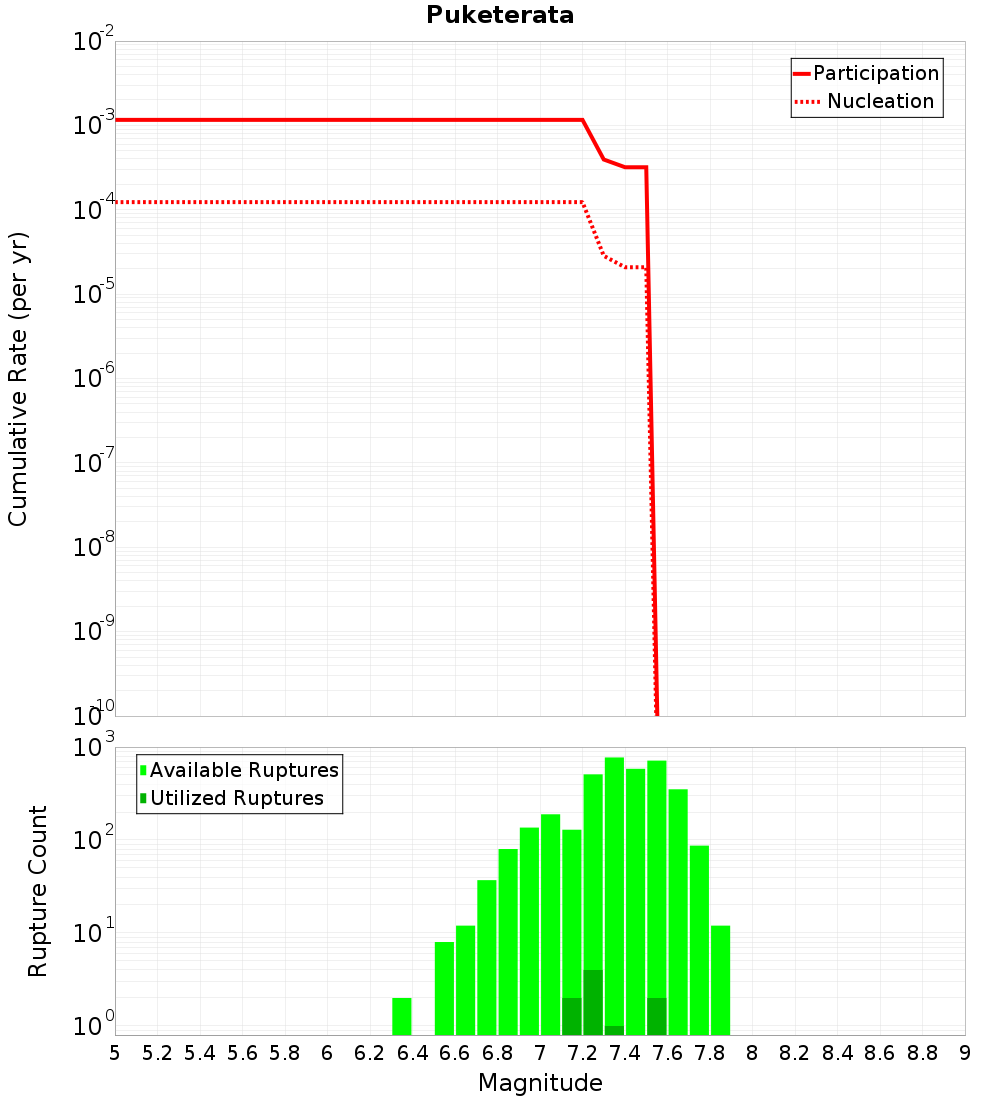

Magnitude-Frequency Distribution

Incremental	Cumulative

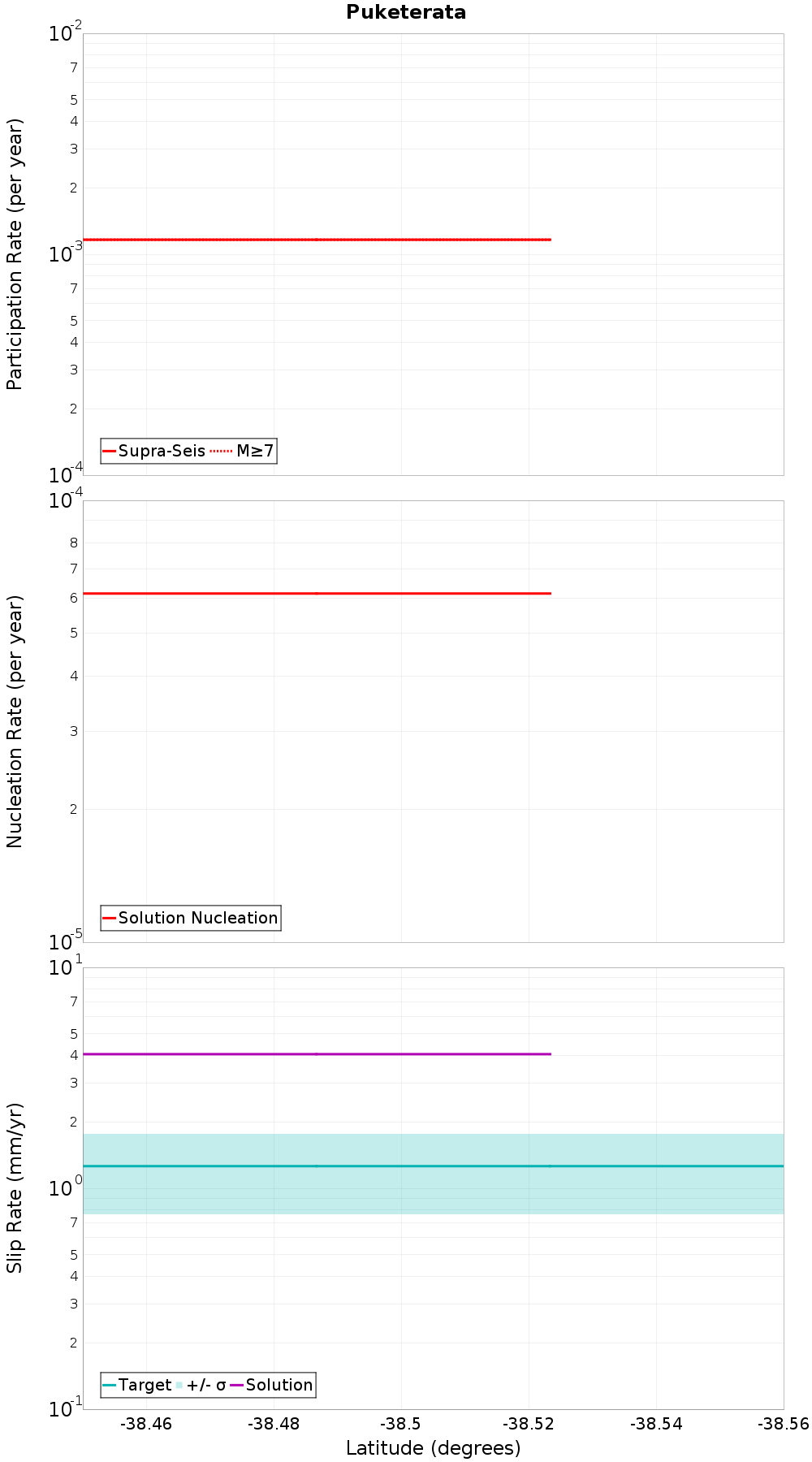

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Puketerata North, 0.1 km away
Whangamata West, 0.12 km away
Orakeikorako, 2.41 km away
Maleme, 3.56 km away
Paeroa, 5.08 km away
Kaiapo, 5.96 km away

Puketerata North, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzEuMHRnSmI2
Connected?	true
Directly Connected?	true
Co-rupture Count	2,007
Co-rupture Rate	7.2166545E-4

Whangamata West, 0.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzEuMHRnSmI2
Connected?	true
Directly Connected?	true
Co-rupture Count	2,339
Co-rupture Rate	6.0673576E-4

Orakeikorako, 2.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzEuMHRnSmI2
Connected?	true
Directly Connected?	true
Co-rupture Count	536
Co-rupture Rate	0.0

Maleme, 3.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzEuMHRnSmI2
Connected?	true
Directly Connected?	true
Co-rupture Count	2,523
Co-rupture Rate	3.192317E-4

Paeroa, 5.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzEuMHRnSmI2
Connected?	true
Directly Connected?	true
Co-rupture Count	1,955
Co-rupture Rate	0.0010091696

Kaiapo, 5.96 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzEuMHRnSmI2
Connected?	true
Directly Connected?	true
Co-rupture Count	537
Co-rupture Rate	6.7321952E-9
