West Balleny Details
| Property | Value |
|---|---|
| Rupture Count | 68 |
| Ruptures Above Sect Min Mag | 30 |
| Ruptures w/ Nonzero Rates | 19 |
| Magnitude Range | [6.59, 7.37] |
| Length Range | [14, 81] km |
| Total Rate | 9.614777E-6 /yr |
| Multi-Fault Rate | 1.26381465E-8 /yr (0.13%) |
| Directly-Connected Faults | 1 |
| All Co-Rupturing Faults | 1 |
Table Of Contents

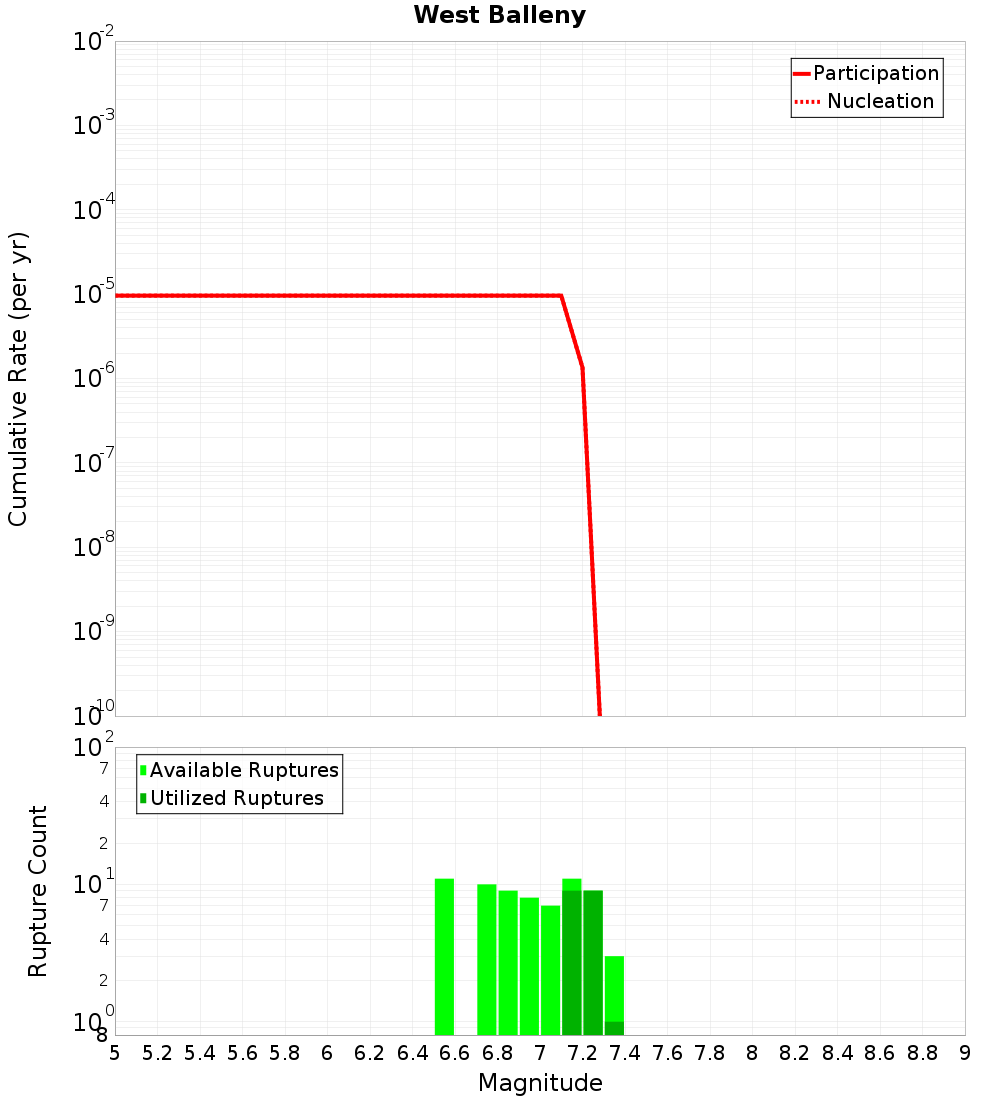

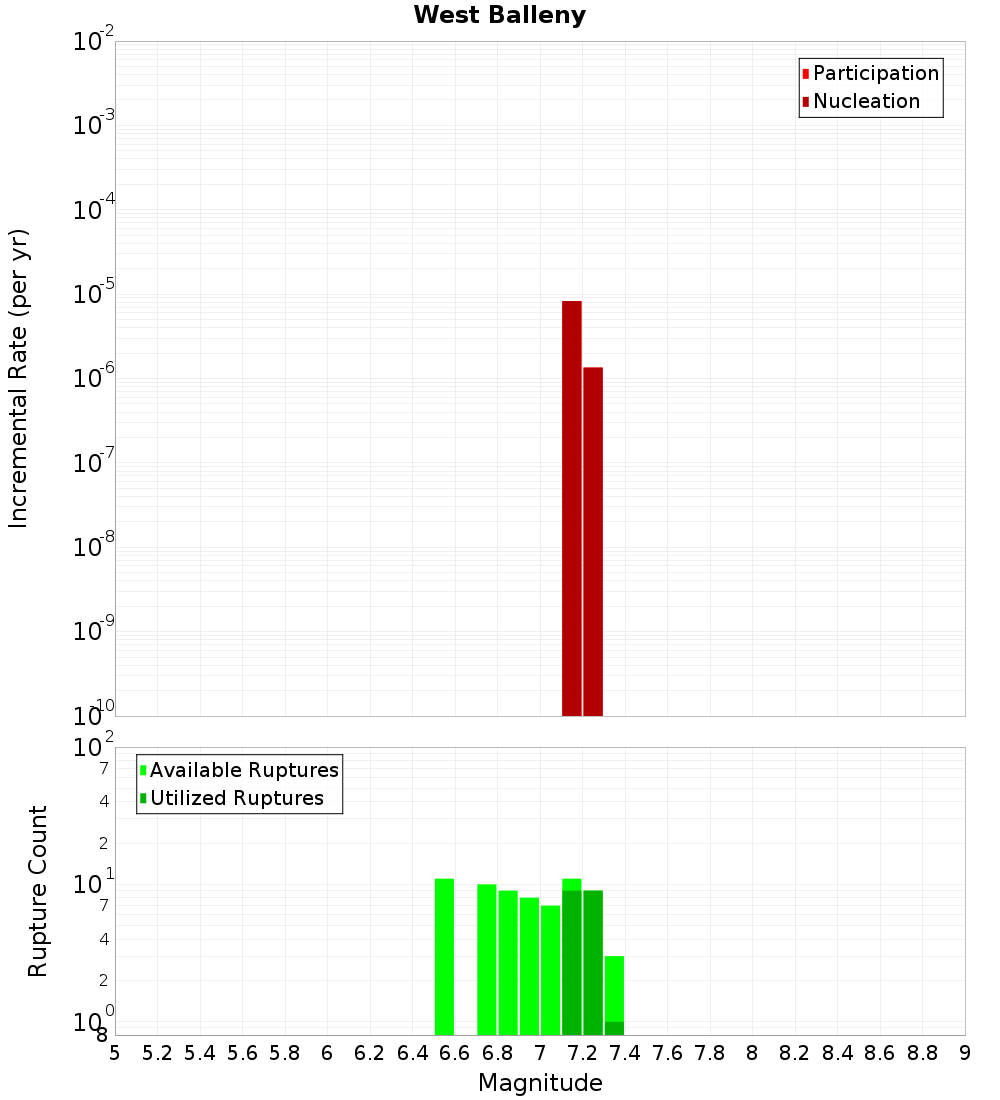

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

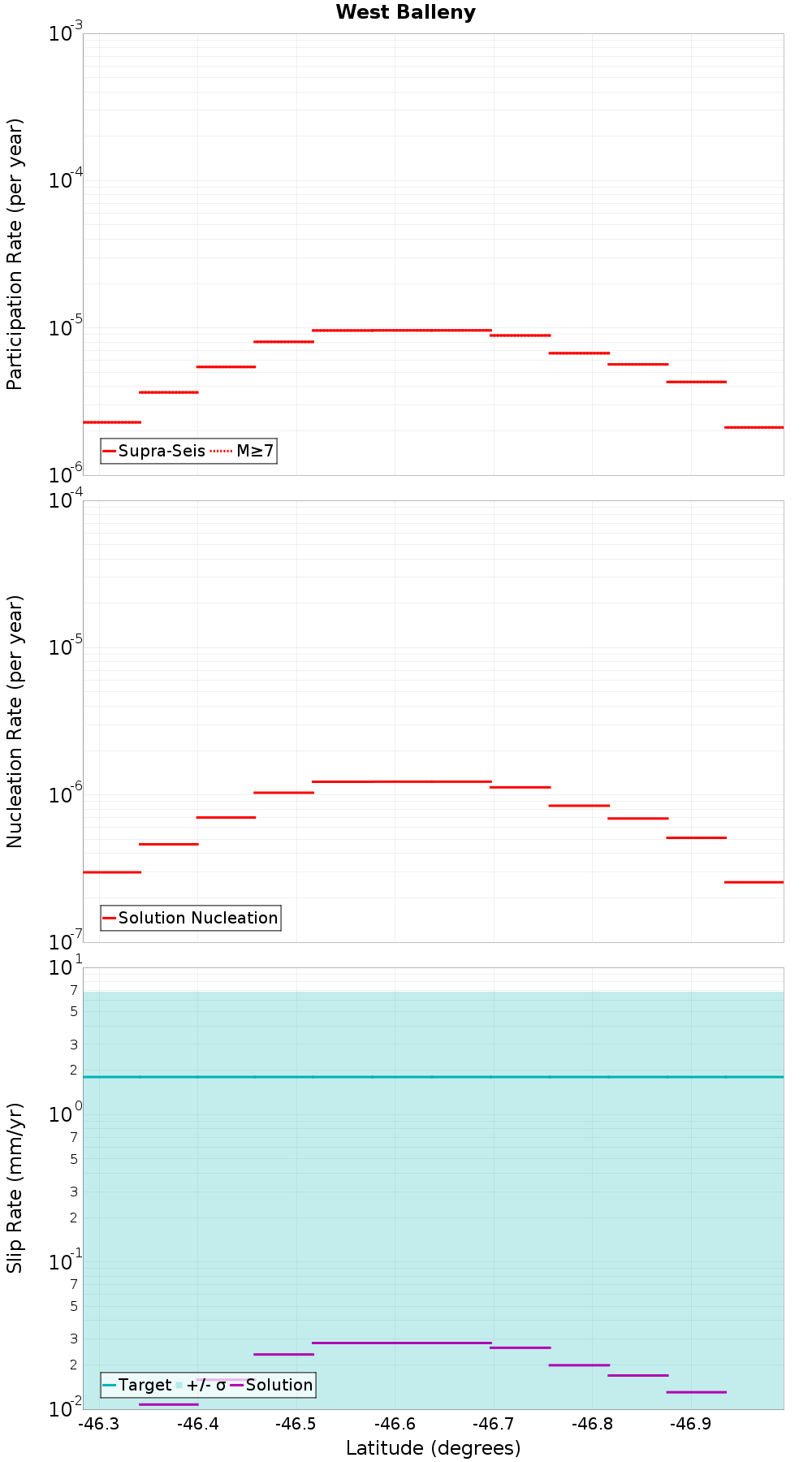

Along-Strike Values
Moment-Rates and b-Values

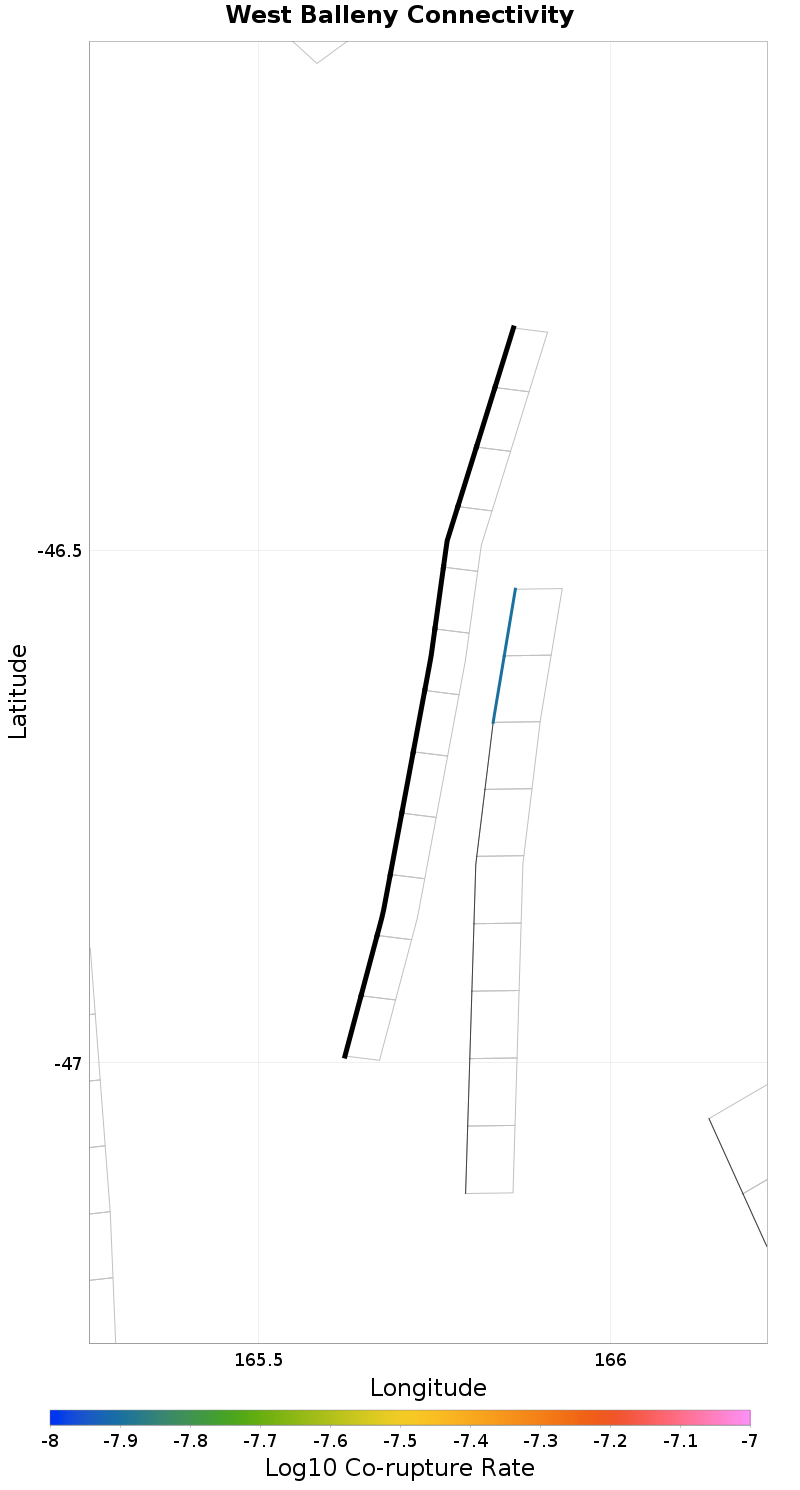

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Central Balleny, 7.57 km away |
Central Balleny, 7.57 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzEuMHRnSmI2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2 |
| Co-rupture Rate | 1.26381465E-8 |
