BooBoo Details

PropertyValue
Rupture Count25,553
Ruptures Above Sect Min Mag25,544
Ruptures w/ Nonzero Rates801
Magnitude Range[6.84, 8.72]
Length Range[18, 1,204] km
Total Rate0.0013920405 /yr
Multi-Fault Rate0.0013905495 /yr (99.89%)
Directly-Connected Faults9
All Co-Rupturing Faults116

Table Of Contents

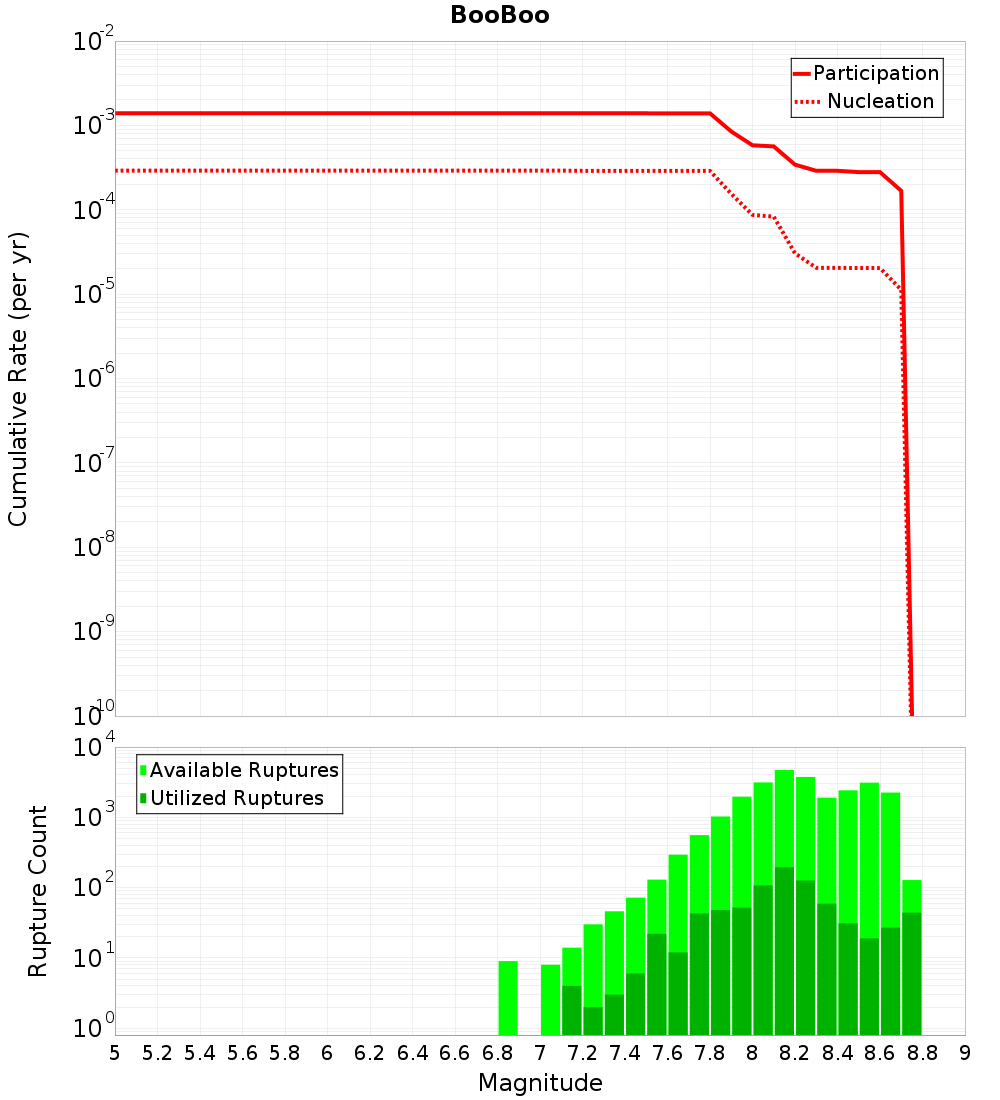

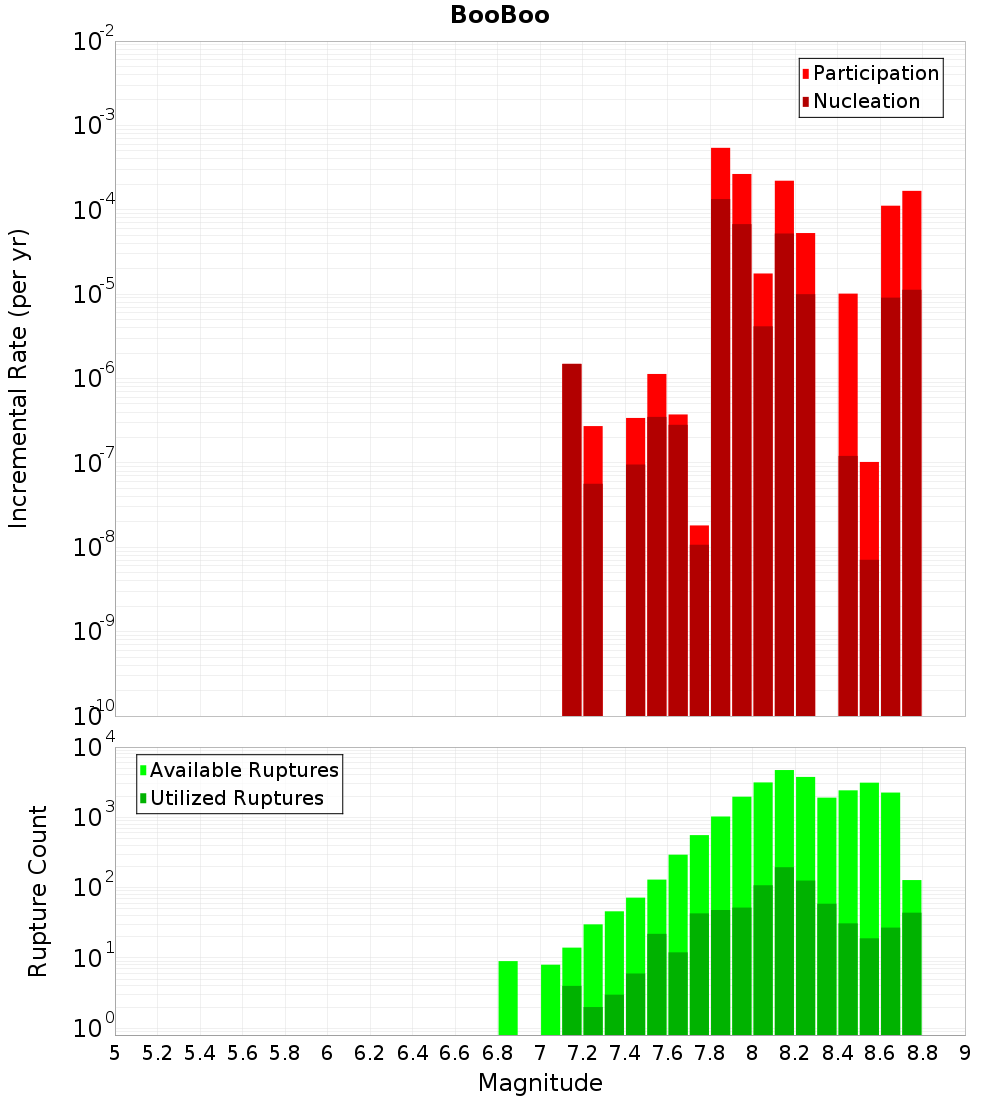

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

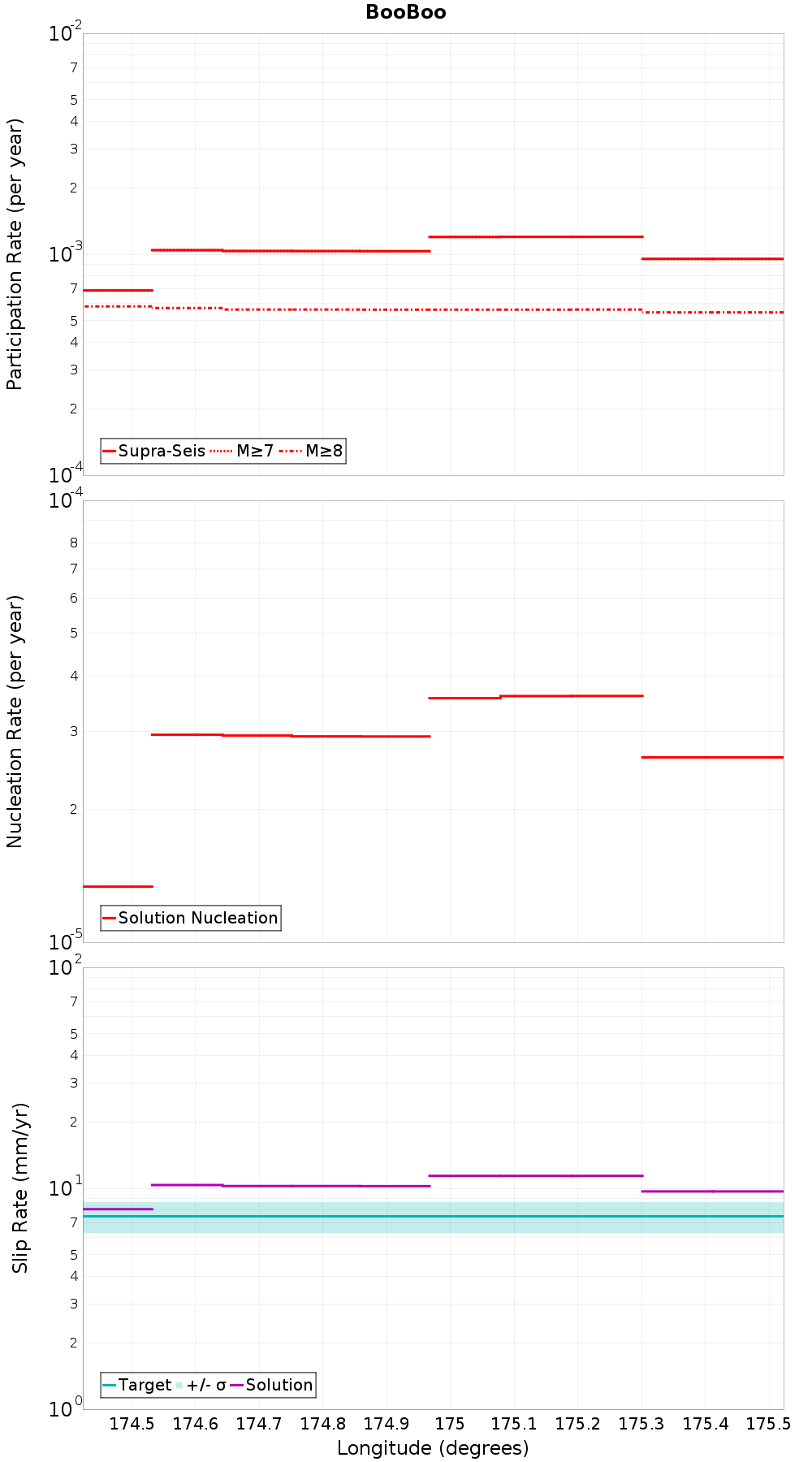

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

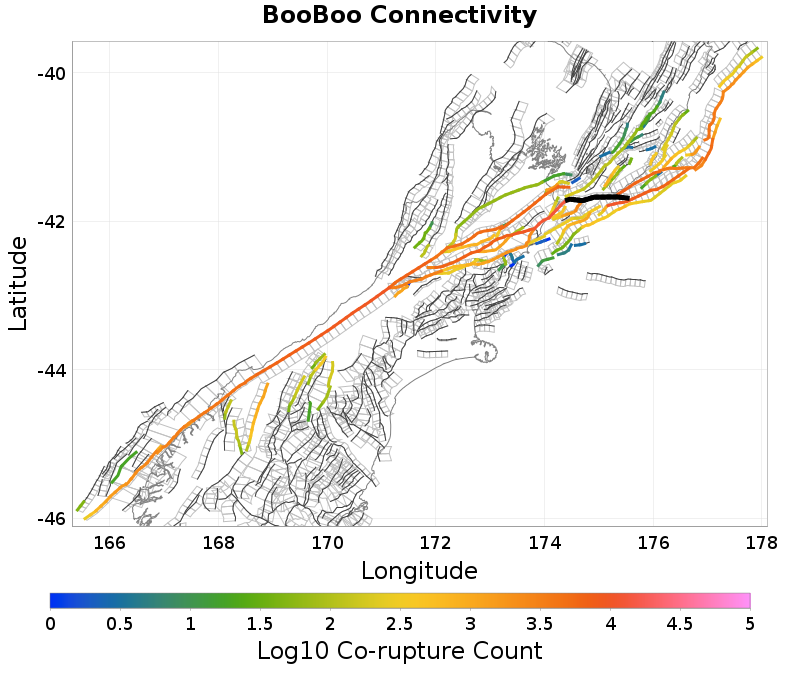

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Opouawe - Uruti, 0.13 km awayNeedles East 2, 10.51 km away
Pahaua, 0.16 km awayWharekauhau, 10.67 km away
Needles, 0.17 km awayDry River - Huangarua: 1, 10.86 km away
Campbell Bank, 0.23 km awayTe Rapa 2, 13.57 km away
Vernon 4, 1.64 km awayWairarapa: 1, 14.76 km away
Palliser - Kaiwhata, 4.24 km awayVernon 3, 14.97 km away
Wairarapa: Needles, 5.6 km awayCloudy 2, 15.22 km away
Otaraia, 5.91 km awayChancet, 15.89 km away
London Hill, 7.46 km awayWharanui, 17.68 km away
Cloudy 3, 7.74 km awayCloudy 1, 19.29 km away
Upper Slope, 9.5 km away

Opouawe - Uruti, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzIuNXhTRnA5
Connected?true
Directly Connected?true
Co-rupture Count11,045
Co-rupture Rate7.186352E-4

Pahaua, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzIuNXhTRnA5
Connected?true
Directly Connected?true
Co-rupture Count811
Co-rupture Rate1.5572348E-4

Needles, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzIuNXhTRnA5
Connected?true
Directly Connected?true
Co-rupture Count13,620
Co-rupture Rate5.406406E-4

Campbell Bank, 0.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzIuNXhTRnA5
Connected?true
Directly Connected?true
Co-rupture Count2,866
Co-rupture Rate2.9432076E-5

Vernon 4, 1.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzIuNXhTRnA5
Connected?true
Directly Connected?true
Co-rupture Count7,005
Co-rupture Rate6.922726E-5

Palliser - Kaiwhata, 4.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzIuNXhTRnA5
Connected?true
Directly Connected?true
Co-rupture Count7,381
Co-rupture Rate3.0973446E-4

Wairarapa: Needles, 5.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzIuNXhTRnA5
Connected?true
Directly Connected?true
Co-rupture Count196
Co-rupture Rate6.529858E-7

Otaraia, 5.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzIuNXhTRnA5
Connected?true
Directly Connected?true
Co-rupture Count809
Co-rupture Rate1.6384283E-5

London Hill, 7.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzIuNXhTRnA5
Connected?true
Directly Connected?false
Co-rupture Count378
Co-rupture Rate1.3338478E-6

Cloudy 3, 7.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzIuNXhTRnA5
Connected?true
Directly Connected?false
Co-rupture Count185
Co-rupture Rate3.8000812E-7

Upper Slope, 9.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzIuNXhTRnA5
Connected?true
Directly Connected?true
Co-rupture Count1,126
Co-rupture Rate3.8793642E-4

Needles East 2, 10.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzIuNXhTRnA5
Connected?true
Directly Connected?false
Co-rupture Count412
Co-rupture Rate2.2152838E-6

Wharekauhau, 10.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzIuNXhTRnA5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dry River - Huangarua: 1, 10.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzIuNXhTRnA5
Connected?true
Directly Connected?false
Co-rupture Count105
Co-rupture Rate2.4440612E-16

Te Rapa 2, 13.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzIuNXhTRnA5
Connected?true
Directly Connected?false
Co-rupture Count385
Co-rupture Rate1.8003362E-8

Wairarapa: 1, 14.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzIuNXhTRnA5
Connected?true
Directly Connected?false
Co-rupture Count120
Co-rupture Rate3.7725707E-7

Vernon 3, 14.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzIuNXhTRnA5
Connected?true
Directly Connected?false
Co-rupture Count87
Co-rupture Rate0.0

Cloudy 2, 15.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzIuNXhTRnA5
Connected?true
Directly Connected?false
Co-rupture Count90
Co-rupture Rate2.1153917E-11

Chancet, 15.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzIuNXhTRnA5
Connected?true
Directly Connected?false
Co-rupture Count1,634
Co-rupture Rate2.067714E-6

Wharanui, 17.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzIuNXhTRnA5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Cloudy 1, 19.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzIuNXhTRnA5
Connected?true
Directly Connected?false
Co-rupture Count1,666
Co-rupture Rate1.4509416E-6
