Okupe 1 Details

PropertyValue
Rupture Count721
Ruptures Above Sect Min Mag719
Ruptures w/ Nonzero Rates9
Magnitude Range[7.06, 8.41]
Length Range[23, 535] km
Total Rate2.9056673E-5 /yr
Multi-Fault Rate2.9056266E-5 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults26

Table Of Contents

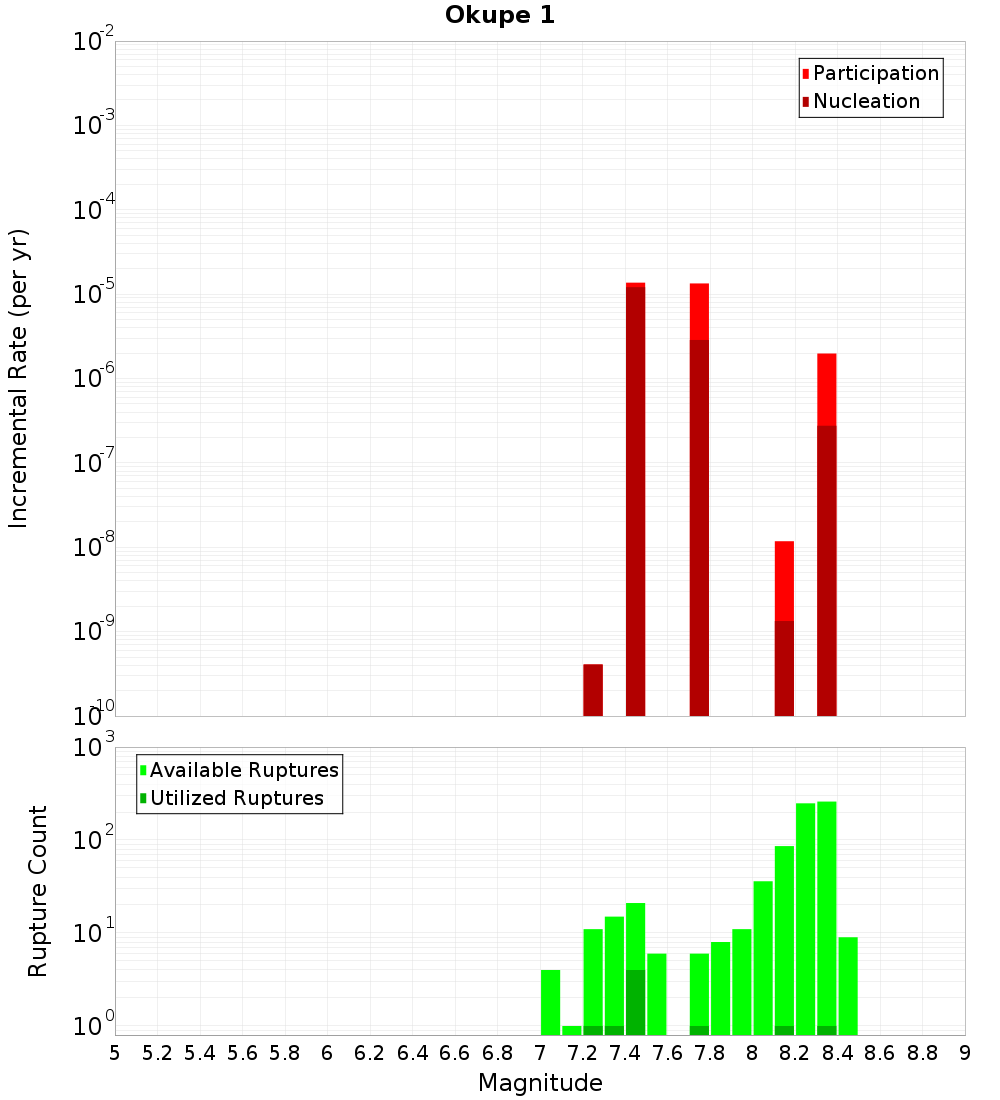

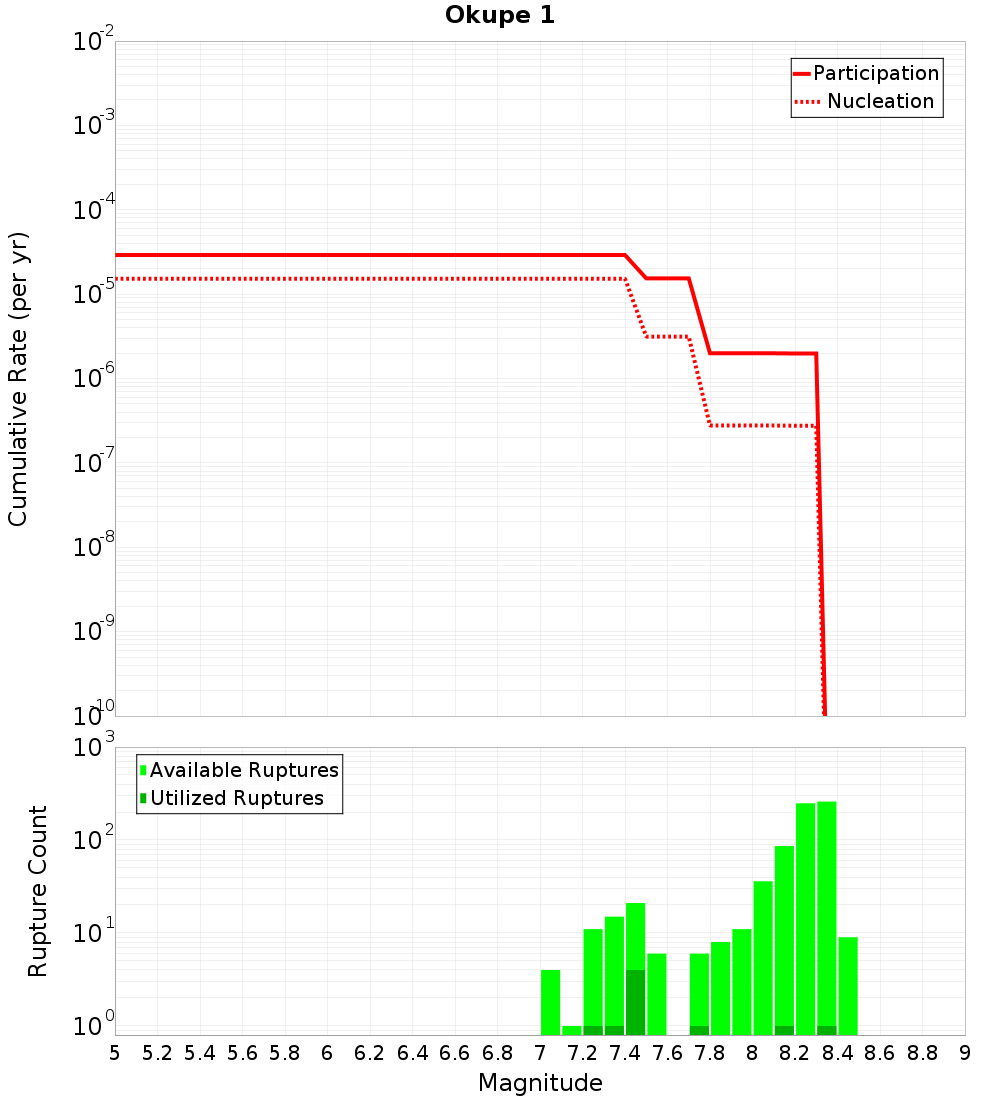

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

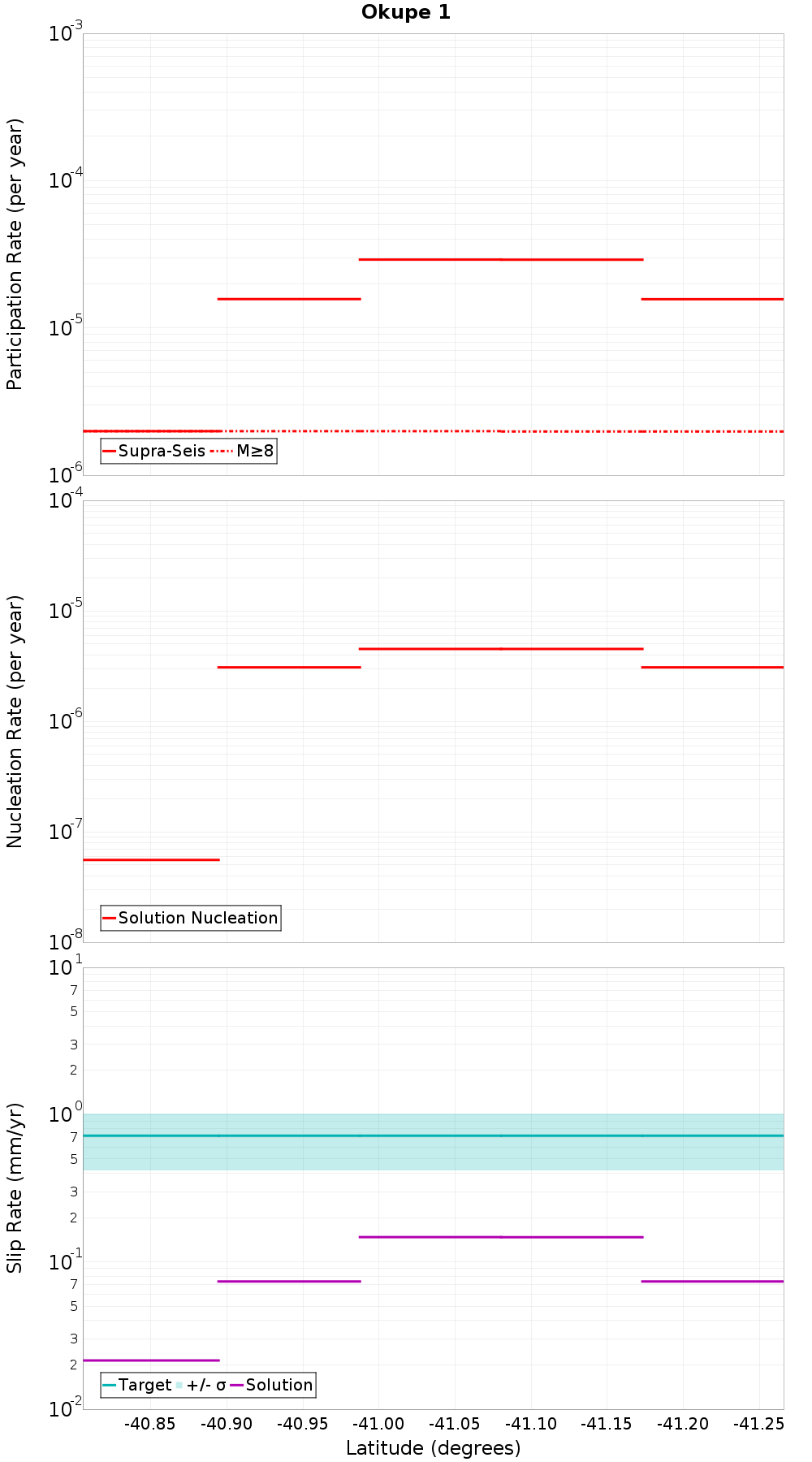

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

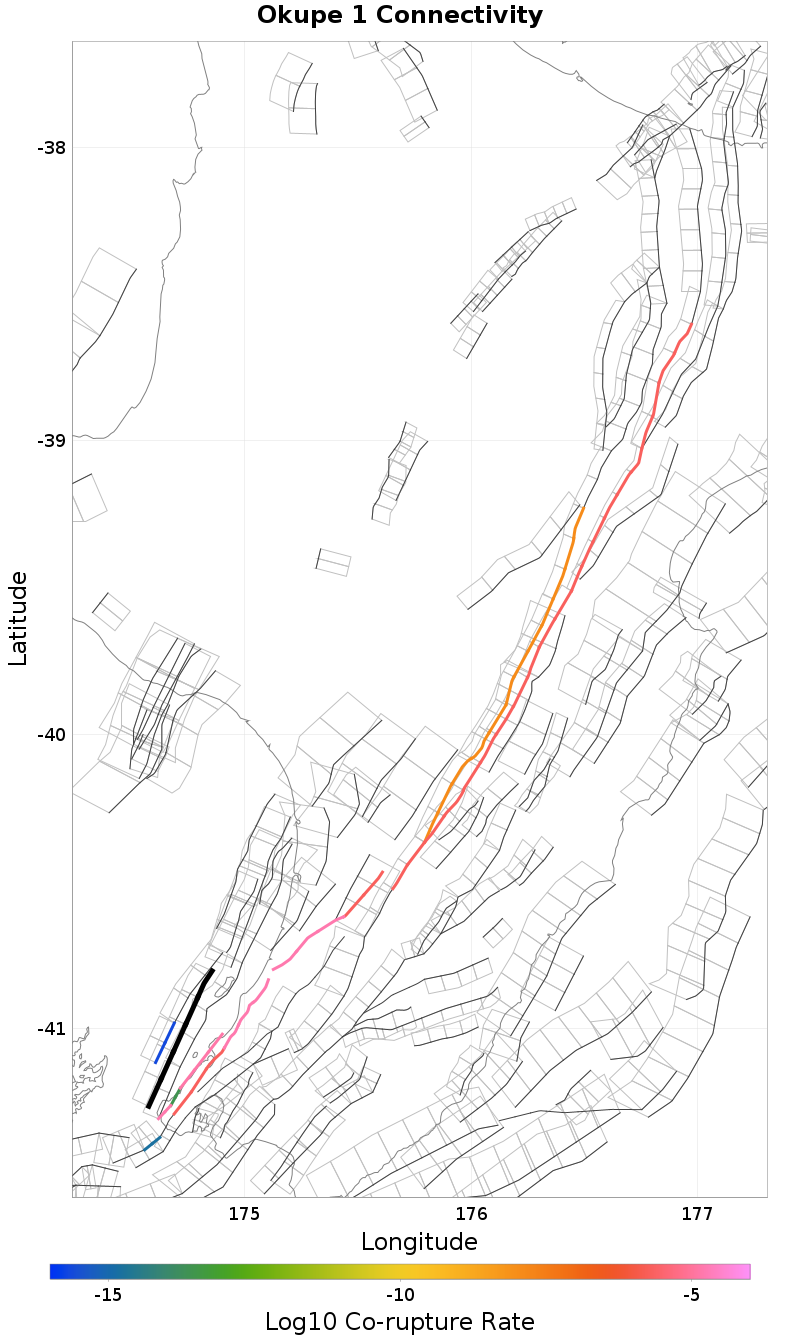

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Fisherman 2, 1.12 km awayOhariu, 9.22 km away
Fisherman 1, 3.93 km awayOhariu South 1, 9.4 km away
Shepherds Gully - Mana, 4.43 km awayWellington Hutt Valley: 2, 13.33 km away
Otaheke South, 4.46 km awayWellington Hutt Valley: 3, 13.49 km away
Onepoto, 4.91 km awayWairau 3, 13.94 km away
Pukerua - Shepherds Gully: 1, 5.82 km awayWellington Hutt Valley: 1, 14.1 km away
Pukerua - Shepherds Gully: 2, 7.34 km awayMoonshine, 14.37 km away
Pukerua - Shepherds Gully: 3, 7.9 km awayMascarin, 15.37 km away
Otaheke North, 8 km awayWellington Hutt Valley: 4, 15.82 km away
Fisherman 3, 8.61 km awayAotea - Evans Bay, 17.24 km away
Ohariu South 2, 9.01 km away

Fisherman 2, 1.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzIuNXhTRnA5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Fisherman 1, 3.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzIuNXhTRnA5
Connected?true
Directly Connected?true
Co-rupture Count10
Co-rupture Rate2.2075628E-16

Shepherds Gully - Mana, 4.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzIuNXhTRnA5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otaheke South, 4.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzIuNXhTRnA5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Onepoto, 4.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzIuNXhTRnA5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pukerua - Shepherds Gully: 1, 5.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzIuNXhTRnA5
Connected?true
Directly Connected?true
Co-rupture Count571
Co-rupture Rate1.5654907E-5

Pukerua - Shepherds Gully: 2, 7.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzIuNXhTRnA5
Connected?true
Directly Connected?false
Co-rupture Count212
Co-rupture Rate2.4931591E-14

Pukerua - Shepherds Gully: 3, 7.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzIuNXhTRnA5
Connected?true
Directly Connected?true
Co-rupture Count334
Co-rupture Rate1.3401358E-5

Otaheke North, 8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzIuNXhTRnA5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Fisherman 3, 8.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzIuNXhTRnA5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohariu South 2, 9.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzIuNXhTRnA5
Connected?true
Directly Connected?false
Co-rupture Count15
Co-rupture Rate1.5597214E-15

Ohariu, 9.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzIuNXhTRnA5
Connected?true
Directly Connected?false
Co-rupture Count671
Co-rupture Rate1.5379297E-5

Ohariu South 1, 9.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzIuNXhTRnA5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 2, 13.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzIuNXhTRnA5
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0

Wellington Hutt Valley: 3, 13.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzIuNXhTRnA5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wairau 3, 13.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzIuNXhTRnA5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 1, 14.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzIuNXhTRnA5
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0

Moonshine, 14.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzIuNXhTRnA5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mascarin, 15.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzIuNXhTRnA5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 4, 15.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzIuNXhTRnA5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Aotea - Evans Bay, 17.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxMzIuNXhTRnA5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
