Puketerata Details

Property	Value
Rupture Count	3,620
Ruptures Above Sect Min Mag	3,156
Ruptures w/ Nonzero Rates	124
Magnitude Range	[6.24, 7.74]
Length Range	[10, 214] km
Total Rate	0.0022166357 /yr
Multi-Fault Rate	0.0022166357 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	28

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

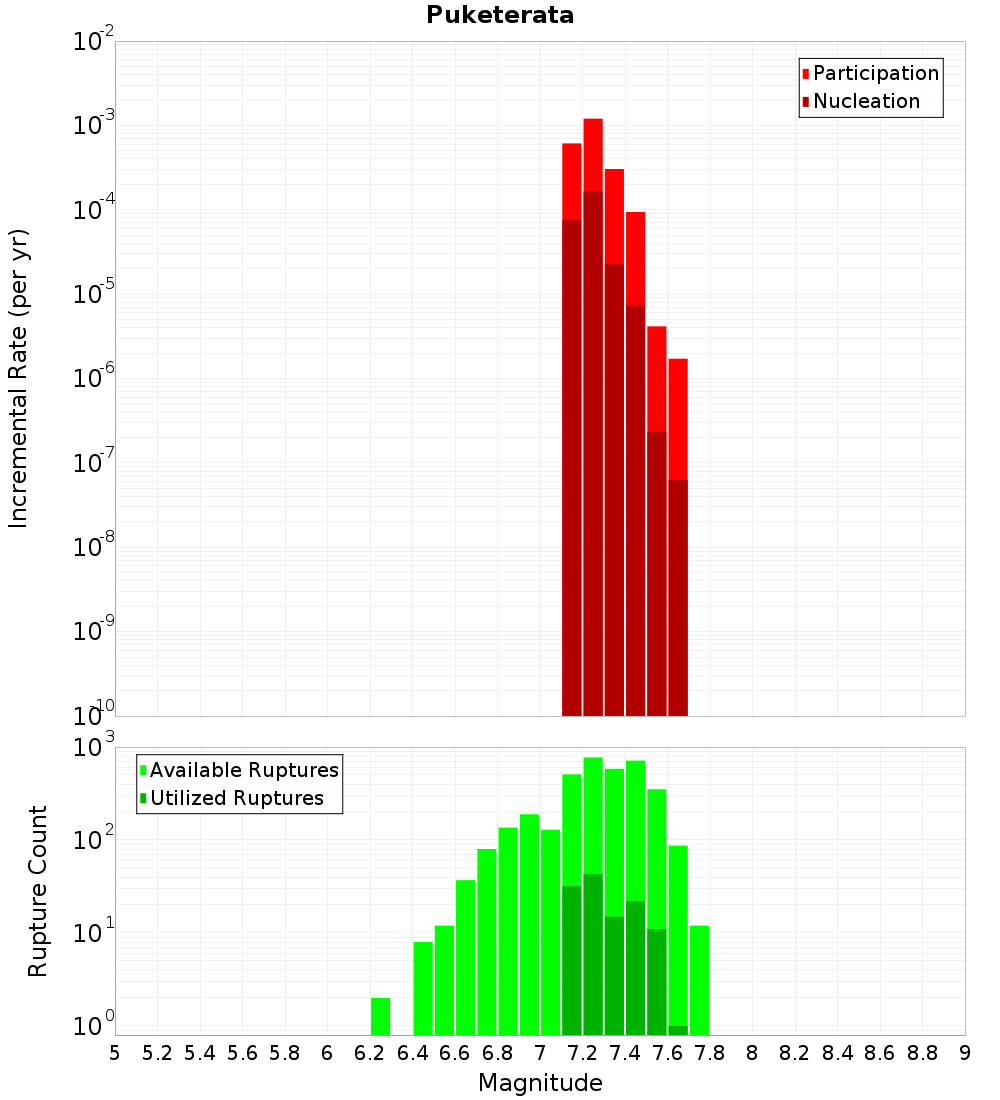

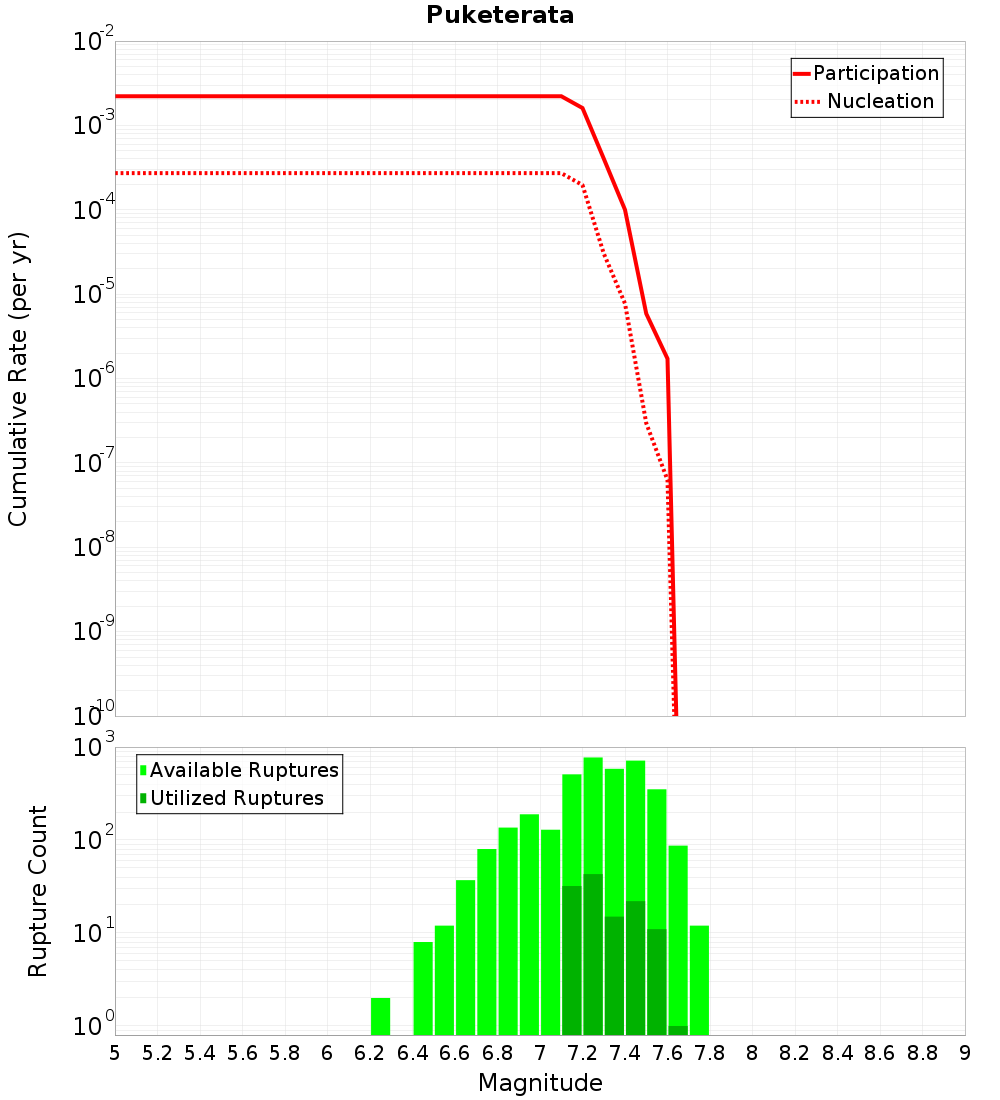

Magnitude-Frequency Distribution

Incremental	Cumulative

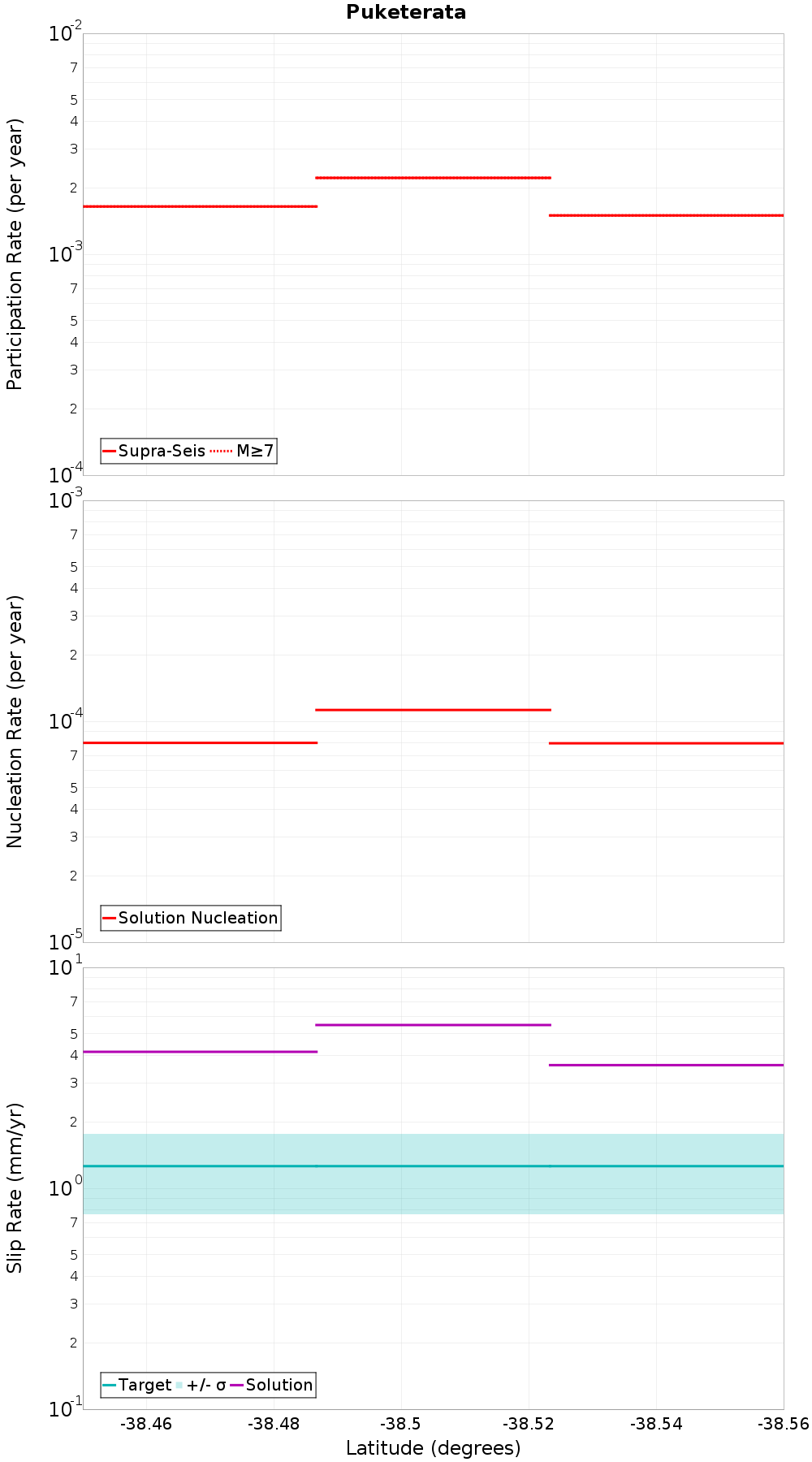

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Puketerata North, 0.1 km away
Whangamata West, 0.12 km away
Orakeikorako, 2.41 km away
Maleme, 3.56 km away
Paeroa, 5.08 km away
Kaiapo, 5.96 km away

Puketerata North, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNDAuMEUybTN5
Connected?	true
Directly Connected?	true
Co-rupture Count	2,007
Co-rupture Rate	0.0010208761

Whangamata West, 0.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNDAuMEUybTN5
Connected?	true
Directly Connected?	true
Co-rupture Count	2,339
Co-rupture Rate	0.0012706112

Orakeikorako, 2.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNDAuMEUybTN5
Connected?	true
Directly Connected?	true
Co-rupture Count	536
Co-rupture Rate	5.727443E-4

Maleme, 3.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNDAuMEUybTN5
Connected?	true
Directly Connected?	true
Co-rupture Count	2,523
Co-rupture Rate	0.0014947477

Paeroa, 5.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNDAuMEUybTN5
Connected?	true
Directly Connected?	true
Co-rupture Count	1,955
Co-rupture Rate	0.0012779771

Kaiapo, 5.96 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNDAuMEUybTN5
Connected?	true
Directly Connected?	true
Co-rupture Count	537
Co-rupture Rate	3.6441183E-5
