Alpine: Resolution - Charles Details

Property	Value
Rupture Count	20,440
Ruptures Above Sect Min Mag	20,438
Ruptures w/ Nonzero Rates	523
Magnitude Range	[6.55, 8.63]
Length Range	[10, 1,202] km
Total Rate	7.143811E-4 /yr
Multi-Fault Rate	7.143811E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	108

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values

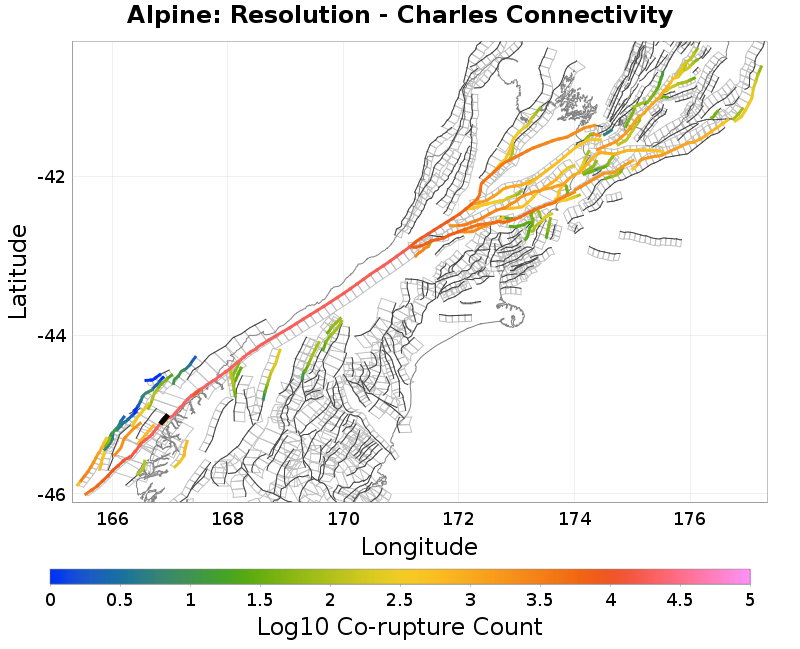

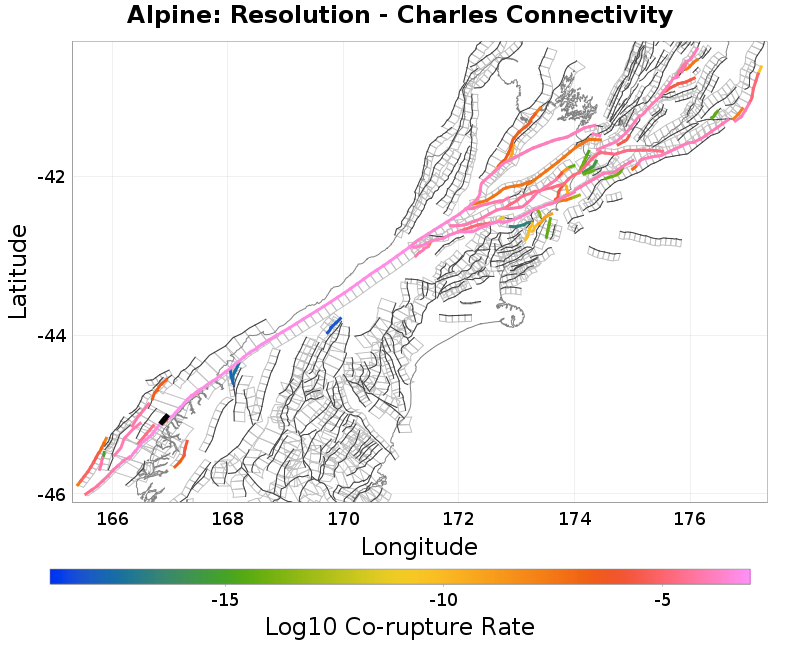

Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Alpine: Resolution - Dagg, 0 km away
Central Wedge 4 - South Wedge 411, 0.29 km away
South Wedge 2, 0.33 km away
Alpine: Nancy, 2.58 km away
Alpine: Caswell, 3.34 km away
Central Wedge 1 & 2 & 3, 3.37 km away
South Wedge 1, 10.28 km away
South Wedge 3-6-10, 16.42 km away
South Wedge 5, 16.5 km away

Alpine: Resolution - Dagg, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNDIuME01dlpR
Connected?	true
Directly Connected?	true
Co-rupture Count	19,142
Co-rupture Rate	5.072764E-4

Central Wedge 4 - South Wedge 411, 0.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNDIuME01dlpR
Connected?	true
Directly Connected?	false
Co-rupture Count	256
Co-rupture Rate	7.466513E-5

South Wedge 2, 0.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNDIuME01dlpR
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Alpine: Nancy, 2.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNDIuME01dlpR
Connected?	true
Directly Connected?	true
Co-rupture Count	296
Co-rupture Rate	1.0083376E-6

Alpine: Caswell, 3.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNDIuME01dlpR
Connected?	true
Directly Connected?	true
Co-rupture Count	20,360
Co-rupture Rate	6.8760035E-4

Central Wedge 1 & 2 & 3, 3.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNDIuME01dlpR
Connected?	true
Directly Connected?	true
Co-rupture Count	103
Co-rupture Rate	2.5452465E-7

South Wedge 1, 10.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNDIuME01dlpR
Connected?	true
Directly Connected?	false
Co-rupture Count	642
Co-rupture Rate	2.293751E-5

South Wedge 3-6-10, 16.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNDIuME01dlpR
Connected?	true
Directly Connected?	false
Co-rupture Count	2,067
Co-rupture Rate	1.02989994E-4

South Wedge 5, 16.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNDIuME01dlpR
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
