Otara East 1 Details

PropertyValue
Rupture Count7,217
Ruptures Above Sect Min Mag7,216
Ruptures w/ Nonzero Rates15
Magnitude Range[6.79, 8.41]
Length Range[14, 586] km
Total Rate3.9482844E-4 /yr
Multi-Fault Rate3.9482844E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults73

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

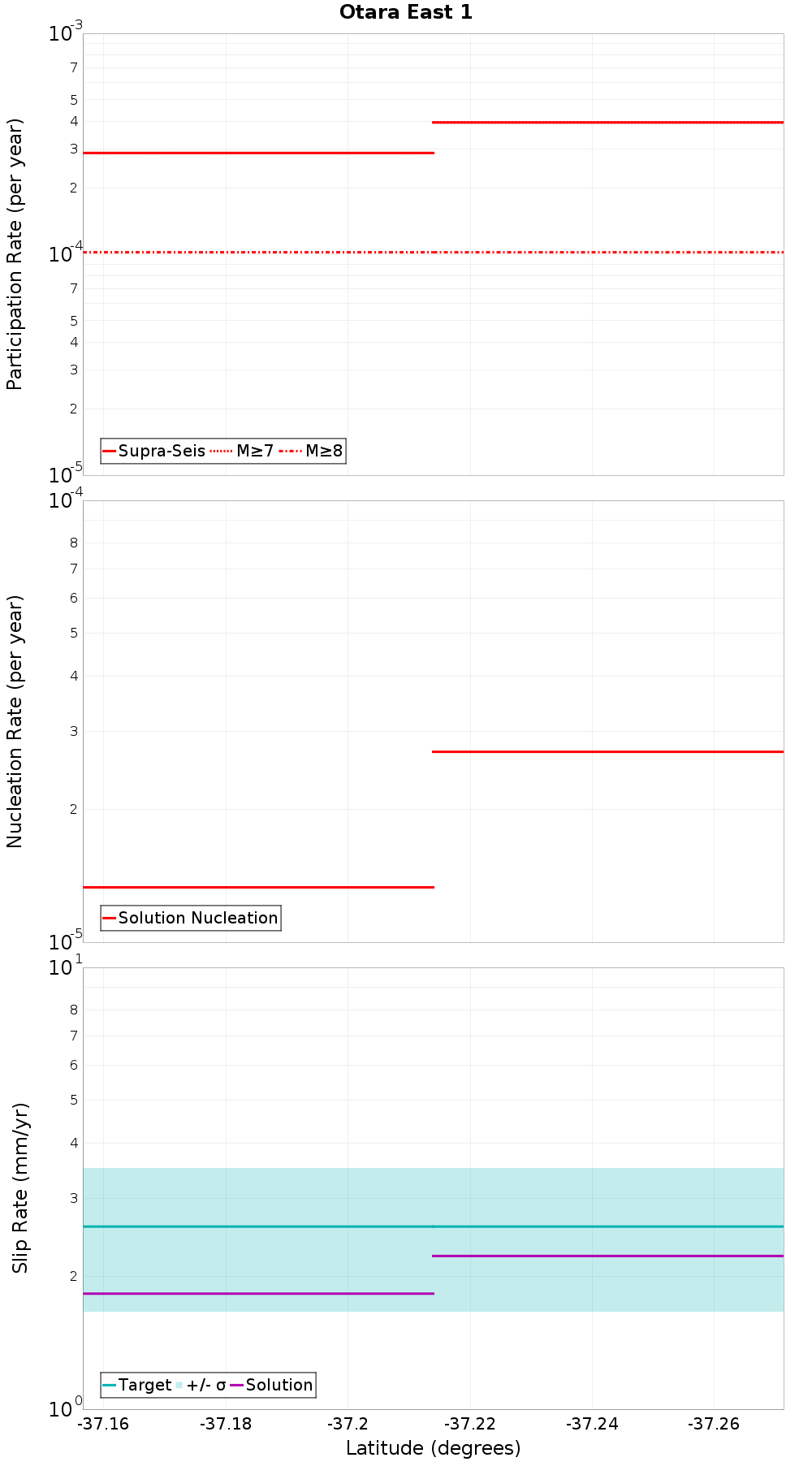

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Volkner 4, 0.31 km away
Tuatoru 2, 0.41 km away
Otara East 2, 1.33 km away
Otara West 1, 1.57 km away
Otara West 2, 3.71 km away
Te Arawa 3, 5.22 km away
Otara West 3, 6.02 km away
Te Arawa 2, 7.74 km away
Te Arawa 1, 11.84 km away
Volkner 3, 17.03 km away
Tauranga Trough East 2, 17.78 km away
Hariki, 18.63 km away
Tuatoru 1, 19.26 km away

Volkner 4, 0.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNDUuMHloMk5t
Connected?true
Directly Connected?true
Co-rupture Count2,346
Co-rupture Rate3.899076E-5

Tuatoru 2, 0.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNDUuMHloMk5t
Connected?true
Directly Connected?true
Co-rupture Count4,757
Co-rupture Rate3.4752616E-4

Otara East 2, 1.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNDUuMHloMk5t
Connected?true
Directly Connected?true
Co-rupture Count3,174
Co-rupture Rate2.0886712E-4

Otara West 1, 1.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNDUuMHloMk5t
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otara West 2, 3.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNDUuMHloMk5t
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Arawa 3, 5.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNDUuMHloMk5t
Connected?true
Directly Connected?true
Co-rupture Count480
Co-rupture Rate1.1587258E-4

Otara West 3, 6.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNDUuMHloMk5t
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Arawa 2, 7.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNDUuMHloMk5t
Connected?true
Directly Connected?false
Co-rupture Count990
Co-rupture Rate1.7081533E-5

Te Arawa 1, 11.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNDUuMHloMk5t
Connected?true
Directly Connected?false
Co-rupture Count1,756
Co-rupture Rate1.497559E-4

Volkner 3, 17.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNDUuMHloMk5t
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0

Tauranga Trough East 2, 17.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNDUuMHloMk5t
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hariki, 18.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNDUuMHloMk5t
Connected?true
Directly Connected?false
Co-rupture Count10
Co-rupture Rate8.311522E-6

Tuatoru 1, 19.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNDUuMHloMk5t
Connected?true
Directly Connected?false
Co-rupture Count3,232
Co-rupture Rate1.9777026E-4
