Te Whaiti South Details

PropertyValue
Rupture Count9,043
Ruptures Above Sect Min Mag9,038
Ruptures w/ Nonzero Rates6
Magnitude Range[6.95, 8.47]
Length Range[20, 634] km
Total Rate1.18861026E-4 /yr
Multi-Fault Rate1.18861026E-4 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults90

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

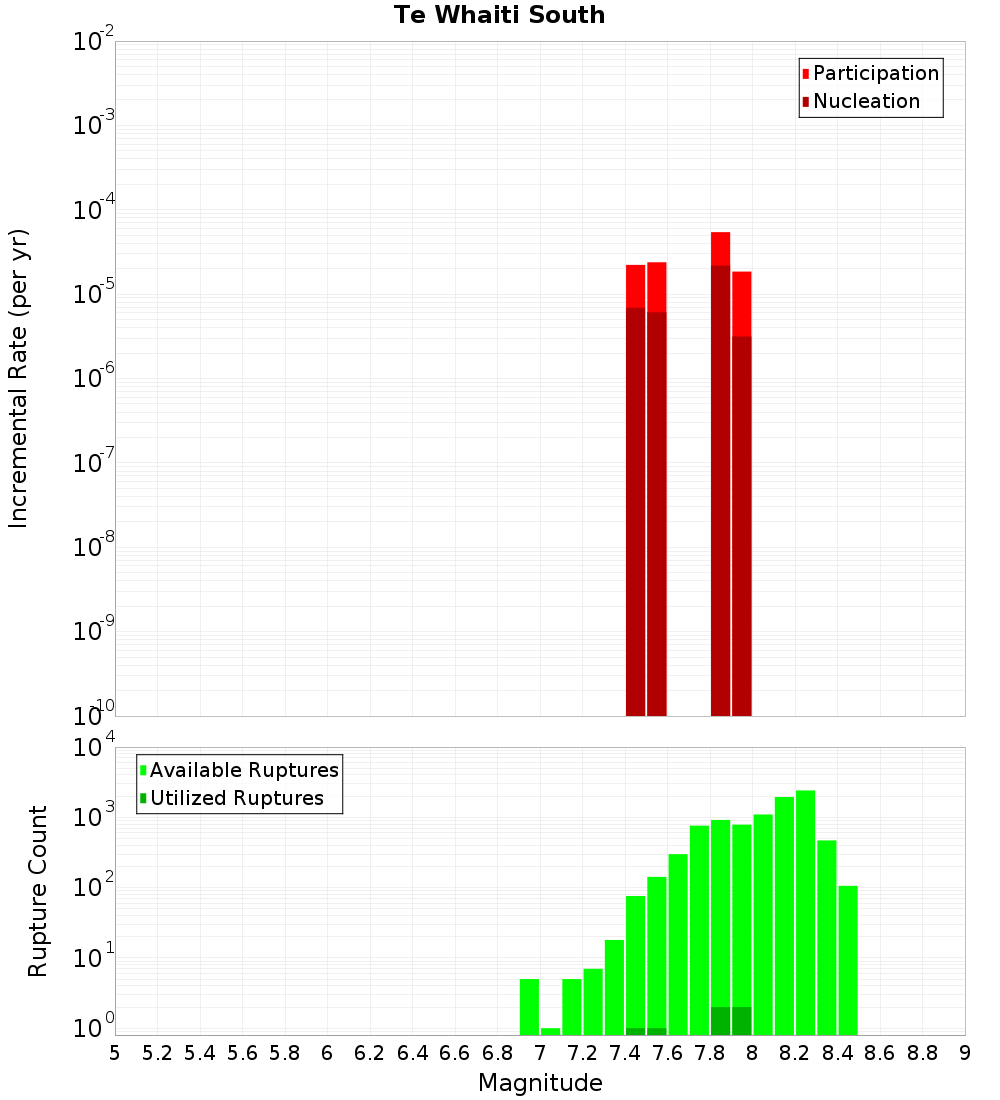

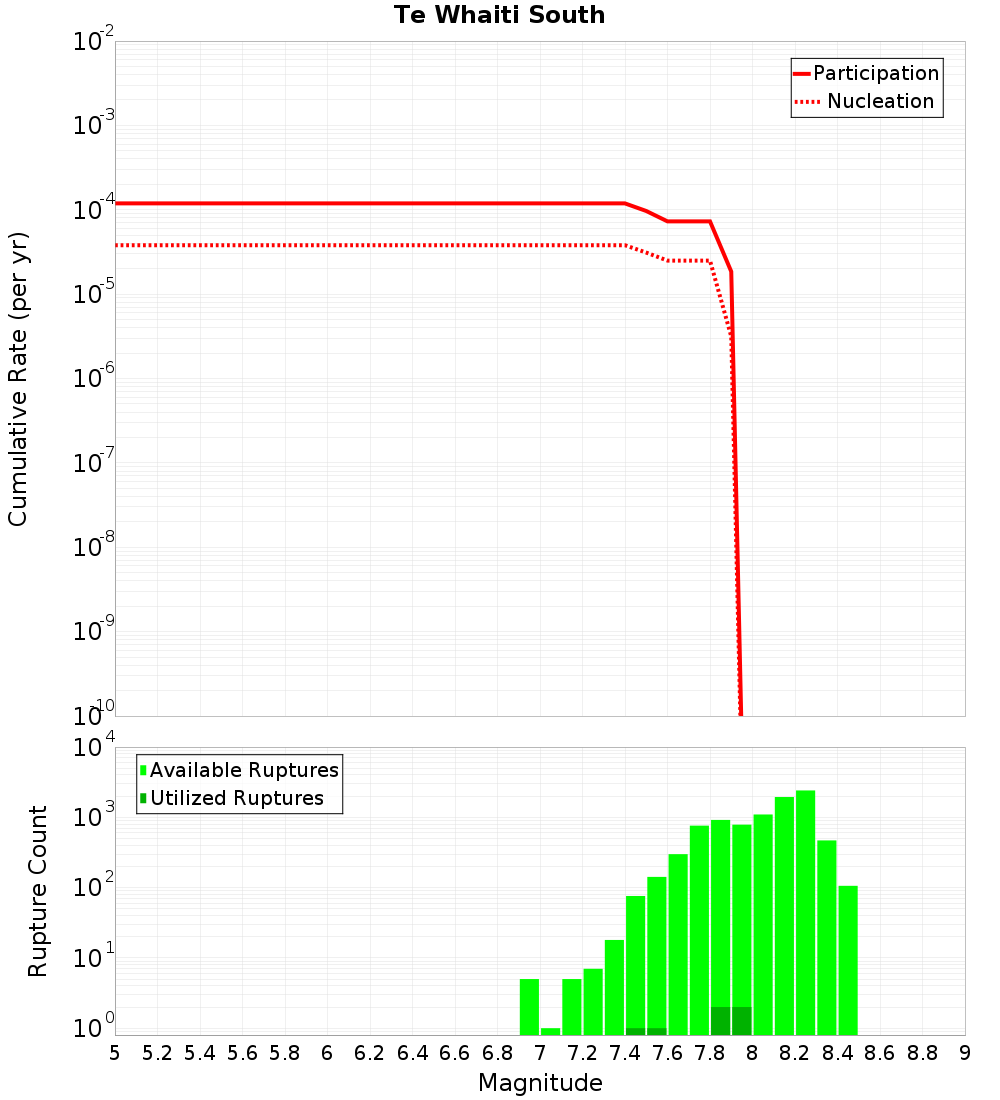

Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Te Whaiti North, 0 km away
Wheao: North, 0 km away
Wheao: South, 0.44 km away
Waiohau: South, 0.76 km away
Waiohau: North, 1.94 km away
Ruahine: North, 9.06 km away
Whakatane: South, 11.9 km away
Waimana: South, 14.57 km away
Whakatane: North, 14.65 km away
Mohaka: North, 15.34 km away
Waiotahi: South, 18.53 km away

Te Whaiti North, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNDUuMHloMk5t
Connected?true
Directly Connected?true
Co-rupture Count421
Co-rupture Rate5.2848125E-5

Wheao: North, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNDUuMHloMk5t
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wheao: South, 0.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNDUuMHloMk5t
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waiohau: South, 0.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNDUuMHloMk5t
Connected?true
Directly Connected?true
Co-rupture Count266
Co-rupture Rate0.0

Waiohau: North, 1.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNDUuMHloMk5t
Connected?true
Directly Connected?true
Co-rupture Count6,162
Co-rupture Rate1.9939163E-5

Ruahine: North, 9.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNDUuMHloMk5t
Connected?true
Directly Connected?true
Co-rupture Count7,133
Co-rupture Rate5.2848125E-5

Whakatane: South, 11.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNDUuMHloMk5t
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waimana: South, 14.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNDUuMHloMk5t
Connected?true
Directly Connected?true
Co-rupture Count42
Co-rupture Rate4.6073736E-5

Whakatane: North, 14.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNDUuMHloMk5t
Connected?true
Directly Connected?false
Co-rupture Count104
Co-rupture Rate0.0

Mohaka: North, 15.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNDUuMHloMk5t
Connected?true
Directly Connected?false
Co-rupture Count37
Co-rupture Rate2.3857168E-5

Waiotahi: South, 18.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNDUuMHloMk5t
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
