Awakeri Details

PropertyValue
Rupture Count11,941
Ruptures Above Sect Min Mag11,797
Ruptures w/ Nonzero Rates196
Magnitude Range[6.56, 8.17]
Length Range[17, 537] km
Total Rate0.0024781853 /yr
Multi-Fault Rate0.0024781853 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults90

Table Of Contents

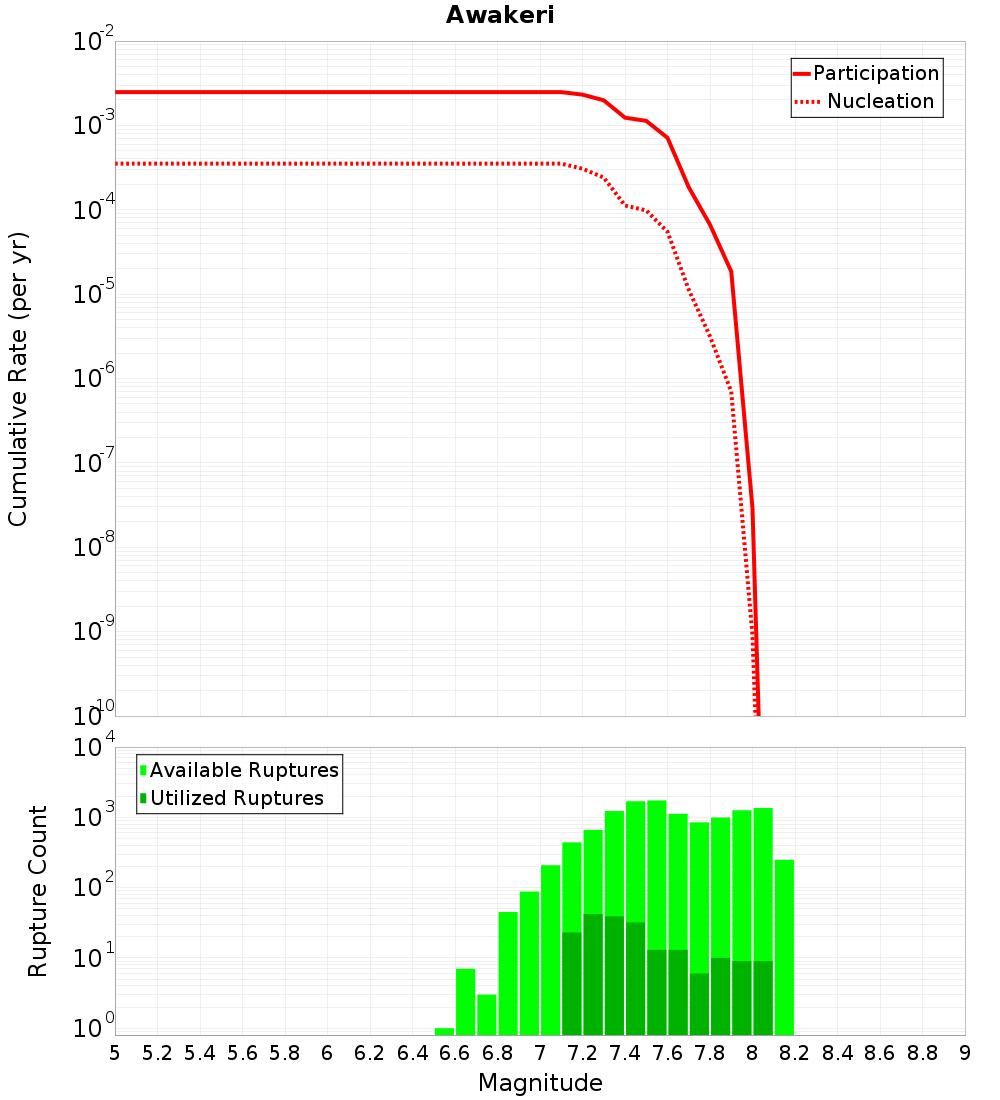

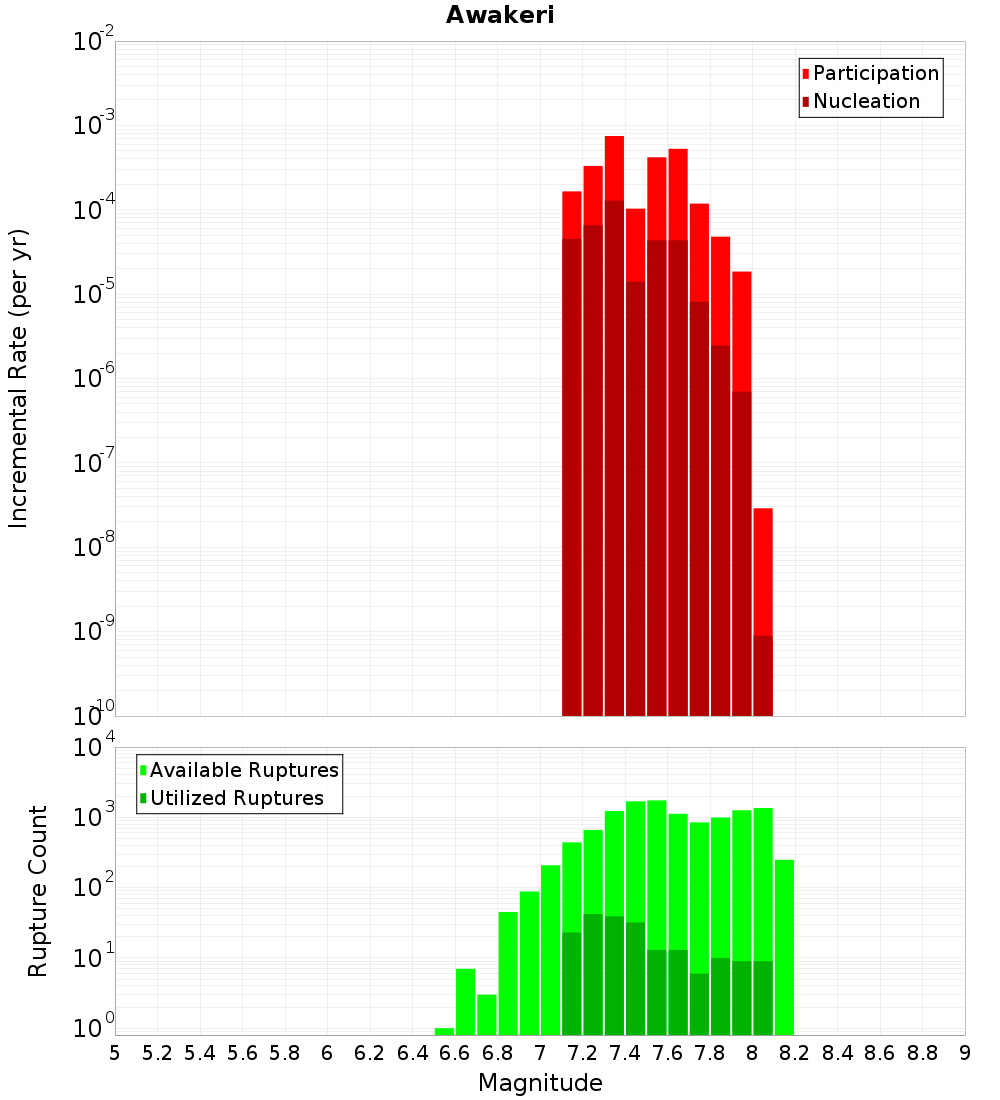

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

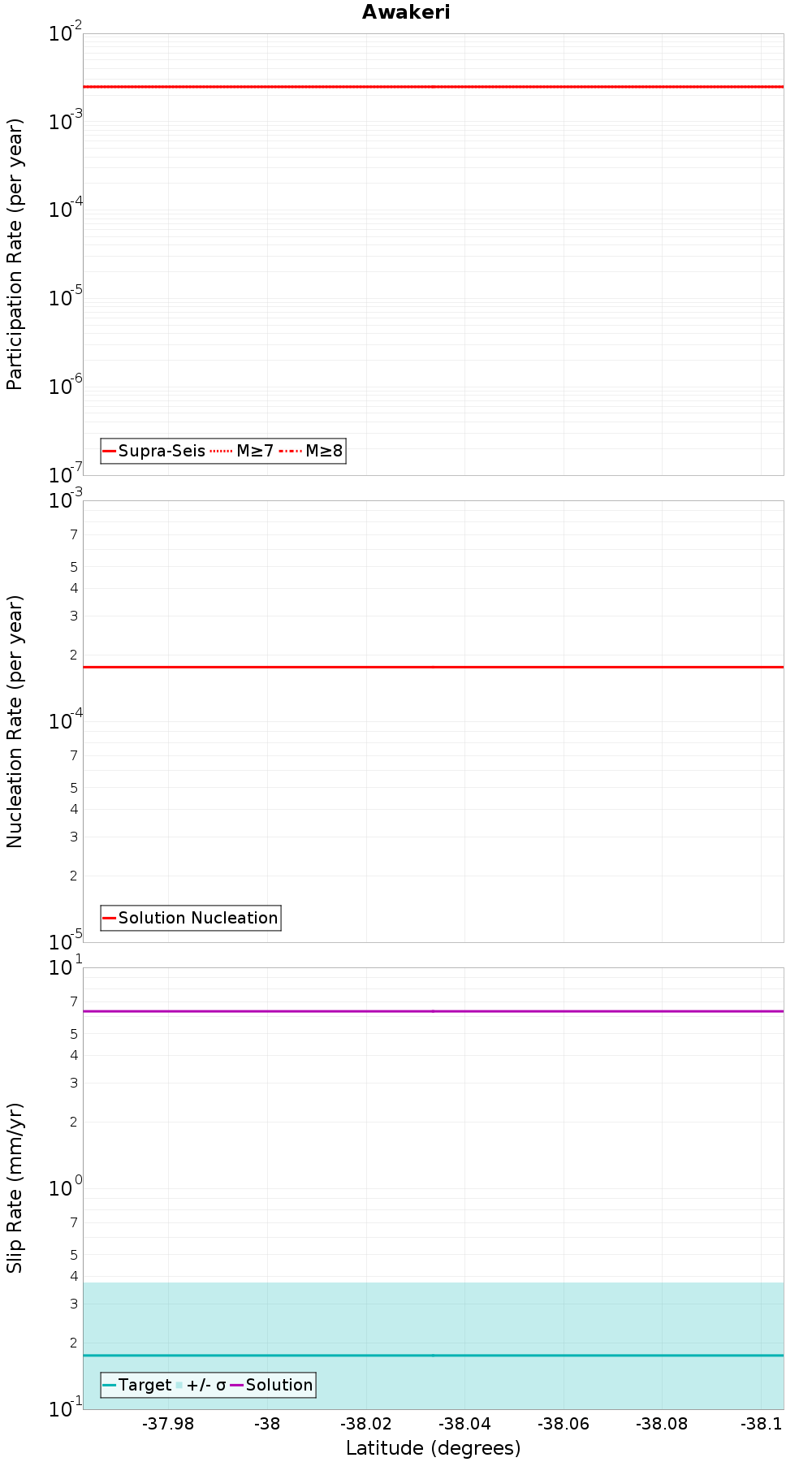

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

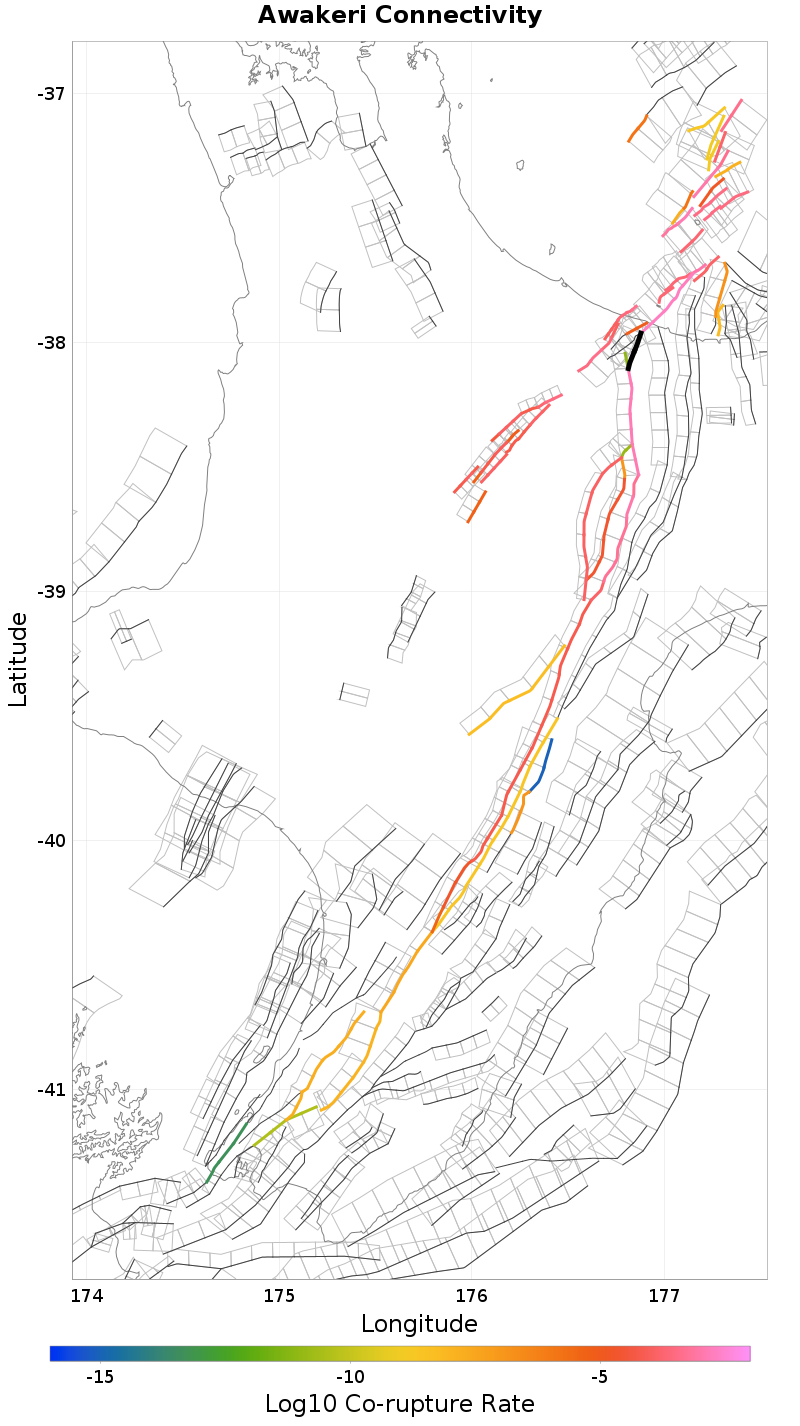

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Edgecumbe 1987, 0 km away
Edgecumbe Coastal, 0 km away
Waiohau: North, 0.13 km away
Braemar, 0.15 km away
Otakiri, 0.16 km away
Matata, 5.47 km away
White Island 1, 7.32 km away
Whakatane: North, 7.56 km away
Rangitaiki 1, 16.13 km away

Edgecumbe 1987, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMEFWWUZz
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Edgecumbe Coastal, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMEFWWUZz
Connected?true
Directly Connected?true
Co-rupture Count7,612
Co-rupture Rate0.0020104058

Waiohau: North, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMEFWWUZz
Connected?true
Directly Connected?true
Co-rupture Count9,078
Co-rupture Rate0.0014239104

Braemar, 0.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMEFWWUZz
Connected?true
Directly Connected?true
Co-rupture Count2,785
Co-rupture Rate4.1071954E-4

Otakiri, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMEFWWUZz
Connected?true
Directly Connected?true
Co-rupture Count797
Co-rupture Rate8.378596E-6

Matata, 5.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMEFWWUZz
Connected?true
Directly Connected?true
Co-rupture Count3,030
Co-rupture Rate4.6543474E-4

White Island 1, 7.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMEFWWUZz
Connected?true
Directly Connected?false
Co-rupture Count9,245
Co-rupture Rate0.0019671947

Whakatane: North, 7.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMEFWWUZz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Rangitaiki 1, 16.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMEFWWUZz
Connected?true
Directly Connected?false
Co-rupture Count555
Co-rupture Rate1.9306001E-4
