Otakiri Details

PropertyValue
Rupture Count13,955
Ruptures Above Sect Min Mag13,736
Ruptures w/ Nonzero Rates194
Magnitude Range[6.19, 8.20]
Length Range[10, 587] km
Total Rate0.003473826 /yr
Multi-Fault Rate0.003473826 /yr (100.00%)
Directly-Connected Faults8
All Co-Rupturing Faults92

Table Of Contents

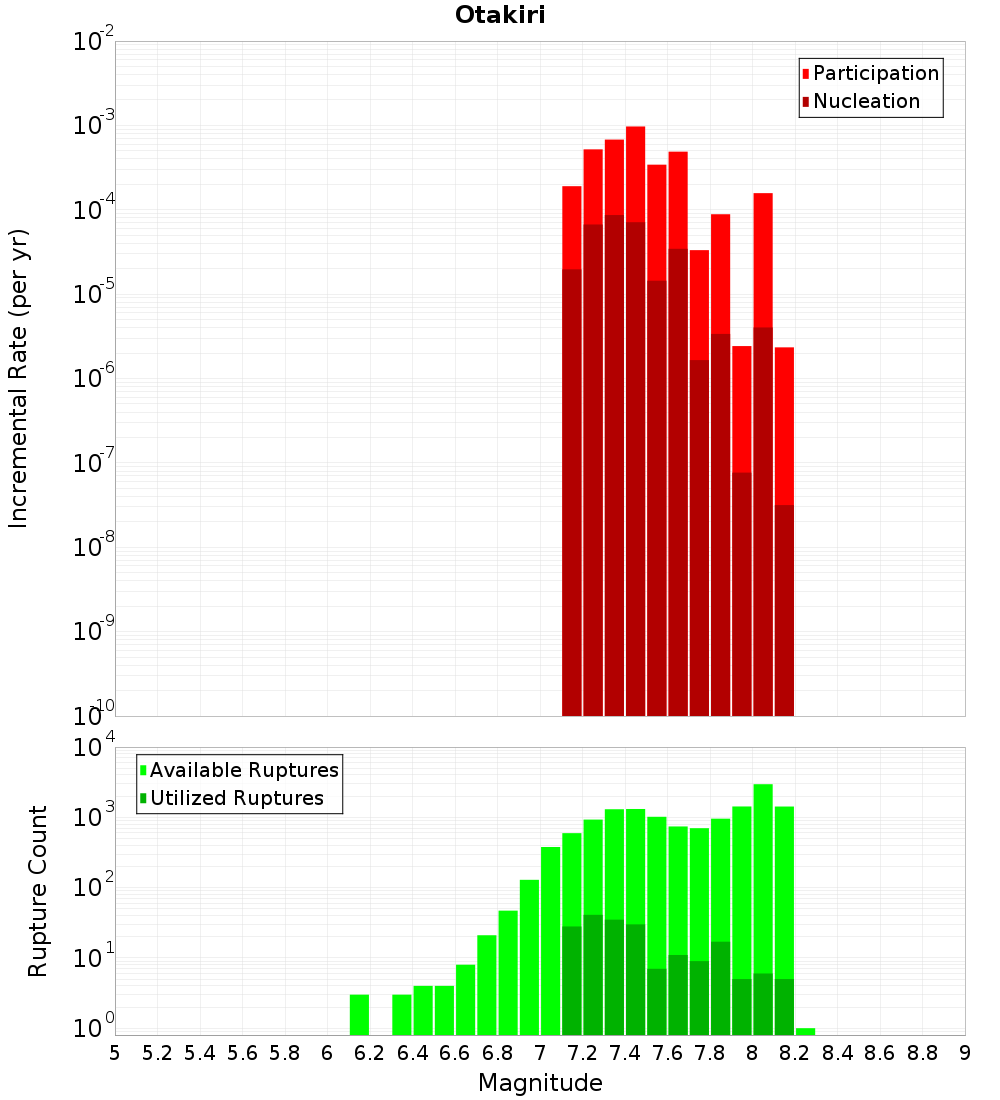

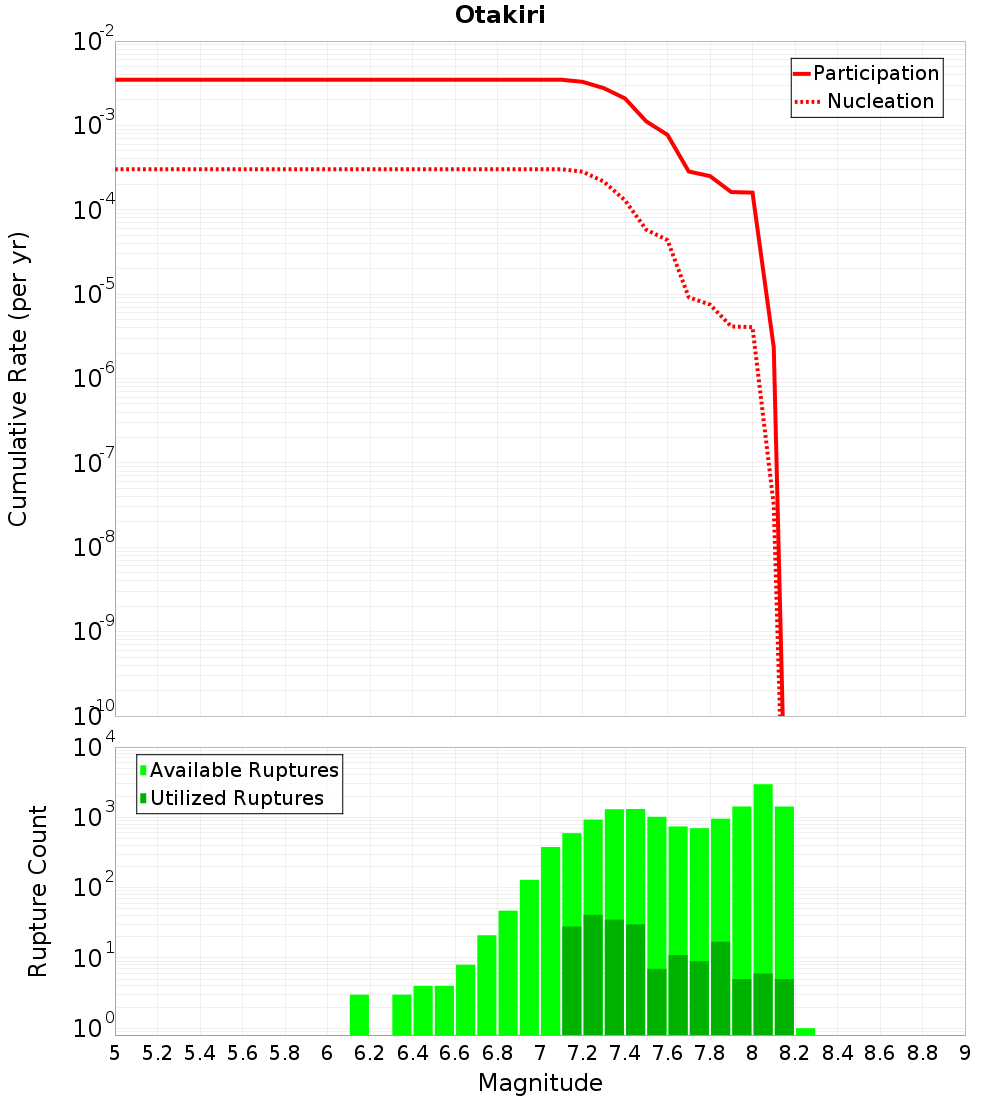

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

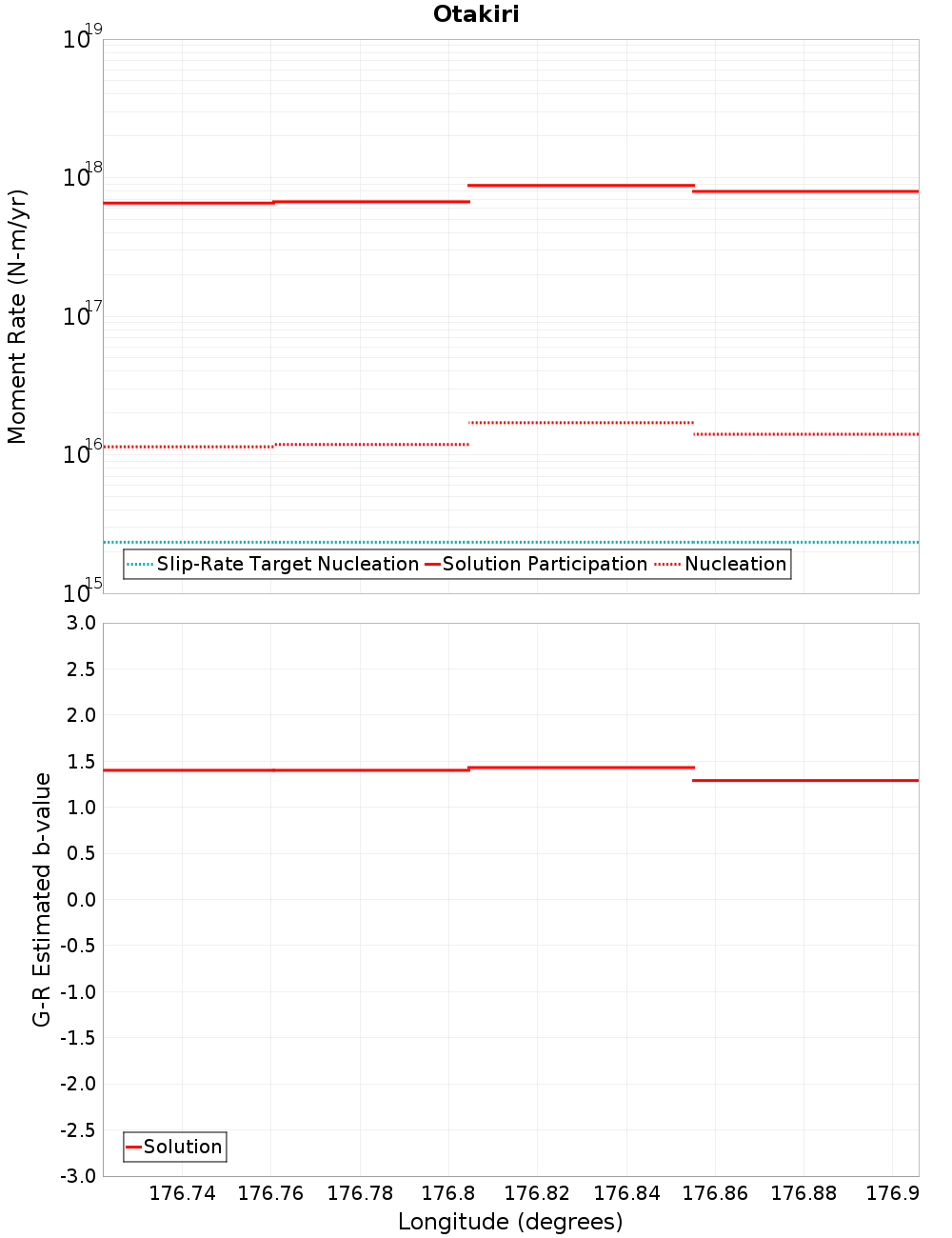

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Awakeri, 0.16 km away
Edgecumbe 1987, 0.16 km away
Whakatane: North, 0.27 km away
Waiohau: North, 0.34 km away
Edgecumbe Coastal, 0.37 km away
Braemar, 0.69 km away
White Island 1, 2.46 km away
Matata, 4.47 km away
Rangitaiki 1, 10.94 km away
Waimana: North, 11.29 km away
Waiotahi: North, 16.27 km away
Rangitaiki 2, 17.19 km away

Awakeri, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMEFWWUZz
Connected?true
Directly Connected?true
Co-rupture Count797
Co-rupture Rate8.378596E-6

Edgecumbe 1987, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMEFWWUZz
Connected?true
Directly Connected?true
Co-rupture Count504
Co-rupture Rate3.617013E-4

Whakatane: North, 0.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMEFWWUZz
Connected?true
Directly Connected?true
Co-rupture Count298
Co-rupture Rate6.5906084E-4

Waiohau: North, 0.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMEFWWUZz
Connected?true
Directly Connected?true
Co-rupture Count10,024
Co-rupture Rate0.0014607015

Edgecumbe Coastal, 0.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMEFWWUZz
Connected?true
Directly Connected?true
Co-rupture Count2,282
Co-rupture Rate7.3392416E-4

Braemar, 0.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMEFWWUZz
Connected?true
Directly Connected?true
Co-rupture Count2,523
Co-rupture Rate9.50173E-4

White Island 1, 2.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMEFWWUZz
Connected?true
Directly Connected?true
Co-rupture Count11,397
Co-rupture Rate0.0034447175

Matata, 4.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMEFWWUZz
Connected?true
Directly Connected?true
Co-rupture Count120
Co-rupture Rate4.157086E-6

Rangitaiki 1, 10.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMEFWWUZz
Connected?true
Directly Connected?false
Co-rupture Count104
Co-rupture Rate2.0677066E-6

Waimana: North, 11.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMEFWWUZz
Connected?true
Directly Connected?false
Co-rupture Count110
Co-rupture Rate1.9564596E-4

Waiotahi: North, 16.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMEFWWUZz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Rangitaiki 2, 17.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMEFWWUZz
Connected?true
Directly Connected?false
Co-rupture Count2,182
Co-rupture Rate5.162803E-4
