Upper Slope Details

PropertyValue
Rupture Count2,070
Ruptures Above Sect Min Mag2,059
Ruptures w/ Nonzero Rates18
Magnitude Range[6.77, 8.43]
Length Range[20, 911] km
Total Rate2.334052E-6 /yr
Multi-Fault Rate2.334052E-6 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults86

Table Of Contents

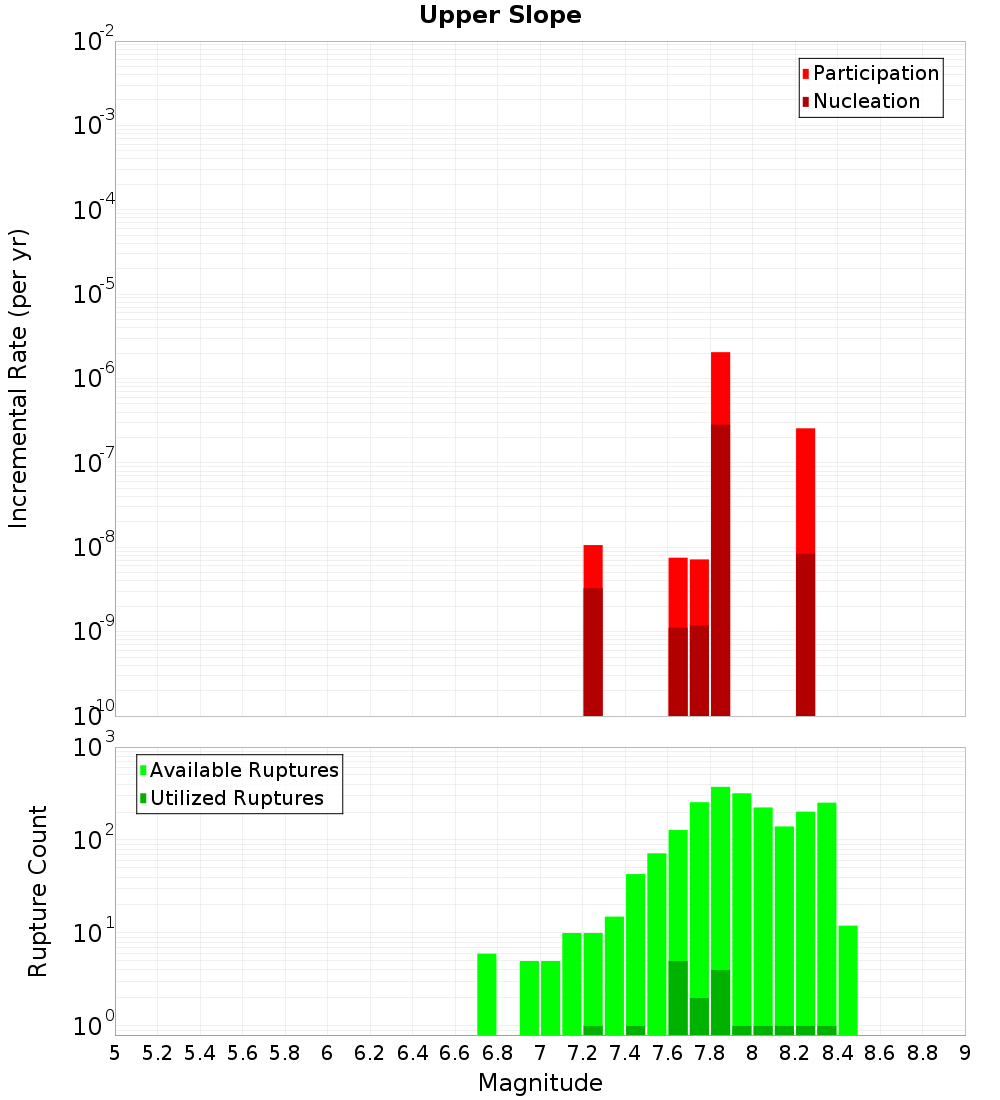

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

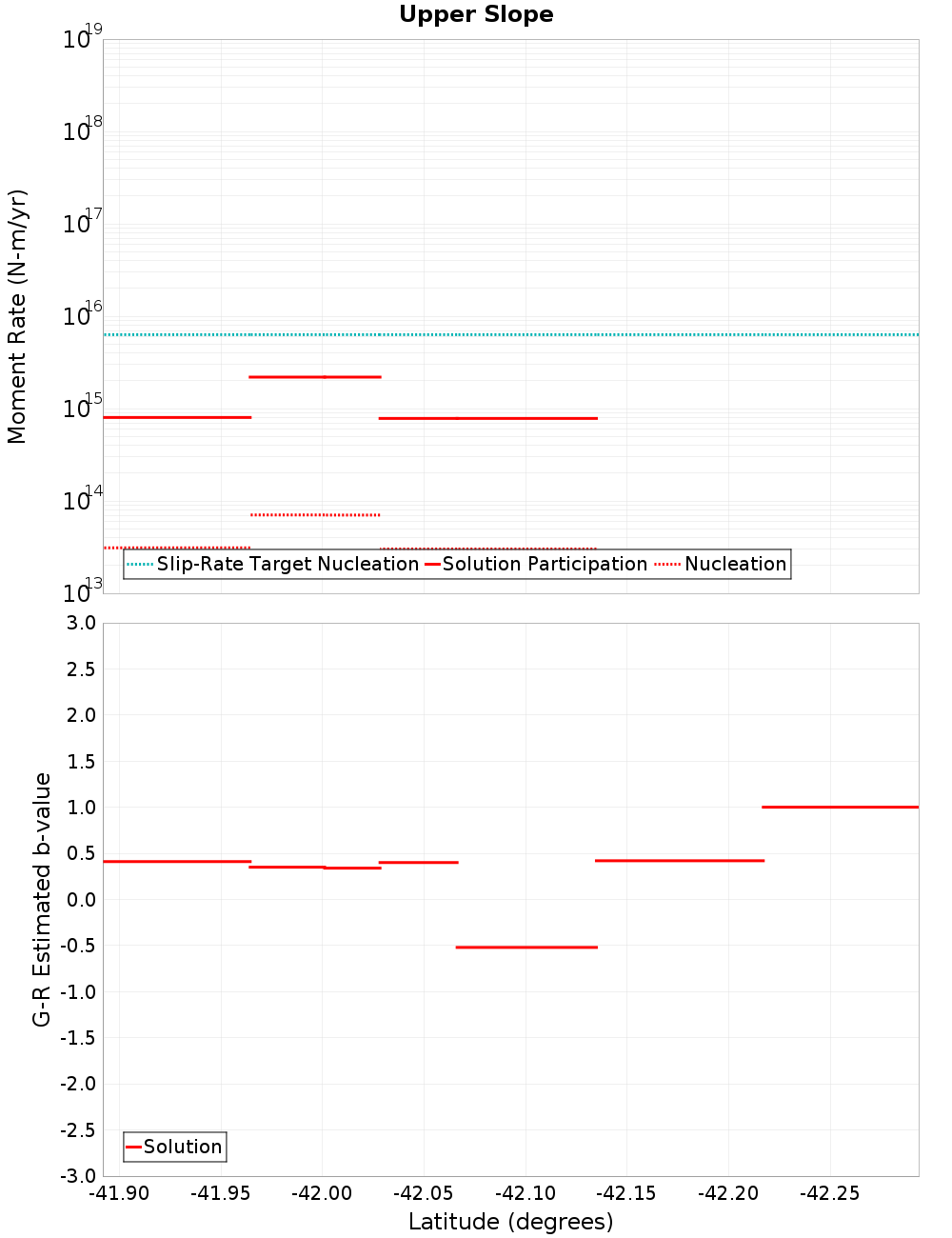

Moment-Rates and b-Values

(top)

Along-strike plot

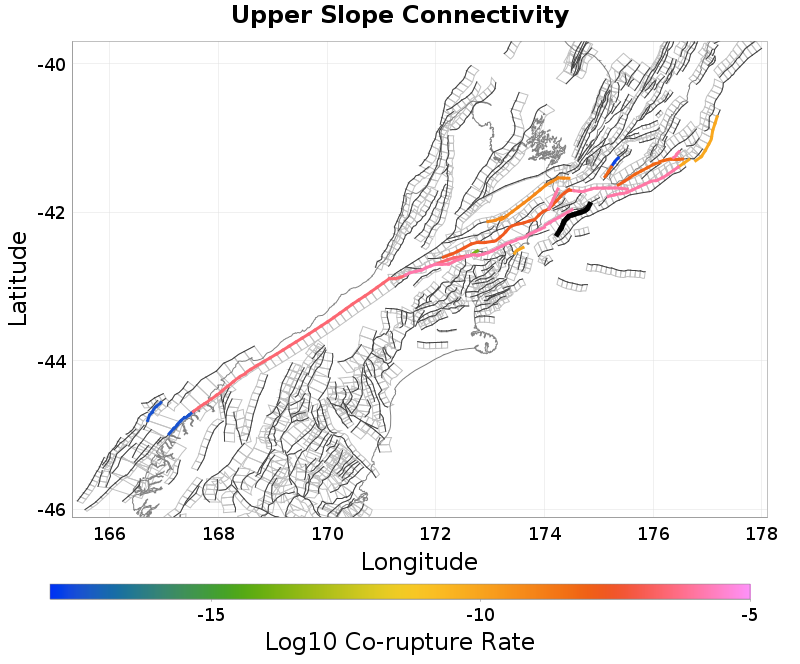

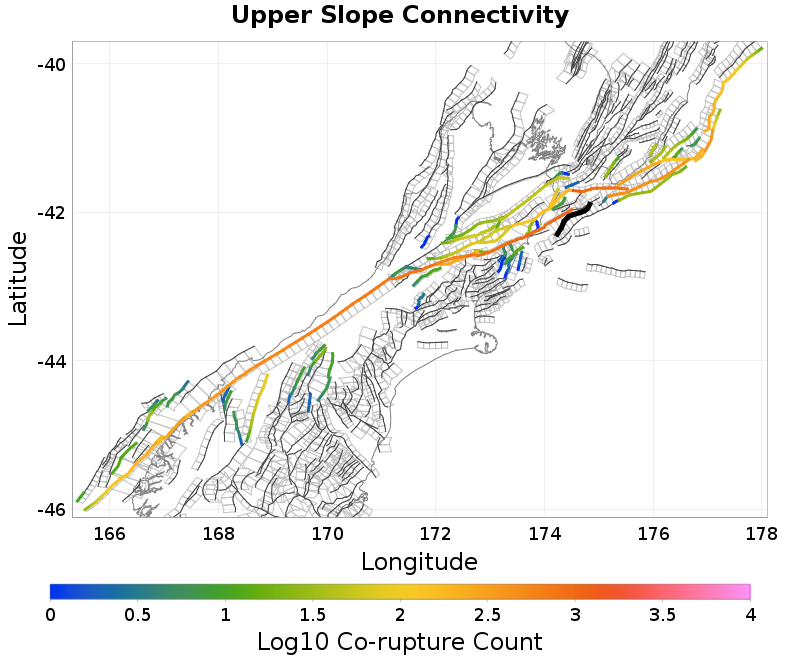

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Hope: Te Rapa, 0.1 km awayBooBoo, 9.5 km away
Te Rapa 1, 0.13 km awayHope: Seaward, 10.39 km away
Te Rapa 2, 0.18 km awayMarlborough Slope 4, 12.3 km away
Campbell Bank, 0.3 km awayOpouawe - Uruti, 13.4 km away
London Hill, 0.69 km awayNeedles East 2, 13.52 km away
Wharanui, 1.45 km awayNeedles, 14.3 km away
Chancet, 1.61 km awayKekerengu 1, 18.63 km away
Kekerengu Bank, 5.98 km awayMarlborough Slope 2, 18.74 km away
Kaikoura - Mangamaunu, 6.47 km away

Hope: Te Rapa, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMEFWWUZz
Connected?true
Directly Connected?true
Co-rupture Count1,032
Co-rupture Rate1.2547633E-6

Te Rapa 1, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMEFWWUZz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Rapa 2, 0.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMEFWWUZz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Campbell Bank, 0.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMEFWWUZz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

London Hill, 0.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMEFWWUZz
Connected?true
Directly Connected?true
Co-rupture Count148
Co-rupture Rate1.0464439E-6

Wharanui, 1.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMEFWWUZz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Chancet, 1.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMEFWWUZz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kekerengu Bank, 5.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMEFWWUZz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kaikoura - Mangamaunu, 6.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMEFWWUZz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

BooBoo, 9.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMEFWWUZz
Connected?true
Directly Connected?true
Co-rupture Count1,126
Co-rupture Rate1.0792915E-6

Hope: Seaward, 10.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMEFWWUZz
Connected?true
Directly Connected?false
Co-rupture Count1,006
Co-rupture Rate1.2547633E-6

Marlborough Slope 4, 12.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMEFWWUZz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Opouawe - Uruti, 13.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMEFWWUZz
Connected?true
Directly Connected?false
Co-rupture Count479
Co-rupture Rate1.0540095E-6

Needles East 2, 13.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMEFWWUZz
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate0.0

Needles, 14.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMEFWWUZz
Connected?true
Directly Connected?false
Co-rupture Count149
Co-rupture Rate1.8073962E-8

Kekerengu 1, 18.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMEFWWUZz
Connected?true
Directly Connected?false
Co-rupture Count155
Co-rupture Rate1.8073962E-8

Marlborough Slope 2, 18.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMEFWWUZz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
