Edgecumbe Coastal Details

Property	Value
Rupture Count	23,729
Ruptures Above Sect Min Mag	23,510
Ruptures w/ Nonzero Rates	17
Magnitude Range	[6.13, 8.21]
Length Range	[7, 594] km
Total Rate	6.966174E-4 /yr
Multi-Fault Rate	6.966174E-4 /yr (100.00%)
Directly-Connected Faults	8
All Co-Rupturing Faults	94

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

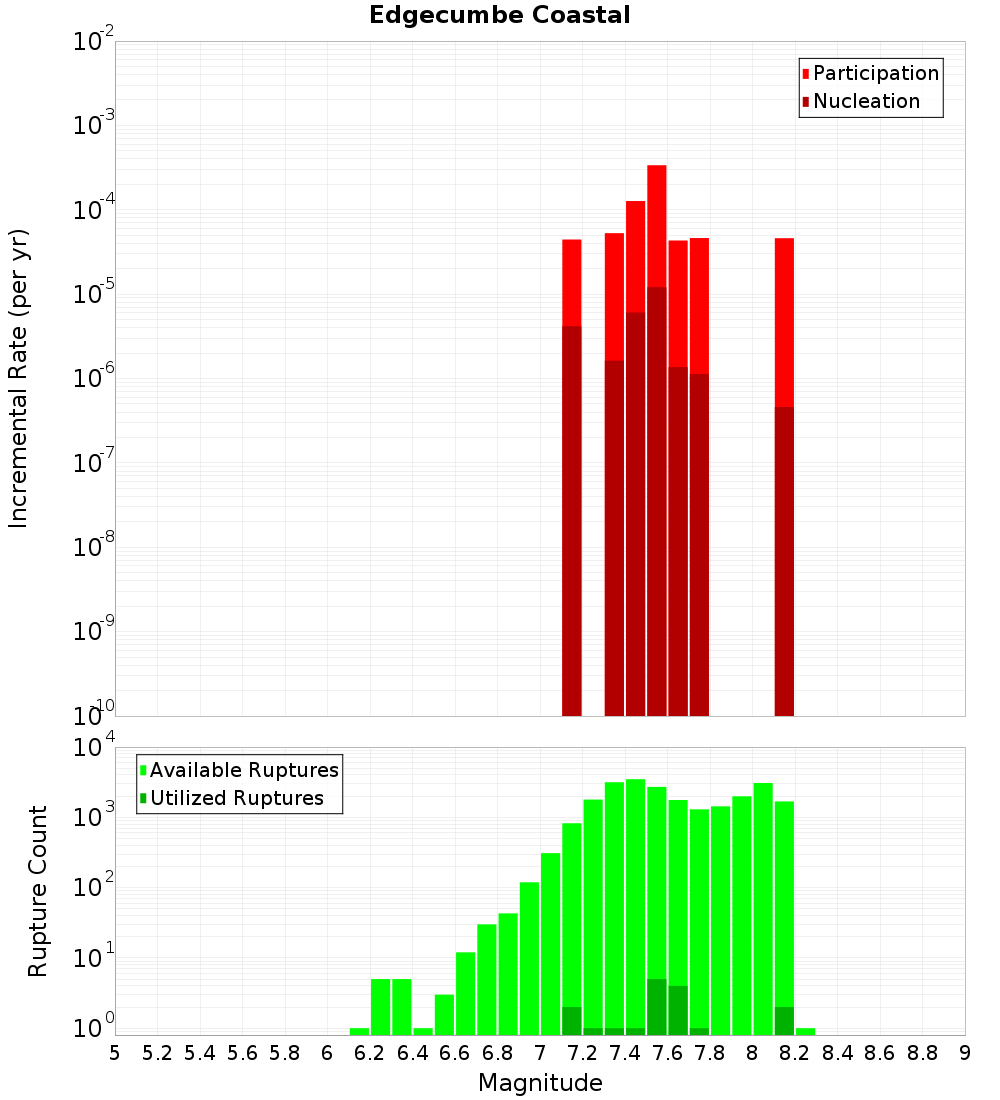

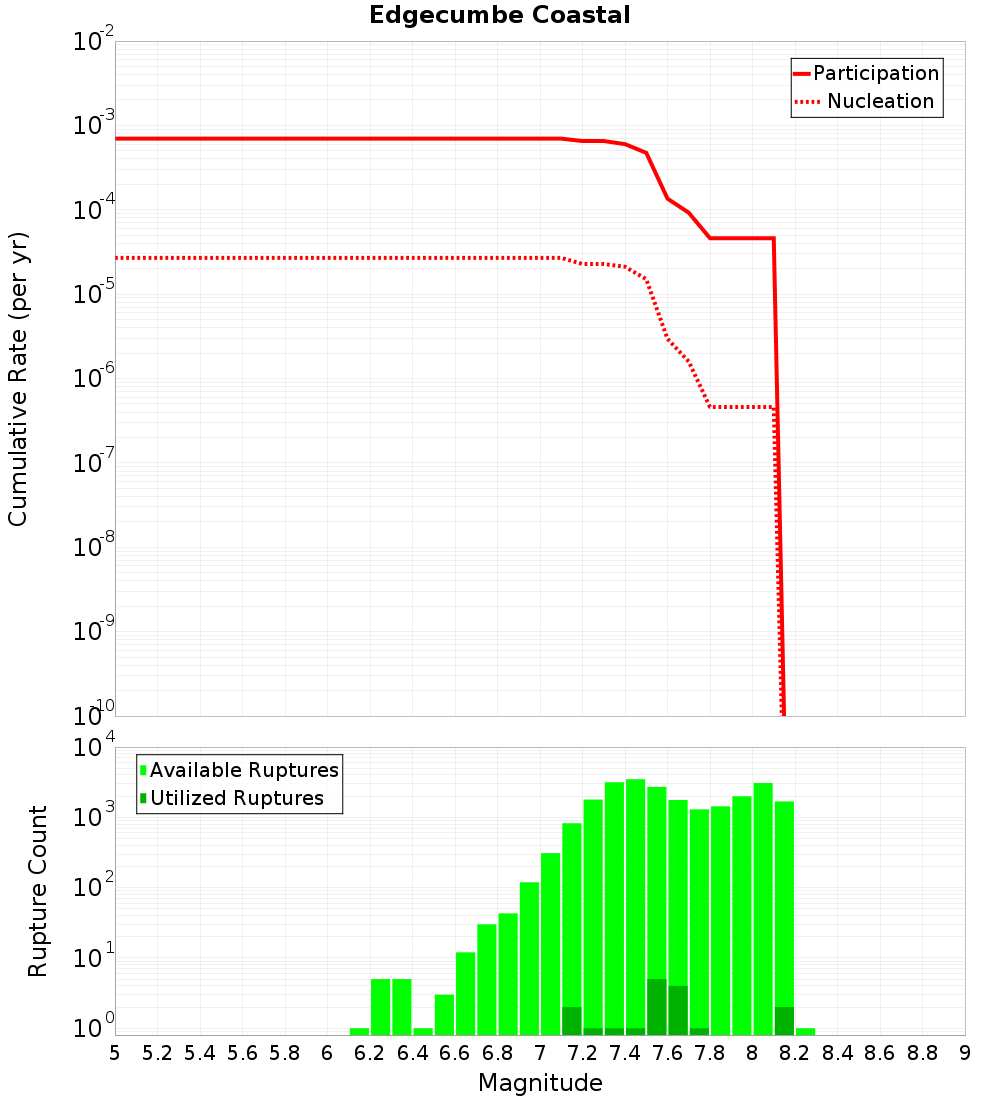

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

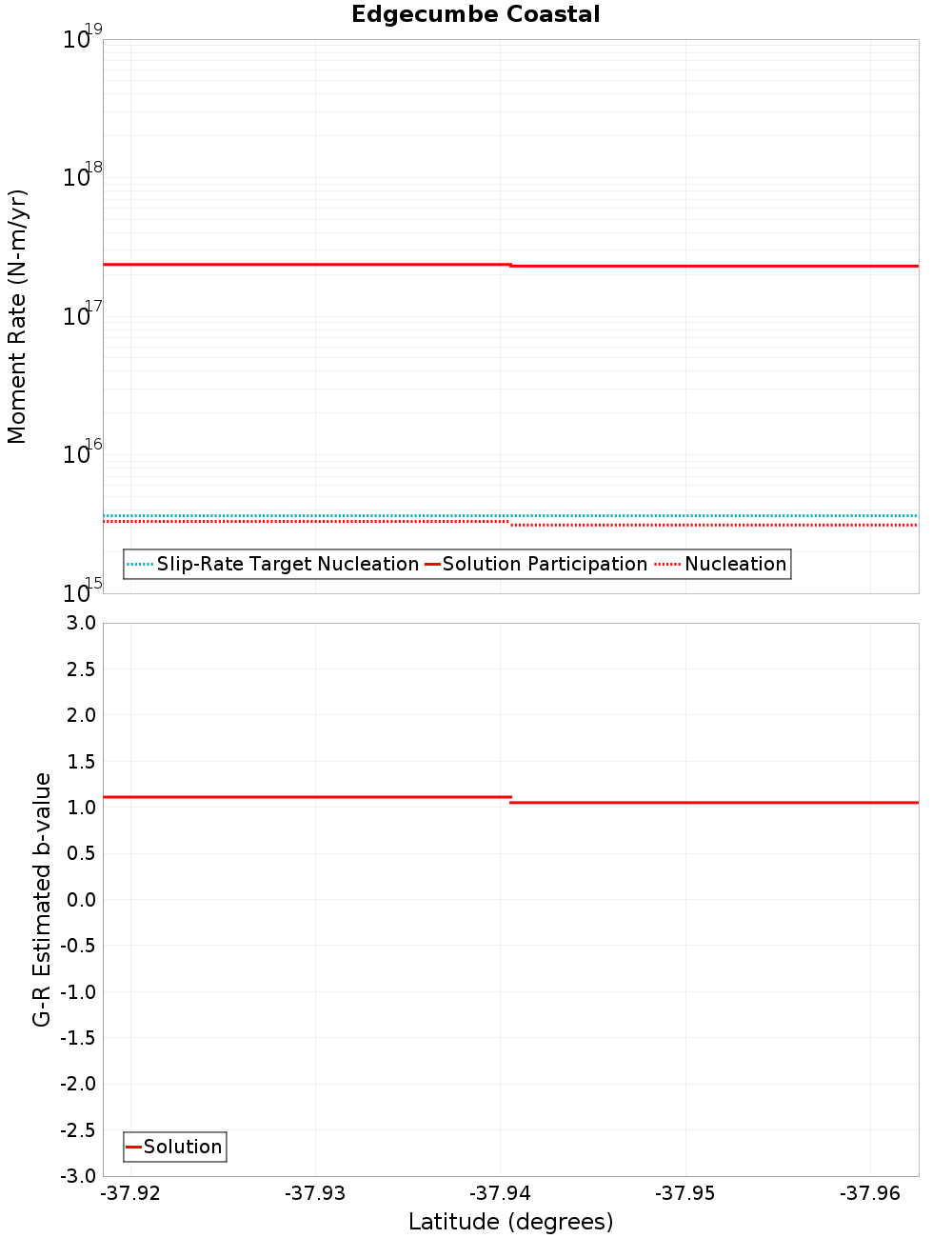

Moment-Rates and b-Values

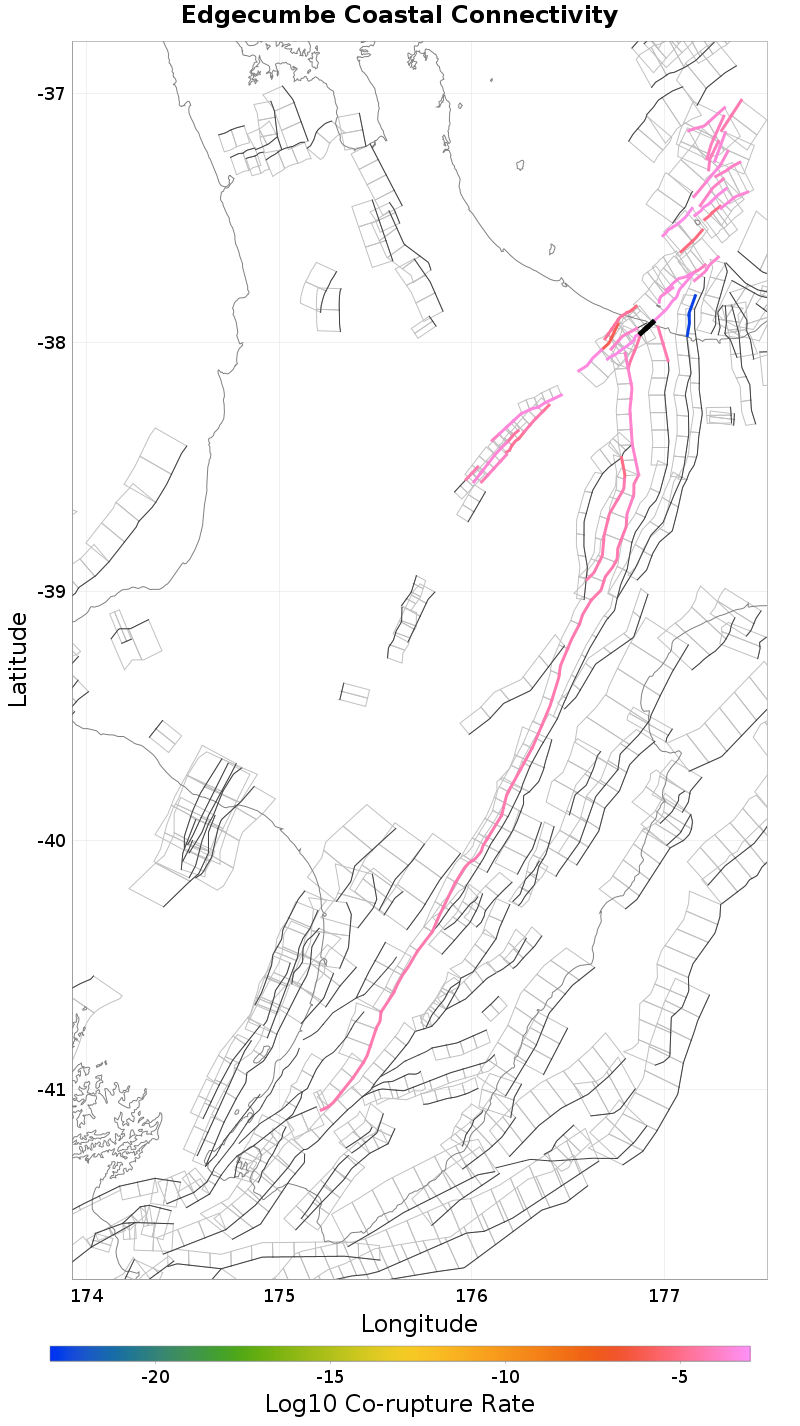

Connectivity

Nearby Sections

Fault Section
White Island 1, 0 km away
Edgecumbe 1987, 0 km away
Awakeri, 0 km away
Otakiri, 0.37 km away
Matata, 2.64 km away
Whakatane: North, 3.09 km away
Braemar, 4.62 km away
Rangitaiki 1, 8.8 km away
Waiohau: North, 11.47 km away
Rangitaiki 2, 14.83 km away
Waimana: North, 15.94 km away
Waiotahi: North, 18.75 km away
Waimanawa - Waikaremoana, 19.37 km away

White Island 1, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMHROdGRa
Connected?	true
Directly Connected?	true
Co-rupture Count	20,939
Co-rupture Rate	3.9947144E-4

Edgecumbe 1987, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMHROdGRa
Connected?	true
Directly Connected?	true
Co-rupture Count	12,095
Co-rupture Rate	4.5490882E-4

Awakeri, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMHROdGRa
Connected?	true
Directly Connected?	true
Co-rupture Count	7,612
Co-rupture Rate	3.5297708E-5

Otakiri, 0.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMHROdGRa
Connected?	true
Directly Connected?	true
Co-rupture Count	2,282
Co-rupture Rate	1.5362352E-4

Matata, 2.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMHROdGRa
Connected?	true
Directly Connected?	true
Co-rupture Count	1,157
Co-rupture Rate	2.353609E-5

Whakatane: North, 3.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMHROdGRa
Connected?	true
Directly Connected?	true
Co-rupture Count	255
Co-rupture Rate	5.2787364E-5

Braemar, 4.62 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMHROdGRa
Connected?	true
Directly Connected?	true
Co-rupture Count	6,907
Co-rupture Rate	3.4576672E-4

Rangitaiki 1, 8.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMHROdGRa
Connected?	true
Directly Connected?	true
Co-rupture Count	1,282
Co-rupture Rate	2.5274916E-4

Waiohau: North, 11.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMHROdGRa
Connected?	true
Directly Connected?	false
Co-rupture Count	14,810
Co-rupture Rate	1.6530052E-4

Rangitaiki 2, 14.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMHROdGRa
Connected?	true
Directly Connected?	false
Co-rupture Count	5,496
Co-rupture Rate	3.0483824E-4

Waimana: North, 15.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMHROdGRa
Connected?	true
Directly Connected?	false
Co-rupture Count	207
Co-rupture Rate	2.4772063E-23

Waiotahi: North, 18.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMHROdGRa
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waimanawa - Waikaremoana, 19.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMHROdGRa
Connected?	true
Directly Connected?	false
Co-rupture Count	98
Co-rupture Rate	0.0
