Ruahine: North Details

PropertyValue
Rupture Count52,846
Ruptures Above Sect Min Mag52,842
Ruptures w/ Nonzero Rates19
Magnitude Range[6.87, 8.50]
Length Range[24, 1,113] km
Total Rate4.4741802E-4 /yr
Multi-Fault Rate4.4741802E-4 /yr (100.00%)
Directly-Connected Faults8
All Co-Rupturing Faults129

Table Of Contents

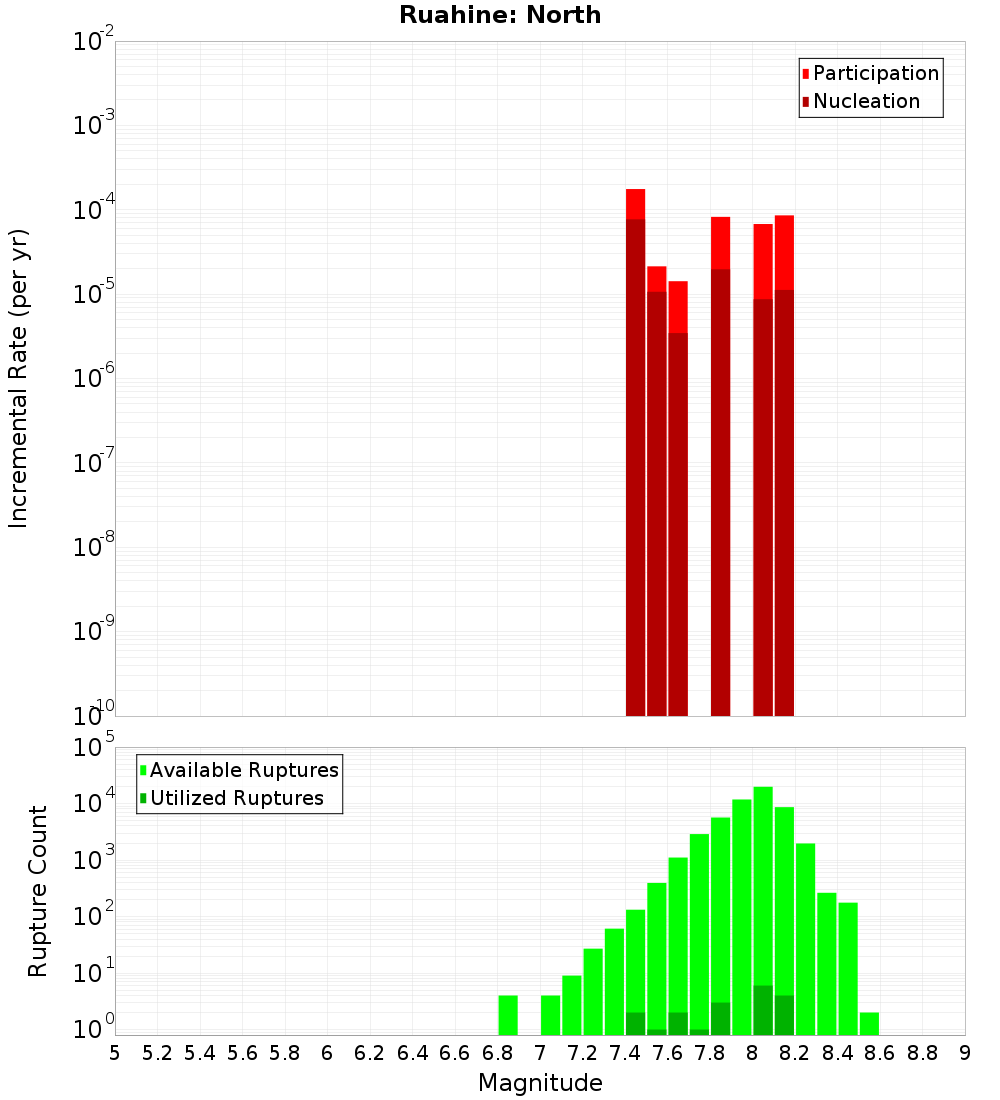

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

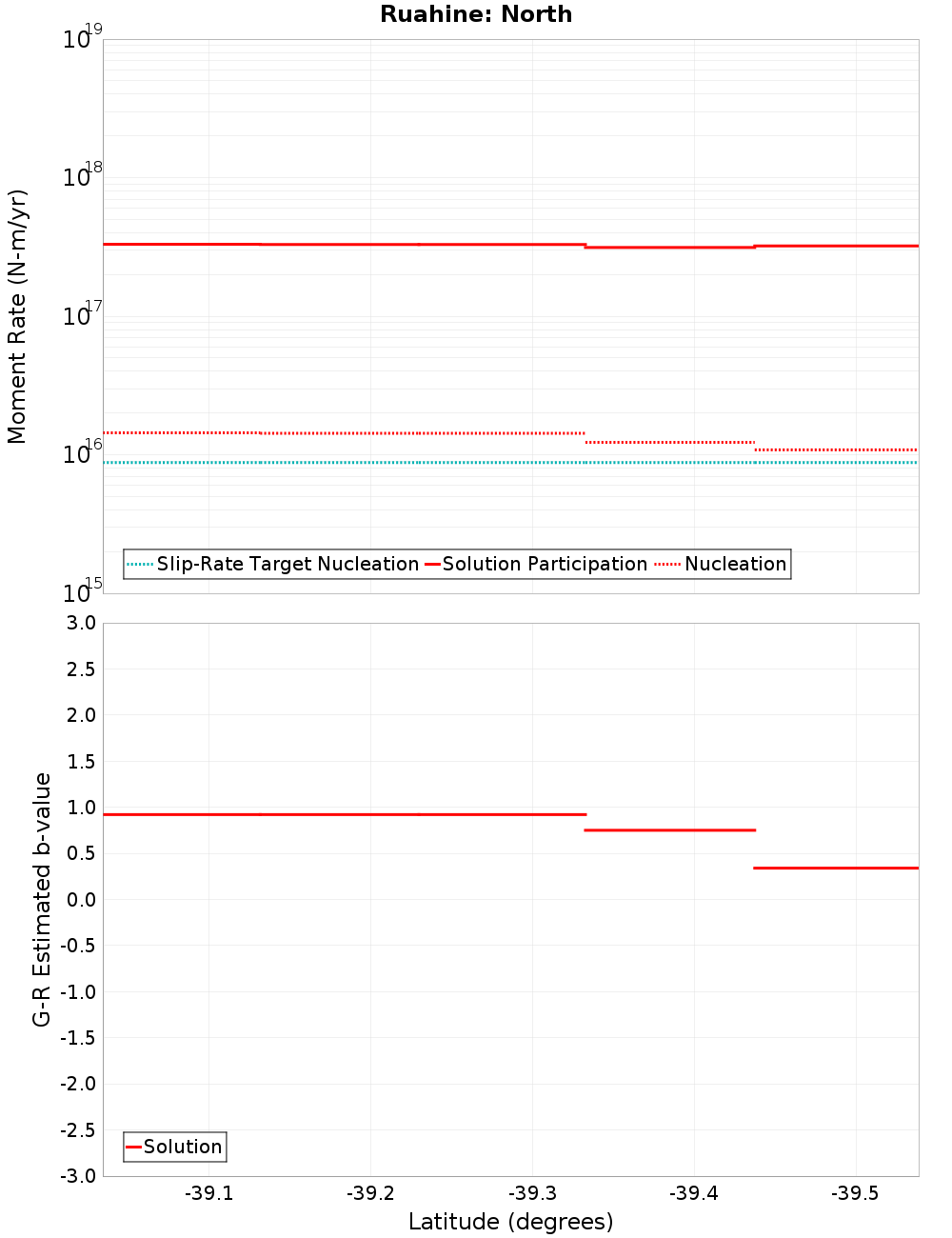

Moment-Rates and b-Values

(top)

Along-strike plot

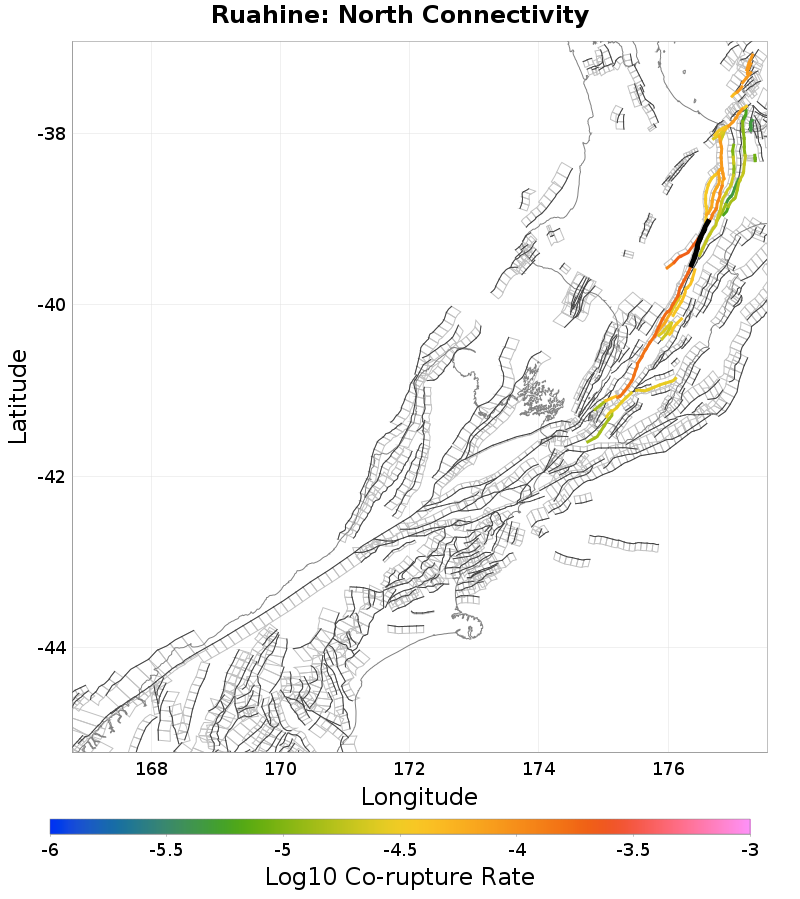

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Waiohau: South, 0 km away
Ruahine: Central, 0 km away
Kaweka, 1.83 km away
Wheao: South, 2.68 km away
Wakarara, 4 km away
Mohaka: South, 4.35 km away
Mohaka: North, 5.2 km away
Patoka - Rangiora, 6.53 km away
Te Whaiti South, 9.06 km away
Whakatane: South, 11.52 km away
Waimana: South, 11.54 km away
Awanui, 17.89 km away
Te Heka, 19.72 km away

Waiohau: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMHROdGRa
Connected?true
Directly Connected?true
Co-rupture Count15,815
Co-rupture Rate1.3139127E-4

Ruahine: Central, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMHROdGRa
Connected?true
Directly Connected?true
Co-rupture Count38,980
Co-rupture Rate1.944449E-4

Kaweka, 1.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMHROdGRa
Connected?true
Directly Connected?true
Co-rupture Count351
Co-rupture Rate2.016609E-4

Wheao: South, 2.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMHROdGRa
Connected?true
Directly Connected?true
Co-rupture Count17,548
Co-rupture Rate3.5229554E-5

Wakarara, 4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMHROdGRa
Connected?true
Directly Connected?true
Co-rupture Count2,805
Co-rupture Rate4.1467923E-5

Mohaka: South, 4.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMHROdGRa
Connected?true
Directly Connected?true
Co-rupture Count17,854
Co-rupture Rate6.1352424E-5

Mohaka: North, 5.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMHROdGRa
Connected?true
Directly Connected?true
Co-rupture Count6,572
Co-rupture Rate1.8939178E-5

Patoka - Rangiora, 6.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMHROdGRa
Connected?true
Directly Connected?false
Co-rupture Count49
Co-rupture Rate0.0

Te Whaiti South, 9.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMHROdGRa
Connected?true
Directly Connected?true
Co-rupture Count7,133
Co-rupture Rate6.458096E-5

Whakatane: South, 11.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMHROdGRa
Connected?true
Directly Connected?false
Co-rupture Count2,006
Co-rupture Rate2.1166525E-5

Waimana: South, 11.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMHROdGRa
Connected?true
Directly Connected?false
Co-rupture Count4,510
Co-rupture Rate1.2945964E-5

Awanui, 17.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMHROdGRa
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Heka, 19.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNTMuMHROdGRa
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
