Palliser - Kaiwhata Details

Property	Value
Rupture Count	9,734
Ruptures Above Sect Min Mag	9,727
Ruptures w/ Nonzero Rates	649
Magnitude Range	[6.84, 8.33]
Length Range	[21, 674] km
Total Rate	9.852629E-4 /yr
Multi-Fault Rate	9.852533E-4 /yr (100.00%)
Directly-Connected Faults	9
All Co-Rupturing Faults	68

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

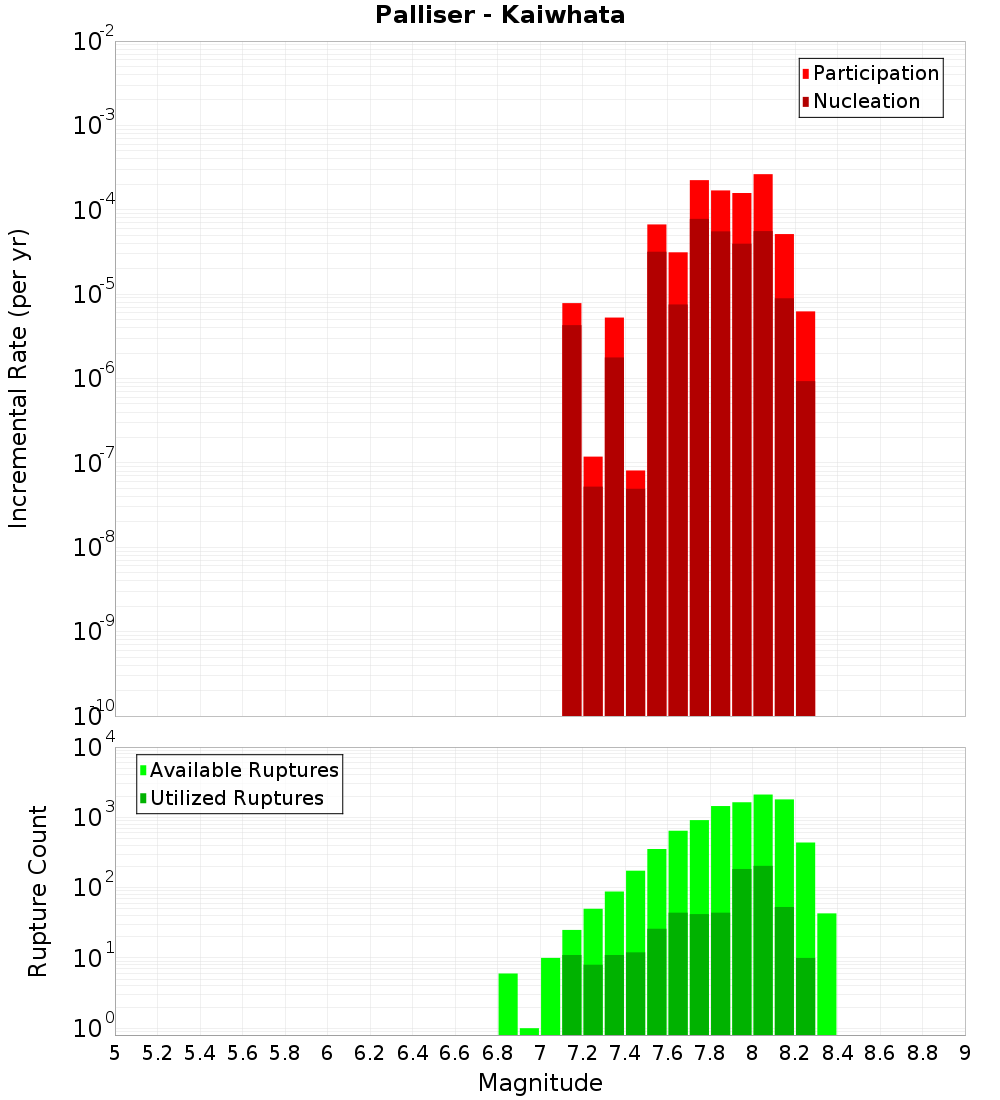

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Honeycomb, 1.22 km away
Uruti Basin, 1.36 km away
Otaraia, 1.7 km away
Riversdale, 3.25 km away
Uruti Point, 3.6 km away
BooBoo, 4.24 km away
Whareama Bank, 6.44 km away
Opouawe - Uruti, 8.58 km away
Dry River - Huangarua: 1, 11.83 km away
Pahaua, 13.63 km away
Riversdale North, 14.39 km away
Dry River - Huangarua: 3, 18.11 km away
Dry River - Huangarua: 2, 18.58 km away

Honeycomb, 1.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEJyTDJu
Connected?	true
Directly Connected?	true
Co-rupture Count	73
Co-rupture Rate	2.1868502E-6

Uruti Basin, 1.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEJyTDJu
Connected?	true
Directly Connected?	true
Co-rupture Count	5,324
Co-rupture Rate	2.573396E-4

Otaraia, 1.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEJyTDJu
Connected?	true
Directly Connected?	true
Co-rupture Count	845
Co-rupture Rate	2.5526222E-5

Riversdale, 3.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEJyTDJu
Connected?	true
Directly Connected?	true
Co-rupture Count	587
Co-rupture Rate	1.730415E-4

Uruti Point, 3.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEJyTDJu
Connected?	true
Directly Connected?	true
Co-rupture Count	721
Co-rupture Rate	2.4260013E-5

BooBoo, 4.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEJyTDJu
Connected?	true
Directly Connected?	true
Co-rupture Count	7,381
Co-rupture Rate	8.3929574E-4

Whareama Bank, 6.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEJyTDJu
Connected?	true
Directly Connected?	true
Co-rupture Count	1,193
Co-rupture Rate	3.0253394E-4

Opouawe - Uruti, 8.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEJyTDJu
Connected?	true
Directly Connected?	true
Co-rupture Count	1,929
Co-rupture Rate	8.223099E-5

Dry River - Huangarua: 1, 11.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEJyTDJu
Connected?	true
Directly Connected?	true
Co-rupture Count	44
Co-rupture Rate	5.3291324E-6

Pahaua, 13.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEJyTDJu
Connected?	true
Directly Connected?	false
Co-rupture Count	204
Co-rupture Rate	1.2402343E-5

Riversdale North, 14.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEJyTDJu
Connected?	true
Directly Connected?	false
Co-rupture Count	336
Co-rupture Rate	1.9978912E-4

Dry River - Huangarua: 3, 18.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEJyTDJu
Connected?	true
Directly Connected?	false
Co-rupture Count	42
Co-rupture Rate	4.0137375E-6

Dry River - Huangarua: 2, 18.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEJyTDJu
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
