Pukerua - Shepherds Gully: 1 Details

PropertyValue
Rupture Count2,095
Ruptures Above Sect Min Mag2,081
Ruptures w/ Nonzero Rates19
Magnitude Range[6.28, 8.21]
Length Range[7, 535] km
Total Rate1.5607673E-5 /yr
Multi-Fault Rate1.5607673E-5 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults59

Table Of Contents

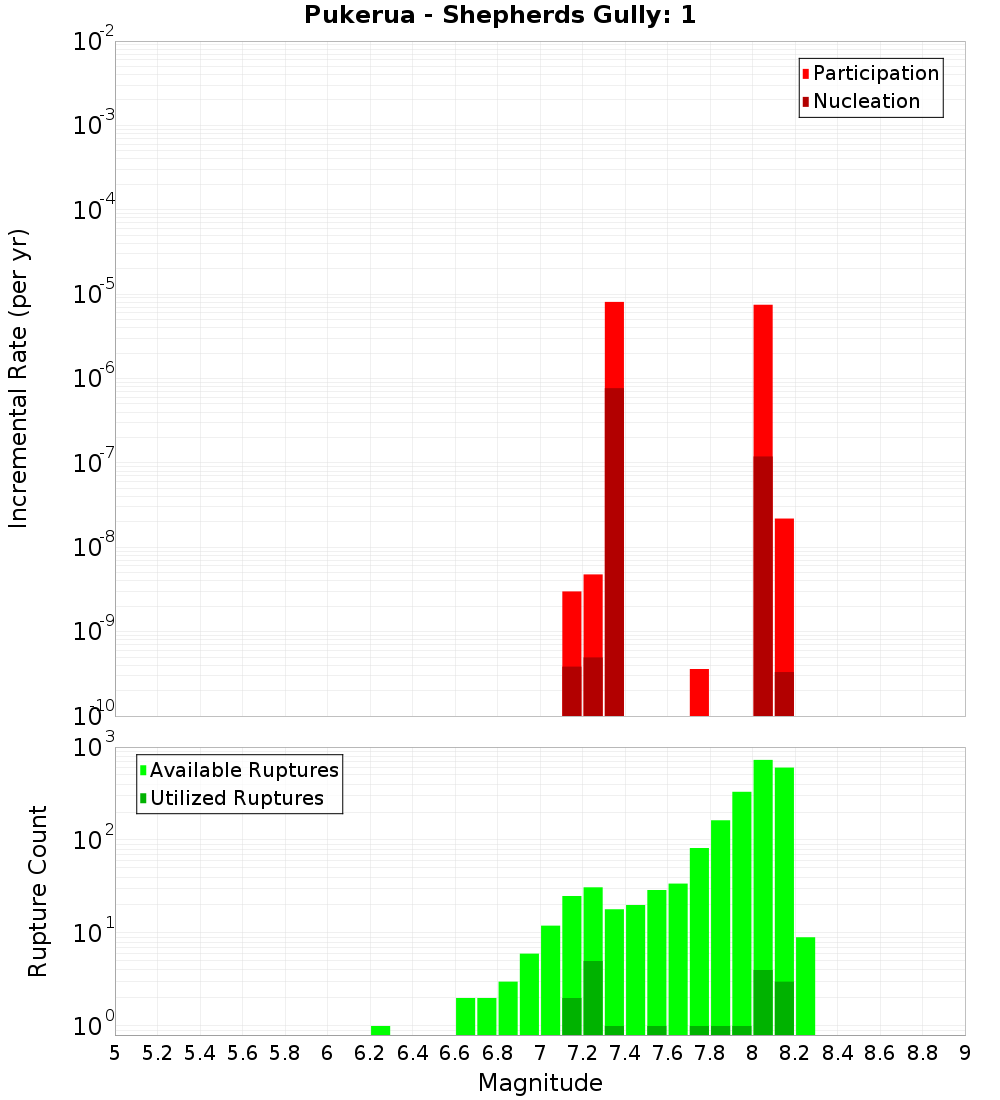

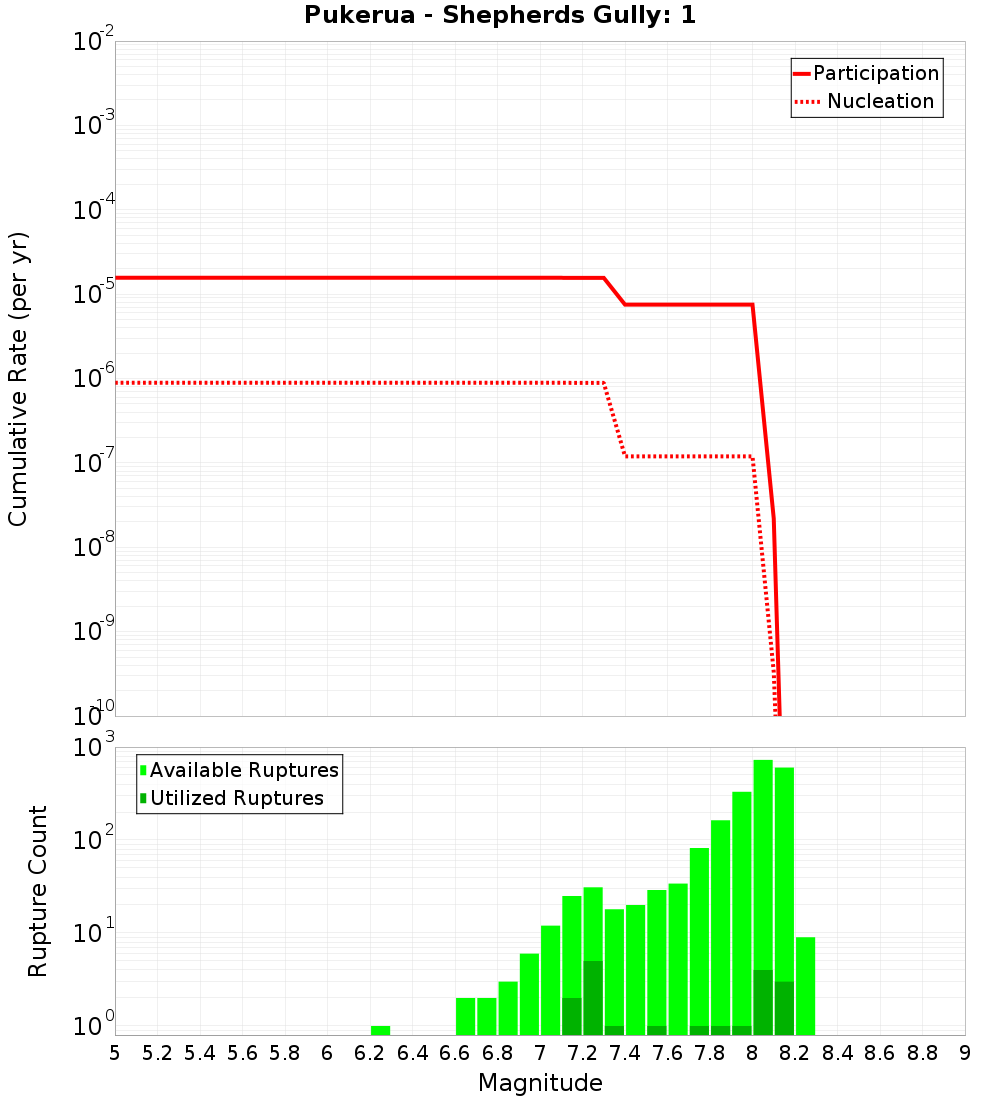

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

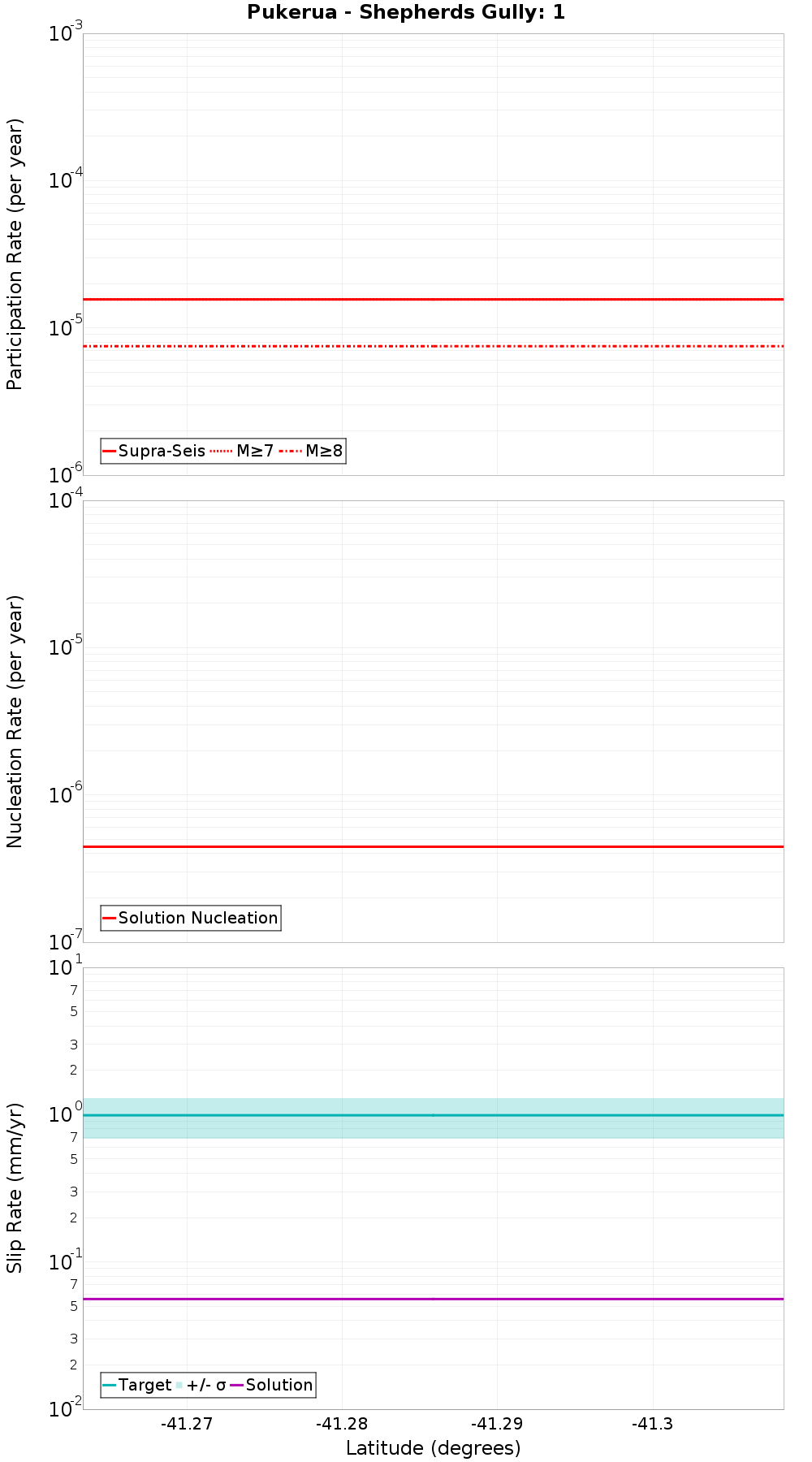

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Shepherds Gully - Mana, 0 km awayWellington Hutt Valley: 4, 9.04 km away
Pukerua - Shepherds Gully: 2, 0 km awayOhariu South 1, 9.15 km away
Ohariu, 2.91 km awayWhitemans Valley, 9.8 km away
Wellington Hutt Valley: 2, 3.93 km awayAotea - Evans Bay, 9.94 km away
Ohariu South 2, 4.02 km awayMoonshine, 11.23 km away
Okupe 1, 5.82 km awayWairau 3, 13.01 km away
Wellington Hutt Valley: 1, 6.03 km awayOtaheke South, 14.97 km away
Wellington Hutt Valley: 3, 7.12 km awayWharekauhau, 15.16 km away
Pukerua - Shepherds Gully: 3, 7.39 km awayFisherman 1, 17.2 km away

Shepherds Gully - Mana, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEh2d1Q0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pukerua - Shepherds Gully: 2, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEh2d1Q0
Connected?true
Directly Connected?true
Co-rupture Count1,084
Co-rupture Rate2.2762451E-8

Ohariu, 2.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEh2d1Q0
Connected?true
Directly Connected?true
Co-rupture Count1,871
Co-rupture Rate7.5129233E-6

Wellington Hutt Valley: 2, 3.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEh2d1Q0
Connected?true
Directly Connected?false
Co-rupture Count442
Co-rupture Rate4.0936956E-9

Ohariu South 2, 4.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEh2d1Q0
Connected?true
Directly Connected?true
Co-rupture Count605
Co-rupture Rate4.0936956E-9

Okupe 1, 5.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEh2d1Q0
Connected?true
Directly Connected?true
Co-rupture Count573
Co-rupture Rate8.108196E-6

Wellington Hutt Valley: 1, 6.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEh2d1Q0
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate3.672634E-9

Wellington Hutt Valley: 3, 7.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEh2d1Q0
Connected?true
Directly Connected?false
Co-rupture Count323
Co-rupture Rate0.0

Pukerua - Shepherds Gully: 3, 7.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEh2d1Q0
Connected?true
Directly Connected?false
Co-rupture Count974
Co-rupture Rate2.2709214E-8

Wellington Hutt Valley: 4, 9.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEh2d1Q0
Connected?true
Directly Connected?false
Co-rupture Count56
Co-rupture Rate0.0

Ohariu South 1, 9.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEh2d1Q0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Whitemans Valley, 9.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEh2d1Q0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Aotea - Evans Bay, 9.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEh2d1Q0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Moonshine, 11.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEh2d1Q0
Connected?true
Directly Connected?false
Co-rupture Count228
Co-rupture Rate2.9434235E-9

Wairau 3, 13.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEh2d1Q0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otaheke South, 14.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEh2d1Q0
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate0.0

Wharekauhau, 15.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEh2d1Q0
Connected?true
Directly Connected?false
Co-rupture Count11
Co-rupture Rate2.6231153E-15

Fisherman 1, 17.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEh2d1Q0
Connected?true
Directly Connected?false
Co-rupture Count7
Co-rupture Rate0.0
