Rangefront Details

Property	Value
Rupture Count	10,507
Ruptures Above Sect Min Mag	10,504
Ruptures w/ Nonzero Rates	53
Magnitude Range	[6.84, 8.21]
Length Range	[21, 540] km
Total Rate	2.820668E-4 /yr
Multi-Fault Rate	2.820668E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	100

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

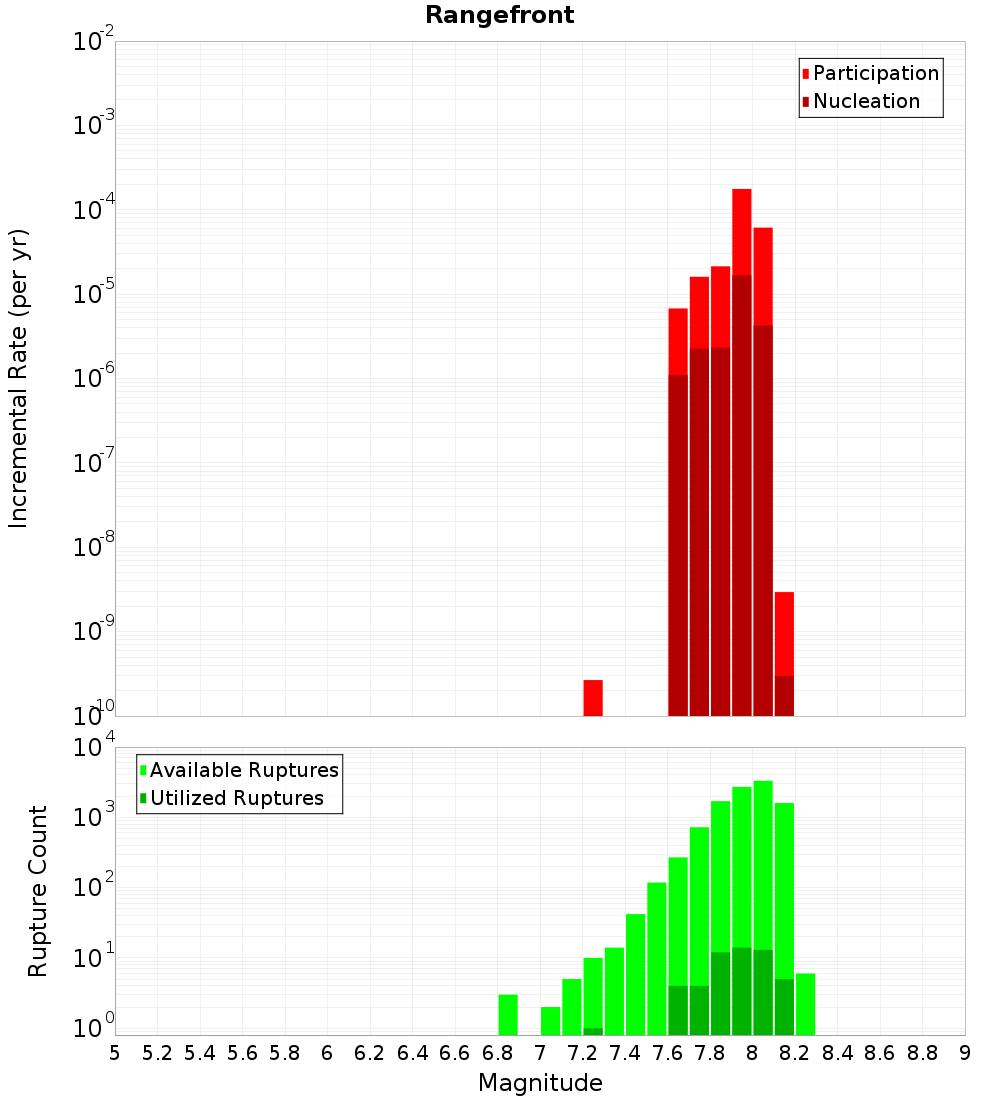

Magnitude-Frequency Distribution

Incremental	Cumulative

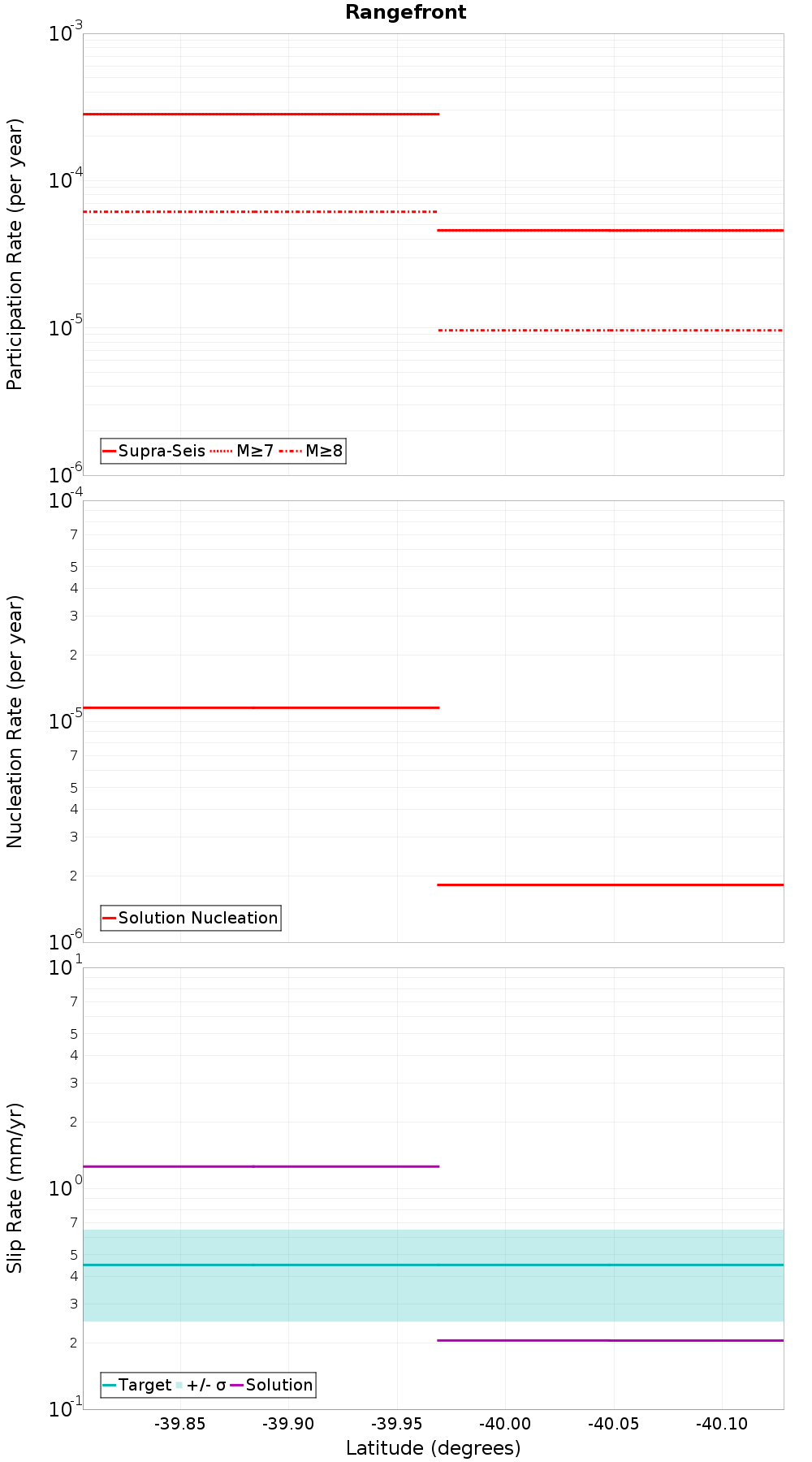

Along-Strike Values

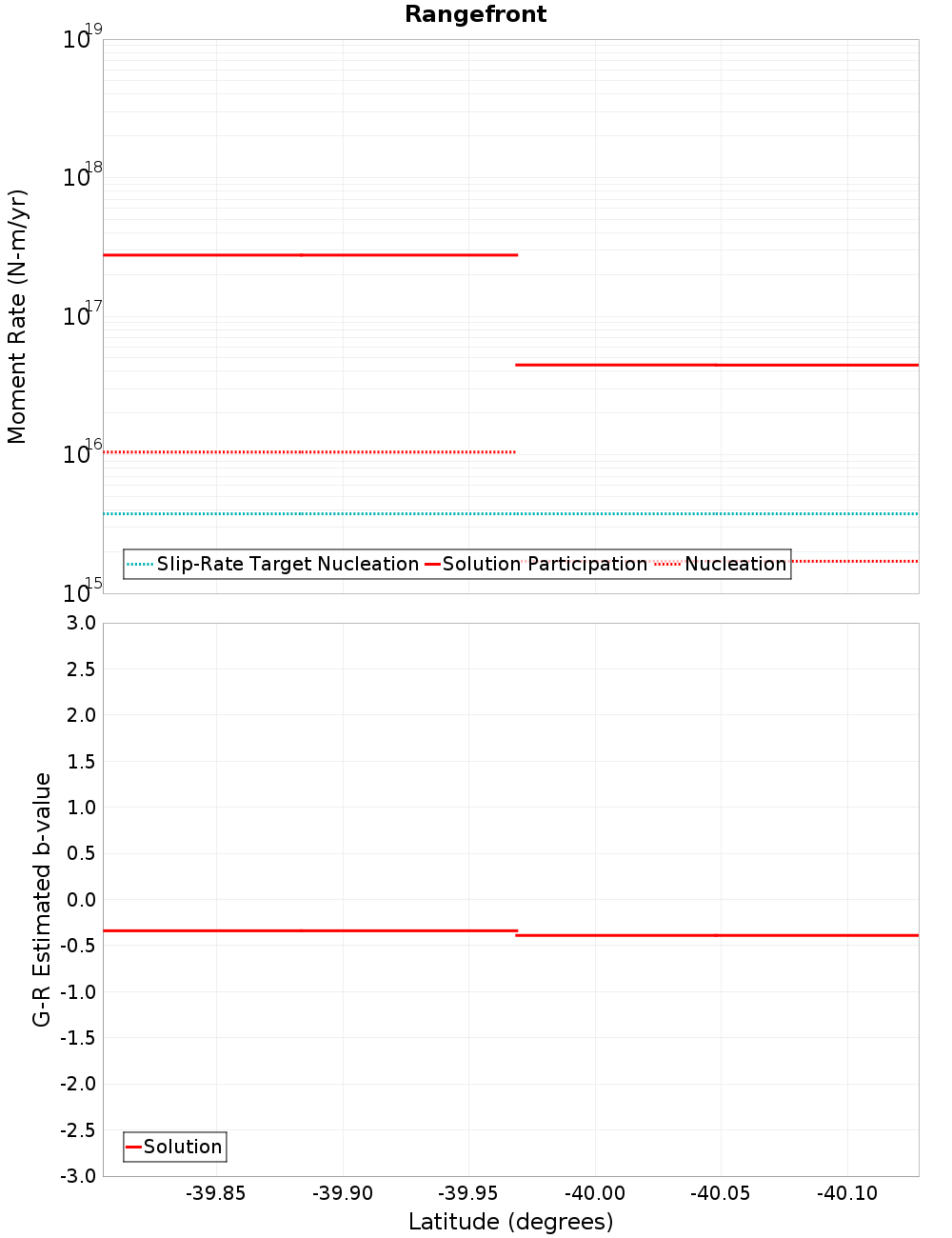

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Wakarara, 0 km away
Ruahine: South, 0.19 km away
Ruahine: Central, 0.2 km away
Mohaka: South, 0.2 km away
Ruataniwha, 8.95 km away
Pahiatua, 9.78 km away
Maunga, 10.17 km away
Woodville, 10.84 km away
Pohangina, 12.41 km away
Oruawharo - Mangatoro, 15.62 km away
Clear Hills - Waikopiro, 16.39 km away
Waewaepa, 16.75 km away
Te Heka, 17.34 km away

Wakarara, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEh2d1Q0
Connected?	true
Directly Connected?	true
Co-rupture Count	7,494
Co-rupture Rate	2.8186155E-4

Ruahine: South, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEh2d1Q0
Connected?	true
Directly Connected?	true
Co-rupture Count	2,601
Co-rupture Rate	2.3600194E-4

Ruahine: Central, 0.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEh2d1Q0
Connected?	true
Directly Connected?	true
Co-rupture Count	1,059
Co-rupture Rate	1.2078793E-5

Mohaka: South, 0.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEh2d1Q0
Connected?	true
Directly Connected?	true
Co-rupture Count	12,465
Co-rupture Rate	6.699771E-5

Ruataniwha, 8.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEh2d1Q0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pahiatua, 9.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEh2d1Q0
Connected?	true
Directly Connected?	false
Co-rupture Count	68
Co-rupture Rate	1.188078E-5

Maunga, 10.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEh2d1Q0
Connected?	true
Directly Connected?	false
Co-rupture Count	9
Co-rupture Rate	0.0

Woodville, 10.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEh2d1Q0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pohangina, 12.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEh2d1Q0
Connected?	true
Directly Connected?	false
Co-rupture Count	45
Co-rupture Rate	0.0

Oruawharo - Mangatoro, 15.62 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEh2d1Q0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Clear Hills - Waikopiro, 16.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEh2d1Q0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waewaepa, 16.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEh2d1Q0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Te Heka, 17.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEh2d1Q0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
