Rangitaiki 2 Details

PropertyValue
Rupture Count9,213
Ruptures Above Sect Min Mag9,150
Ruptures w/ Nonzero Rates186
Magnitude Range[6.50, 8.18]
Length Range[13, 567] km
Total Rate0.0020446961 /yr
Multi-Fault Rate0.0020446961 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults76

Table Of Contents

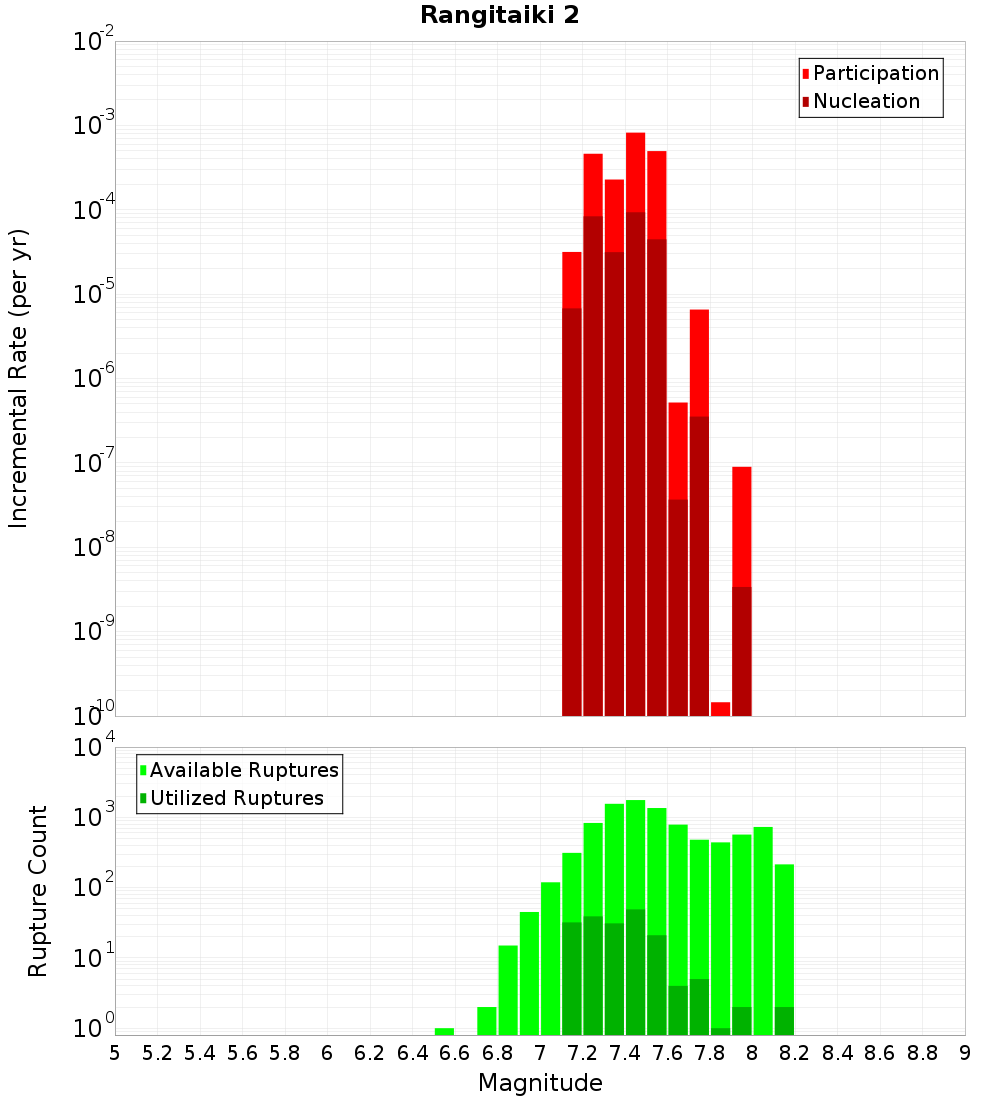

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

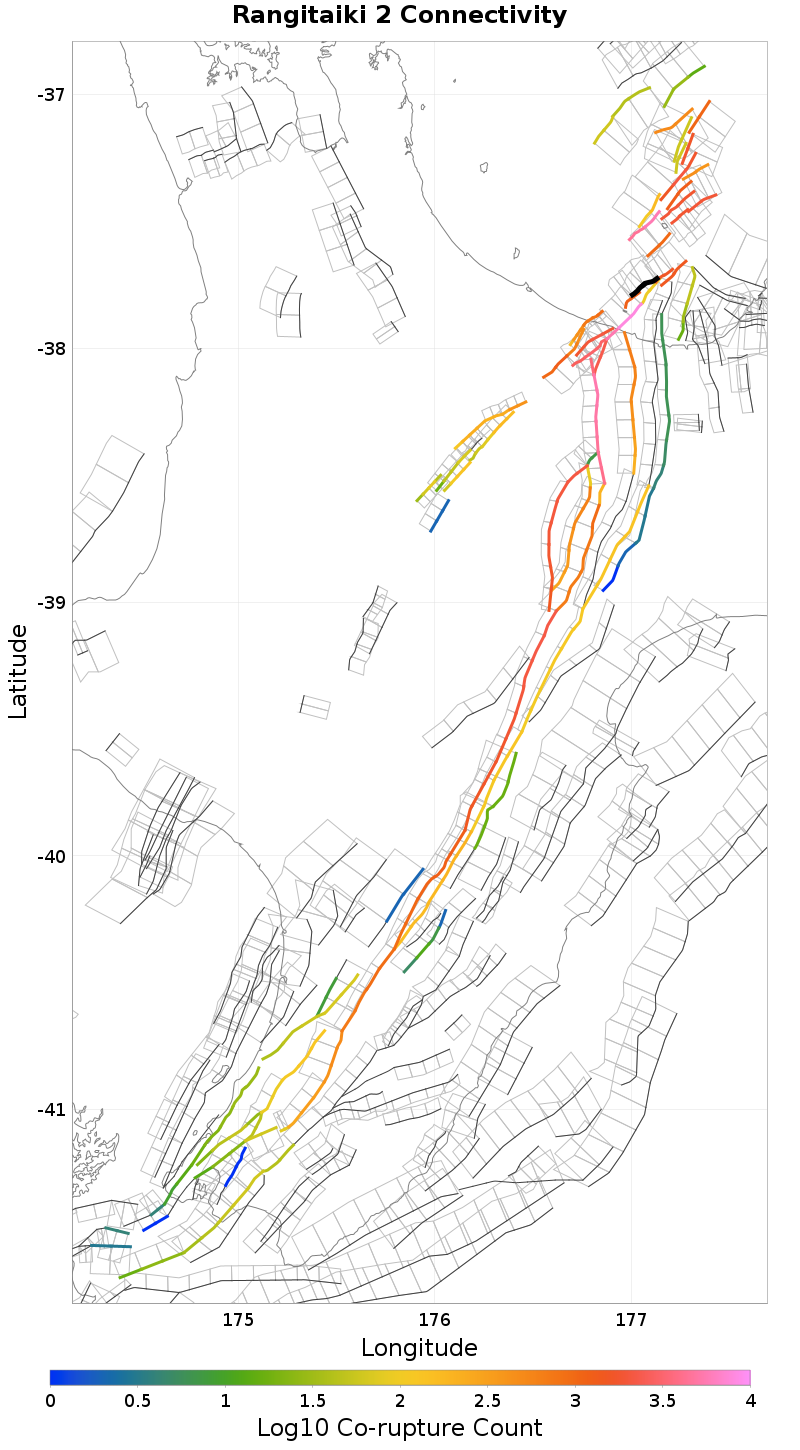

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Whakaari 4, 0.48 km awayOhae 1, 14.97 km away
Ohiwa 1, 0.64 km awayOpotiki 3, 15.11 km away
White Island 1, 0.71 km awayMatata, 15.14 km away
Rangitaiki 1, 0.74 km awayTe Arawa 1, 16.46 km away
White Island 2, 2.72 km awayWhakatane: North, 16.94 km away
Waimanawa - Waikaremoana, 6.46 km awayOtakiri, 17.19 km away
Calypso 2, 8.03 km awayVolkner 3, 18.22 km away
Waimana: North, 9.4 km awayOhae 2, 19.04 km away
Edgecumbe Coastal, 14.83 km awayTuatoru 1, 19.16 km away
Waiotahi: North, 14.87 km away

Whakaari 4, 0.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEh2d1Q0
Connected?true
Directly Connected?true
Co-rupture Count5,604
Co-rupture Rate9.66449E-4

Ohiwa 1, 0.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEh2d1Q0
Connected?true
Directly Connected?true
Co-rupture Count1,606
Co-rupture Rate2.3502586E-4

White Island 1, 0.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEh2d1Q0
Connected?true
Directly Connected?true
Co-rupture Count8,088
Co-rupture Rate0.0018282017

Rangitaiki 1, 0.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEh2d1Q0
Connected?true
Directly Connected?true
Co-rupture Count1,205
Co-rupture Rate2.1518552E-4

White Island 2, 2.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEh2d1Q0
Connected?true
Directly Connected?true
Co-rupture Count1,451
Co-rupture Rate0.0010280723

Waimanawa - Waikaremoana, 6.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEh2d1Q0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Calypso 2, 8.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEh2d1Q0
Connected?true
Directly Connected?true
Co-rupture Count996
Co-rupture Rate1.027839E-6

Waimana: North, 9.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEh2d1Q0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Edgecumbe Coastal, 14.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEh2d1Q0
Connected?true
Directly Connected?false
Co-rupture Count5,496
Co-rupture Rate0.0011002531

Waiotahi: North, 14.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEh2d1Q0
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate0.0

Ohae 1, 14.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEh2d1Q0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Opotiki 3, 15.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEh2d1Q0
Connected?true
Directly Connected?false
Co-rupture Count47
Co-rupture Rate4.193382E-6

Matata, 15.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEh2d1Q0
Connected?true
Directly Connected?false
Co-rupture Count1,038
Co-rupture Rate3.1239073E-5

Te Arawa 1, 16.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEh2d1Q0
Connected?true
Directly Connected?false
Co-rupture Count1,929
Co-rupture Rate4.34587E-4

Whakatane: North, 16.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEh2d1Q0
Connected?true
Directly Connected?false
Co-rupture Count661
Co-rupture Rate1.49391E-4

Otakiri, 17.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEh2d1Q0
Connected?true
Directly Connected?false
Co-rupture Count2,182
Co-rupture Rate0.0010069584

Volkner 3, 18.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEh2d1Q0
Connected?true
Directly Connected?false
Co-rupture Count167
Co-rupture Rate3.1261596E-5

Ohae 2, 19.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEh2d1Q0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tuatoru 1, 19.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMEh2d1Q0
Connected?true
Directly Connected?false
Co-rupture Count1,894
Co-rupture Rate6.375707E-4
