Cloudy 2 Details

PropertyValue
Rupture Count2,128
Ruptures Above Sect Min Mag2,125
Ruptures w/ Nonzero Rates7
Magnitude Range[6.20, 8.51]
Length Range[4, 903] km
Total Rate4.9835583E-4 /yr
Multi-Fault Rate4.9835583E-4 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults115

Table Of Contents

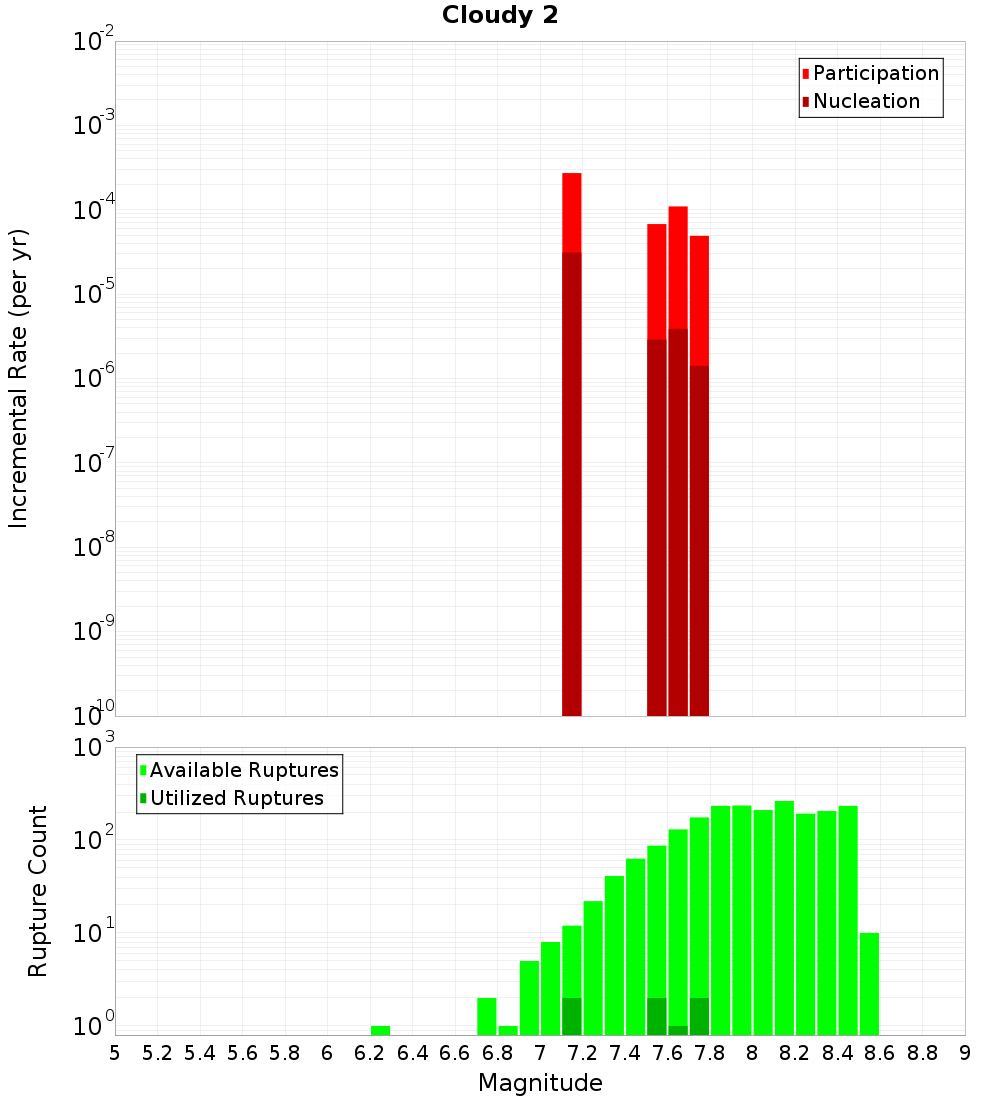

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

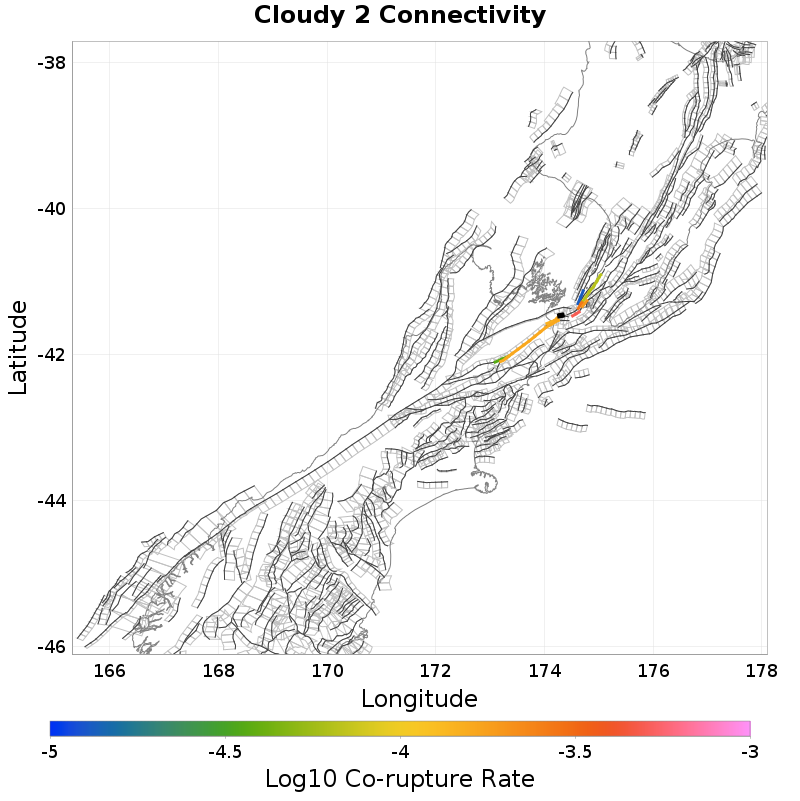

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Cloudy 1, 0 km awayWairau 3, 8.85 km away
Cloudy 3, 0 km awayWairau 2, 10.61 km away
Awatere: Northeast 2, 4.02 km awayWairau, 12.85 km away
Wairarapa: Needles, 6.58 km awayWellington Hutt Valley: 1, 14.75 km away
Vernon 4, 6.7 km awayBooBoo, 15.22 km away
Vernon 3, 7.01 km awayNeedles East 2, 15.53 km away
Ohariu South 1, 7.53 km awayVernon 1, 16.12 km away
Vernon 2, 8.36 km awayNeedles, 16.93 km away

Cloudy 1, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMHVianM1
Connected?true
Directly Connected?true
Co-rupture Count1,807
Co-rupture Rate1.6073881E-4

Cloudy 3, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMHVianM1
Connected?true
Directly Connected?false
Co-rupture Count473
Co-rupture Rate0.0

Awatere: Northeast 2, 4.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMHVianM1
Connected?true
Directly Connected?true
Co-rupture Count1,424
Co-rupture Rate1.604239E-4

Wairarapa: Needles, 6.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMHVianM1
Connected?true
Directly Connected?false
Co-rupture Count559
Co-rupture Rate0.0

Vernon 4, 6.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMHVianM1
Connected?true
Directly Connected?false
Co-rupture Count181
Co-rupture Rate0.0

Vernon 3, 7.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMHVianM1
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate1.4728485E-4

Ohariu South 1, 7.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMHVianM1
Connected?true
Directly Connected?false
Co-rupture Count15
Co-rupture Rate0.0

Vernon 2, 8.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMHVianM1
Connected?true
Directly Connected?false
Co-rupture Count117
Co-rupture Rate1.4759976E-4

Wairau 3, 8.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMHVianM1
Connected?true
Directly Connected?false
Co-rupture Count12
Co-rupture Rate0.0

Wairau 2, 10.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMHVianM1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wairau, 12.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMHVianM1
Connected?true
Directly Connected?false
Co-rupture Count105
Co-rupture Rate0.0

Wellington Hutt Valley: 1, 14.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMHVianM1
Connected?true
Directly Connected?true
Co-rupture Count1,048
Co-rupture Rate4.9835583E-4

BooBoo, 15.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMHVianM1
Connected?true
Directly Connected?false
Co-rupture Count90
Co-rupture Rate0.0

Needles East 2, 15.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMHVianM1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Vernon 1, 16.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMHVianM1
Connected?true
Directly Connected?false
Co-rupture Count124
Co-rupture Rate0.0

Needles, 16.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxNzMuMHVianM1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
