Hope: Te Rapa Details

PropertyValue
Rupture Count22,315
Ruptures Above Sect Min Mag22,305
Ruptures w/ Nonzero Rates70
Magnitude Range[6.72, 8.69]
Length Range[16, 1,147] km
Total Rate5.2633433E-4 /yr
Multi-Fault Rate5.262165E-4 /yr (99.98%)
Directly-Connected Faults6
All Co-Rupturing Faults97

Table Of Contents

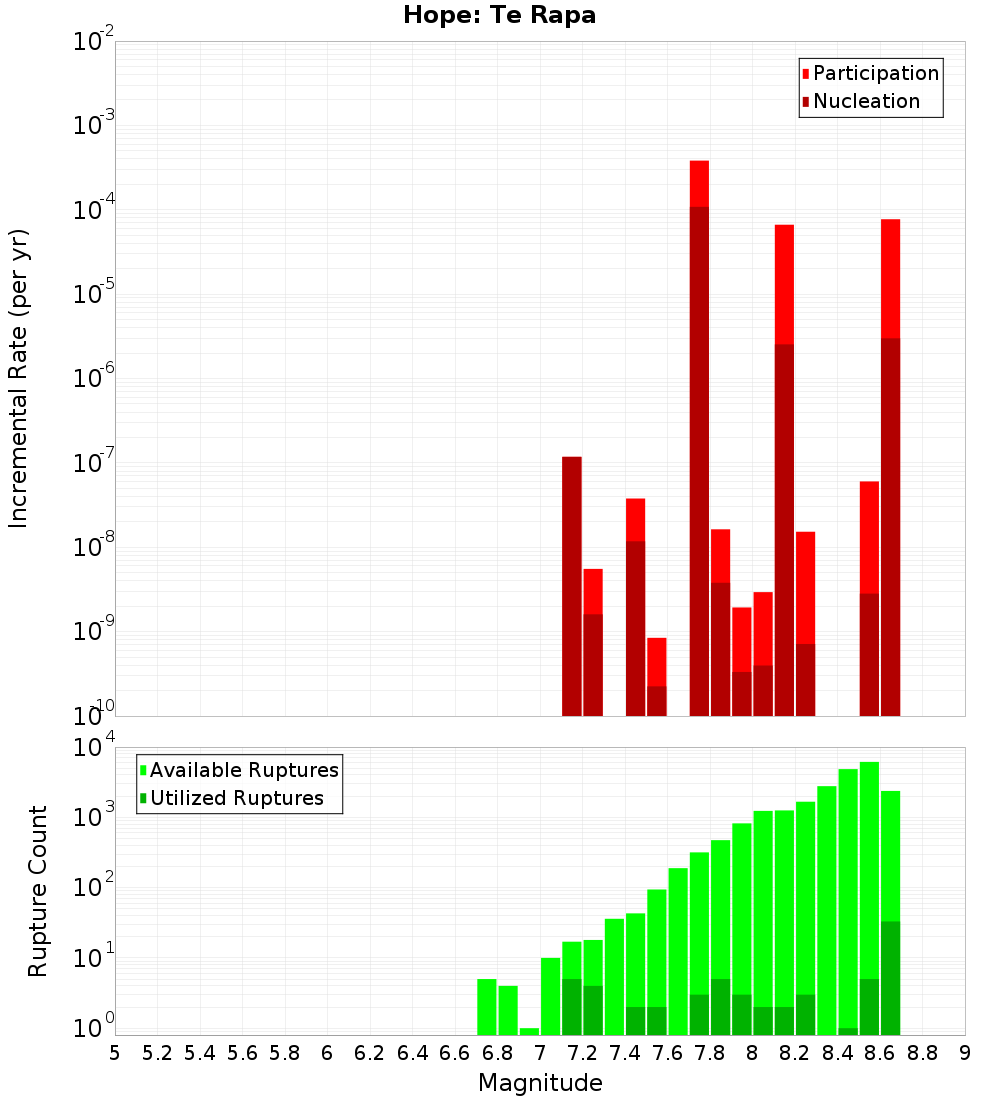

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

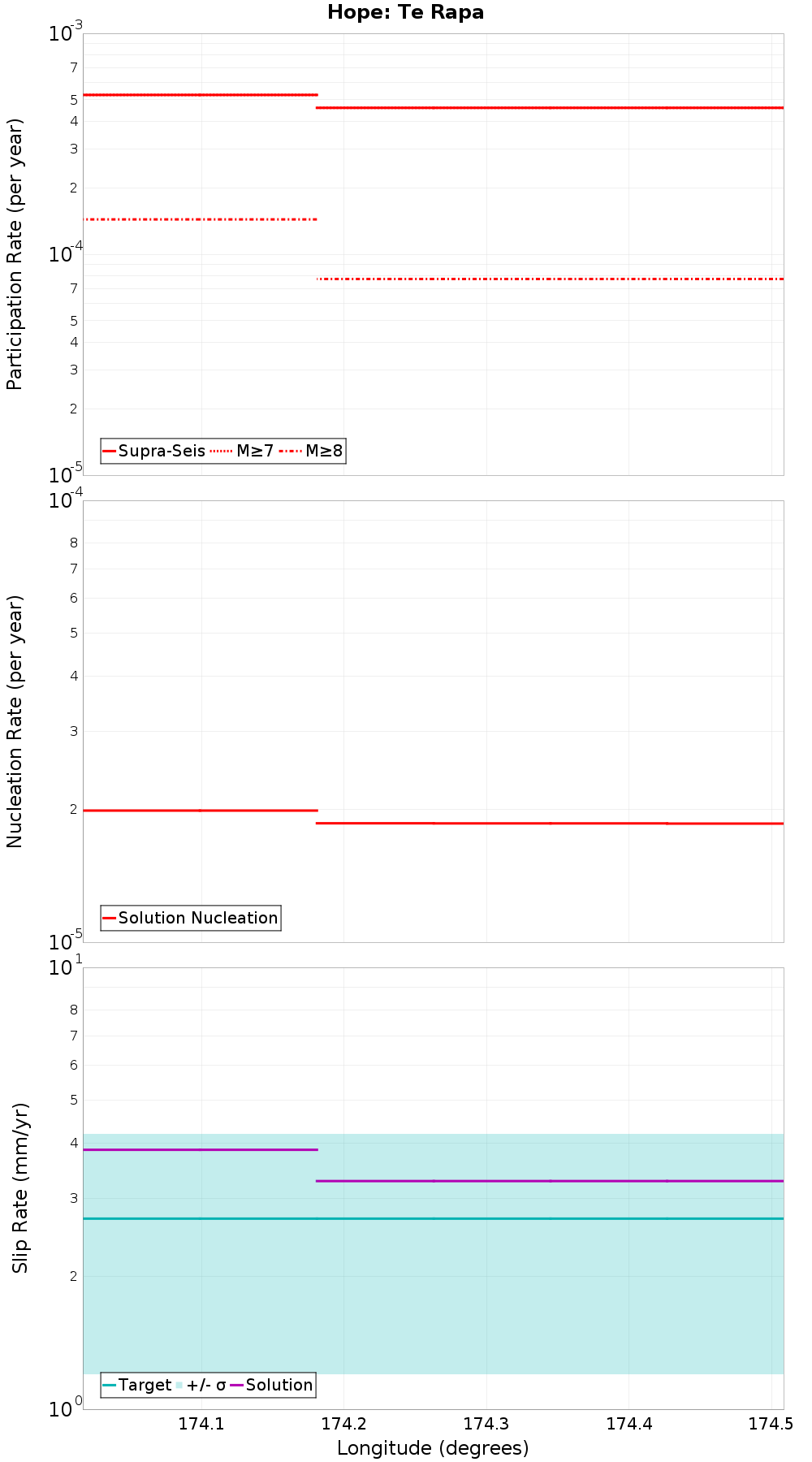

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Te Rapa 1, 0 km awayPapatea, 11.56 km away
Upper Slope, 0.1 km awayCampbell Bank, 12.5 km away
Hope: Seaward, 3.47 km awayTe Rapa 2, 14.01 km away
London Hill, 4.43 km awayNeedles East 2, 15.5 km away
Wharanui, 4.7 km awayFidget, 16.07 km away
Chancet, 8.16 km awayKekerengu 1, 17.16 km away
Kaikoura - Mangamaunu, 8.9 km awayNeedles, 18.14 km away
Kekerengu Bank, 8.98 km awayJordan, 18.18 km away

Te Rapa 1, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxODMuMExhTmVK
Connected?true
Directly Connected?true
Co-rupture Count15,283
Co-rupture Rate4.5963834E-4

Upper Slope, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxODMuMExhTmVK
Connected?true
Directly Connected?true
Co-rupture Count1,032
Co-rupture Rate4.2116884E-8

Hope: Seaward, 3.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxODMuMExhTmVK
Connected?true
Directly Connected?true
Co-rupture Count21,493
Co-rupture Rate5.2621076E-4

London Hill, 4.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxODMuMExhTmVK
Connected?true
Directly Connected?true
Co-rupture Count1,246
Co-rupture Rate3.8350606E-8

Wharanui, 4.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxODMuMExhTmVK
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Chancet, 8.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxODMuMExhTmVK
Connected?true
Directly Connected?true
Co-rupture Count889
Co-rupture Rate9.2489116E-10

Kaikoura - Mangamaunu, 8.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxODMuMExhTmVK
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kekerengu Bank, 8.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxODMuMExhTmVK
Connected?true
Directly Connected?true
Co-rupture Count1,112
Co-rupture Rate3.303287E-5

Papatea, 11.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxODMuMExhTmVK
Connected?true
Directly Connected?false
Co-rupture Count7
Co-rupture Rate3.2173192E-10

Campbell Bank, 12.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxODMuMExhTmVK
Connected?true
Directly Connected?false
Co-rupture Count121
Co-rupture Rate4.5162526E-10

Te Rapa 2, 14.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxODMuMExhTmVK
Connected?true
Directly Connected?false
Co-rupture Count13,422
Co-rupture Rate4.4200227E-5

Needles East 2, 15.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxODMuMExhTmVK
Connected?true
Directly Connected?false
Co-rupture Count387
Co-rupture Rate3.0136033E-10

Fidget, 16.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxODMuMExhTmVK
Connected?true
Directly Connected?false
Co-rupture Count108
Co-rupture Rate0.0

Kekerengu 1, 17.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxODMuMExhTmVK
Connected?true
Directly Connected?false
Co-rupture Count25
Co-rupture Rate0.0

Needles, 18.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxODMuMExhTmVK
Connected?true
Directly Connected?false
Co-rupture Count16
Co-rupture Rate0.0

Jordan, 18.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxODMuMExhTmVK
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
