Orakeikorako Details

Property	Value
Rupture Count	4,621
Ruptures Above Sect Min Mag	4,271
Ruptures w/ Nonzero Rates	32
Magnitude Range	[6.01, 7.64]
Length Range	[8, 217] km
Total Rate	7.978721E-4 /yr
Multi-Fault Rate	7.978721E-4 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	28

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

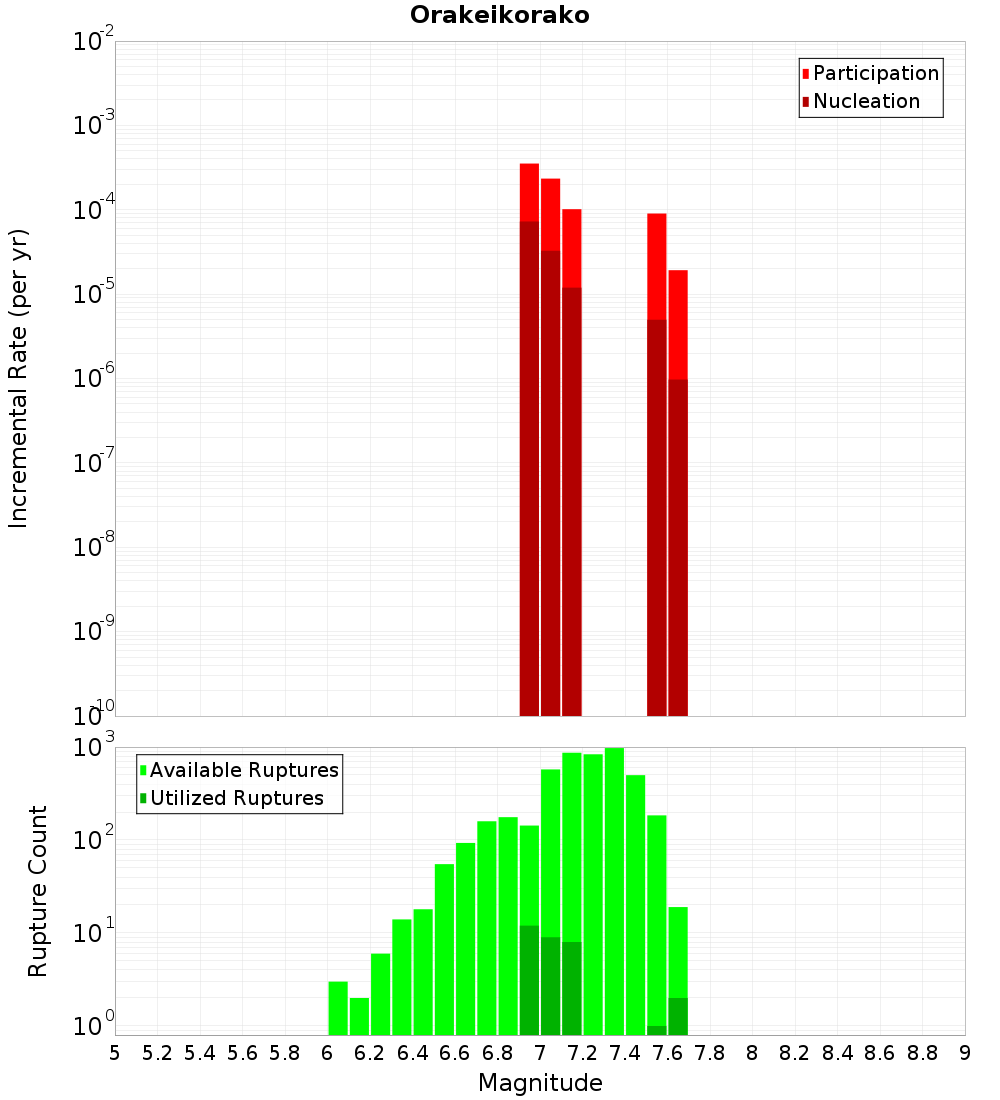

Magnitude-Frequency Distribution

Incremental	Cumulative

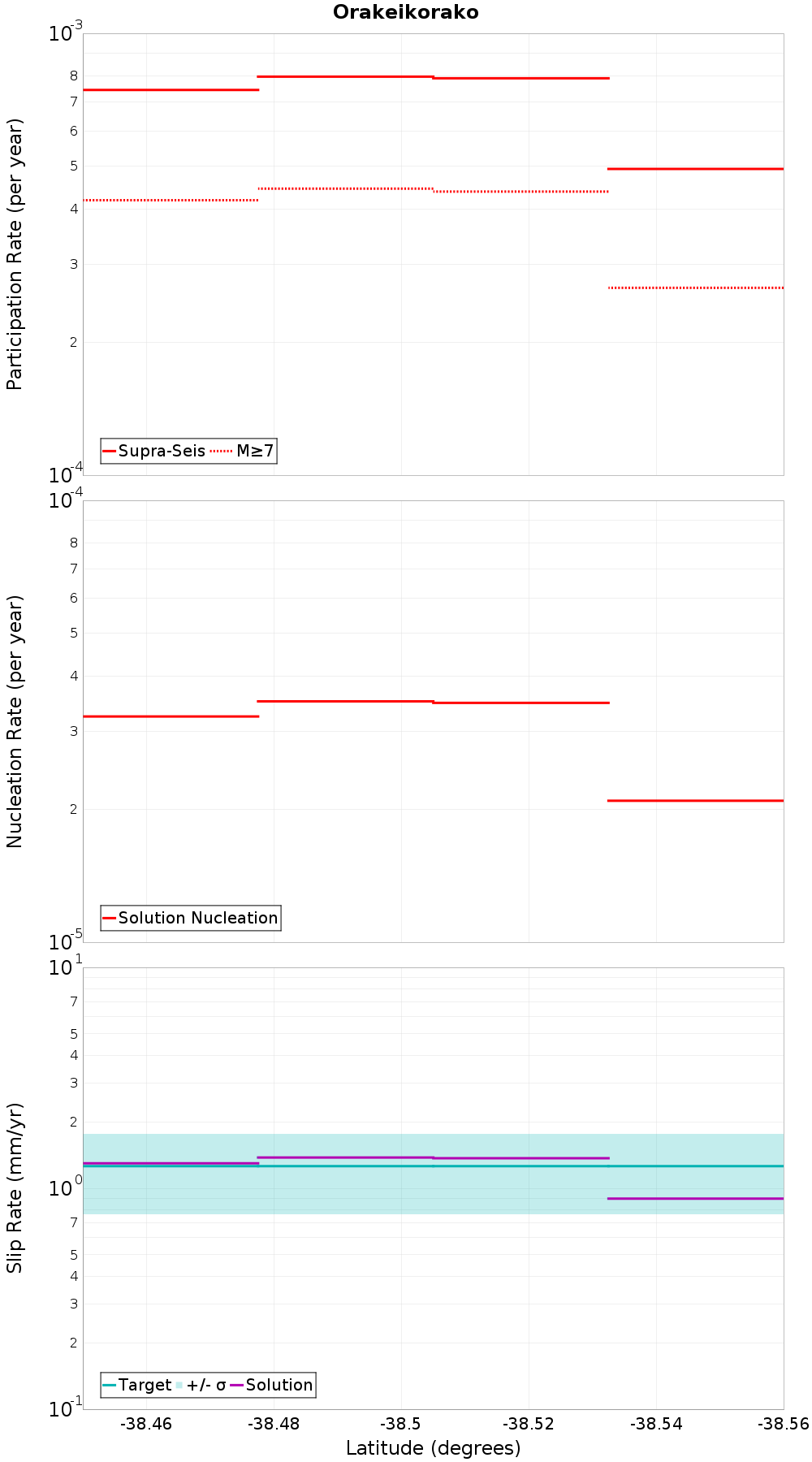

Along-Strike Values

Moment-Rates and b-Values

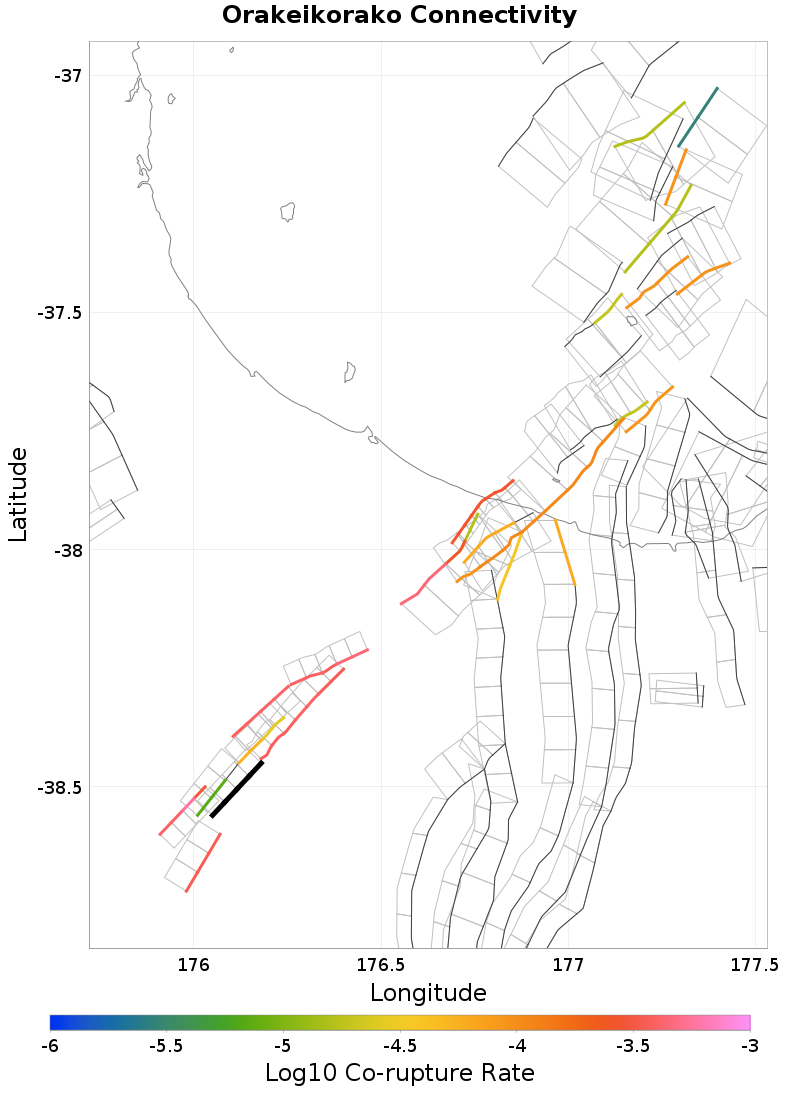

Connectivity

Nearby Sections

Fault Section
Whangamata West, 0.35 km away
Maleme, 0.45 km away
Paeroa, 0.93 km away
Puketerata, 2.41 km away
Puketerata North, 3.28 km away
Kaiapo, 4.37 km away
EarthquakeFlat - Tumunui, 19.26 km away

Whangamata West, 0.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxODMuNXViMnpQ
Connected?	true
Directly Connected?	true
Co-rupture Count	2,473
Co-rupture Rate	5.6688767E-4

Maleme, 0.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxODMuNXViMnpQ
Connected?	true
Directly Connected?	true
Co-rupture Count	3,000
Co-rupture Rate	3.9606408E-4

Paeroa, 0.93 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxODMuNXViMnpQ
Connected?	true
Directly Connected?	true
Co-rupture Count	2,449
Co-rupture Rate	4.0263354E-4

Puketerata, 2.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxODMuNXViMnpQ
Connected?	true
Directly Connected?	true
Co-rupture Count	536
Co-rupture Rate	6.7587866E-6

Puketerata North, 3.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxODMuNXViMnpQ
Connected?	true
Directly Connected?	true
Co-rupture Count	734
Co-rupture Rate	5.3342996E-5

Kaiapo, 4.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxODMuNXViMnpQ
Connected?	true
Directly Connected?	true
Co-rupture Count	783
Co-rupture Rate	3.5667614E-4

EarthquakeFlat - Tumunui, 19.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxODMuNXViMnpQ
Connected?	true
Directly Connected?	false
Co-rupture Count	4,215
Co-rupture Rate	5.460798E-4
