Tuakana 6 Details
| Property | Value |
|---|---|
| Rupture Count | 281 |
| Ruptures Above Sect Min Mag | 280 |
| Ruptures w/ Nonzero Rates | 5 |
| Magnitude Range | [6.62, 7.74] |
| Length Range | [14, 228] km |
| Total Rate | 6.0897437E-4 /yr |
| Multi-Fault Rate | 6.0897437E-4 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 22 |
Table Of Contents

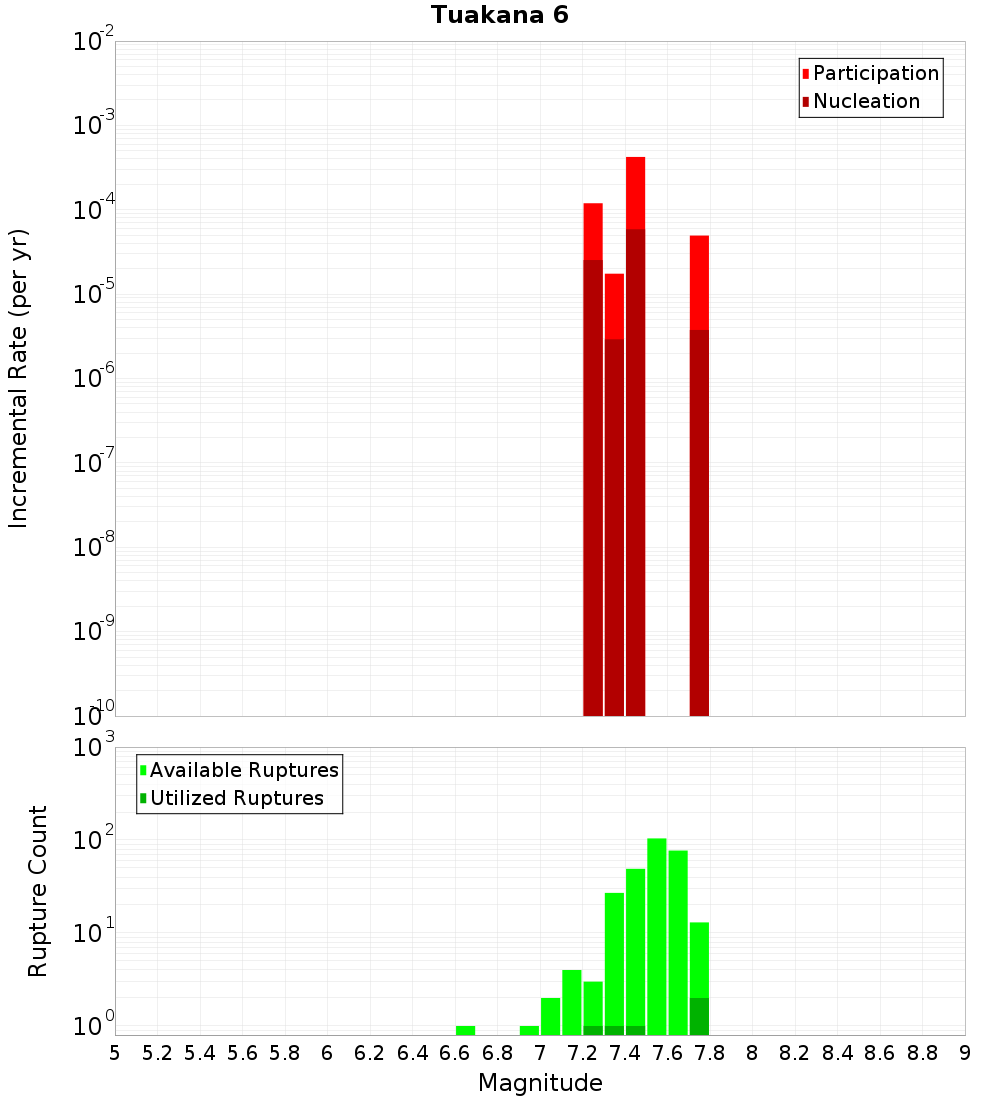

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Tuakana 7, 0.35 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxODMuNXViMnpQ | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 163 |
| Co-rupture Rate | 4.720775E-4 |
Otara West 2, 3 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxODMuNXViMnpQ | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 50 |
| Co-rupture Rate | 1.3689688E-4 |
Otara West 1, 4.5 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxODMuNXViMnpQ | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 21 |
| Co-rupture Rate | 1.3689688E-4 |
Volkner 3, 7.1 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxODMuNXViMnpQ | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 274 |
| Co-rupture Rate | 6.0897437E-4 |
Volkner 4, 8.49 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxODMuNXViMnpQ | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 266 |
| Co-rupture Rate | 6.689961E-5 |
Tauranga Trough West 2, 12.95 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxODMuNXViMnpQ | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Otara West 3, 14.97 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxODMuNXViMnpQ | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
Tauranga Trough East 2, 19.71 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxODMuNXViMnpQ | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 108 |
| Co-rupture Rate | 4.720775E-4 |
