Hope: Conway Details

Property	Value
Rupture Count	48,122
Ruptures Above Sect Min Mag	48,107
Ruptures w/ Nonzero Rates	7,834
Magnitude Range	[6.74, 8.69]
Length Range	[16, 1,147] km
Total Rate	0.0012318736 /yr
Multi-Fault Rate	0.0012318734 /yr (100.00%)
Directly-Connected Faults	10
All Co-Rupturing Faults	132

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

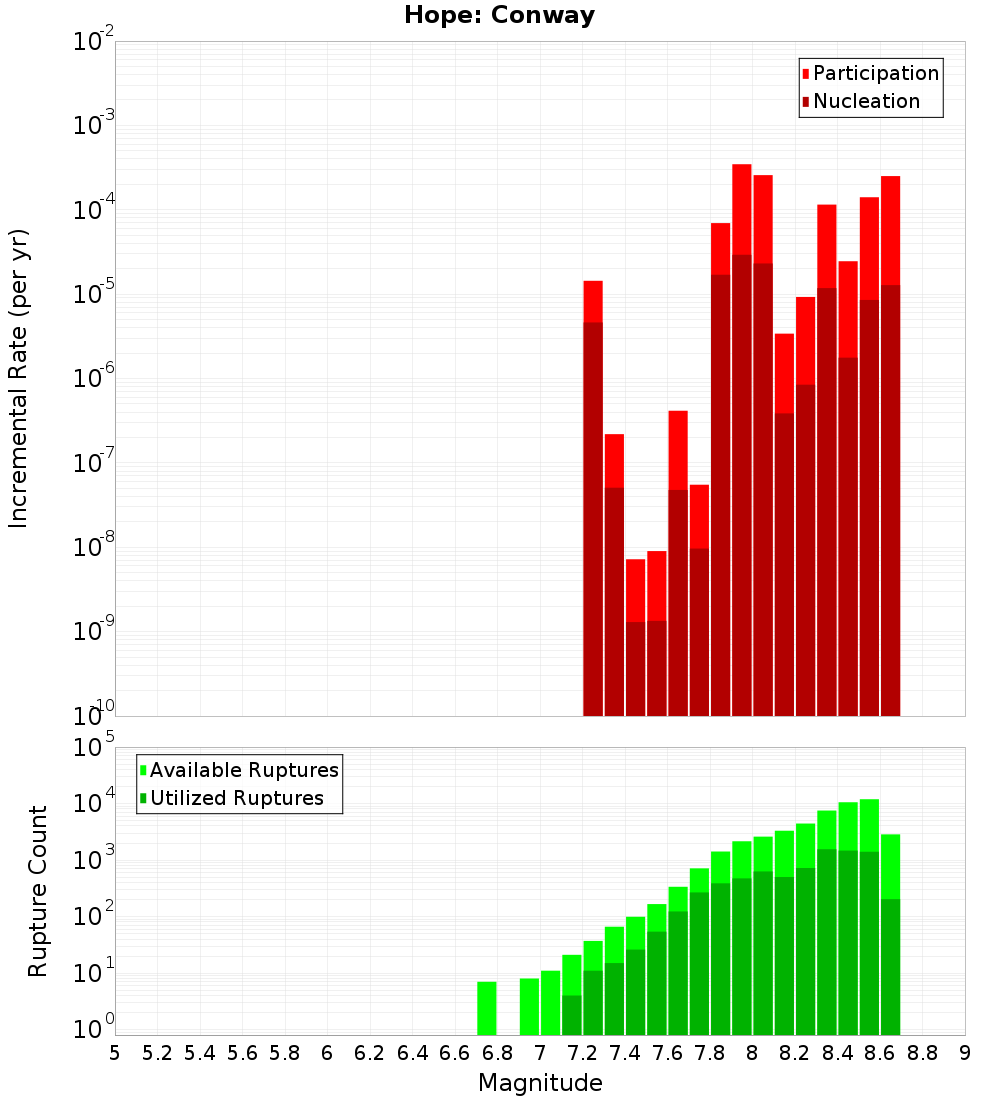

Magnitude-Frequency Distribution

Incremental	Cumulative

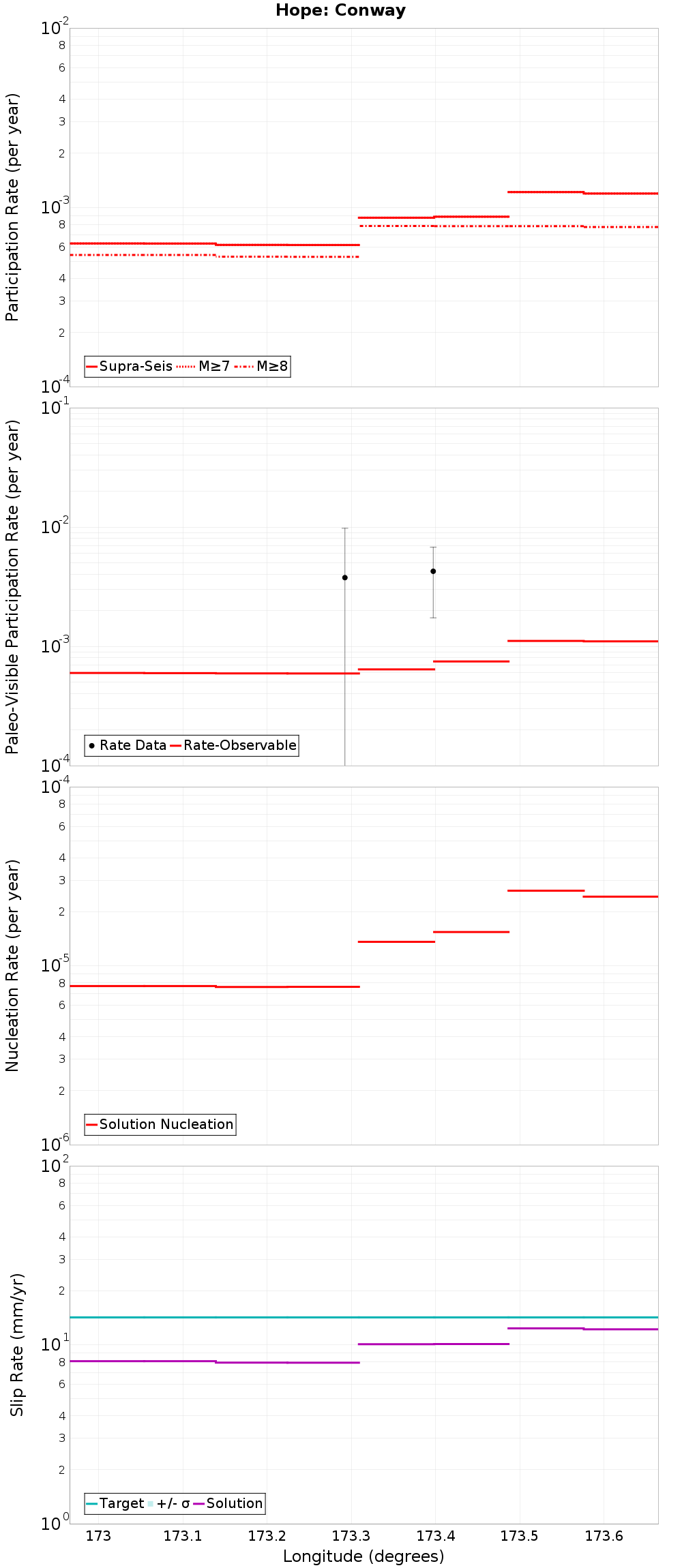

Along-Strike Values

Moment-Rates and b-Values

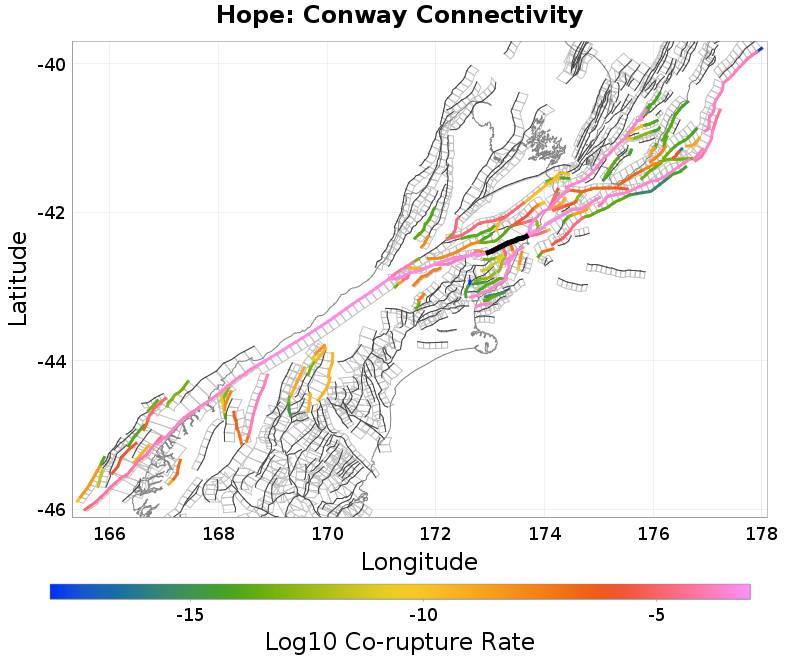

Connectivity

Nearby Sections

Fault Section	Fault Section
Jordan, 0 km away	Papatea, 10.19 km away
Hope: Seaward, 0 km away	The Humps, 10.44 km away
Hanmer, 0 km away	Elliott, 11.08 km away
Hope: Hamner SE, 0 km away	Mt Culverden, 12.62 km away
Leader: North, 0.2 km away	Hope: Hanmer NW, 12.84 km away
StoneJug, 0.26 km away	Hope: Hamner SW, 13.75 km away
Kaikoura - Mangamaunu, 3.18 km away	Fidget, 17.56 km away
Leader: Central, 4.85 km away	Leonard Mound, 18.07 km away
Leader: South, 6.39 km away	Hawkswood, 18.44 km away
Kaiwara North, 6.51 km away	Conway Trough West, 19.7 km away
Hundalee, 7.09 km away

Jordan, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxOTkuNTNiS1k2
Connected?	true
Directly Connected?	true
Co-rupture Count	8,978
Co-rupture Rate	5.9753656E-4

Hope: Seaward, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxOTkuNTNiS1k2
Connected?	true
Directly Connected?	true
Co-rupture Count	26,035
Co-rupture Rate	5.538174E-4

Hanmer, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxOTkuNTNiS1k2
Connected?	true
Directly Connected?	true
Co-rupture Count	460
Co-rupture Rate	1.2754655E-8

Hope: Hamner SE, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxOTkuNTNiS1k2
Connected?	true
Directly Connected?	true
Co-rupture Count	44,861
Co-rupture Rate	6.0913473E-4

Leader: North, 0.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxOTkuNTNiS1k2
Connected?	true
Directly Connected?	true
Co-rupture Count	310
Co-rupture Rate	3.444814E-10

StoneJug, 0.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxOTkuNTNiS1k2
Connected?	true
Directly Connected?	true
Co-rupture Count	697
Co-rupture Rate	9.339613E-8

Kaikoura - Mangamaunu, 3.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxOTkuNTNiS1k2
Connected?	true
Directly Connected?	true
Co-rupture Count	4,444
Co-rupture Rate	3.589843E-5

Leader: Central, 4.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxOTkuNTNiS1k2
Connected?	true
Directly Connected?	true
Co-rupture Count	625
Co-rupture Rate	1.889884E-5

Leader: South, 6.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxOTkuNTNiS1k2
Connected?	true
Directly Connected?	false
Co-rupture Count	132
Co-rupture Rate	1.691813E-11

Kaiwara North, 6.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxOTkuNTNiS1k2
Connected?	true
Directly Connected?	false
Co-rupture Count	376
Co-rupture Rate	2.6529874E-13

Hundalee, 7.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxOTkuNTNiS1k2
Connected?	true
Directly Connected?	true
Co-rupture Count	2,551
Co-rupture Rate	3.4802215E-4

Papatea, 10.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxOTkuNTNiS1k2
Connected?	true
Directly Connected?	true
Co-rupture Count	348
Co-rupture Rate	1.9509418E-13

The Humps, 10.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxOTkuNTNiS1k2
Connected?	true
Directly Connected?	false
Co-rupture Count	170
Co-rupture Rate	4.687547E-12

Elliott, 11.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxOTkuNTNiS1k2
Connected?	true
Directly Connected?	false
Co-rupture Count	142
Co-rupture Rate	3.502382E-14

Mt Culverden, 12.62 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxOTkuNTNiS1k2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hope: Hanmer NW, 12.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxOTkuNTNiS1k2
Connected?	true
Directly Connected?	false
Co-rupture Count	9,732
Co-rupture Rate	1.00563106E-4

Hope: Hamner SW, 13.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxOTkuNTNiS1k2
Connected?	true
Directly Connected?	false
Co-rupture Count	34,852
Co-rupture Rate	5.085486E-4

Fidget, 17.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxOTkuNTNiS1k2
Connected?	true
Directly Connected?	false
Co-rupture Count	438
Co-rupture Rate	3.0167585E-5

Leonard Mound, 18.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxOTkuNTNiS1k2
Connected?	true
Directly Connected?	false
Co-rupture Count	8
Co-rupture Rate	4.6344057E-12

Hawkswood, 18.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxOTkuNTNiS1k2
Connected?	true
Directly Connected?	false
Co-rupture Count	329
Co-rupture Rate	3.2921194E-4

Conway Trough West, 19.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxOTkuNTNiS1k2
Connected?	true
Directly Connected?	false
Co-rupture Count	521
Co-rupture Rate	6.094773E-9
