Rahotu Details

Property	Value
Rupture Count	87
Ruptures Above Sect Min Mag	86
Ruptures w/ Nonzero Rates	21
Magnitude Range	[6.73, 7.87]
Length Range	[11, 147] km
Total Rate	2.8712972E-8 /yr
Multi-Fault Rate	2.8712972E-8 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	14

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

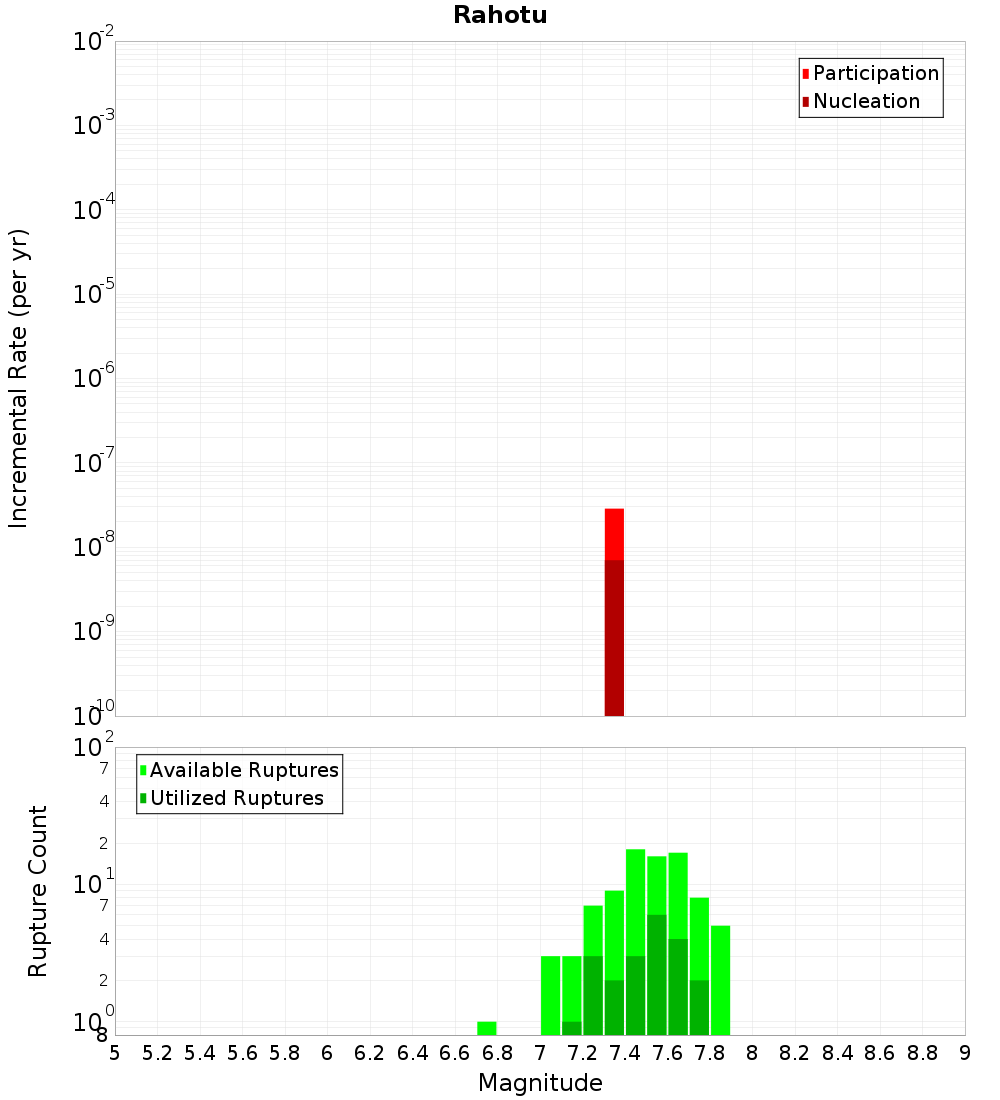

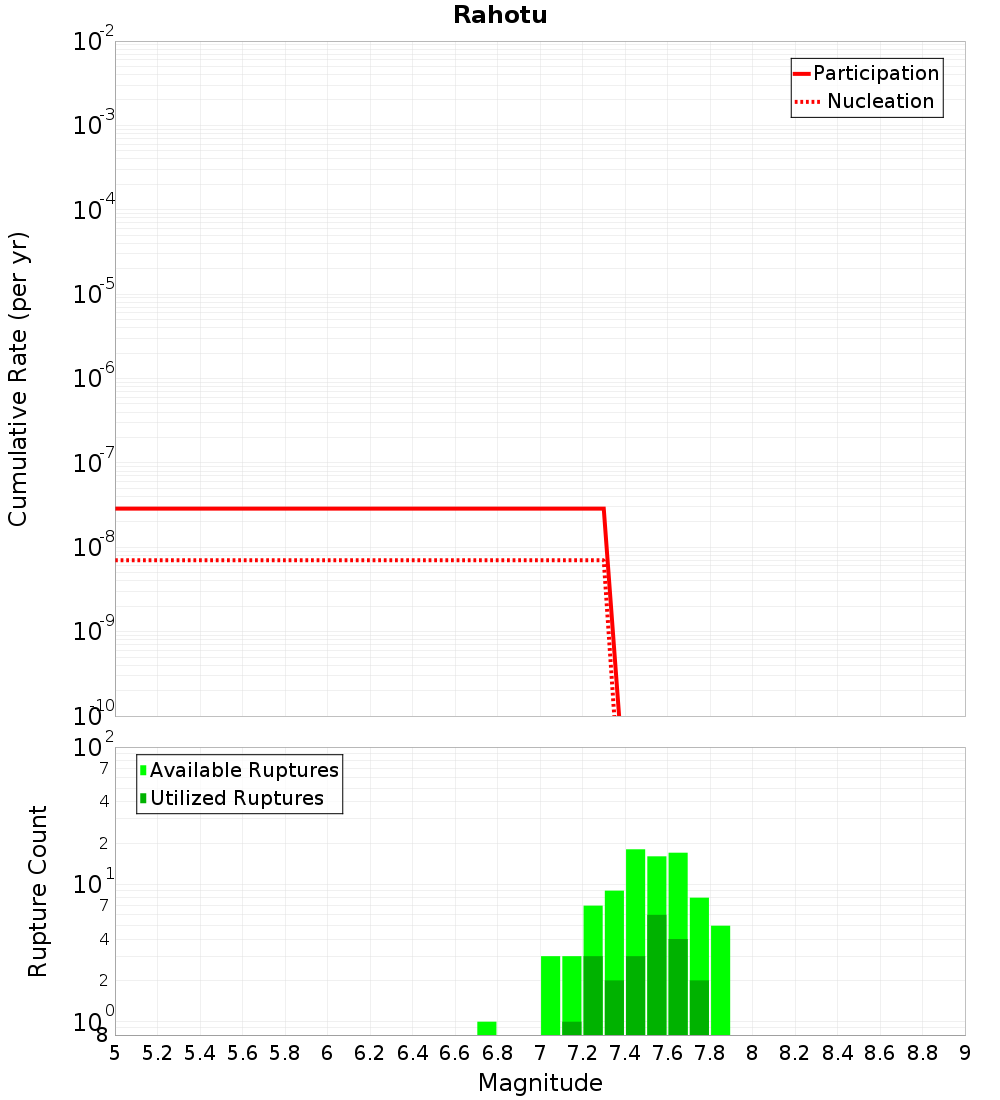

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

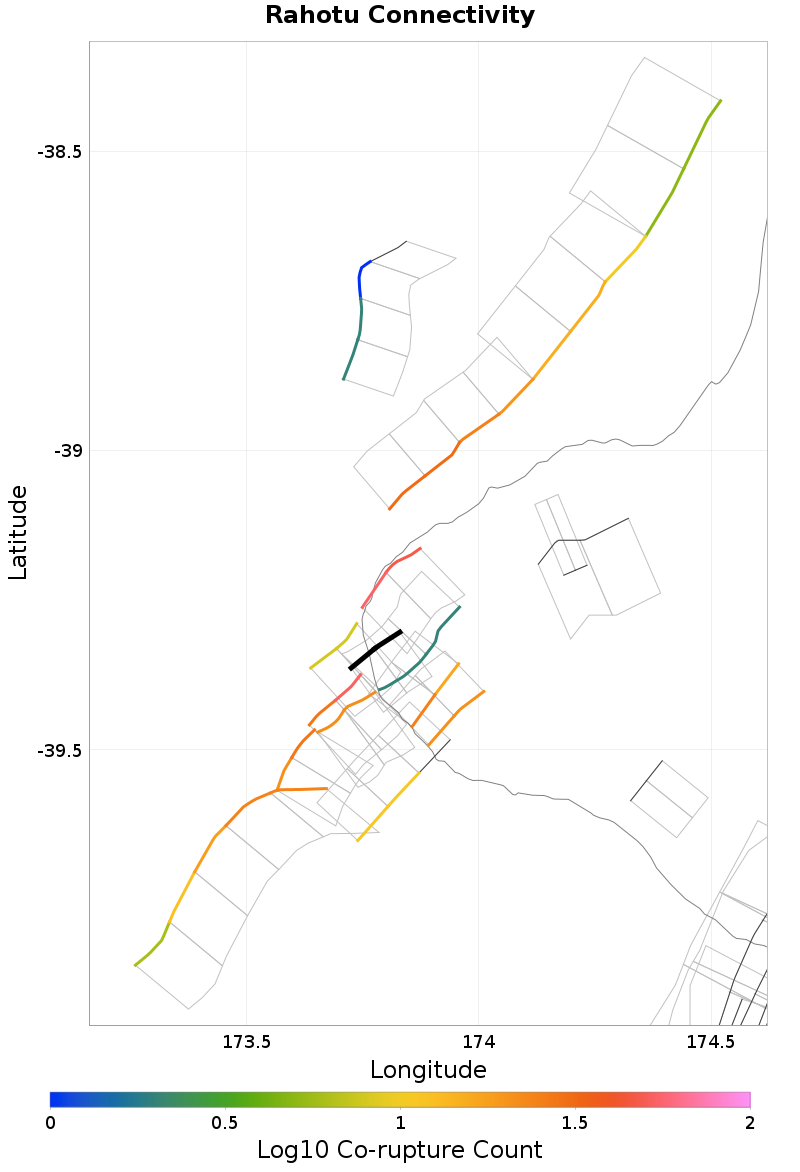

Connectivity

Nearby Sections

Fault Section
Oaonui, 0.25 km away
Kiri, 0.4 km away
Ihaia, 0.43 km away
Pihama, 1.64 km away
Cape Egmont: North, 1.9 km away
Manahi 2, 2.03 km away
Warea, 5.06 km away
Manahi 1, 5.59 km away
Cape Egmont: Central, 9.89 km away

Oaonui, 0.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxOTkuNTNiS1k2
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	2.023401E-15

Kiri, 0.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxOTkuNTNiS1k2
Connected?	true
Directly Connected?	true
Co-rupture Count	21
Co-rupture Rate	1.0213435E-14

Ihaia, 0.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxOTkuNTNiS1k2
Connected?	true
Directly Connected?	false
Co-rupture Count	25
Co-rupture Rate	1.1362729E-11

Pihama, 1.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxOTkuNTNiS1k2
Connected?	true
Directly Connected?	false
Co-rupture Count	11
Co-rupture Rate	1.1357976E-11

Cape Egmont: North, 1.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxOTkuNTNiS1k2
Connected?	true
Directly Connected?	true
Co-rupture Count	53
Co-rupture Rate	2.871296E-8

Manahi 2, 2.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxOTkuNTNiS1k2
Connected?	true
Directly Connected?	false
Co-rupture Count	8
Co-rupture Rate	2.8701589E-8

Warea, 5.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxOTkuNTNiS1k2
Connected?	true
Directly Connected?	true
Co-rupture Count	54
Co-rupture Rate	2.8701596E-8

Manahi 1, 5.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxOTkuNTNiS1k2
Connected?	true
Directly Connected?	true
Co-rupture Count	22
Co-rupture Rate	1.8585302E-14

Cape Egmont: Central, 9.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxOTkuNTNiS1k2
Connected?	true
Directly Connected?	false
Co-rupture Count	28
Co-rupture Rate	1.333967E-14
