Uruti Ridge 2 Details

Property	Value
Rupture Count	13,041
Ruptures Above Sect Min Mag	13,040
Ruptures w/ Nonzero Rates	219
Magnitude Range	[6.93, 8.72]
Length Range	[19, 1,204] km
Total Rate	0.0013368345 /yr
Multi-Fault Rate	0.0013368345 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	84

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

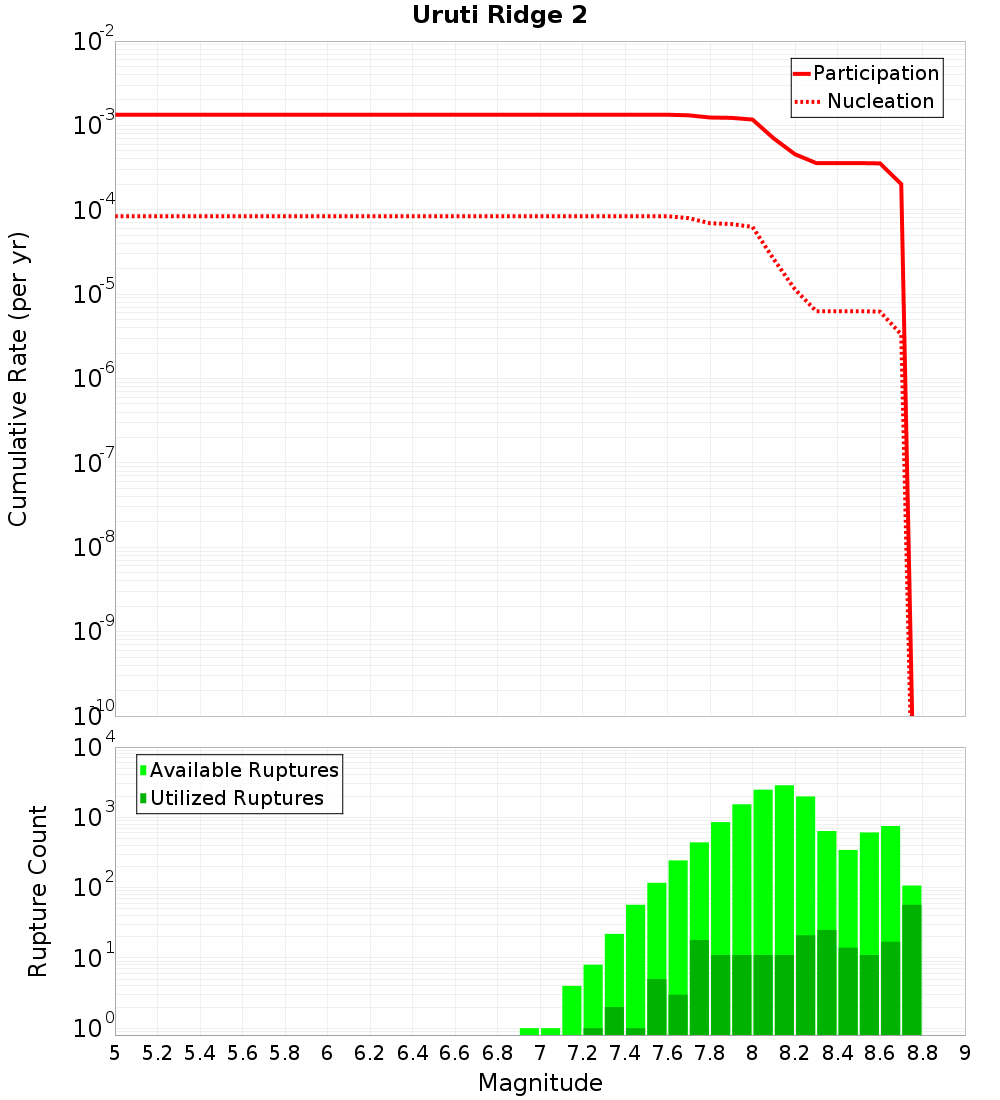

Magnitude-Frequency Distribution

Incremental	Cumulative

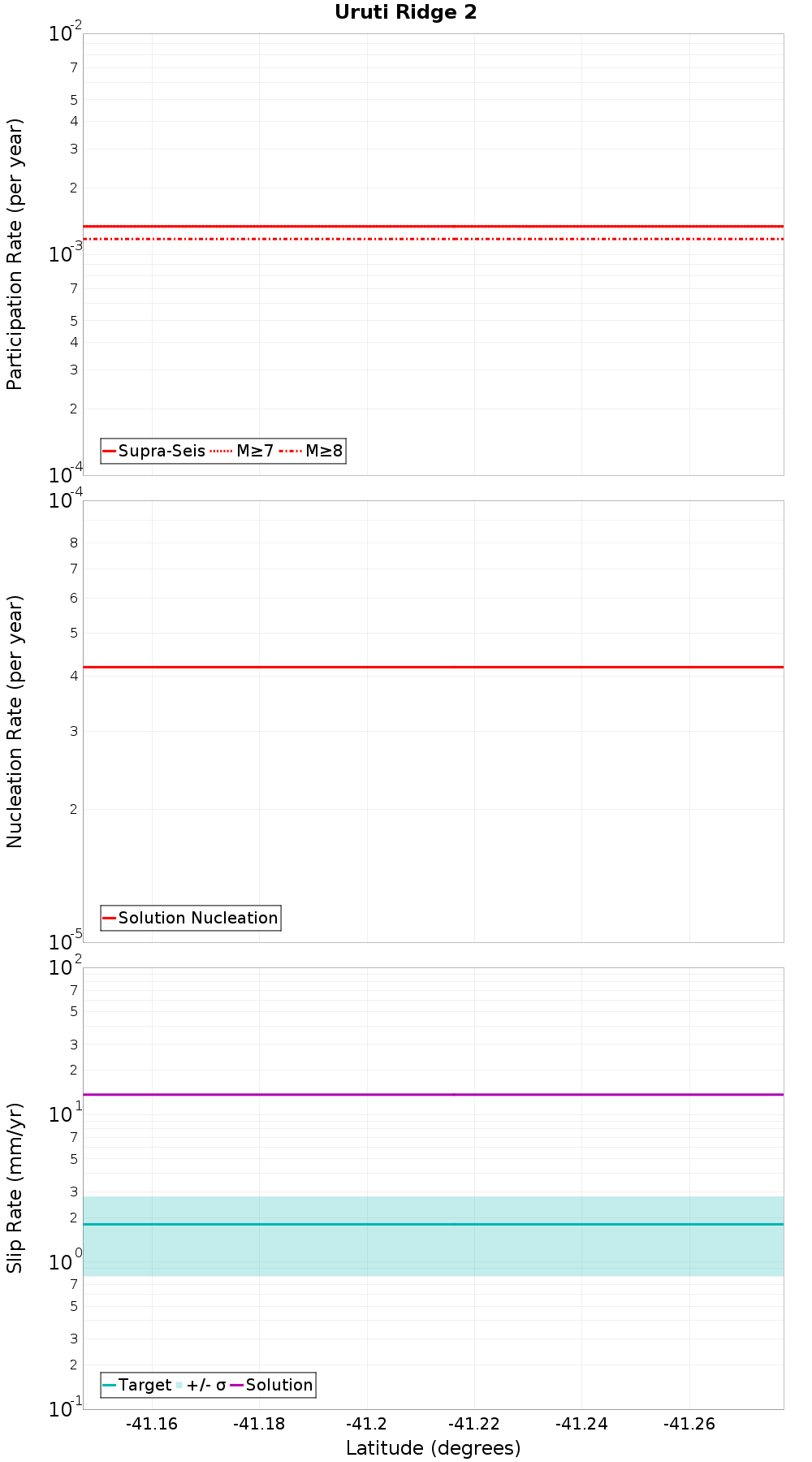

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Uruti Basin, 0 km away
Opouawe - Uruti, 2.43 km away
Uruti East - PorWest 1, 2.58 km away
Uruti Basin 2, 2.88 km away
Uruti North, 8.5 km away
Pahaua, 12.05 km away
Whareama Bank, 17.75 km away

Uruti Basin, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxOTkuNTNiS1k2
Connected?	true
Directly Connected?	true
Co-rupture Count	4,928
Co-rupture Rate	5.4380763E-4

Opouawe - Uruti, 2.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxOTkuNTNiS1k2
Connected?	true
Directly Connected?	true
Co-rupture Count	9,340
Co-rupture Rate	9.190451E-4

Uruti East - PorWest 1, 2.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxOTkuNTNiS1k2
Connected?	true
Directly Connected?	true
Co-rupture Count	8,892
Co-rupture Rate	6.585873E-4

Uruti Basin 2, 2.88 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxOTkuNTNiS1k2
Connected?	true
Directly Connected?	false
Co-rupture Count	6
Co-rupture Rate	3.1894317E-11

Uruti North, 8.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxOTkuNTNiS1k2
Connected?	true
Directly Connected?	true
Co-rupture Count	3,524
Co-rupture Rate	6.2482397E-4

Pahaua, 12.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxOTkuNTNiS1k2
Connected?	true
Directly Connected?	false
Co-rupture Count	2,043
Co-rupture Rate	5.6888475E-6

Whareama Bank, 17.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYxOTkuNTNiS1k2
Connected?	true
Directly Connected?	false
Co-rupture Count	4
Co-rupture Rate	0.0
