Ariel East Details

PropertyValue
Rupture Count63
Ruptures Above Sect Min Mag53
Ruptures w/ Nonzero Rates49
Magnitude Range[6.42, 7.56]
Length Range[11, 128] km
Total Rate1.8292977E-4 /yr
Multi-Fault Rate1.8292977E-4 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults8

Table Of Contents

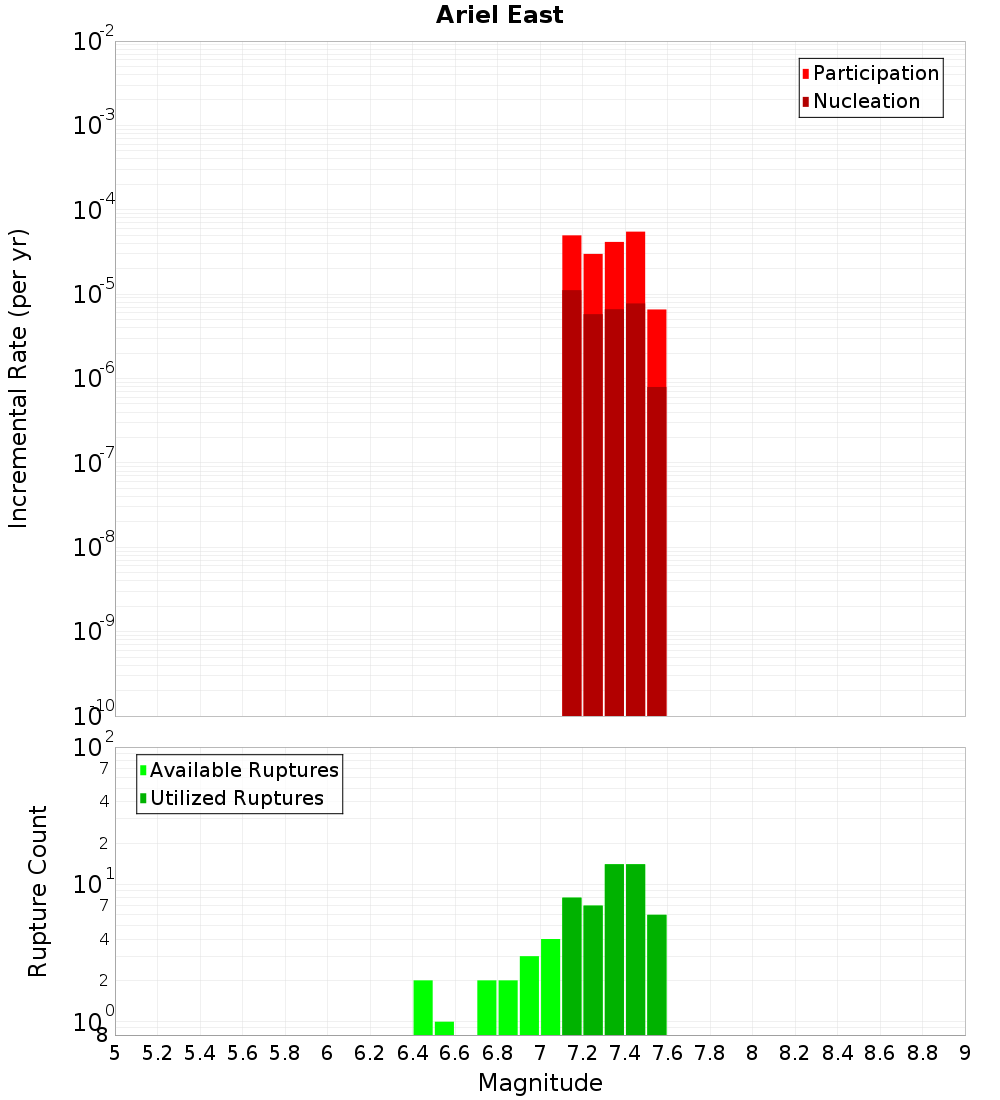

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Te Ikaarongamai, 0.48 km away
Ariel Bank, 0.48 km away
Lachlan 3, 3.12 km away
Poverty Bay, 7.83 km away
Gable End North, 9.29 km away
Gable End South, 13.13 km away
Pakarae, 19.05 km away

Te Ikaarongamai, 0.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMTEuMDJvTkZx
Connected?true
Directly Connected?true
Co-rupture Count48
Co-rupture Rate1.4901719E-4

Ariel Bank, 0.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMTEuMDJvTkZx
Connected?true
Directly Connected?true
Co-rupture Count11
Co-rupture Rate3.209798E-5

Lachlan 3, 3.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMTEuMDJvTkZx
Connected?true
Directly Connected?true
Co-rupture Count20
Co-rupture Rate9.529005E-5

Poverty Bay, 7.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMTEuMDJvTkZx
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate3.2993407E-6

Gable End North, 9.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMTEuMDJvTkZx
Connected?true
Directly Connected?false
Co-rupture Count27
Co-rupture Rate6.009504E-5

Gable End South, 13.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMTEuMDJvTkZx
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pakarae, 19.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMTEuMDJvTkZx
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate1.9941175E-5
