Hawke Bay 8 Details
| Property | Value |
|---|---|
| Rupture Count | 14 |
| Ruptures Above Sect Min Mag | 13 |
| Ruptures w/ Nonzero Rates | 2 |
| Magnitude Range | [6.33, 8.06] |
| Length Range | [6, 377] km |
| Total Rate | 8.788636E-5 /yr |
| Multi-Fault Rate | 8.788636E-5 /yr (100.00%) |
| Directly-Connected Faults | 1 |
| All Co-Rupturing Faults | 13 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

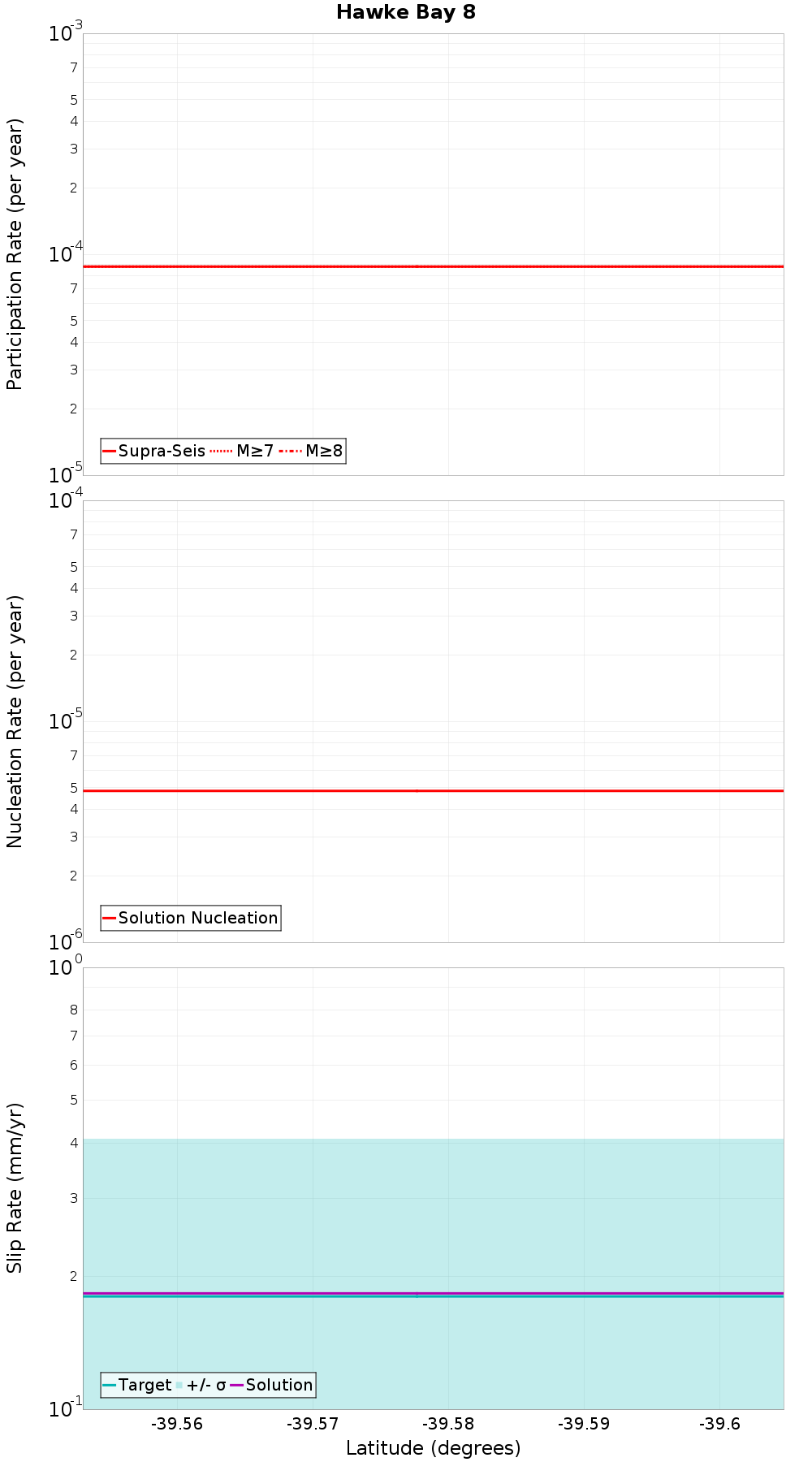

Along-Strike Values
Moment-Rates and b-Values

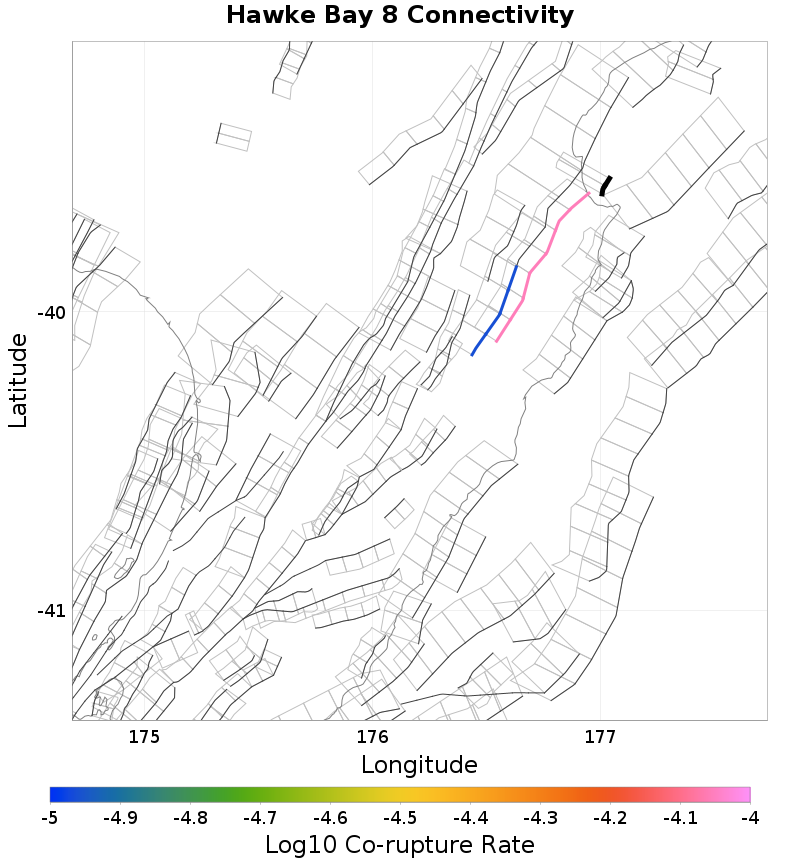

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Tukituki Thrust, 2 km away |
| Awanui, 6.81 km away |
| Kidnappers Ridge, 10.62 km away |
| Waimarama 3 & 4, 15.03 km away |
| Waimarama 1 & 2, 17.46 km away |
Tukituki Thrust, 2 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMTcuMFBRaEY1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 13 |
| Co-rupture Rate | 8.788636E-5 |
Awanui, 6.81 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMTcuMFBRaEY1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 3 |
| Co-rupture Rate | 0.0 |
Kidnappers Ridge, 10.62 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMTcuMFBRaEY1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Waimarama 3 & 4, 15.03 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMTcuMFBRaEY1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Waimarama 1 & 2, 17.46 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMTcuMFBRaEY1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
