Cape Foulwind 1 Details

PropertyValue
Rupture Count117
Ruptures Above Sect Min Mag101
Ruptures w/ Nonzero Rates18
Magnitude Range[6.70, 7.67]
Length Range[20, 171] km
Total Rate1.8688698E-7 /yr
Multi-Fault Rate1.8688698E-7 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults6

Table Of Contents

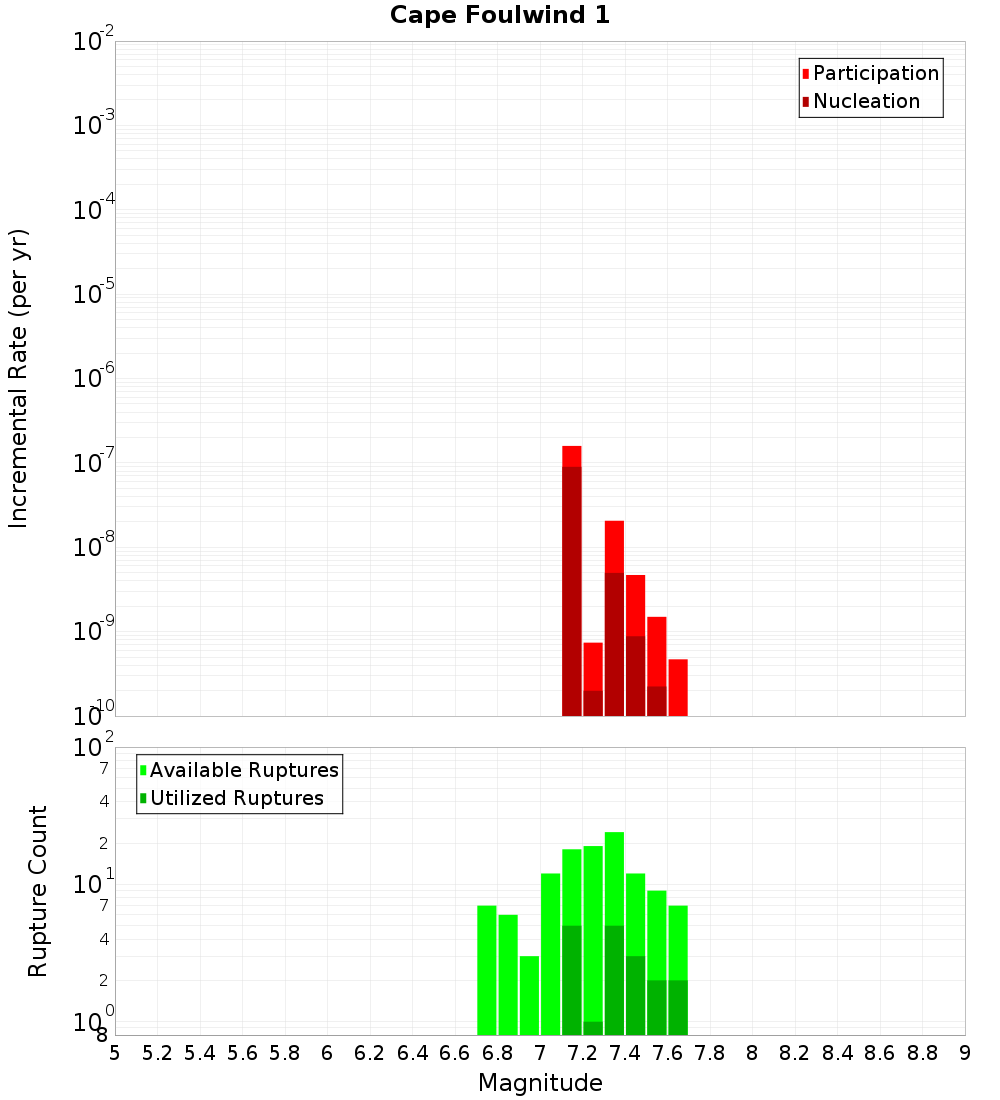

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Cape Foulwind 2, 0 km away
Maimai: South, 0.4 km away
Maimai: Brunner Anticline, 0.41 km away
Paparoa West, 4.61 km away
Maimai, 4.83 km away
Kelly, 11.56 km away

Cape Foulwind 2, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMTguMFo1TDlI
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Maimai: South, 0.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMTguMFo1TDlI
Connected?true
Directly Connected?true
Co-rupture Count17
Co-rupture Rate1.7002914E-7

Maimai: Brunner Anticline, 0.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMTguMFo1TDlI
Connected?true
Directly Connected?true
Co-rupture Count5
Co-rupture Rate4.393736E-9

Paparoa West, 4.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMTguMFo1TDlI
Connected?true
Directly Connected?true
Co-rupture Count69
Co-rupture Rate2.8014215E-8

Maimai, 4.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMTguMFo1TDlI
Connected?true
Directly Connected?true
Co-rupture Count11
Co-rupture Rate7.905207E-9

Kelly, 11.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMTguMFo1TDlI
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
