Gimmerburn Details

PropertyValue
Rupture Count696
Ruptures Above Sect Min Mag693
Ruptures w/ Nonzero Rates106
Magnitude Range[6.89, 8.00]
Length Range[22, 255] km
Total Rate1.2095611E-5 /yr
Multi-Fault Rate1.2095611E-5 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults26

Table Of Contents

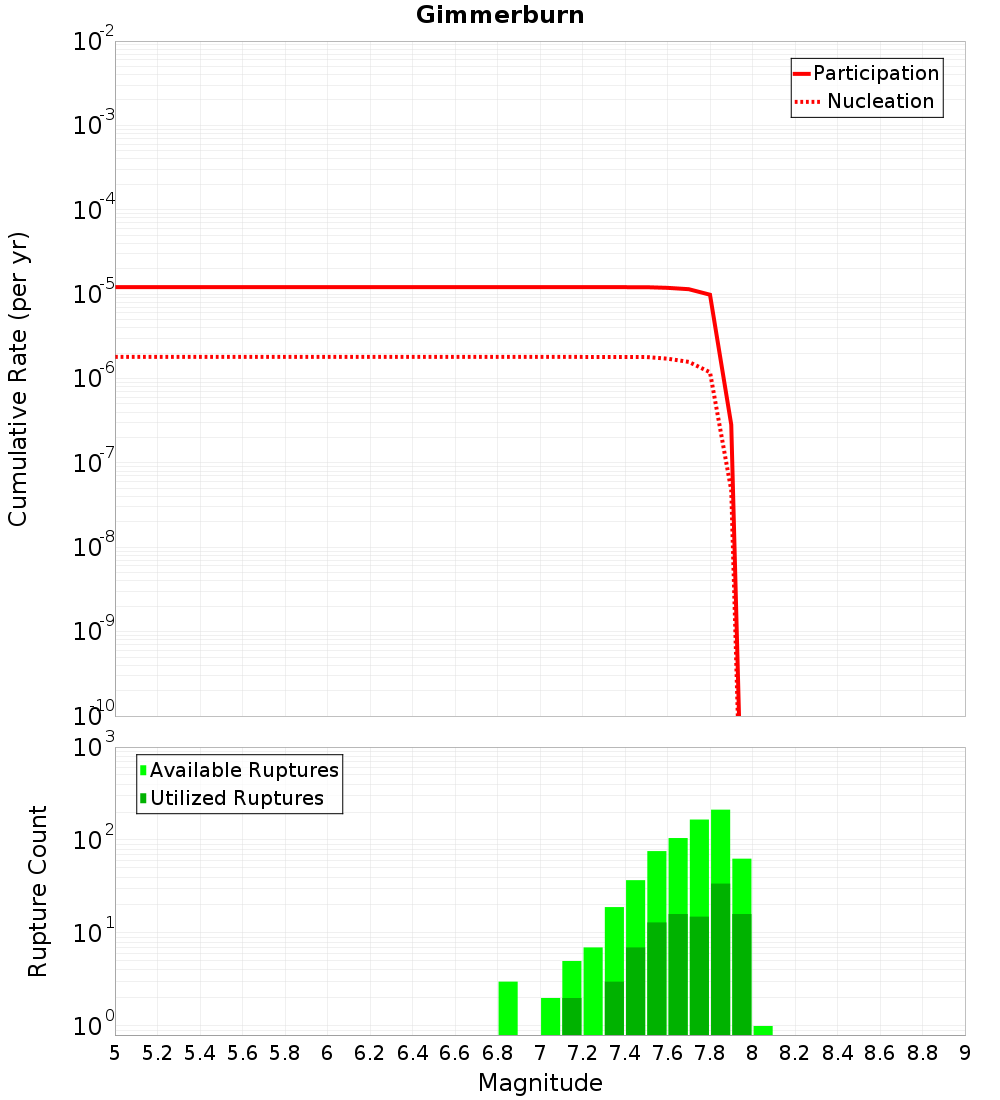

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

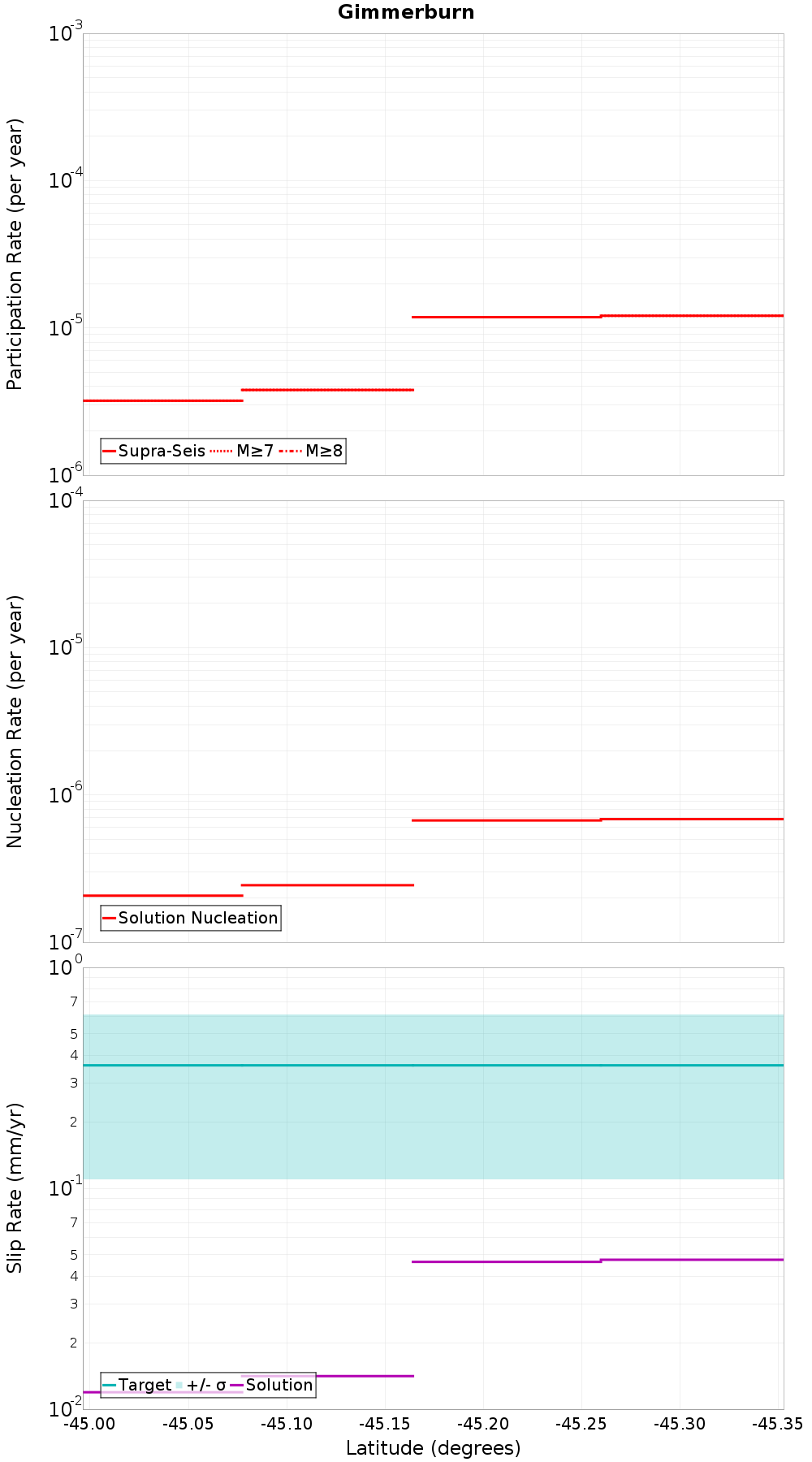

Along-Strike Values

(top)

Along-strike plot

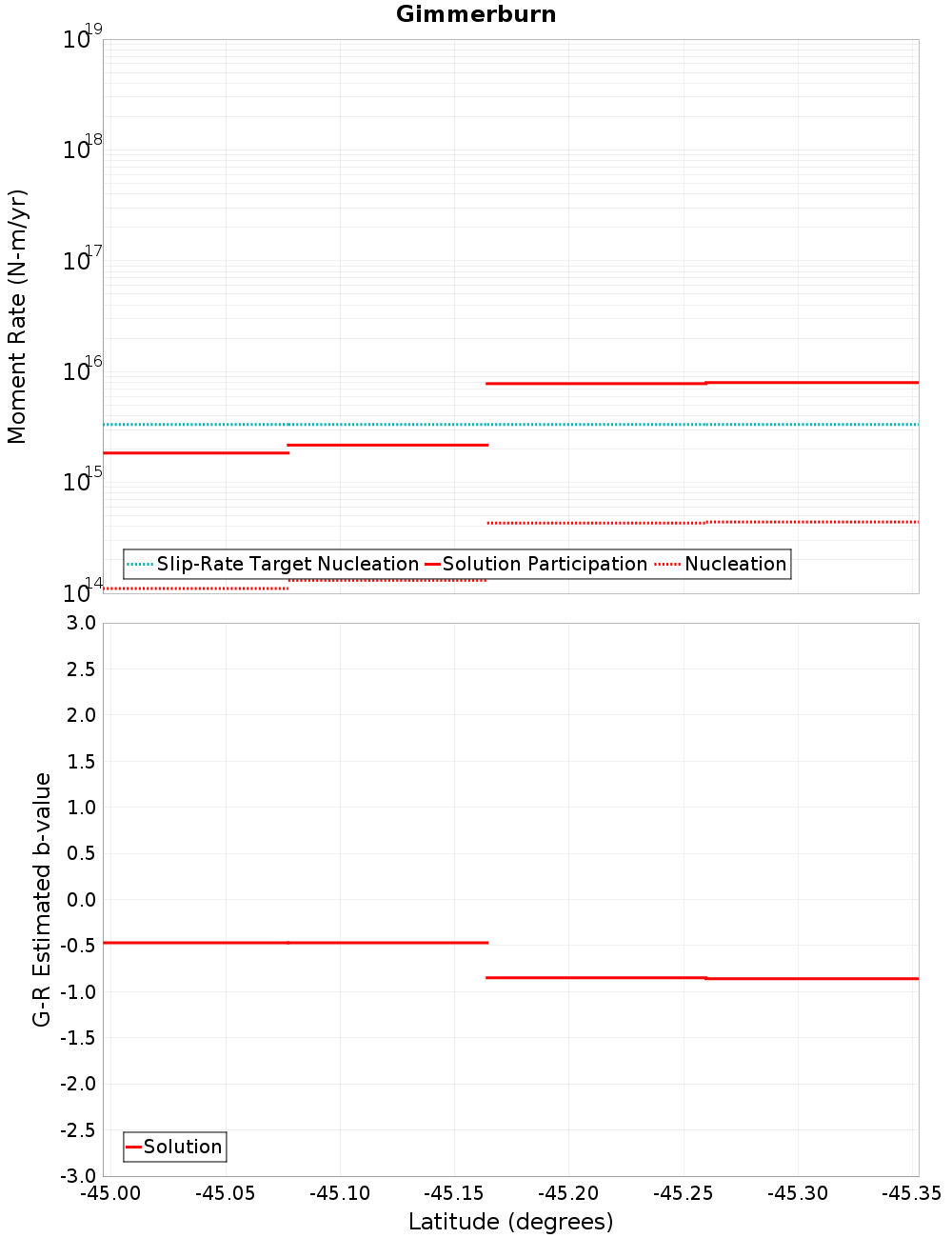

Moment-Rates and b-Values

(top)

Along-strike plot

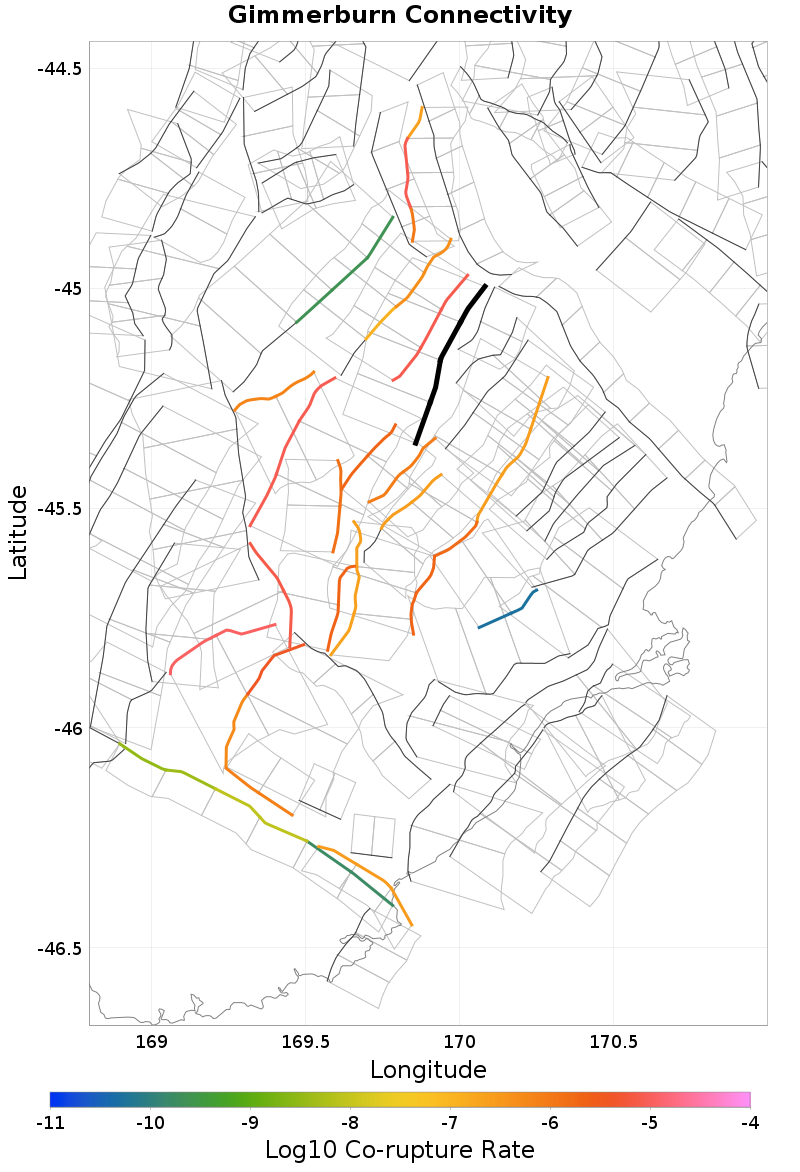

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Little Valley, 0.22 km awayBlue Lake, 4.56 km away
Long Valley, 0.33 km awayRanfurly, 4.96 km away
Pylap, 2.27 km awayOmarama Saddle, 6.74 km away
Cross Eden, 2.3 km awayWaipiata, 7.59 km away
Waihemo, 3.59 km awayRaggedy - Blackstone, 10.19 km away
Hawkdun, 3.64 km awayLogan Burn, 10.21 km away
Garibaldi, 3.79 km awayLake Onslow, 15.86 km away
Galloway, 4.14 km awayHyde North, 16.09 km away

Little Valley, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMTguMFo1TDlI
Connected?true
Directly Connected?true
Co-rupture Count435
Co-rupture Rate9.094576E-6

Long Valley, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMTguMFo1TDlI
Connected?true
Directly Connected?true
Co-rupture Count201
Co-rupture Rate1.994686E-6

Pylap, 2.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMTguMFo1TDlI
Connected?true
Directly Connected?true
Co-rupture Count115
Co-rupture Rate8.9041566E-7

Cross Eden, 2.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMTguMFo1TDlI
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waihemo, 3.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMTguMFo1TDlI
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hawkdun, 3.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMTguMFo1TDlI
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Garibaldi, 3.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMTguMFo1TDlI
Connected?true
Directly Connected?true
Co-rupture Count296
Co-rupture Rate8.196073E-6

Galloway, 4.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMTguMFo1TDlI
Connected?true
Directly Connected?true
Co-rupture Count44
Co-rupture Rate6.581707E-7

Blue Lake, 4.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMTguMFo1TDlI
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ranfurly, 4.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMTguMFo1TDlI
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Omarama Saddle, 6.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMTguMFo1TDlI
Connected?true
Directly Connected?true
Co-rupture Count188
Co-rupture Rate8.496495E-6

Waipiata, 7.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMTguMFo1TDlI
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Raggedy - Blackstone, 10.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMTguMFo1TDlI
Connected?true
Directly Connected?false
Co-rupture Count17
Co-rupture Rate4.4948445E-7

Logan Burn, 10.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMTguMFo1TDlI
Connected?true
Directly Connected?true
Co-rupture Count16
Co-rupture Rate2.5787833E-7

Lake Onslow, 15.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMTguMFo1TDlI
Connected?true
Directly Connected?false
Co-rupture Count59
Co-rupture Rate1.3545124E-6

Hyde North, 16.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMTguMFo1TDlI
Connected?true
Directly Connected?false
Co-rupture Count58
Co-rupture Rate1.702943E-6
