Rangefront Details

Property	Value
Rupture Count	10,507
Ruptures Above Sect Min Mag	10,505
Ruptures w/ Nonzero Rates	7
Magnitude Range	[6.94, 8.31]
Length Range	[21, 540] km
Total Rate	7.6095435E-5 /yr
Multi-Fault Rate	7.6095435E-5 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	100

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

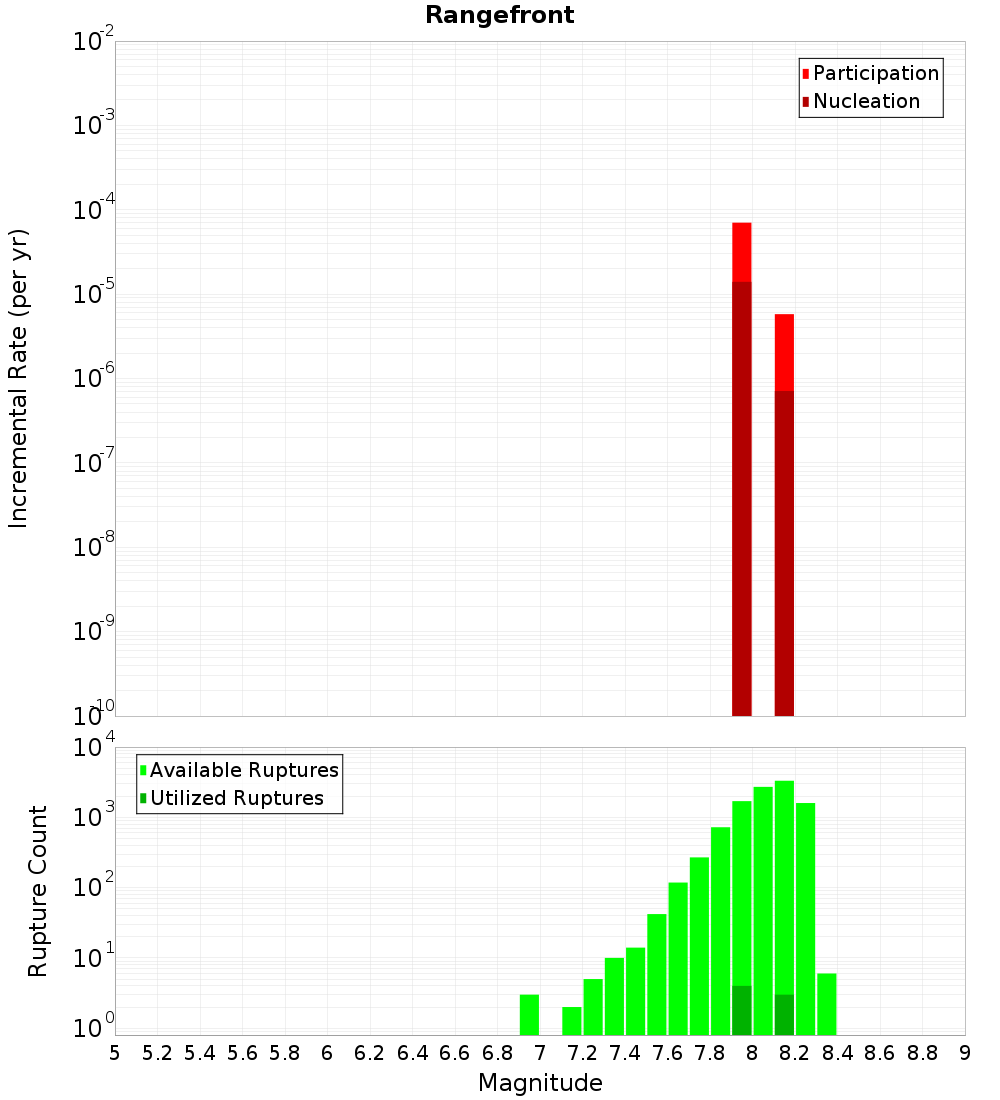

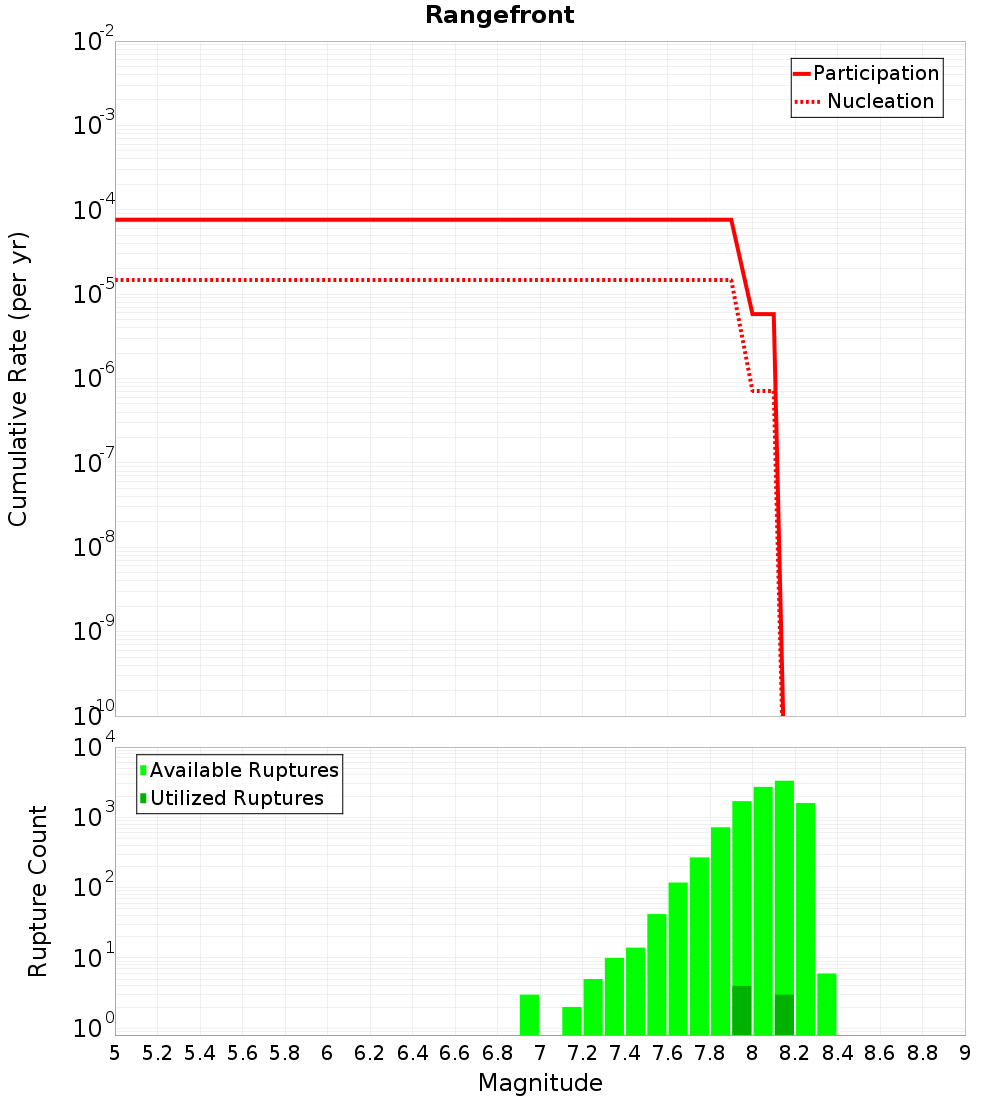

Magnitude-Frequency Distribution

Incremental	Cumulative

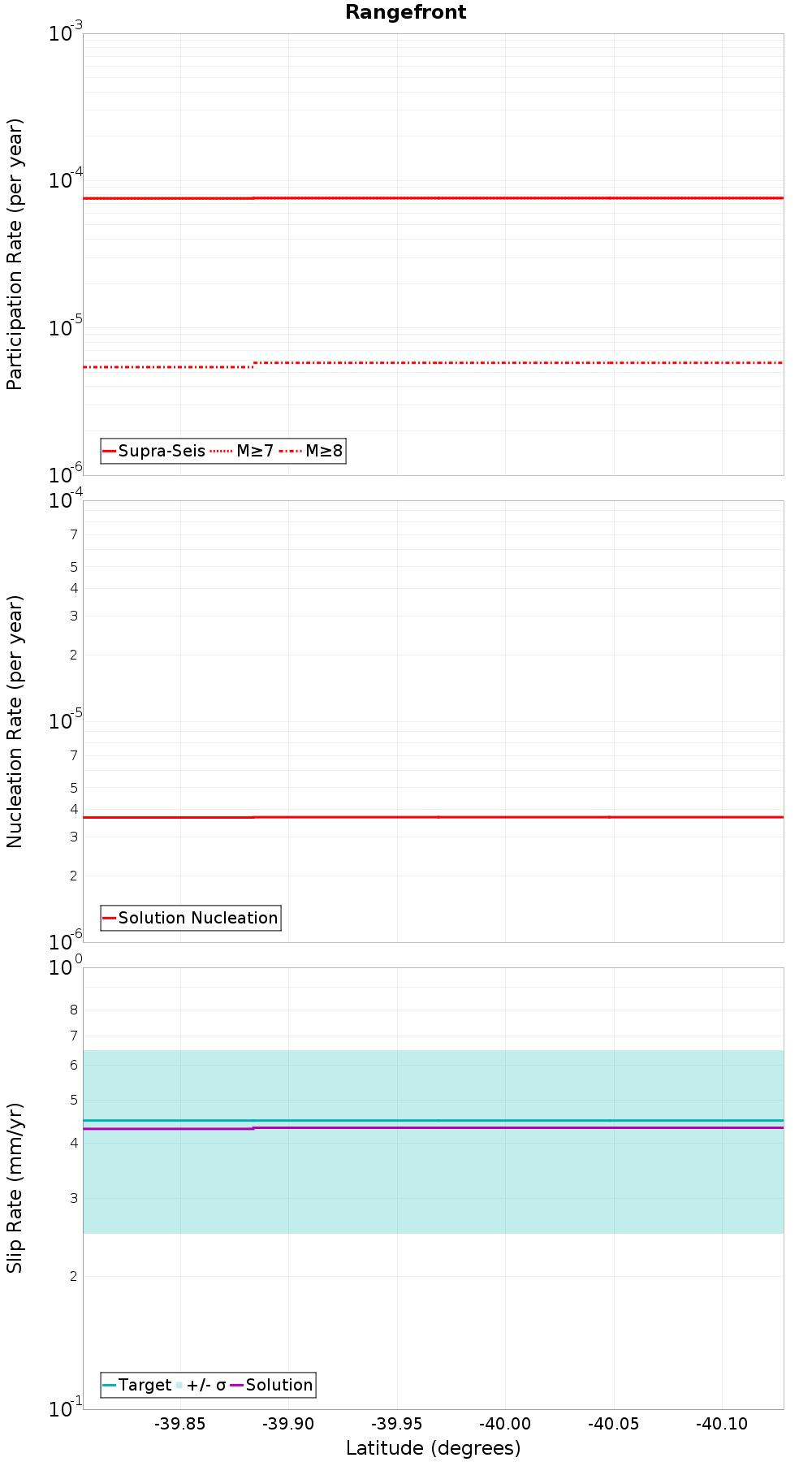

Along-Strike Values

Moment-Rates and b-Values

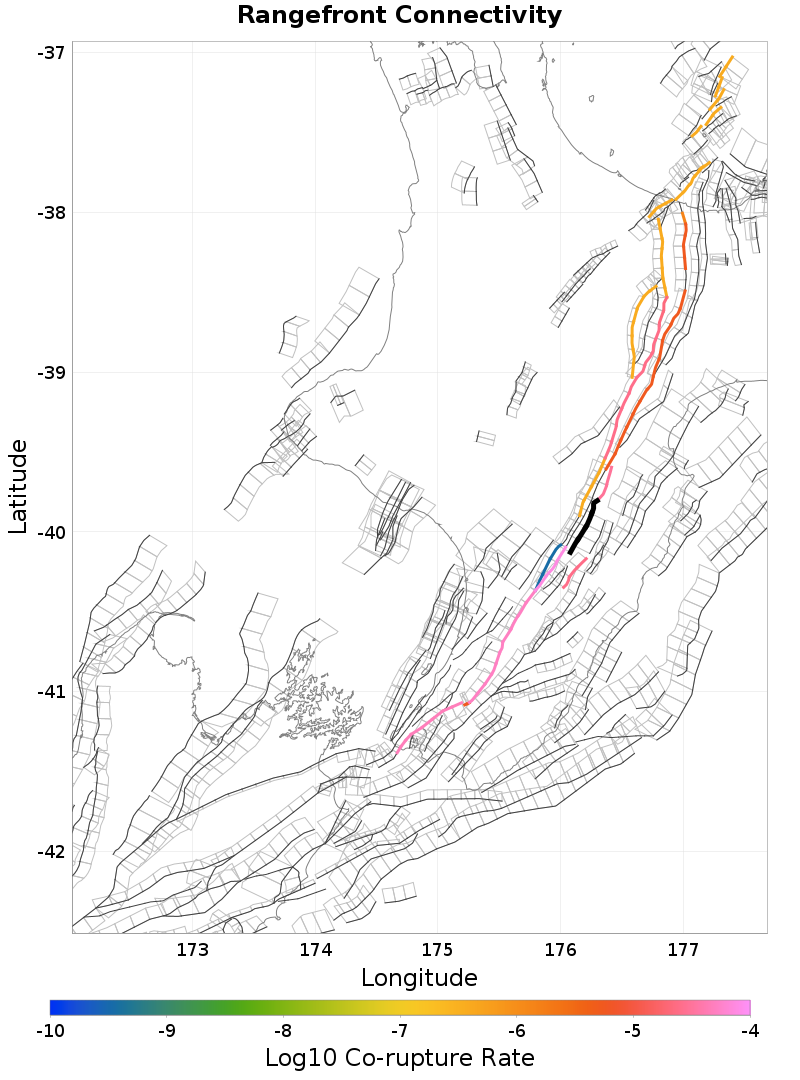

Connectivity

Nearby Sections

Fault Section
Wakarara, 0 km away
Ruahine: South, 0.19 km away
Ruahine: Central, 0.2 km away
Mohaka: South, 0.2 km away
Ruataniwha, 8.95 km away
Pahiatua, 9.78 km away
Maunga, 10.17 km away
Woodville, 10.84 km away
Pohangina, 12.41 km away
Oruawharo - Mangatoro, 15.62 km away
Clear Hills - Waikopiro, 16.39 km away
Waewaepa, 16.75 km away
Te Heka, 17.34 km away

Wakarara, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMjAuMDlCbkw2
Connected?	true
Directly Connected?	true
Co-rupture Count	7,494
Co-rupture Rate	2.9998495E-5

Ruahine: South, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMjAuMDlCbkw2
Connected?	true
Directly Connected?	true
Co-rupture Count	2,601
Co-rupture Rate	3.5136113E-10

Ruahine: Central, 0.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMjAuMDlCbkw2
Connected?	true
Directly Connected?	true
Co-rupture Count	1,059
Co-rupture Rate	3.7221164E-7

Mohaka: South, 0.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMjAuMDlCbkw2
Connected?	true
Directly Connected?	true
Co-rupture Count	12,465
Co-rupture Rate	8.1139035E-5

Ruataniwha, 8.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMjAuMDlCbkw2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pahiatua, 9.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMjAuMDlCbkw2
Connected?	true
Directly Connected?	false
Co-rupture Count	68
Co-rupture Rate	0.0

Maunga, 10.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMjAuMDlCbkw2
Connected?	true
Directly Connected?	false
Co-rupture Count	9
Co-rupture Rate	2.4582334E-5

Woodville, 10.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMjAuMDlCbkw2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pohangina, 12.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMjAuMDlCbkw2
Connected?	true
Directly Connected?	false
Co-rupture Count	45
Co-rupture Rate	0.0

Oruawharo - Mangatoro, 15.62 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMjAuMDlCbkw2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Clear Hills - Waikopiro, 16.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMjAuMDlCbkw2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waewaepa, 16.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMjAuMDlCbkw2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Te Heka, 17.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMjAuMDlCbkw2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
