Matata Details

PropertyValue
Rupture Count9,751
Ruptures Above Sect Min Mag9,446
Ruptures w/ Nonzero Rates181
Magnitude Range[5.67, 8.27]
Length Range[5, 549] km
Total Rate0.005472454 /yr
Multi-Fault Rate0.005472454 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults83

Table Of Contents

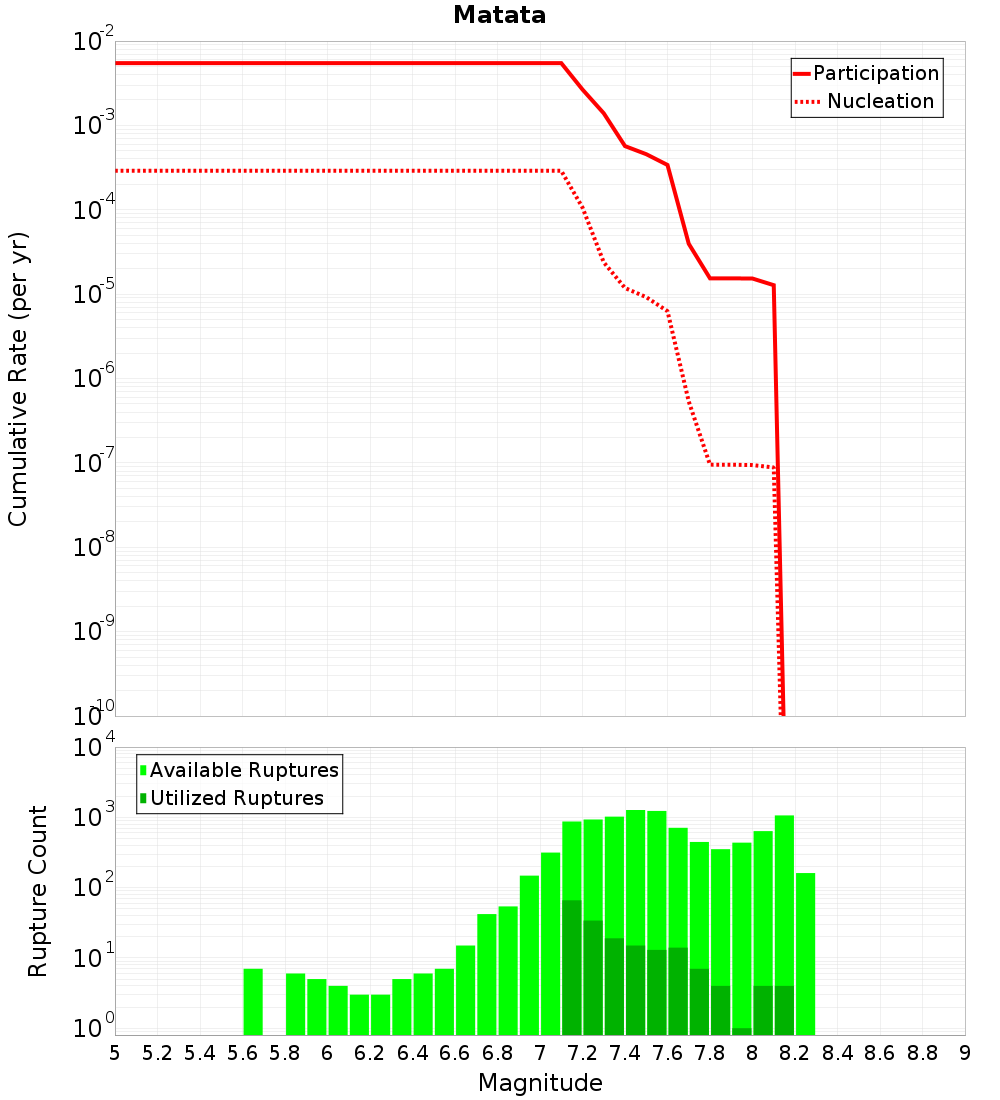

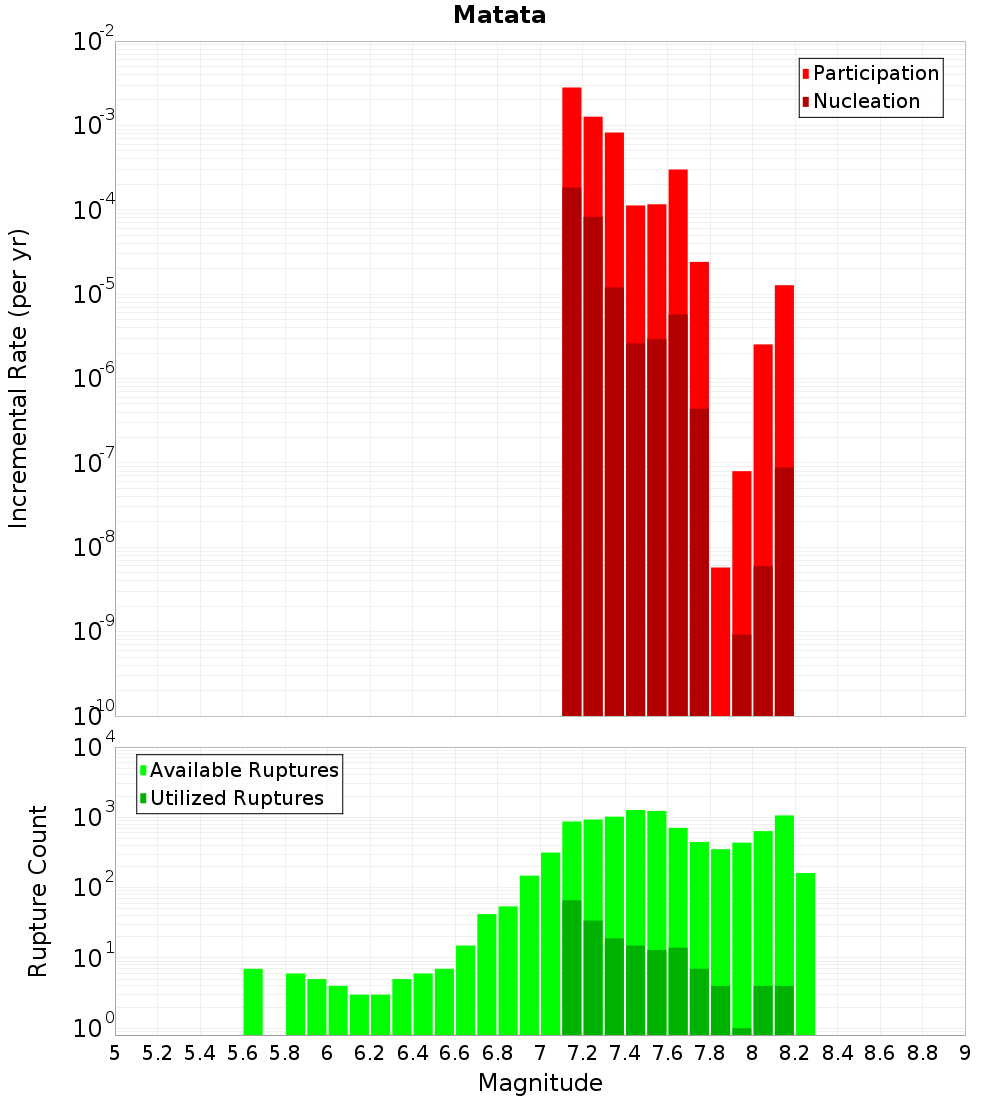

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

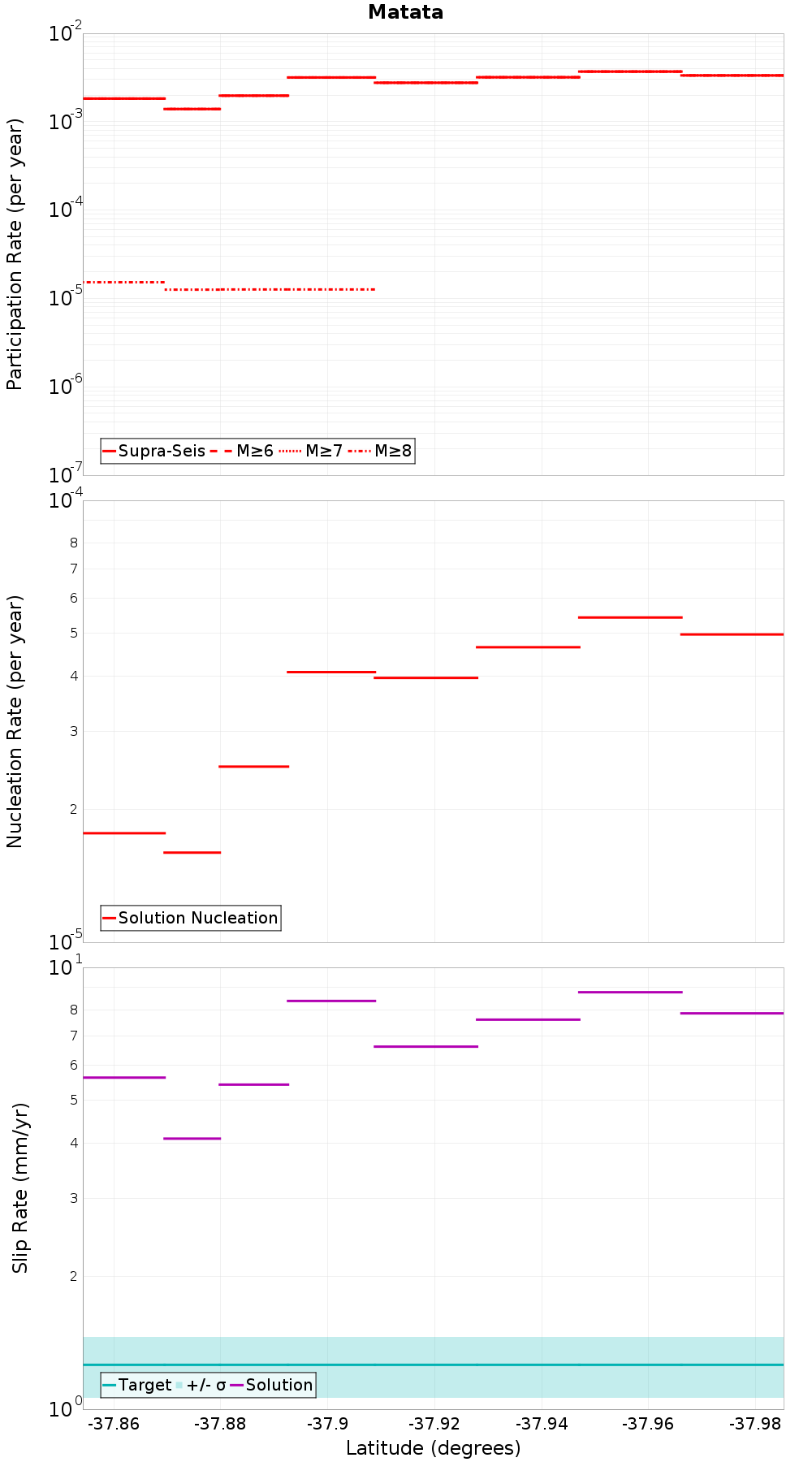

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

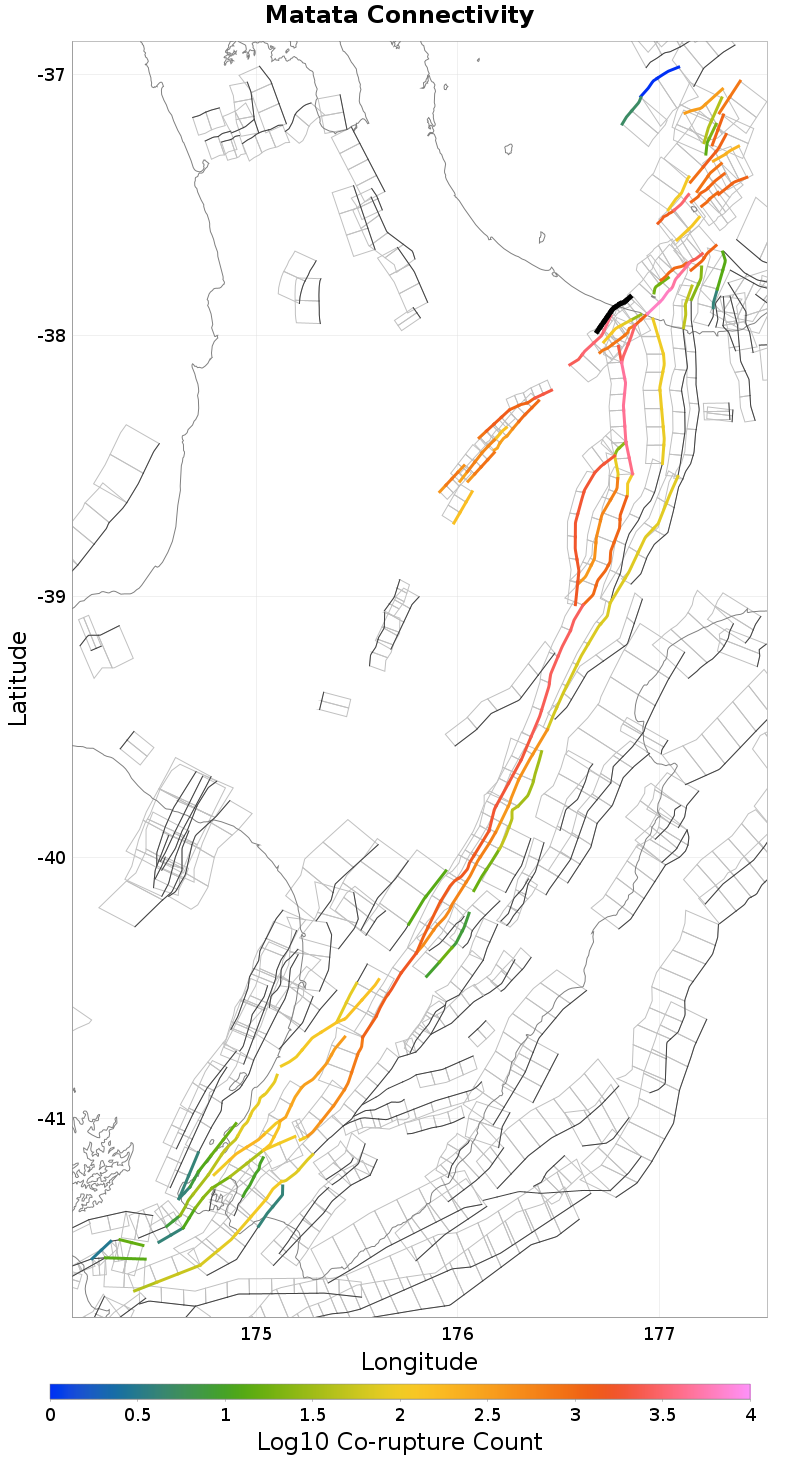

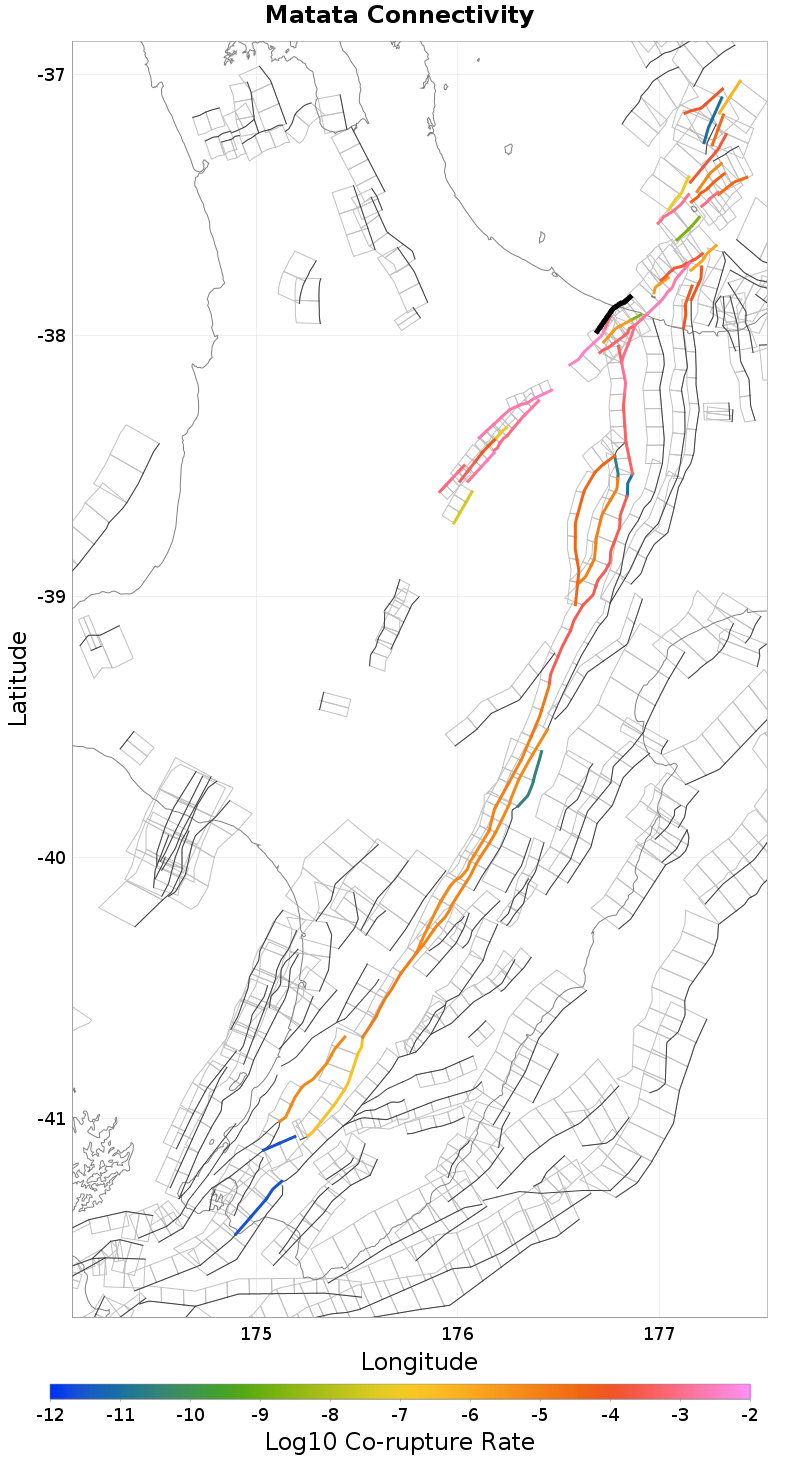

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Braemar, 1.02 km away
Edgecumbe 1987, 1.18 km away
Edgecumbe Coastal, 2.64 km away
White Island 1, 2.65 km away
Otakiri, 4.47 km away
Awakeri, 5.47 km away
Waiohau: North, 6.41 km away
Whakatane: North, 8.87 km away
Rangitaiki 1, 9.11 km away
Rangitaiki 2, 15.14 km away

Braemar, 1.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMjAuMHZ5RXZ4
Connected?true
Directly Connected?true
Co-rupture Count5,488
Co-rupture Rate0.004146089

Edgecumbe 1987, 1.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMjAuMHZ5RXZ4
Connected?true
Directly Connected?true
Co-rupture Count779
Co-rupture Rate4.6344005E-4

Edgecumbe Coastal, 2.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMjAuMHZ5RXZ4
Connected?true
Directly Connected?true
Co-rupture Count1,156
Co-rupture Rate0.0012711475

White Island 1, 2.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMjAuMHZ5RXZ4
Connected?true
Directly Connected?true
Co-rupture Count6,430
Co-rupture Rate0.0026193531

Otakiri, 4.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMjAuMHZ5RXZ4
Connected?true
Directly Connected?true
Co-rupture Count120
Co-rupture Rate2.776724E-6

Awakeri, 5.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMjAuMHZ5RXZ4
Connected?true
Directly Connected?true
Co-rupture Count2,982
Co-rupture Rate8.515546E-4

Waiohau: North, 6.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMjAuMHZ5RXZ4
Connected?true
Directly Connected?false
Co-rupture Count4,582
Co-rupture Rate0.0012116638

Whakatane: North, 8.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMjAuMHZ5RXZ4
Connected?true
Directly Connected?false
Co-rupture Count96
Co-rupture Rate0.0

Rangitaiki 1, 9.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMjAuMHZ5RXZ4
Connected?true
Directly Connected?false
Co-rupture Count18
Co-rupture Rate2.1611213E-6

Rangitaiki 2, 15.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMjAuMHZ5RXZ4
Connected?true
Directly Connected?false
Co-rupture Count1,034
Co-rupture Rate1.7206659E-4
