Waiohau: North Details

PropertyValue
Rupture Count37,117
Ruptures Above Sect Min Mag36,961
Ruptures w/ Nonzero Rates306
Magnitude Range[6.40, 8.29]
Length Range[14, 692] km
Total Rate0.0025452436 /yr
Multi-Fault Rate0.0025452436 /yr (100.00%)
Directly-Connected Faults9
All Co-Rupturing Faults98

Table Of Contents

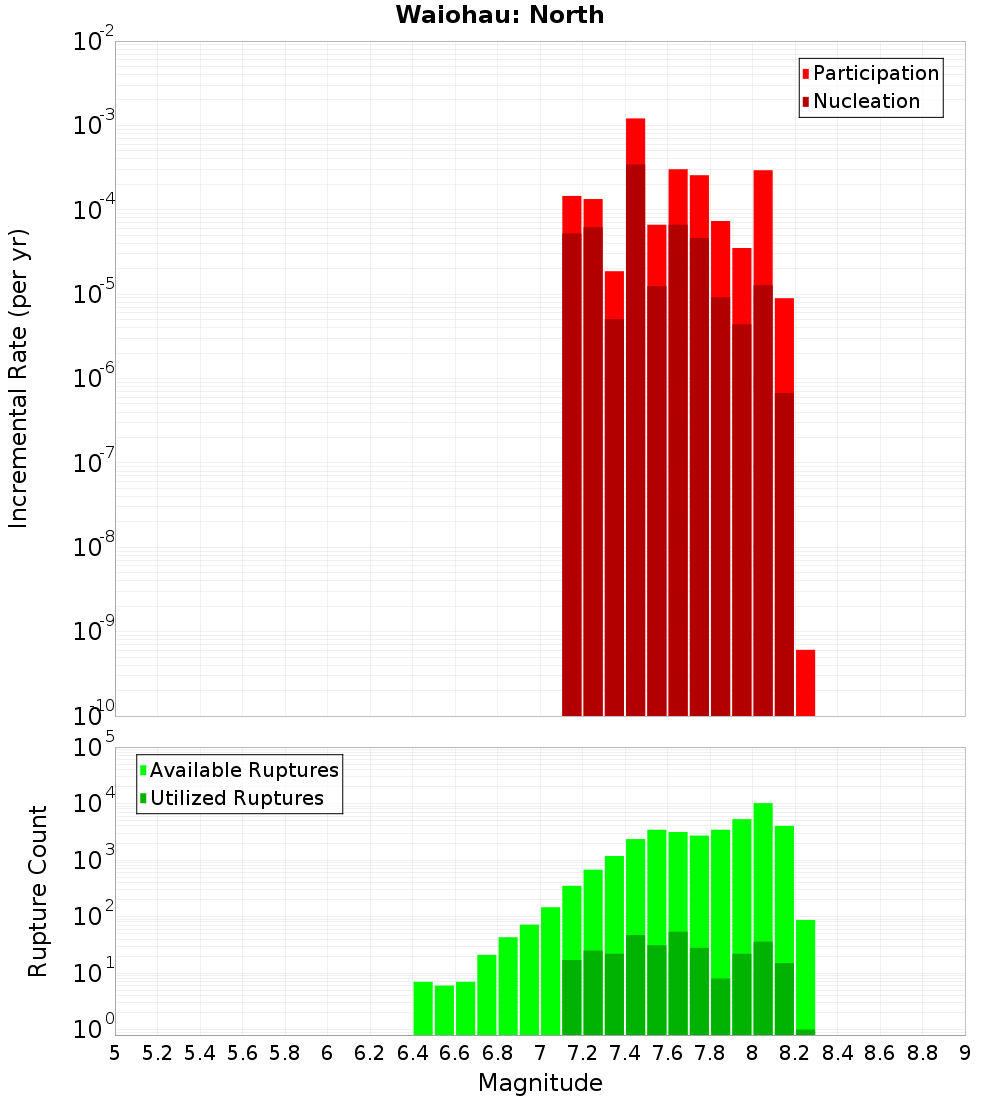

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

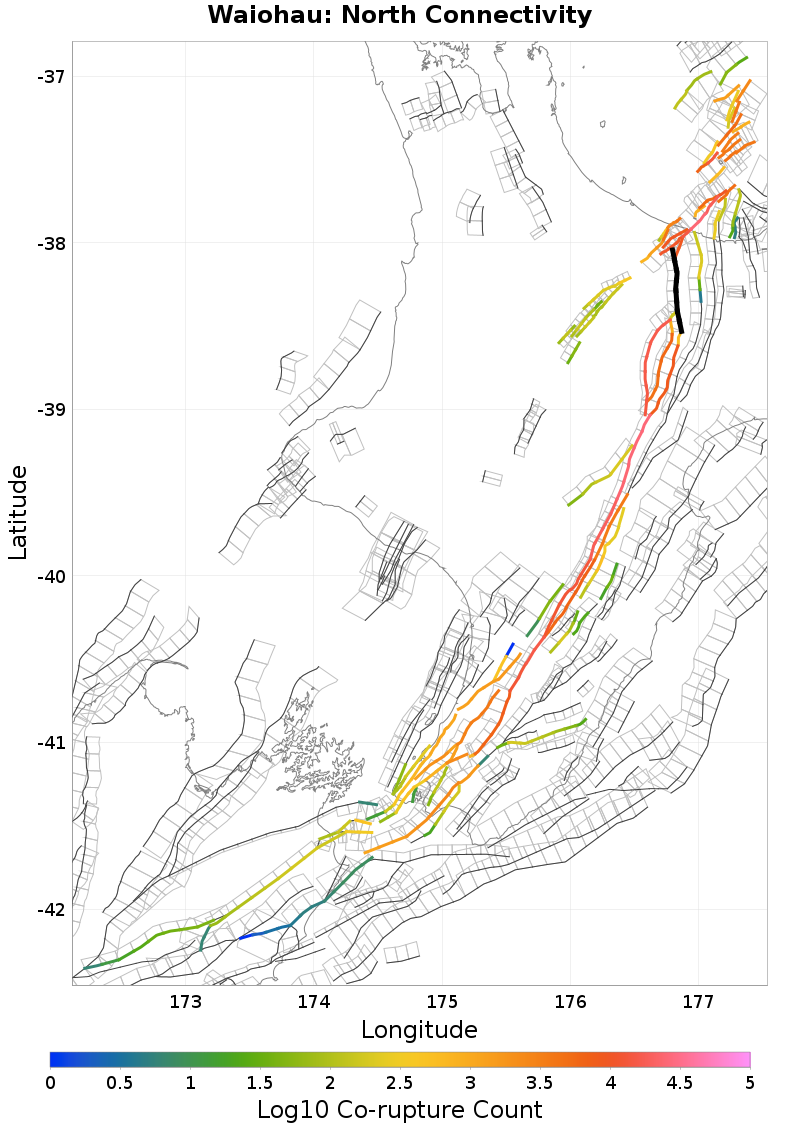

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Waiohau: South, 0 km awayMatata, 6.41 km away
Awakeri, 0.13 km awayWhakatane: South, 11.09 km away
Te Whaiti North, 0.16 km awayEdgecumbe Coastal, 11.47 km away
Braemar, 0.34 km awayWheao: South, 11.7 km away
Otakiri, 0.34 km awayWhakatane: North, 12.32 km away
Te Whaiti South, 1.94 km awayWaimana: South, 17.98 km away
Edgecumbe 1987, 2.21 km awayWhite Island 1, 18.73 km away
Wheao: North, 2.44 km awayWaimana: North, 18.89 km away

Waiohau: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMjQuMG15Wnd0
Connected?true
Directly Connected?true
Co-rupture Count9,197
Co-rupture Rate2.796232E-4

Awakeri, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMjQuMG15Wnd0
Connected?true
Directly Connected?true
Co-rupture Count9,077
Co-rupture Rate6.4922223E-4

Te Whaiti North, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMjQuMG15Wnd0
Connected?true
Directly Connected?true
Co-rupture Count161
Co-rupture Rate3.4003534E-7

Braemar, 0.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMjQuMG15Wnd0
Connected?true
Directly Connected?true
Co-rupture Count4,121
Co-rupture Rate2.318096E-4

Otakiri, 0.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMjQuMG15Wnd0
Connected?true
Directly Connected?true
Co-rupture Count10,014
Co-rupture Rate3.5430785E-4

Te Whaiti South, 1.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMjQuMG15Wnd0
Connected?true
Directly Connected?true
Co-rupture Count6,149
Co-rupture Rate5.7719488E-5

Edgecumbe 1987, 2.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMjQuMG15Wnd0
Connected?true
Directly Connected?true
Co-rupture Count10,705
Co-rupture Rate0.0011565092

Wheao: North, 2.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMjQuMG15Wnd0
Connected?true
Directly Connected?true
Co-rupture Count16,561
Co-rupture Rate7.607551E-4

Matata, 6.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMjQuMG15Wnd0
Connected?true
Directly Connected?false
Co-rupture Count4,582
Co-rupture Rate2.3912078E-4

Whakatane: South, 11.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMjQuMG15Wnd0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Edgecumbe Coastal, 11.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMjQuMG15Wnd0
Connected?true
Directly Connected?false
Co-rupture Count14,810
Co-rupture Rate0.0016915641

Wheao: South, 11.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMjQuMG15Wnd0
Connected?true
Directly Connected?false
Co-rupture Count16,142
Co-rupture Rate7.3711935E-4

Whakatane: North, 12.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMjQuMG15Wnd0
Connected?true
Directly Connected?true
Co-rupture Count228
Co-rupture Rate1.8051614E-7

Waimana: South, 17.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMjQuMG15Wnd0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

White Island 1, 18.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMjQuMG15Wnd0
Connected?true
Directly Connected?false
Co-rupture Count25,359
Co-rupture Rate0.001642735

Waimana: North, 18.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMjQuMG15Wnd0
Connected?true
Directly Connected?false
Co-rupture Count270
Co-rupture Rate9.457191E-6
