Braemar Details

PropertyValue
Rupture Count16,587
Ruptures Above Sect Min Mag16,495
Ruptures w/ Nonzero Rates467
Magnitude Range[6.63, 8.37]
Length Range[14, 549] km
Total Rate0.009787756 /yr
Multi-Fault Rate0.009787756 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults91

Table Of Contents

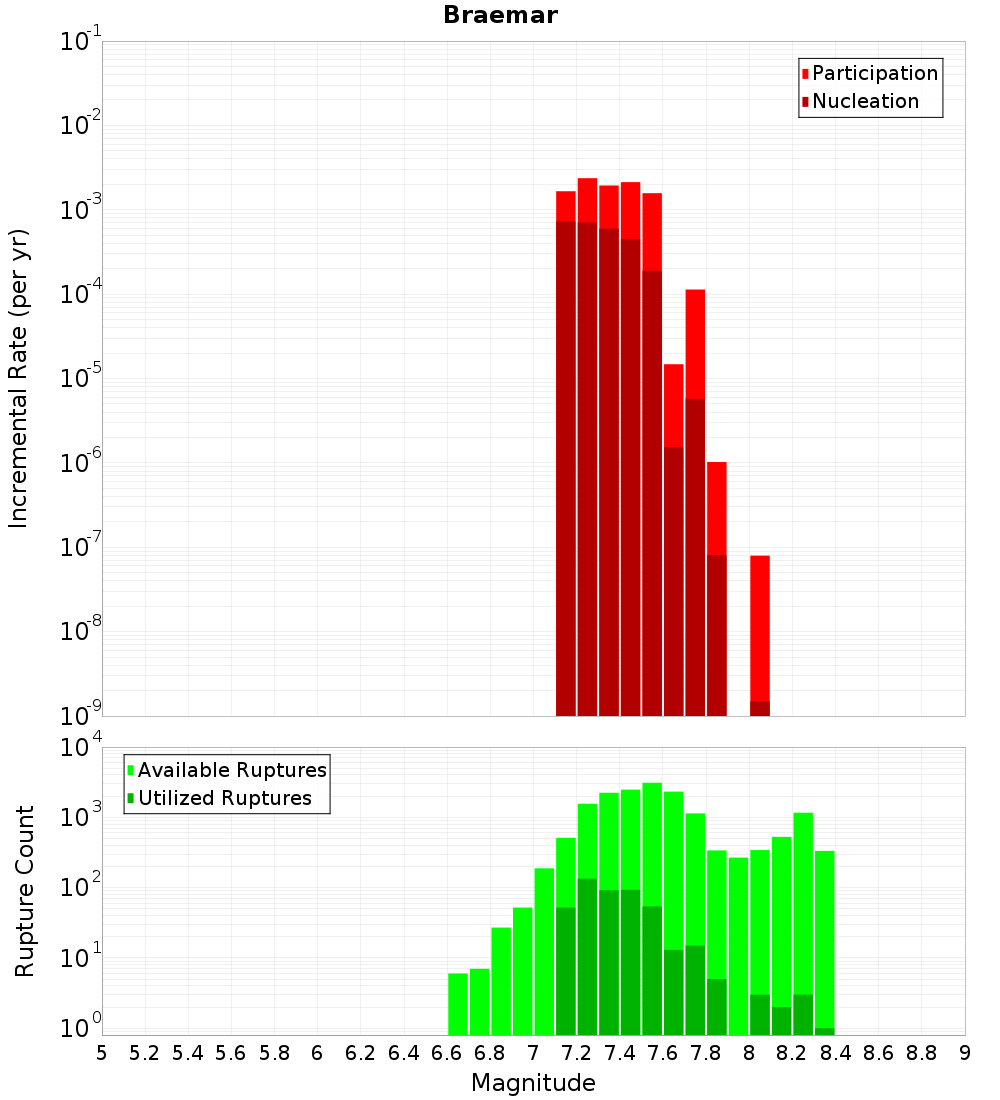

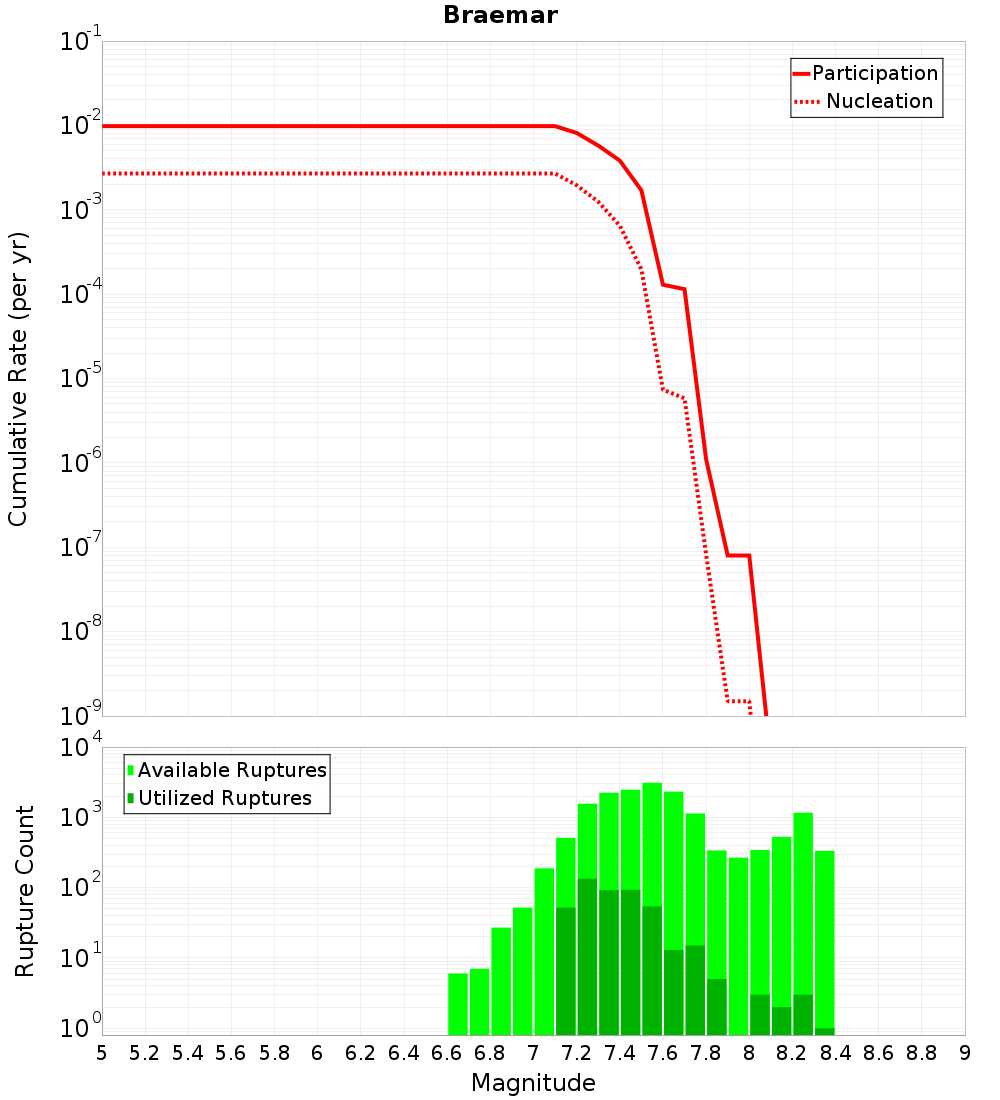

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

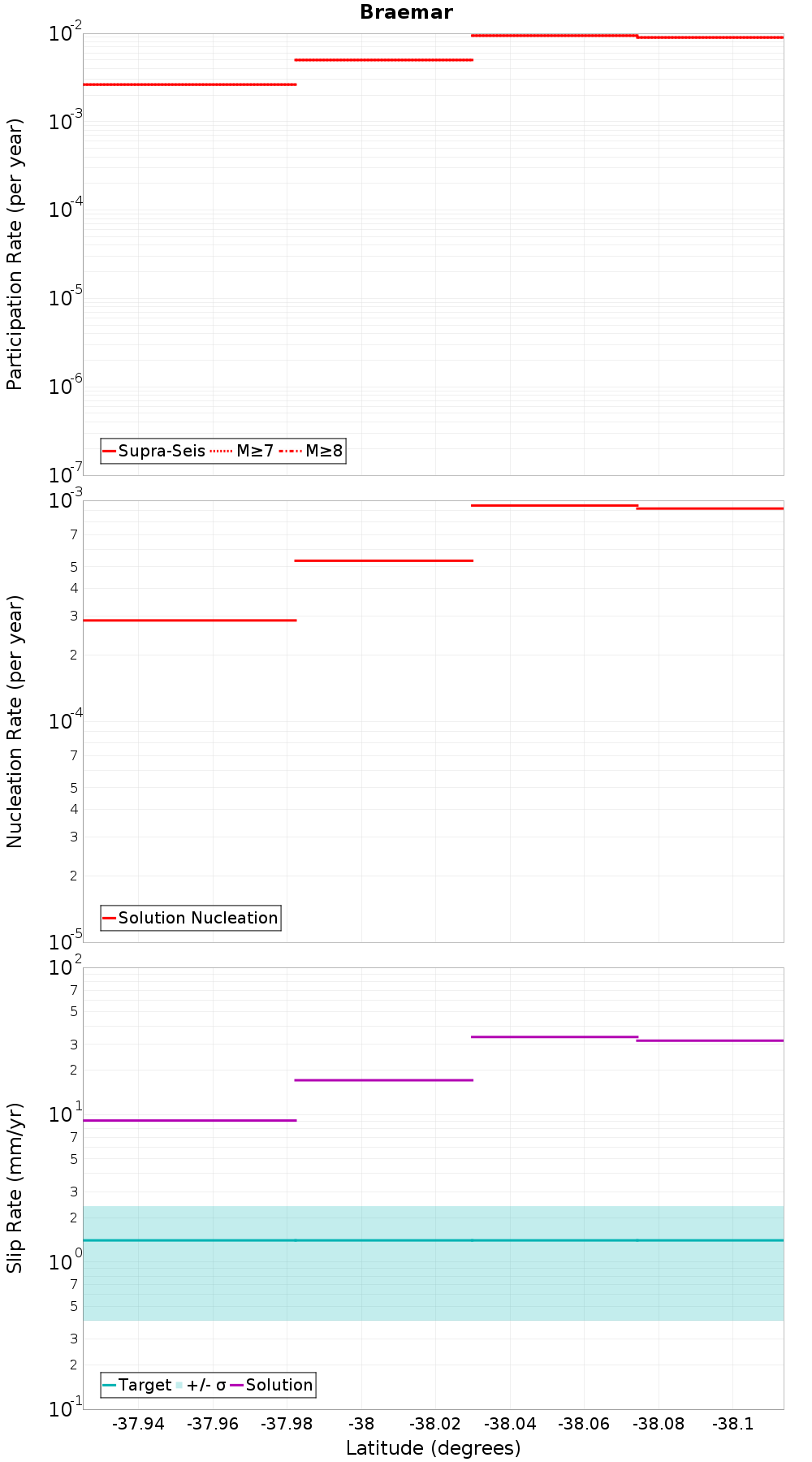

Along-Strike Values

(top)

Along-strike plot

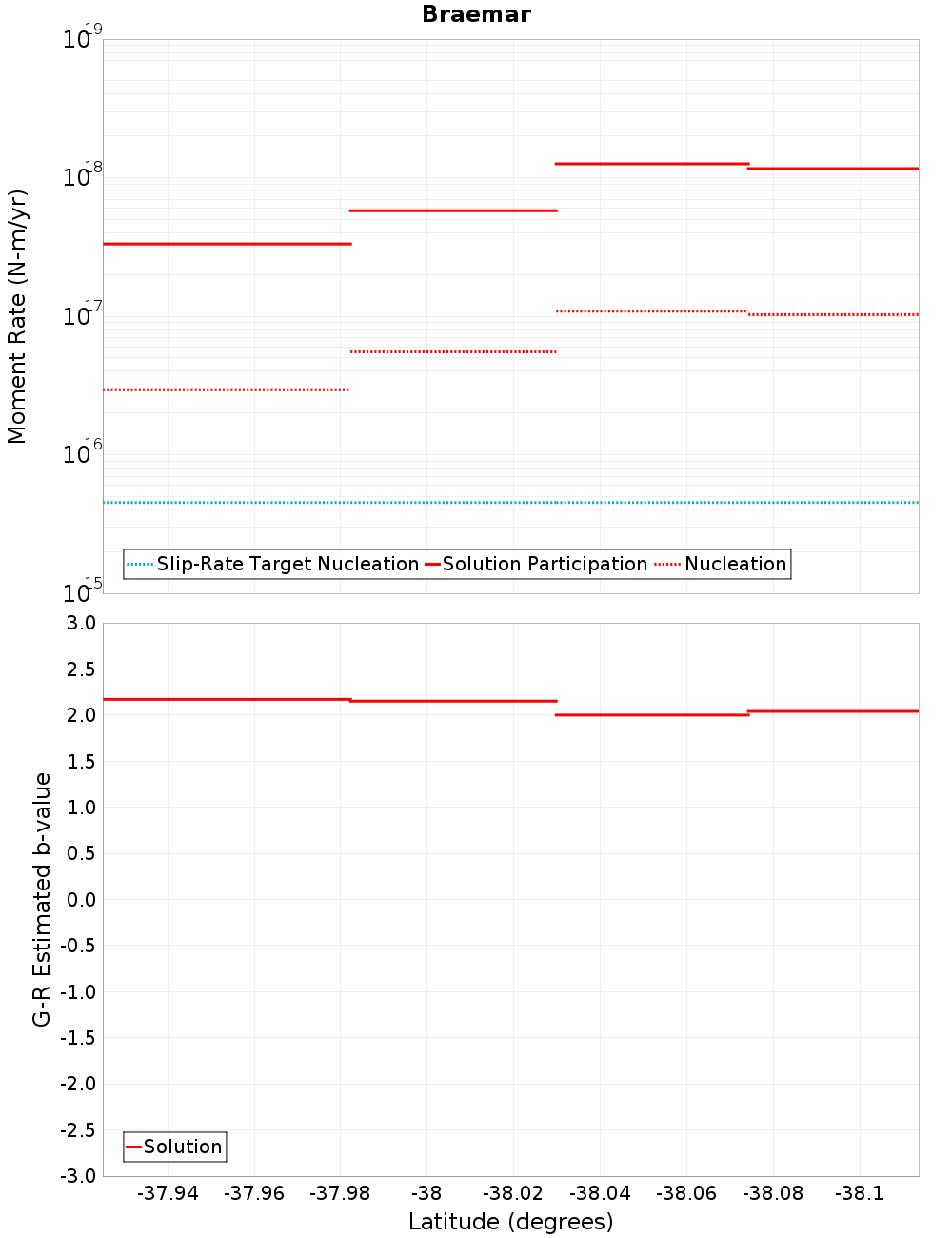

Moment-Rates and b-Values

(top)

Along-strike plot

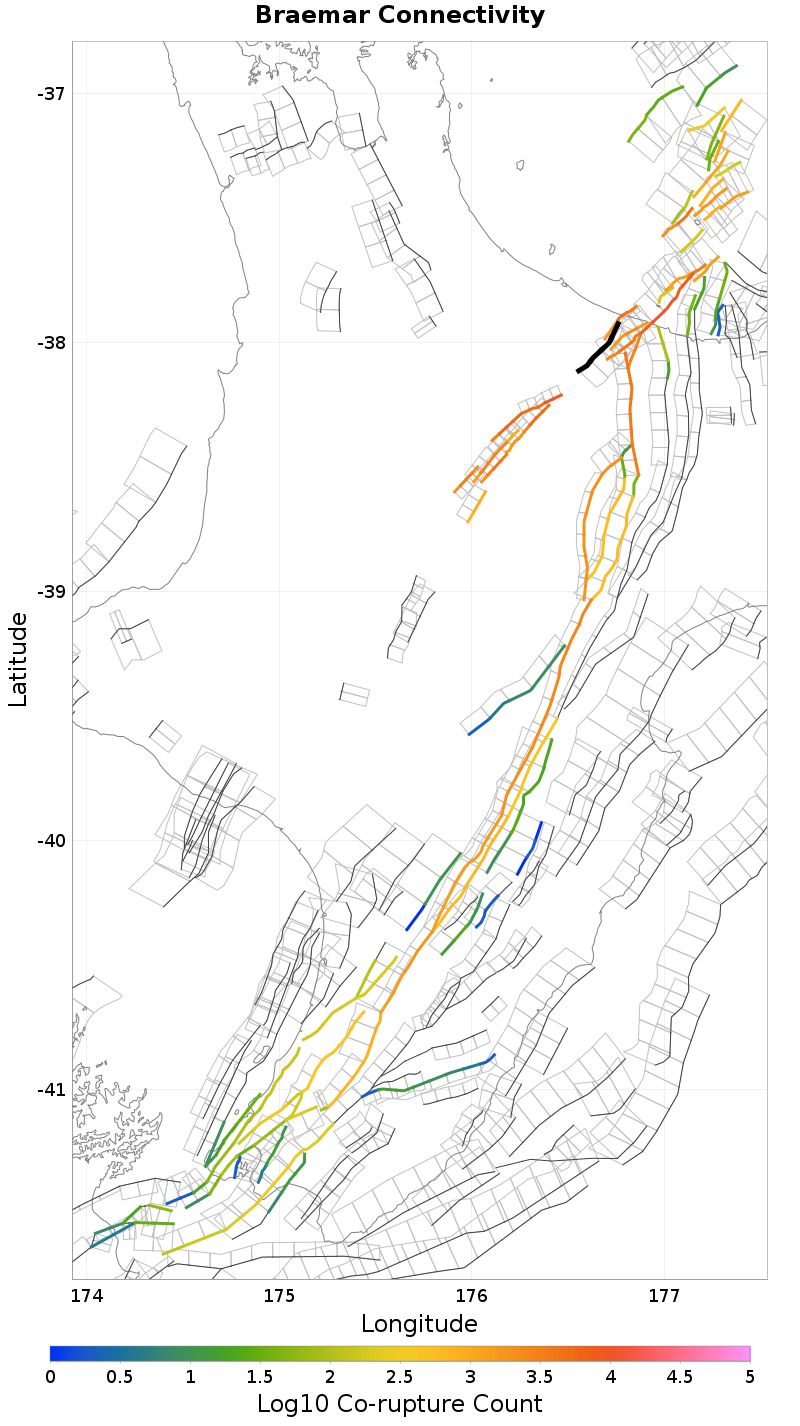

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Awakeri, 0.15 km away
Edgecumbe 1987, 0.31 km away
Waiohau: North, 0.34 km away
Otakiri, 0.69 km away
Matata, 1.02 km away
Edgecumbe Coastal, 4.62 km away
Whakatane: North, 6.14 km away
White Island 1, 11.21 km away
EarthquakeFlat - Tumunui, 12.8 km away
Waimana: North, 19.88 km away

Awakeri, 0.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMjYuMDRmVzZi
Connected?true
Directly Connected?true
Co-rupture Count2,773
Co-rupture Rate0.0014133785

Edgecumbe 1987, 0.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMjYuMDRmVzZi
Connected?true
Directly Connected?true
Co-rupture Count3,994
Co-rupture Rate0.0025893666

Waiohau: North, 0.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMjYuMDRmVzZi
Connected?true
Directly Connected?true
Co-rupture Count4,111
Co-rupture Rate7.55546E-4

Otakiri, 0.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMjYuMDRmVzZi
Connected?true
Directly Connected?true
Co-rupture Count2,523
Co-rupture Rate0.0012679148

Matata, 1.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMjYuMDRmVzZi
Connected?true
Directly Connected?true
Co-rupture Count5,524
Co-rupture Rate0.0038424495

Edgecumbe Coastal, 4.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMjYuMDRmVzZi
Connected?true
Directly Connected?true
Co-rupture Count6,907
Co-rupture Rate0.0031071748

Whakatane: North, 6.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMjYuMDRmVzZi
Connected?true
Directly Connected?false
Co-rupture Count88
Co-rupture Rate1.6286943E-8

White Island 1, 11.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMjYuMDRmVzZi
Connected?true
Directly Connected?false
Co-rupture Count10,260
Co-rupture Rate0.0034947146

EarthquakeFlat - Tumunui, 12.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMjYuMDRmVzZi
Connected?true
Directly Connected?true
Co-rupture Count10,199
Co-rupture Rate0.008605285

Waimana: North, 19.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMjYuMDRmVzZi
Connected?true
Directly Connected?false
Co-rupture Count38
Co-rupture Rate3.212845E-5
