Manahi 2 Details

Property	Value
Rupture Count	84
Ruptures Above Sect Min Mag	83
Ruptures w/ Nonzero Rates	11
Magnitude Range	[6.76, 8.02]
Length Range	[12, 206] km
Total Rate	3.028124E-8 /yr
Multi-Fault Rate	3.028124E-8 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	13

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

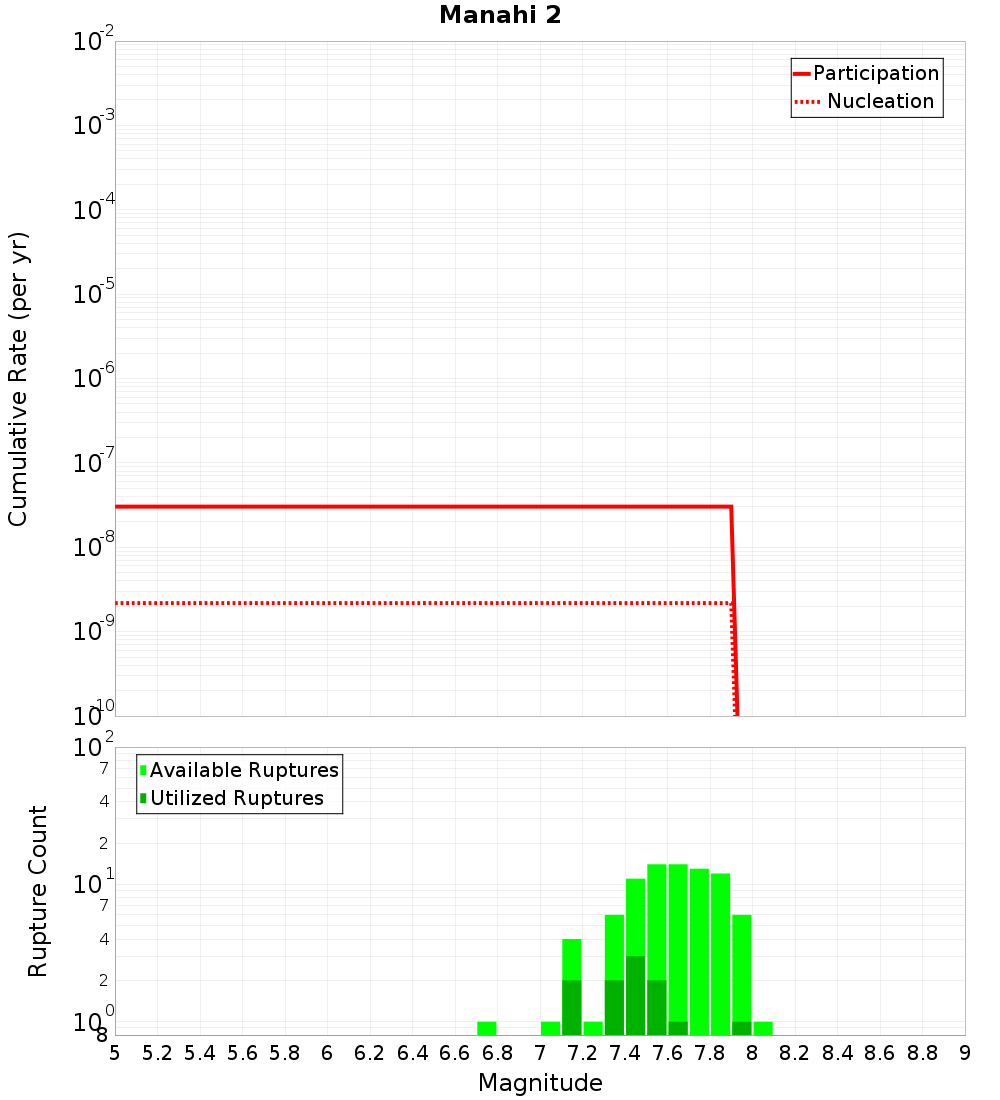

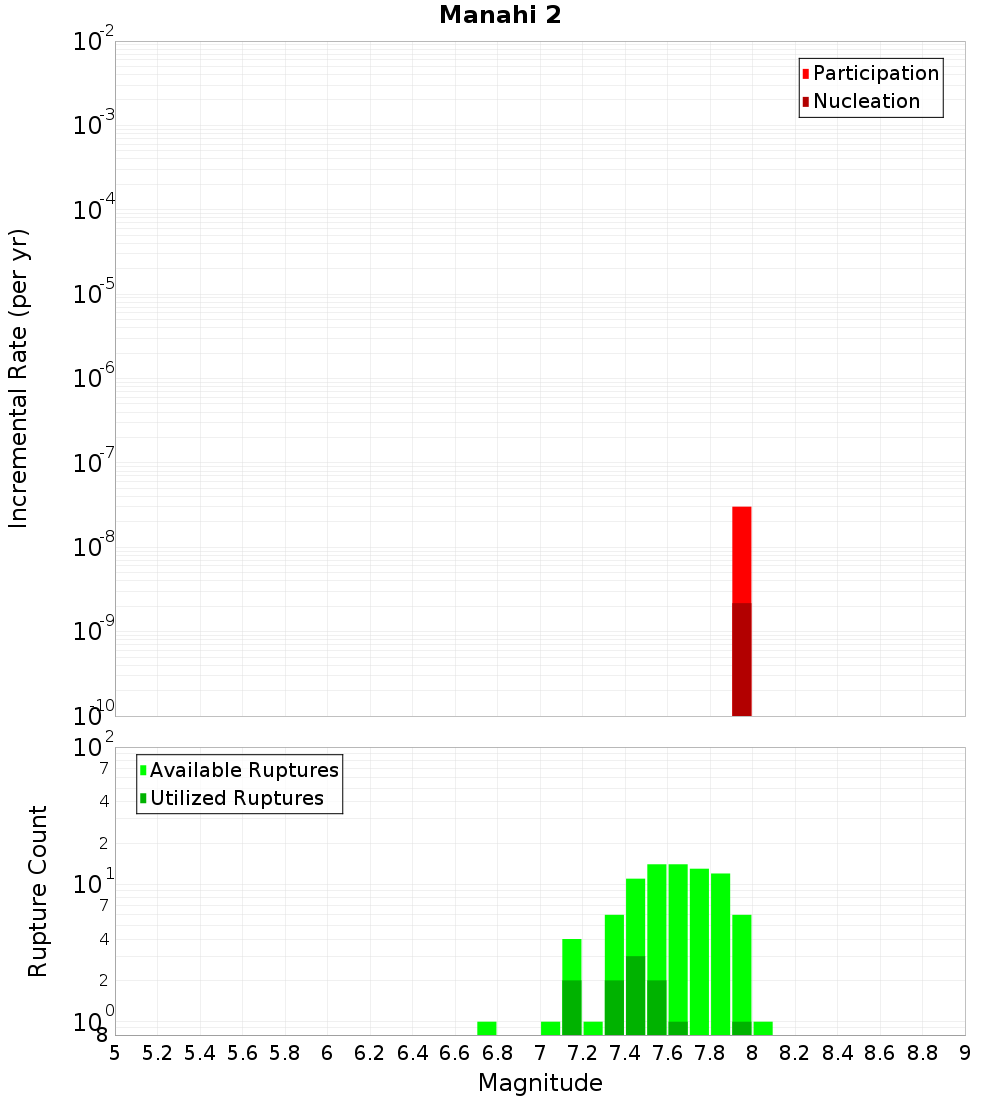

Magnitude-Frequency Distribution

Incremental	Cumulative

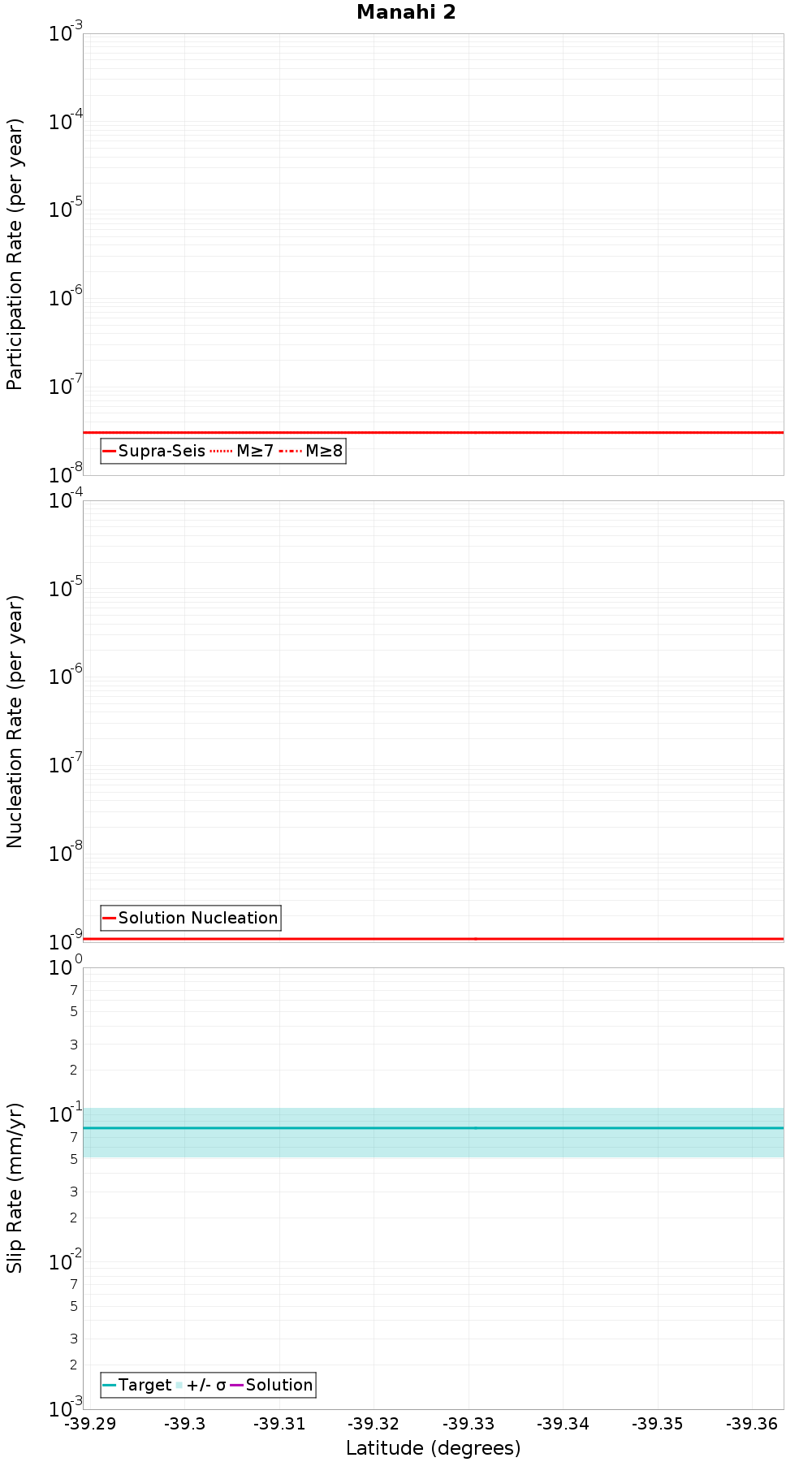

Along-Strike Values

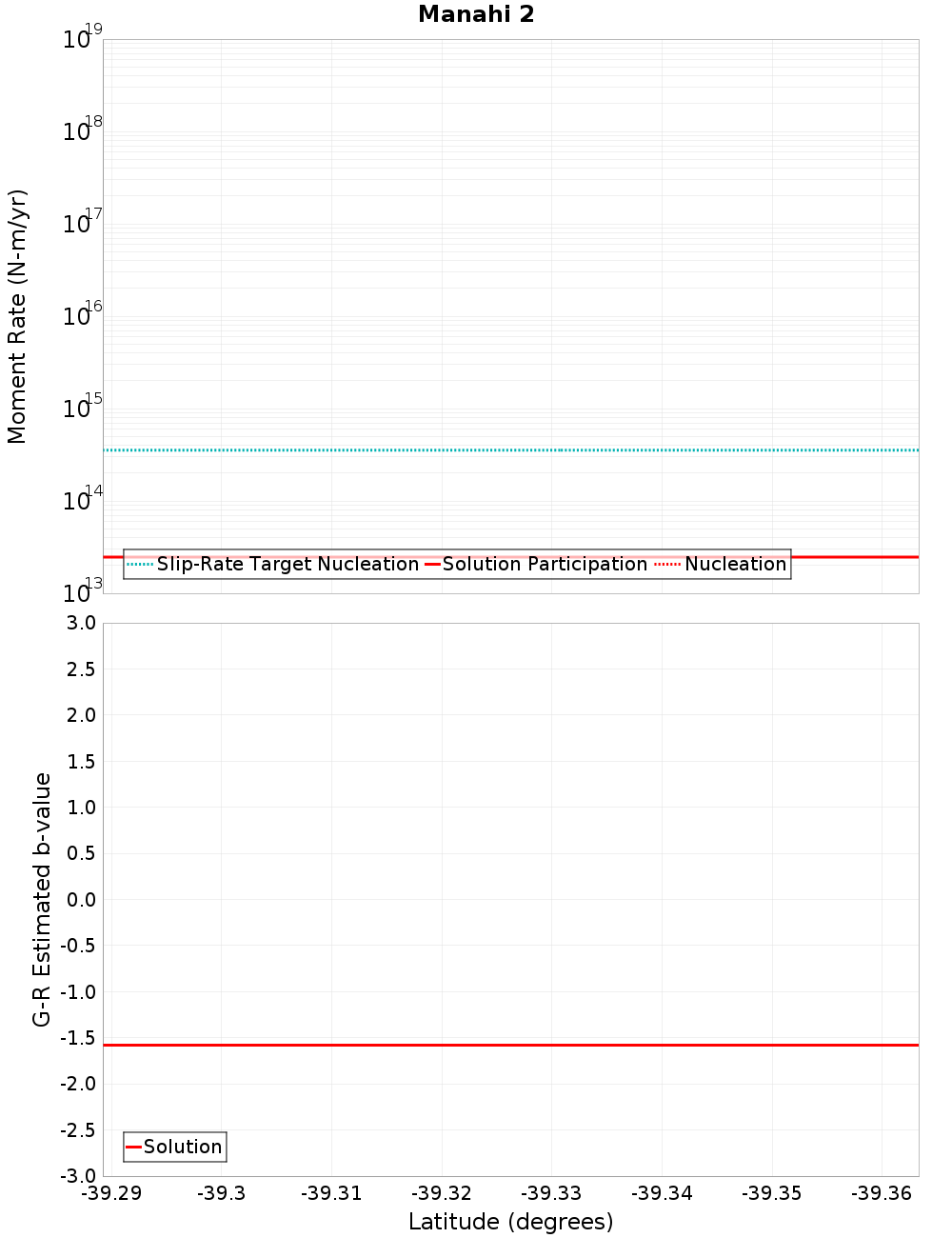

Moment-Rates and b-Values

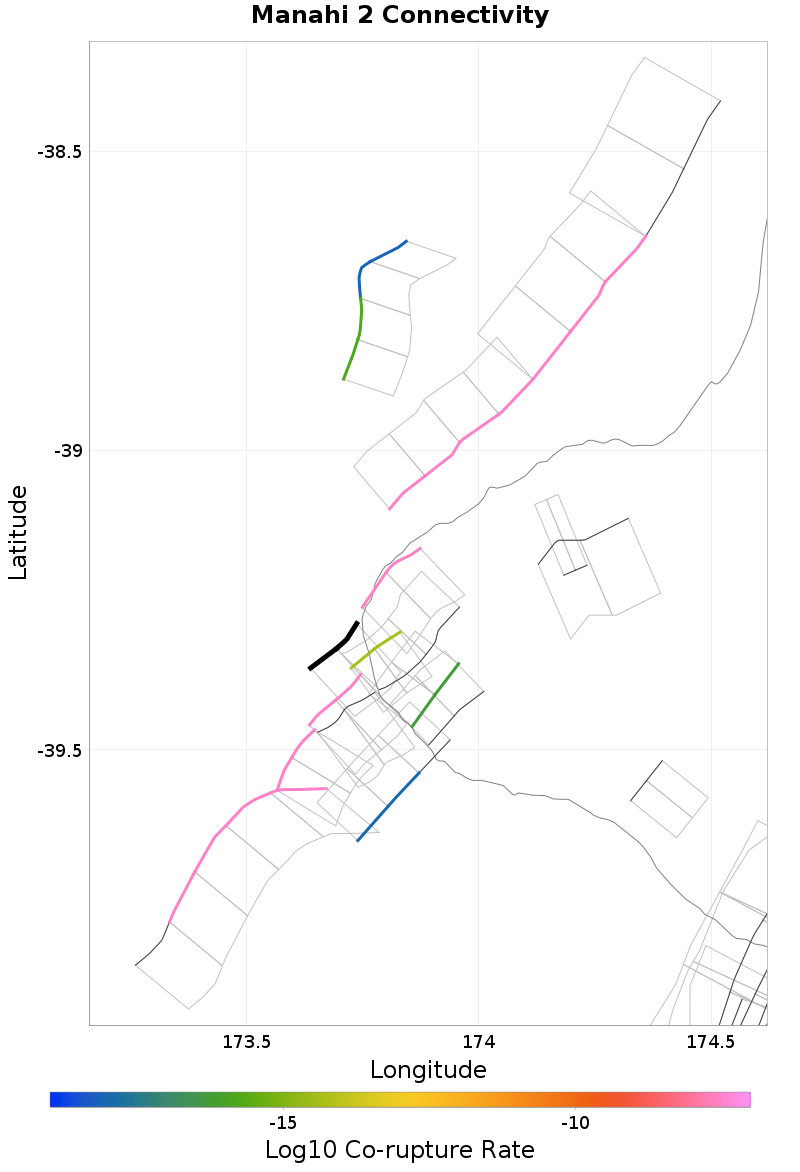

Connectivity

Nearby Sections

Fault Section
Oaonui, 0.21 km away
Ihaia, 0.43 km away
Rahotu, 2.03 km away
Kiri, 2.34 km away
Warea, 3.13 km away
Pihama, 4.5 km away
Cape Egmont: North, 5.71 km away
Manahi 1, 8.53 km away
Cape Egmont: Central, 8.61 km away
Cape Egmont: South, 19.92 km away

Oaonui, 0.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMjYuMDRmVzZi
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ihaia, 0.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMjYuMDRmVzZi
Connected?	true
Directly Connected?	true
Co-rupture Count	16
Co-rupture Rate	5.1529325E-17

Rahotu, 2.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMjYuMDRmVzZi
Connected?	true
Directly Connected?	false
Co-rupture Count	8
Co-rupture Rate	4.3288957E-15

Kiri, 2.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMjYuMDRmVzZi
Connected?	true
Directly Connected?	true
Co-rupture Count	1
Co-rupture Rate	0.0

Warea, 3.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMjYuMDRmVzZi
Connected?	true
Directly Connected?	true
Co-rupture Count	69
Co-rupture Rate	3.0281235E-8

Pihama, 4.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMjYuMDRmVzZi
Connected?	true
Directly Connected?	false
Co-rupture Count	4
Co-rupture Rate	9.923974E-19

Cape Egmont: North, 5.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMjYuMDRmVzZi
Connected?	true
Directly Connected?	true
Co-rupture Count	56
Co-rupture Rate	3.028124E-8

Manahi 1, 8.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMjYuMDRmVzZi
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	0.0

Cape Egmont: Central, 8.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMjYuMDRmVzZi
Connected?	true
Directly Connected?	false
Co-rupture Count	41
Co-rupture Rate	3.0281235E-8

Cape Egmont: South, 19.92 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMjYuMDRmVzZi
Connected?	true
Directly Connected?	false
Co-rupture Count	36
Co-rupture Rate	3.0281235E-8
