Ngatoro South 2 Details
| Property | Value |
|---|---|
| Rupture Count | 15 |
| Ruptures Above Sect Min Mag | 13 |
| Ruptures w/ Nonzero Rates | 3 |
| Magnitude Range | [6.76, 7.57] |
| Length Range | [16, 102] km |
| Total Rate | 4.9376255E-4 /yr |
| Multi-Fault Rate | 4.9376255E-4 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 6 |
Table Of Contents

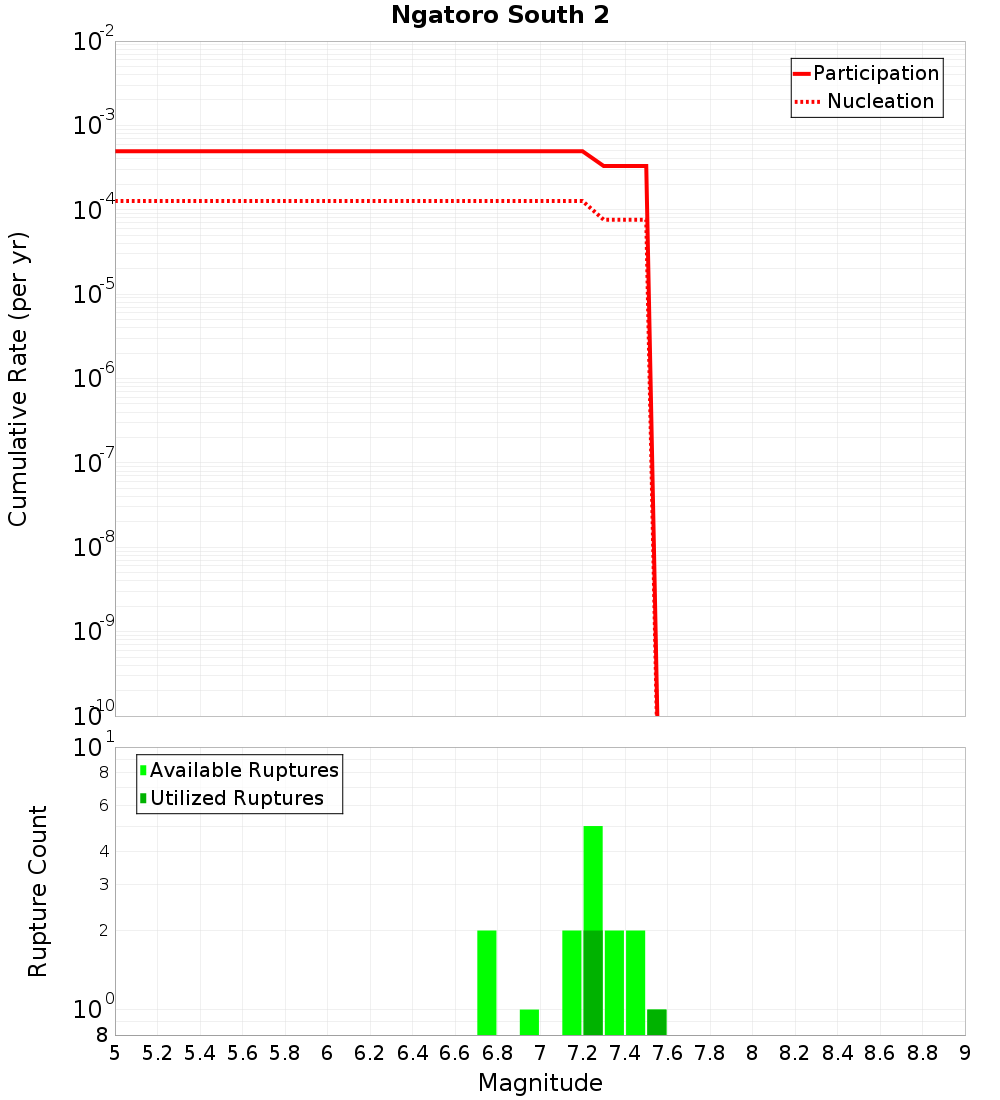

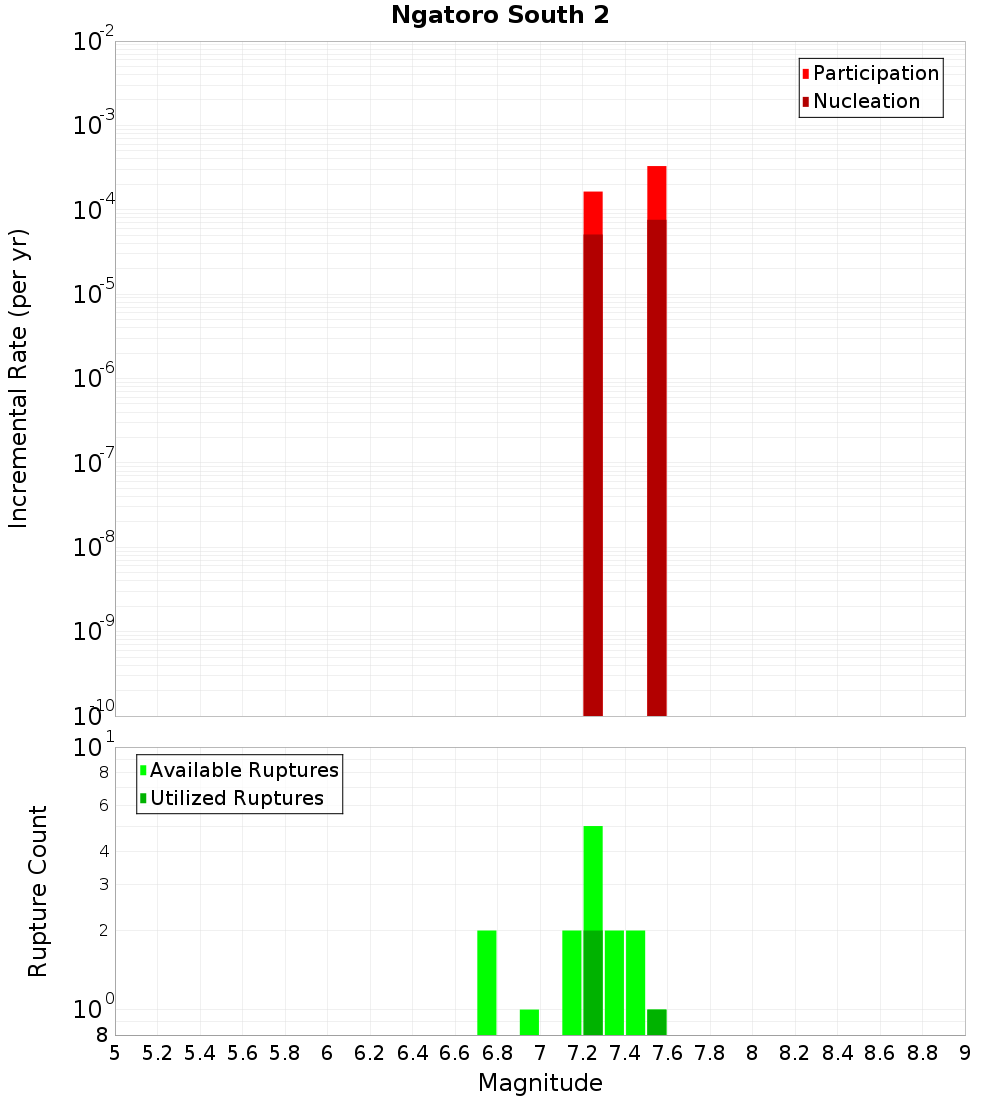

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

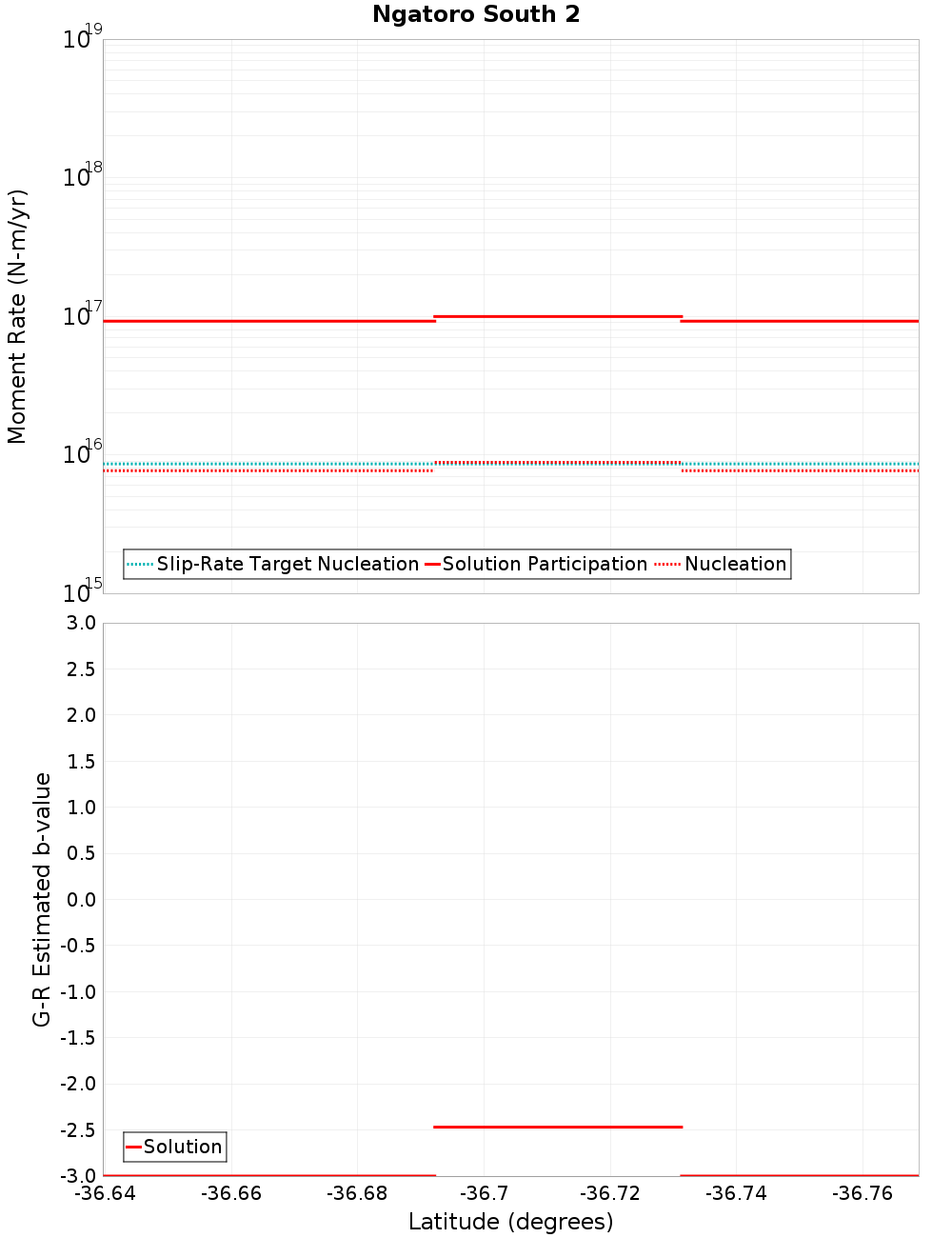

Moment-Rates and b-Values

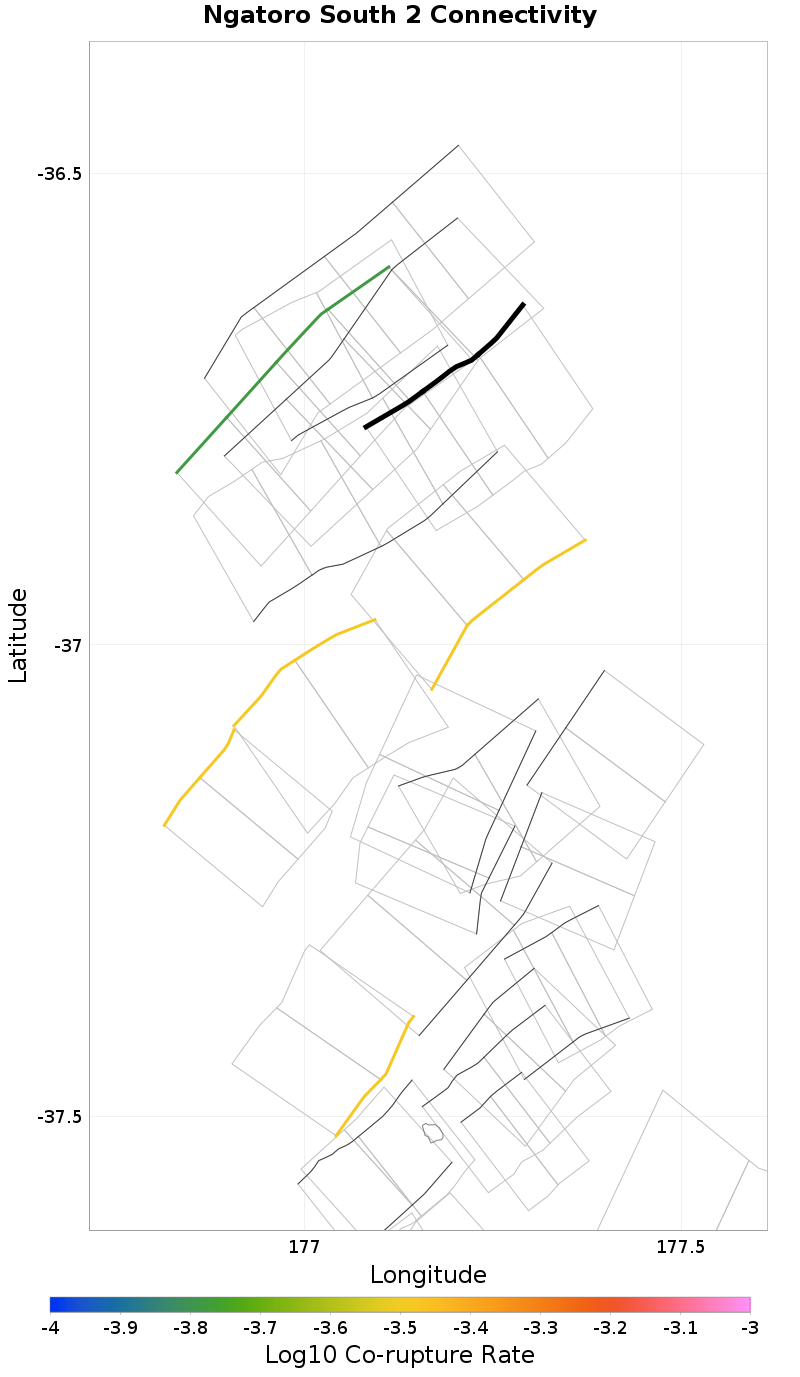

Connectivity
 |  |
|---|
Nearby Sections
Tauranga Trough East 2, 0.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMzIuMHVRNUVa | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 6 |
| Co-rupture Rate | 3.2944197E-4 |
Tauranga Trough West 2, 0.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMzIuMHVRNUVa | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3 |
| Co-rupture Rate | 0.0 |
Ngatoro South 5, 2.59 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMzIuMHVRNUVa | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Ohena 2, 6.65 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMzIuMHVRNUVa | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Ohena 3, 9.79 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMzIuMHVRNUVa | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3 |
| Co-rupture Rate | 1.6432062E-4 |
Ohena 4, 14.7 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMzIuMHVRNUVa | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Otara West 2, 17.2 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMzIuMHVRNUVa | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Tuakana 7, 19.02 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyMzIuMHVRNUVa | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 4 |
| Co-rupture Rate | 3.2944197E-4 |
