Garibaldi Details

PropertyValue
Rupture Count304
Ruptures Above Sect Min Mag303
Ruptures w/ Nonzero Rates63
Magnitude Range[7.10, 8.20]
Length Range[22, 255] km
Total Rate5.9704726E-6 /yr
Multi-Fault Rate4.732496E-6 /yr (79.27%)
Directly-Connected Faults3
All Co-Rupturing Faults22

Table Of Contents

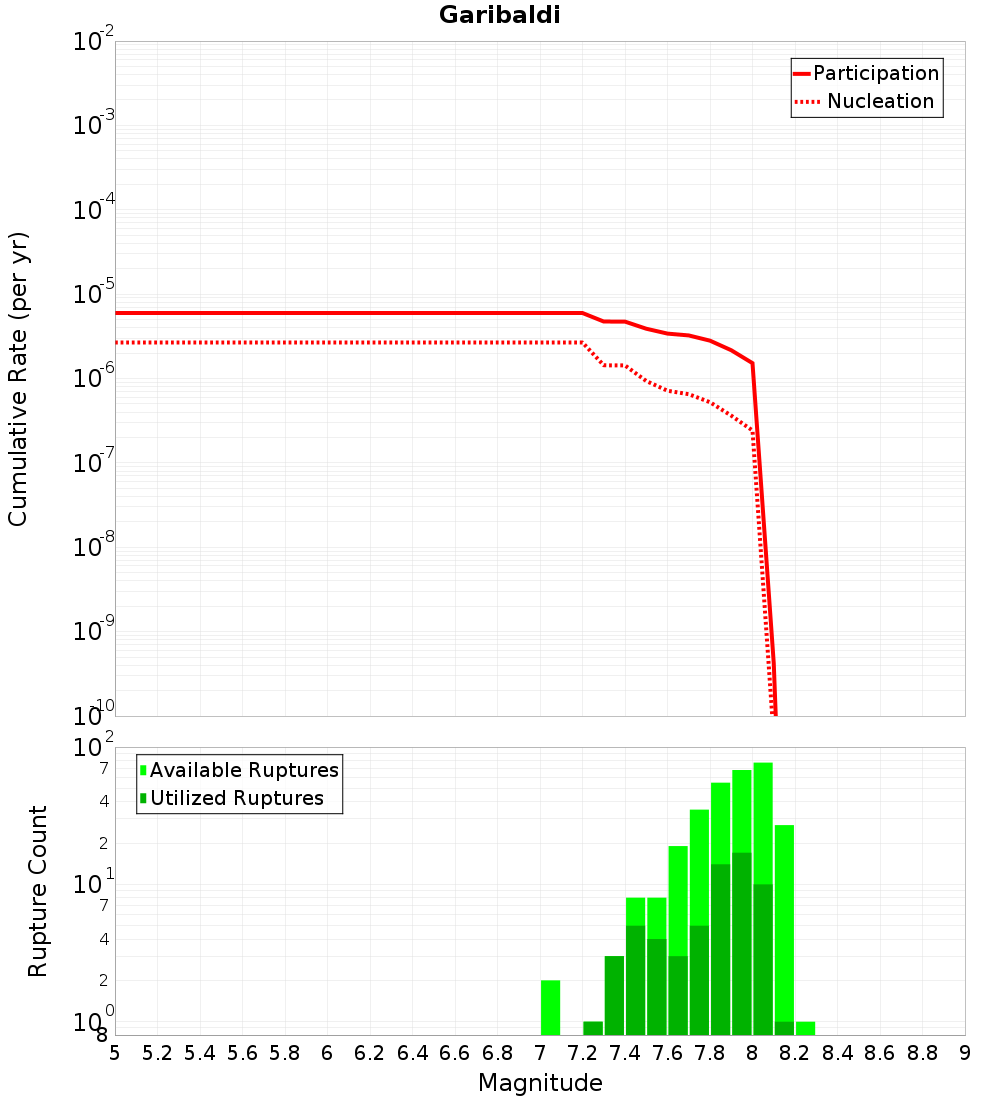

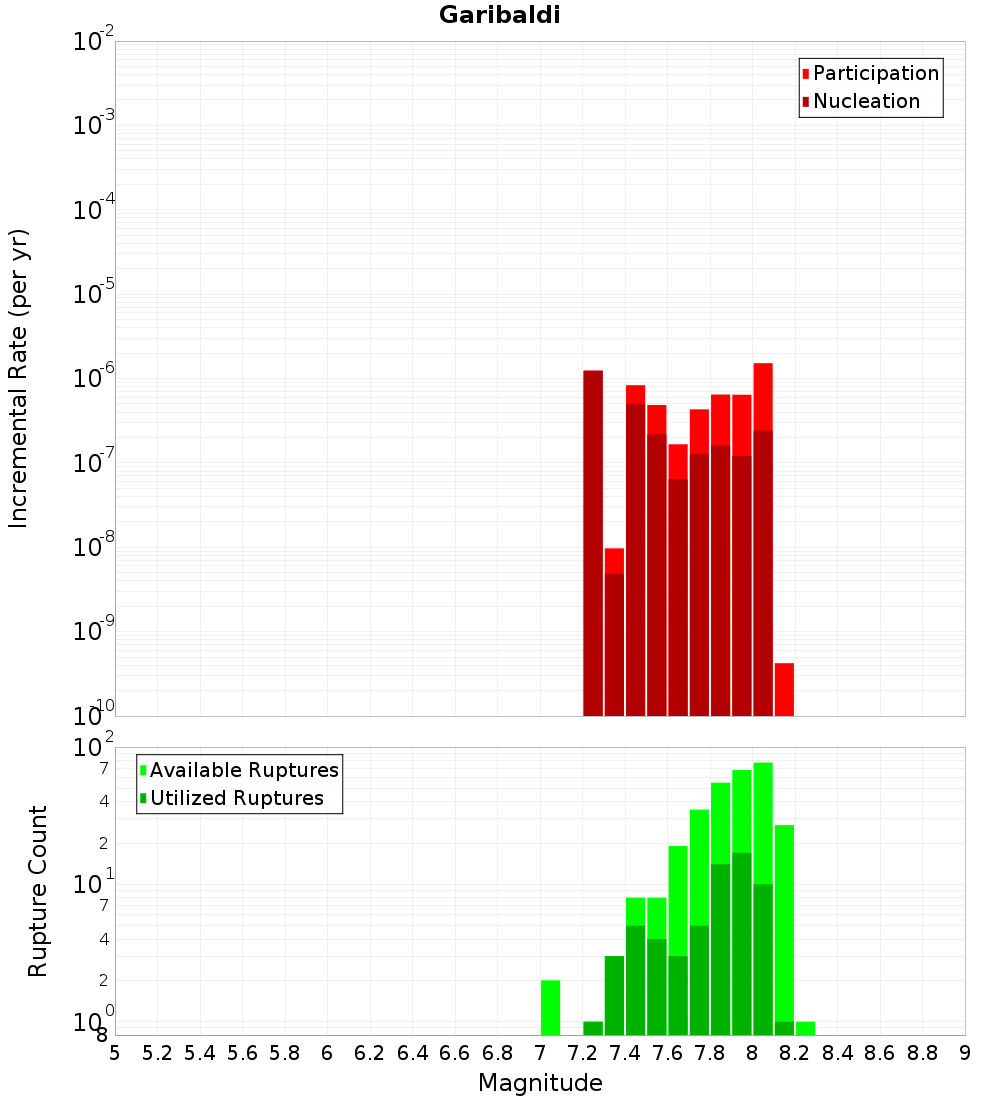

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

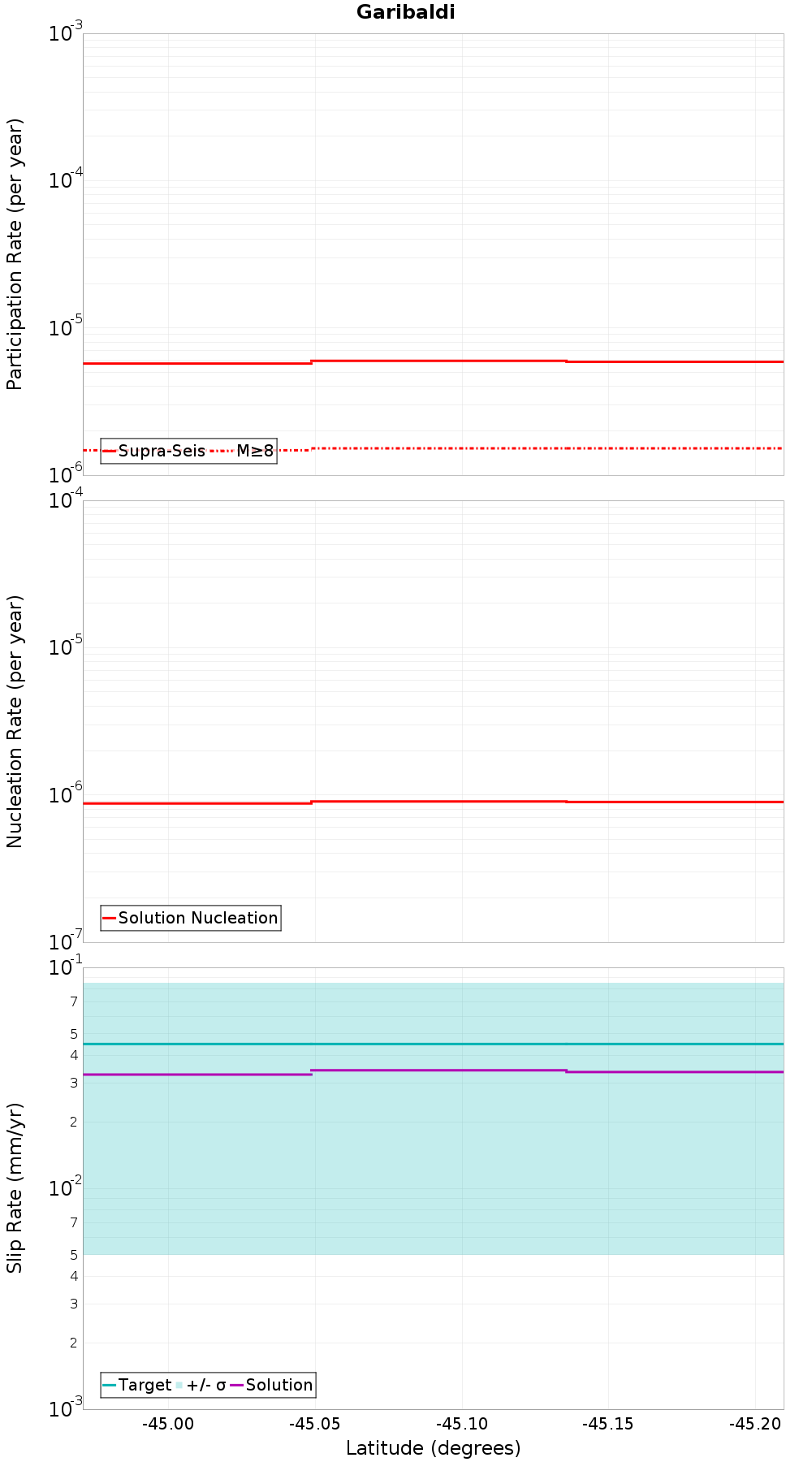

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

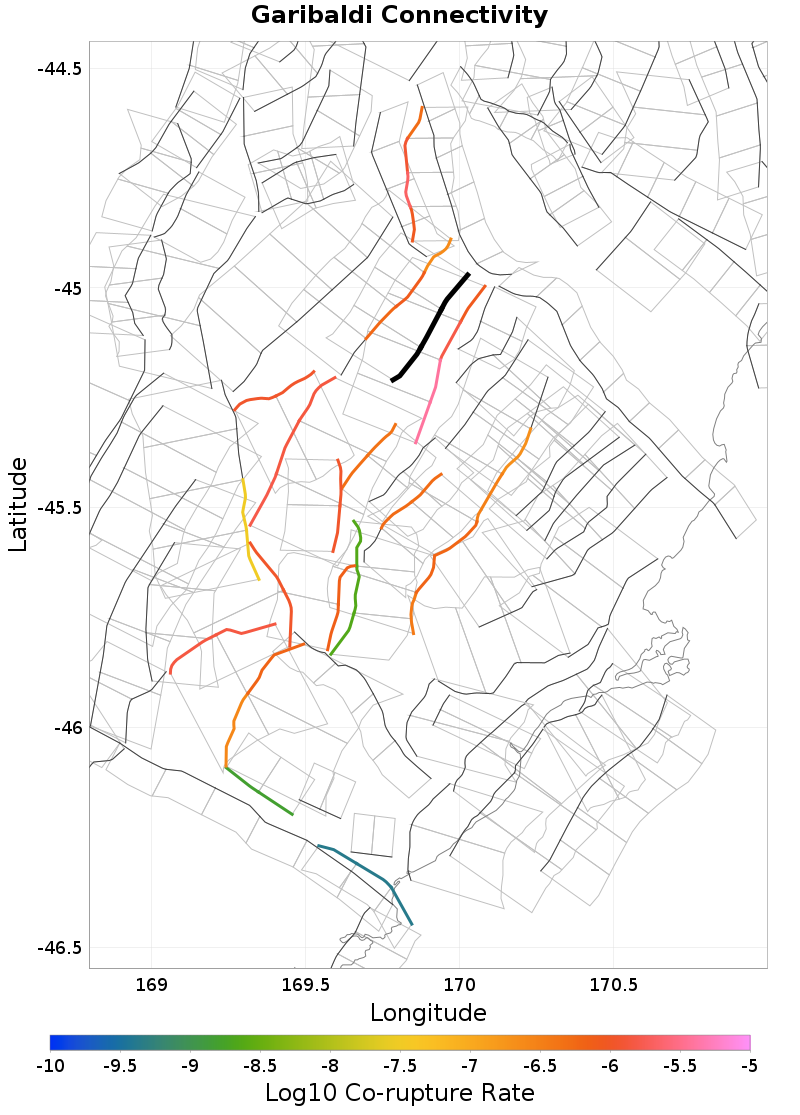

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Blue Lake, 1.08 km away
Omarama Saddle, 3.15 km away
Hawkdun, 3.71 km away
Gimmerburn, 3.79 km away
Raggedy - Blackstone, 6.01 km away
Little Valley, 6.55 km away
Cross Eden, 7.5 km away
Waihemo, 8.5 km away
Long Valley, 11.29 km away
Ranfurly, 12.32 km away
Galloway, 13.11 km away
Goodger, 14.35 km away
Dunstan, 16.05 km away
Pylap, 18.09 km away

Blue Lake, 1.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNDQuNUVWZVZK
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Omarama Saddle, 3.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNDQuNUVWZVZK
Connected?true
Directly Connected?true
Co-rupture Count85
Co-rupture Rate2.0860336E-6

Hawkdun, 3.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNDQuNUVWZVZK
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Gimmerburn, 3.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNDQuNUVWZVZK
Connected?true
Directly Connected?true
Co-rupture Count317
Co-rupture Rate4.003514E-6

Raggedy - Blackstone, 6.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNDQuNUVWZVZK
Connected?true
Directly Connected?true
Co-rupture Count12
Co-rupture Rate8.2038076E-7

Little Valley, 6.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNDQuNUVWZVZK
Connected?true
Directly Connected?false
Co-rupture Count167
Co-rupture Rate1.5810003E-6

Cross Eden, 7.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNDQuNUVWZVZK
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waihemo, 8.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNDQuNUVWZVZK
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Long Valley, 11.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNDQuNUVWZVZK
Connected?true
Directly Connected?false
Co-rupture Count57
Co-rupture Rate4.717505E-7

Ranfurly, 12.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNDQuNUVWZVZK
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Galloway, 13.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNDQuNUVWZVZK
Connected?true
Directly Connected?false
Co-rupture Count31
Co-rupture Rate1.096006E-6

Goodger, 14.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNDQuNUVWZVZK
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dunstan, 16.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNDQuNUVWZVZK
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pylap, 18.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNDQuNUVWZVZK
Connected?true
Directly Connected?false
Co-rupture Count56
Co-rupture Rate0.0
