Ohariu Details

PropertyValue
Rupture Count15,217
Ruptures Above Sect Min Mag15,211
Ruptures w/ Nonzero Rates562
Magnitude Range[6.96, 8.60]
Length Range[21, 847] km
Total Rate6.4433226E-4 /yr
Multi-Fault Rate6.1136804E-4 /yr (94.88%)
Directly-Connected Faults17
All Co-Rupturing Faults100

Table Of Contents

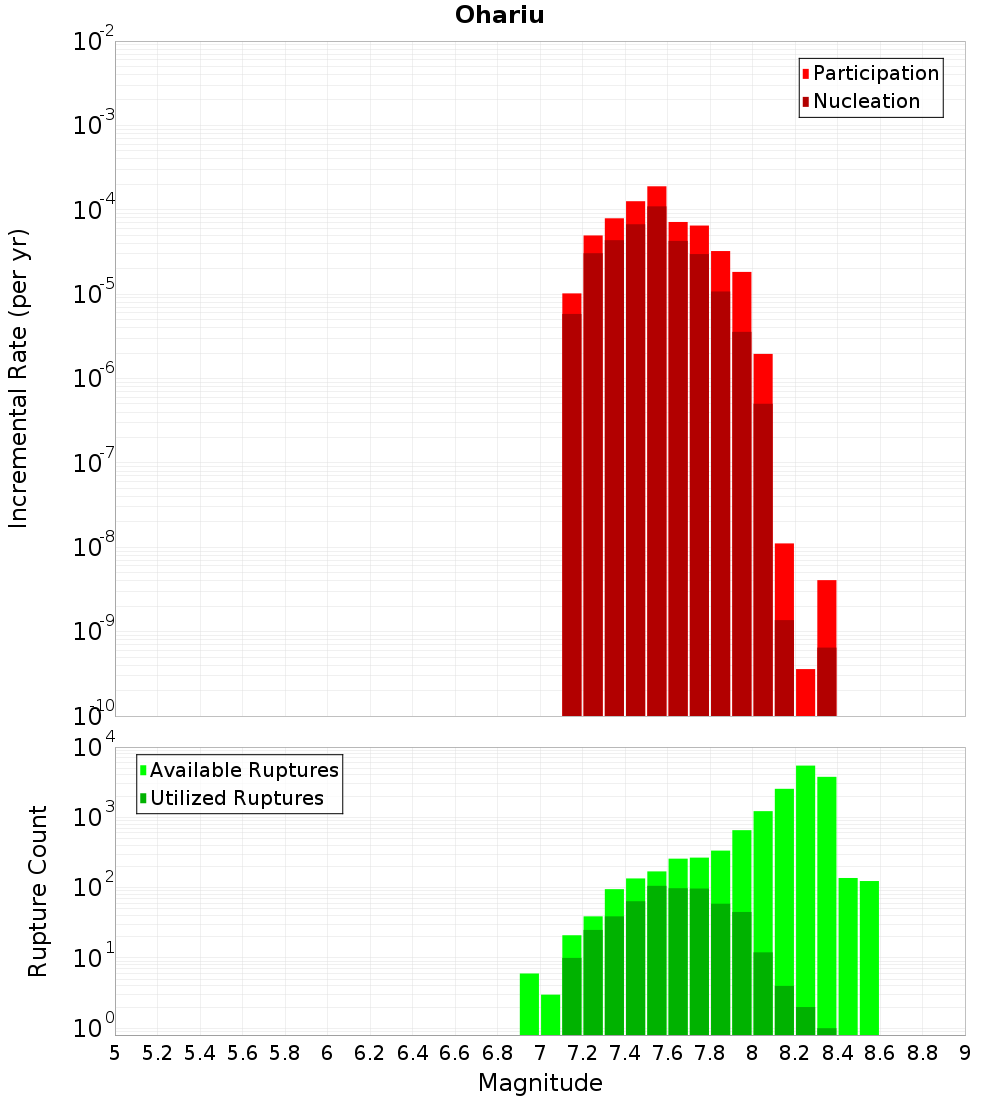

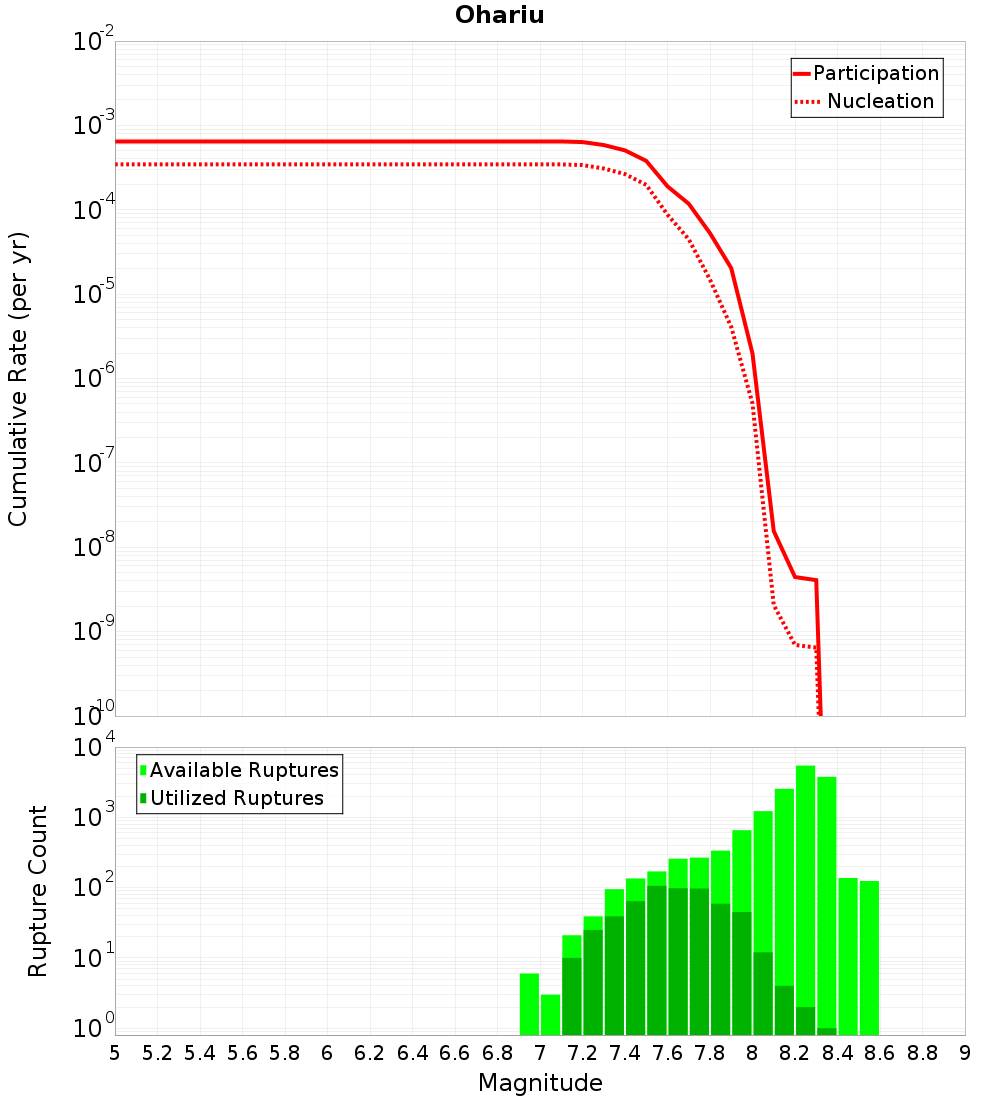

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

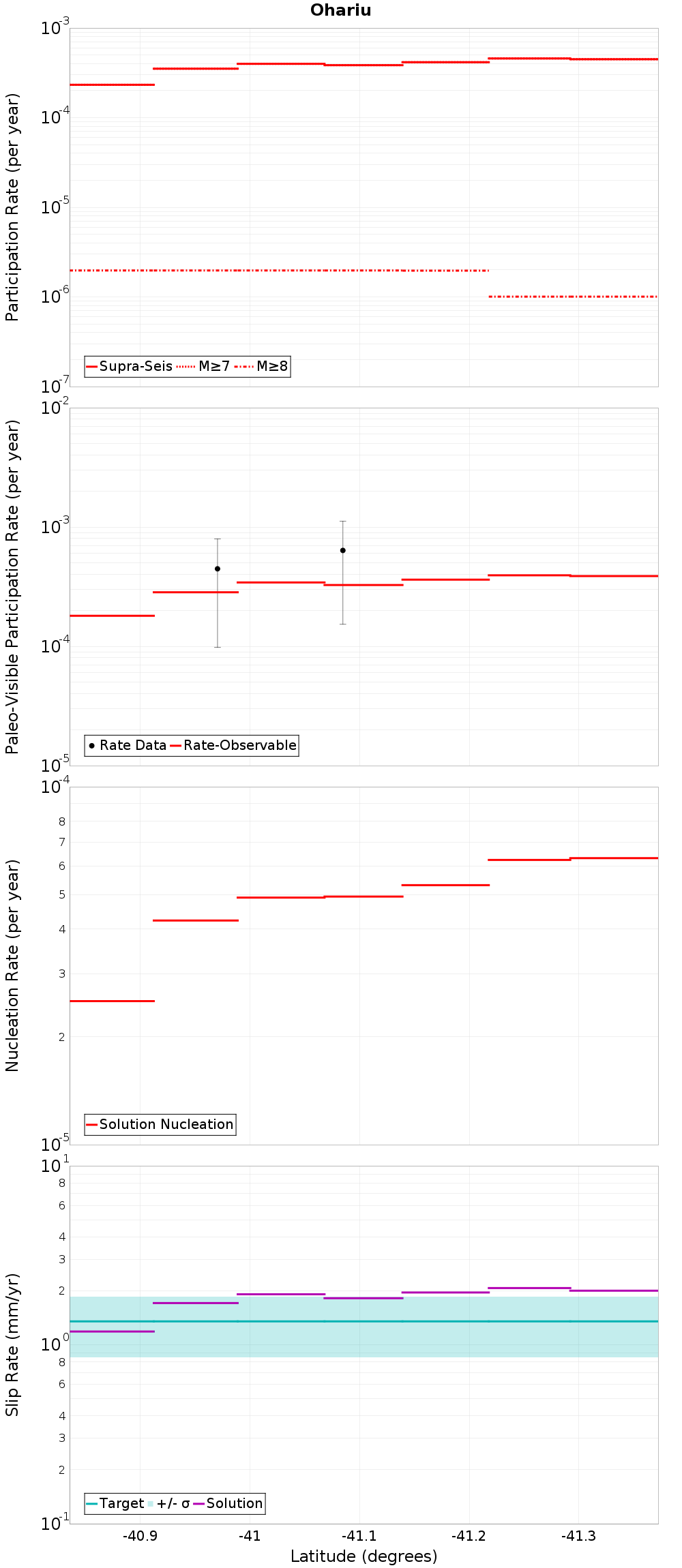

Along-Strike Values

(top)

Along-strike plot

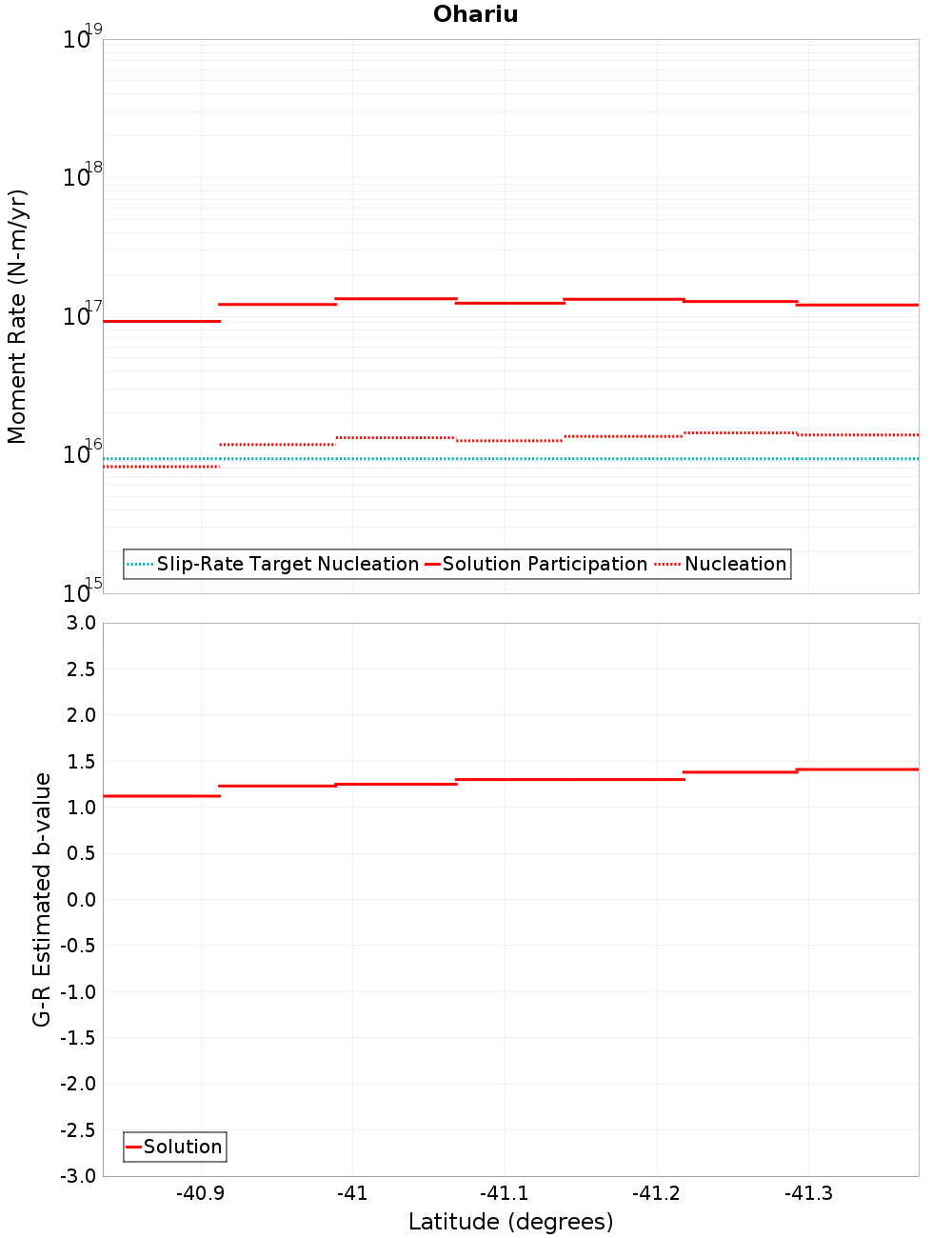

Moment-Rates and b-Values

(top)

Along-strike plot

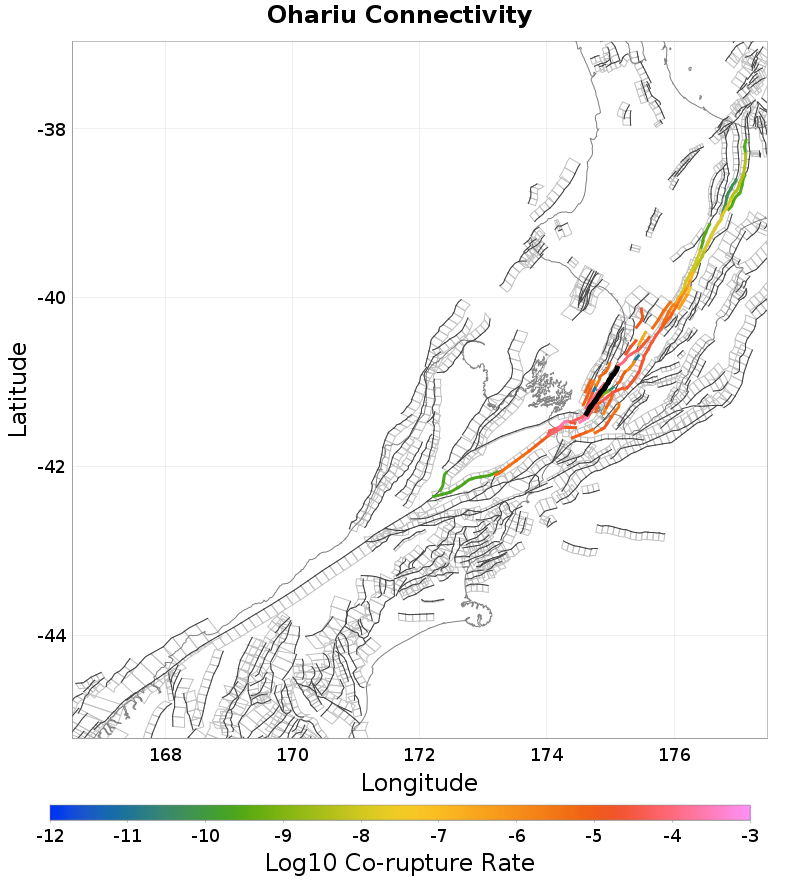

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault SectionFault Section
Ohariu South 2, 0 km awayOtaki Forks: 1, 5.13 km awayWairarapa: 1, 14.45 km away
Wellington Hutt Valley: 2, 0.3 km awayAotea - Evans Bay, 6 km awayOnepoto, 14.67 km away
Wellington Hutt Valley: 1, 1.65 km awayAkatarawa, 6.24 km awayWairarapa: Needles, 14.92 km away
Moonshine, 2.04 km awayOhariu South 1, 6.96 km awayWellington: Tararua 1, 16.12 km away
Whitemans Valley, 2.44 km awayOtaheke South, 8.6 km awayFisherman 1, 17.14 km away
Pukerua - Shepherds Gully: 1, 2.91 km awayOkupe 1, 9.22 km awayWellington: Tararua 3, 17.34 km away
Pukerua - Shepherds Gully: 2, 2.91 km awayWharekauhau, 10.05 km awayWellington: Tararua 2, 18.28 km away
Pukerua - Shepherds Gully: 3, 3.18 km awayPoroutawhao, 11.17 km awayFisherman 3, 18.64 km away
Shepherds Gully - Mana, 3.79 km awayWairau 3, 11.37 km awayMascarin, 19.22 km away
Wellington Hutt Valley: 3, 3.96 km awayOtaki Forks: 2, 11.39 km awayWairarapa: 2, 19.83 km away
Northern Ohariu, 4.32 km awayOtaheke North, 11.65 km awayFisherman 2, 19.84 km away
Wellington Hutt Valley: 4, 4.6 km awayWellington Hutt Valley: 5, 12.34 km away

Ohariu South 2, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNDQuNUVWZVZK
Connected?true
Directly Connected?true
Co-rupture Count1,483
Co-rupture Rate5.7631012E-5

Wellington Hutt Valley: 2, 0.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNDQuNUVWZVZK
Connected?true
Directly Connected?true
Co-rupture Count744
Co-rupture Rate3.5947367E-5

Wellington Hutt Valley: 1, 1.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNDQuNUVWZVZK
Connected?true
Directly Connected?true
Co-rupture Count1,923
Co-rupture Rate2.7703342E-4

Moonshine, 2.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNDQuNUVWZVZK
Connected?true
Directly Connected?true
Co-rupture Count704
Co-rupture Rate2.7974065E-6

Whitemans Valley, 2.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNDQuNUVWZVZK
Connected?true
Directly Connected?true
Co-rupture Count580
Co-rupture Rate7.404964E-6

Pukerua - Shepherds Gully: 1, 2.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNDQuNUVWZVZK
Connected?true
Directly Connected?true
Co-rupture Count1,822
Co-rupture Rate9.712492E-5

Pukerua - Shepherds Gully: 2, 2.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNDQuNUVWZVZK
Connected?true
Directly Connected?true
Co-rupture Count1,996
Co-rupture Rate1.19602424E-4

Pukerua - Shepherds Gully: 3, 3.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNDQuNUVWZVZK
Connected?true
Directly Connected?true
Co-rupture Count2,949
Co-rupture Rate1.33409E-4

Shepherds Gully - Mana, 3.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNDQuNUVWZVZK
Connected?true
Directly Connected?true
Co-rupture Count452
Co-rupture Rate1.7379132E-5

Wellington Hutt Valley: 3, 3.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNDQuNUVWZVZK
Connected?true
Directly Connected?true
Co-rupture Count567
Co-rupture Rate6.128398E-5

Northern Ohariu, 4.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNDQuNUVWZVZK
Connected?true
Directly Connected?true
Co-rupture Count10,154
Co-rupture Rate9.1454276E-5

Wellington Hutt Valley: 4, 4.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNDQuNUVWZVZK
Connected?true
Directly Connected?true
Co-rupture Count2,441
Co-rupture Rate4.340458E-5

Otaki Forks: 1, 5.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNDQuNUVWZVZK
Connected?true
Directly Connected?true
Co-rupture Count2,066
Co-rupture Rate1.05675745E-5

Aotea - Evans Bay, 6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNDQuNUVWZVZK
Connected?true
Directly Connected?true
Co-rupture Count261
Co-rupture Rate7.0518654E-6

Akatarawa, 6.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNDQuNUVWZVZK
Connected?true
Directly Connected?false
Co-rupture Count532
Co-rupture Rate0.0

Ohariu South 1, 6.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNDQuNUVWZVZK
Connected?true
Directly Connected?true
Co-rupture Count652
Co-rupture Rate5.1114937E-5

Otaheke South, 8.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNDQuNUVWZVZK
Connected?true
Directly Connected?true
Co-rupture Count110
Co-rupture Rate6.6451944E-6

Okupe 1, 9.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNDQuNUVWZVZK
Connected?true
Directly Connected?false
Co-rupture Count671
Co-rupture Rate7.750032E-6

Wharekauhau, 10.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNDQuNUVWZVZK
Connected?true
Directly Connected?true
Co-rupture Count999
Co-rupture Rate1.4416344E-5

Poroutawhao, 11.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNDQuNUVWZVZK
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wairau 3, 11.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNDQuNUVWZVZK
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otaki Forks: 2, 11.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNDQuNUVWZVZK
Connected?true
Directly Connected?false
Co-rupture Count1,889
Co-rupture Rate1.2238556E-6

Otaheke North, 11.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNDQuNUVWZVZK
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 5, 12.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNDQuNUVWZVZK
Connected?true
Directly Connected?false
Co-rupture Count1,796
Co-rupture Rate2.414304E-5

Wairarapa: 1, 14.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNDQuNUVWZVZK
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Onepoto, 14.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNDQuNUVWZVZK
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wairarapa: Needles, 14.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNDQuNUVWZVZK
Connected?true
Directly Connected?false
Co-rupture Count101
Co-rupture Rate9.123975E-6

Wellington: Tararua 1, 16.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNDQuNUVWZVZK
Connected?true
Directly Connected?false
Co-rupture Count48
Co-rupture Rate2.2439913E-6

Fisherman 1, 17.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNDQuNUVWZVZK
Connected?true
Directly Connected?false
Co-rupture Count7
Co-rupture Rate8.153334E-6

Wellington: Tararua 3, 17.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNDQuNUVWZVZK
Connected?true
Directly Connected?false
Co-rupture Count1,677
Co-rupture Rate2.2284756E-5

Wellington: Tararua 2, 18.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNDQuNUVWZVZK
Connected?true
Directly Connected?false
Co-rupture Count1,718
Co-rupture Rate2.3391332E-5

Fisherman 3, 18.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNDQuNUVWZVZK
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mascarin, 19.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNDQuNUVWZVZK
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wairarapa: 2, 19.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNDQuNUVWZVZK
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Fisherman 2, 19.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNDQuNUVWZVZK
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
