Pohangina Details

Property	Value
Rupture Count	839
Ruptures Above Sect Min Mag	838
Ruptures w/ Nonzero Rates	44
Magnitude Range	[7.22, 8.29]
Length Range	[28, 418] km
Total Rate	3.3742224E-5 /yr
Multi-Fault Rate	1.8106006E-5 /yr (53.66%)
Directly-Connected Faults	3
All Co-Rupturing Faults	72

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

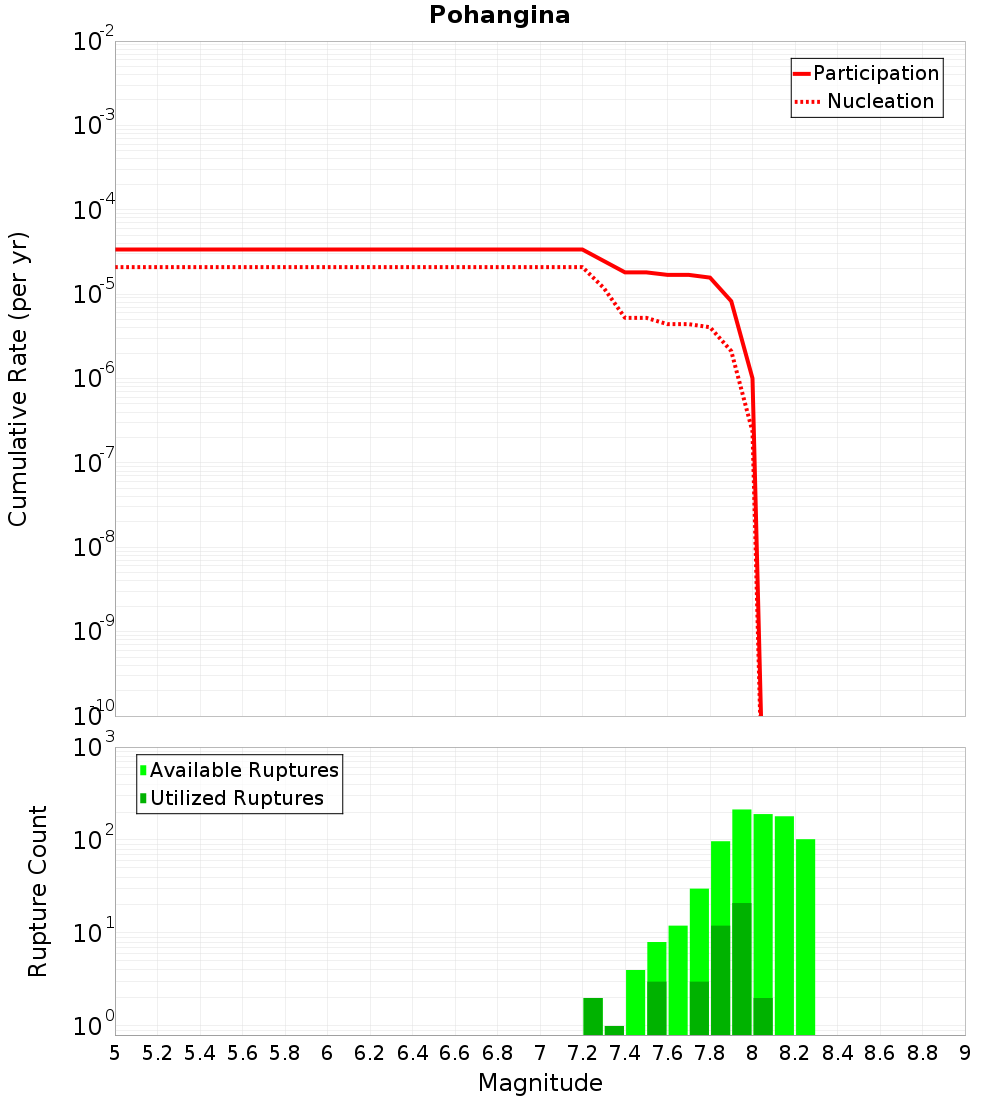

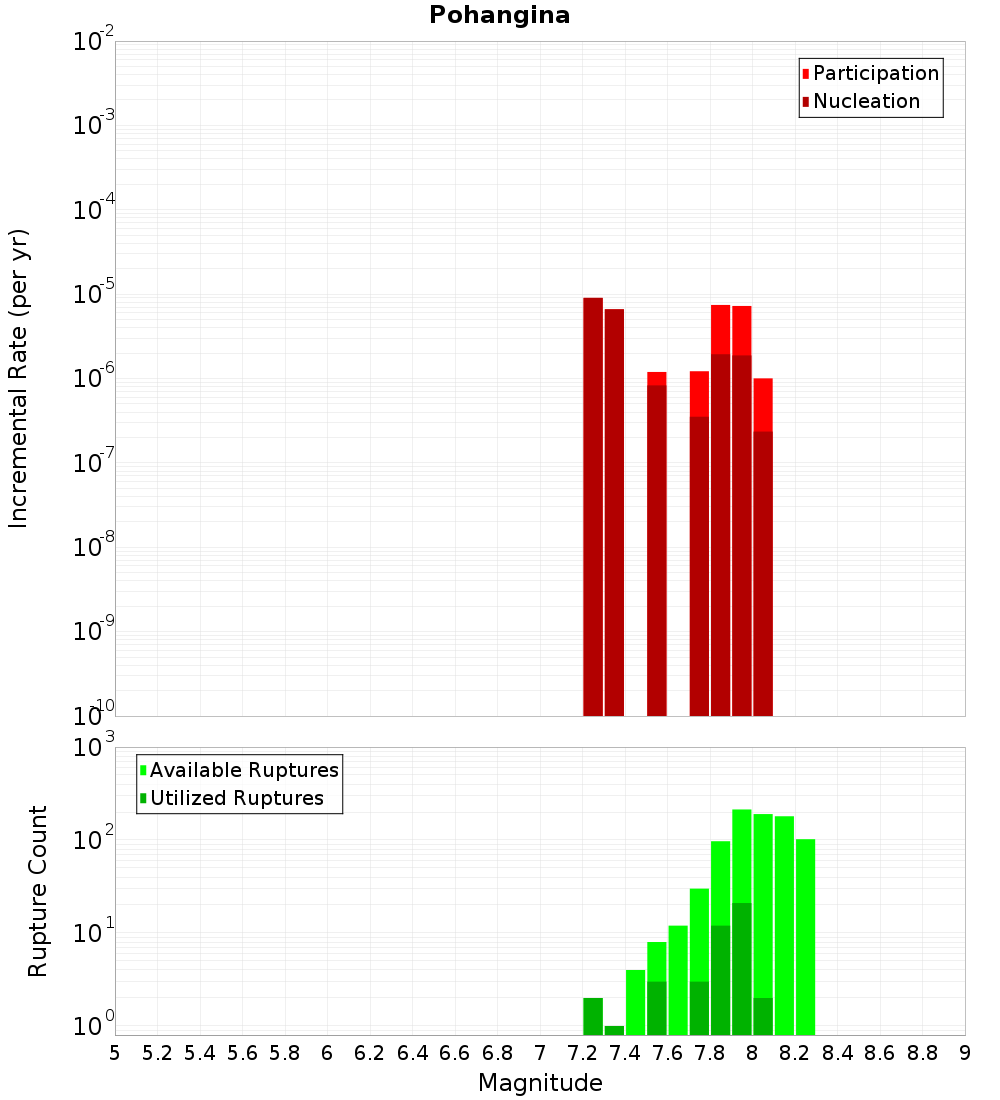

Magnitude-Frequency Distribution

Incremental	Cumulative

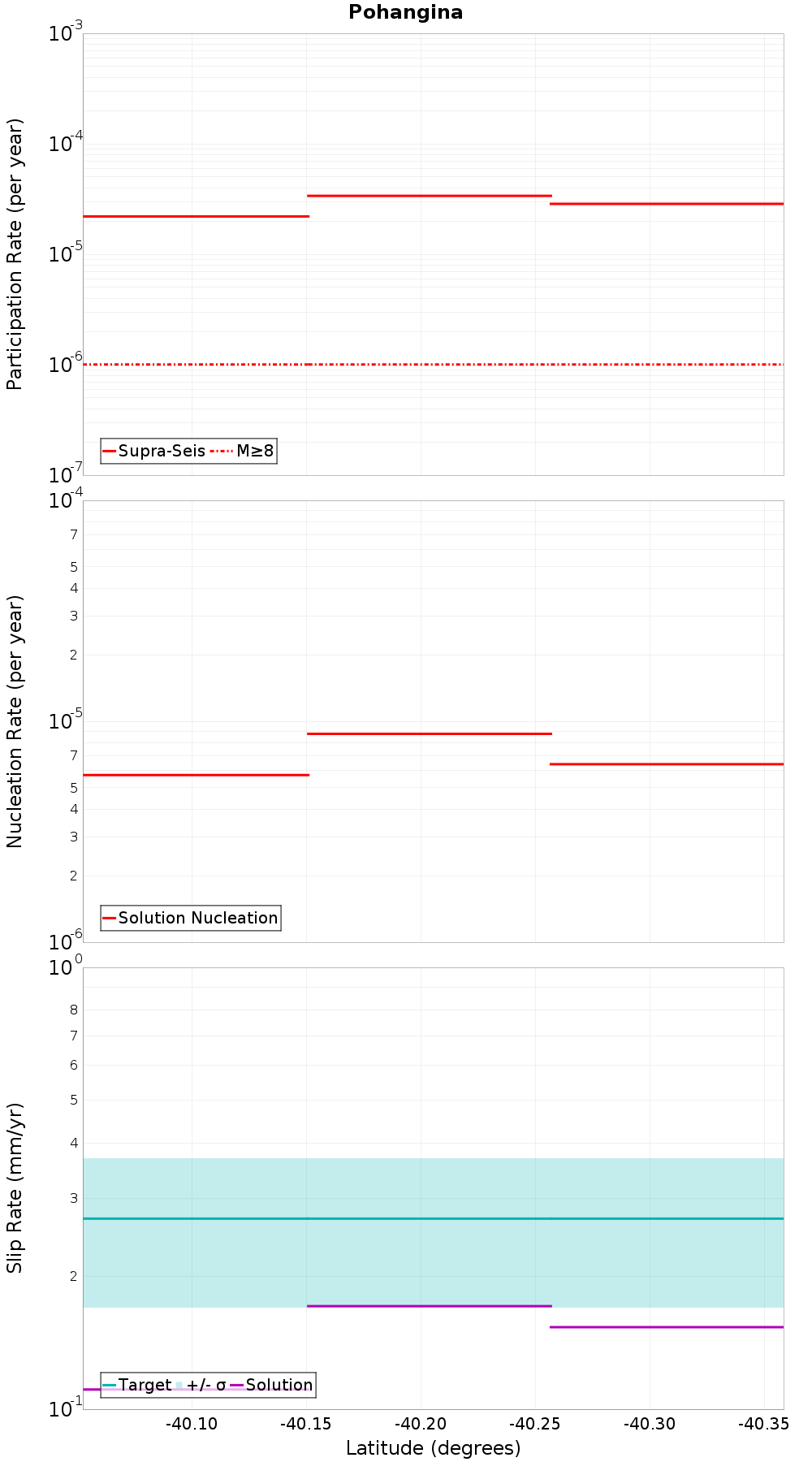

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Ruahine: South, 5.25 km away
Wellington: Pahiatua, 9.35 km away
Mohaka: South, 9.44 km away
Taonui, 9.7 km away
Tokomaru, 9.88 km away
Rangefront, 12.41 km away
Woodville, 12.61 km away
Rauoterangi, 12.82 km away
Northern Ohariu, 13.14 km away
Mt Stewart, 15.28 km away
Pahiatua, 17.63 km away

Ruahine: South, 5.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNDQuNUVWZVZK
Connected?	true
Directly Connected?	true
Co-rupture Count	396
Co-rupture Rate	2.0576767E-6

Wellington: Pahiatua, 9.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNDQuNUVWZVZK
Connected?	true
Directly Connected?	true
Co-rupture Count	587
Co-rupture Rate	1.7415648E-5

Mohaka: South, 9.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNDQuNUVWZVZK
Connected?	true
Directly Connected?	false
Co-rupture Count	269
Co-rupture Rate	0.0

Taonui, 9.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNDQuNUVWZVZK
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Tokomaru, 9.88 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNDQuNUVWZVZK
Connected?	true
Directly Connected?	true
Co-rupture Count	201
Co-rupture Rate	3.6678261E-6

Rangefront, 12.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNDQuNUVWZVZK
Connected?	true
Directly Connected?	false
Co-rupture Count	45
Co-rupture Rate	0.0

Woodville, 12.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNDQuNUVWZVZK
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Rauoterangi, 12.82 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNDQuNUVWZVZK
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Northern Ohariu, 13.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNDQuNUVWZVZK
Connected?	true
Directly Connected?	false
Co-rupture Count	85
Co-rupture Rate	4.5899537E-6

Mt Stewart, 15.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNDQuNUVWZVZK
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pahiatua, 17.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNDQuNUVWZVZK
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
