Billys Ridge Details

PropertyValue
Rupture Count84
Ruptures Above Sect Min Mag82
Ruptures w/ Nonzero Rates6
Magnitude Range[6.99, 7.98]
Length Range[23, 198] km
Total Rate1.1571125E-5 /yr
Multi-Fault Rate1.1571125E-5 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults17

Table Of Contents

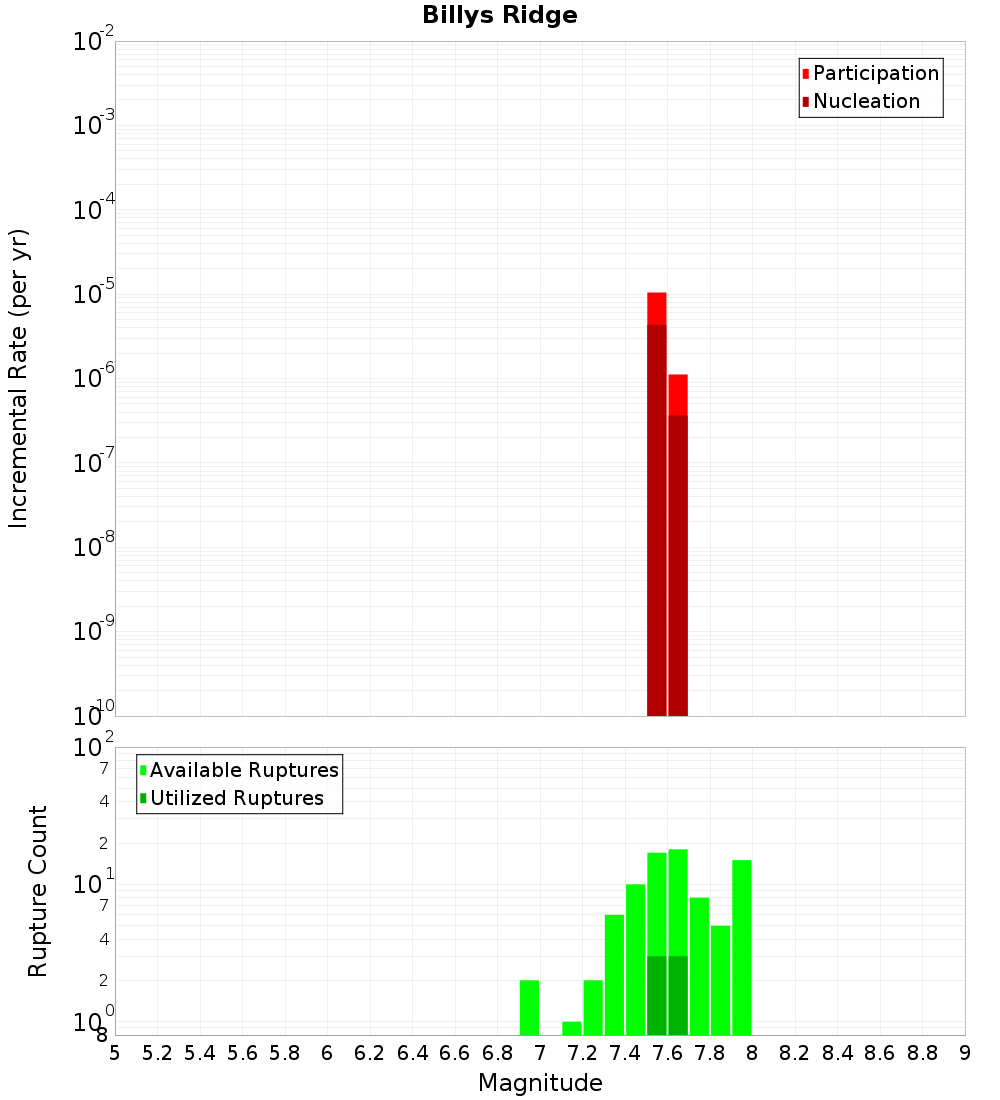

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

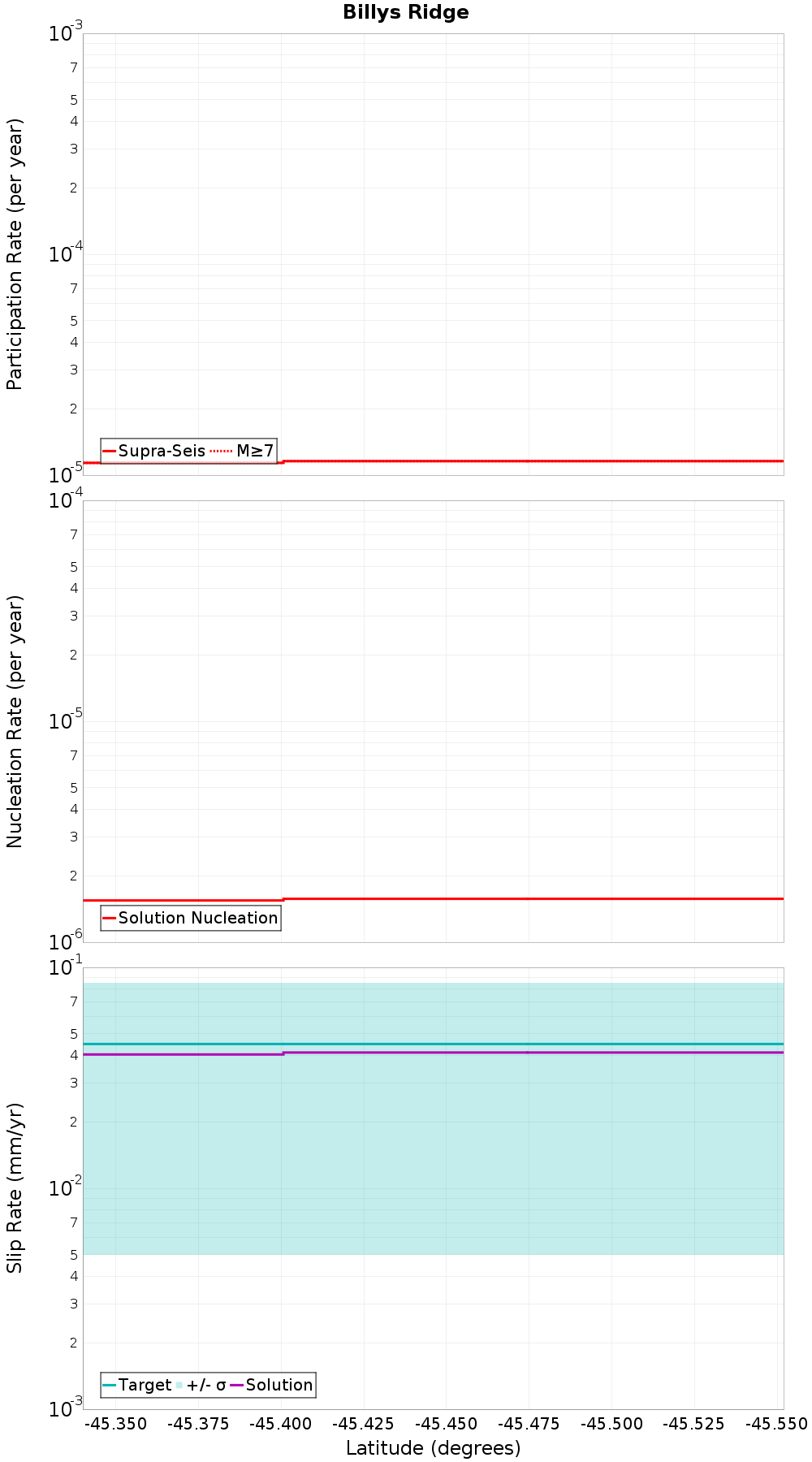

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Ranfurly, 0.13 km away
Waipiata, 0.21 km away
Murphys Creek, 2.04 km away
Horse Flat, 2.27 km away
Pylap, 2.61 km away
Logan Burn, 3.75 km away
Waihemo, 4.71 km away
Dunback Hill, 5.55 km away
Hyde North, 9.04 km away
Nichols Rock, 9.84 km away
Flat Stream - Glenpark, 9.9 km away
Long Valley, 11.13 km away
Cross Eden, 13.09 km away
Sliver Stream - Merton, 18.66 km away

Ranfurly, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNTIuMEFGUnk0
Connected?true
Directly Connected?true
Co-rupture Count59
Co-rupture Rate1.3279243E-6

Waipiata, 0.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNTIuMEFGUnk0
Connected?true
Directly Connected?true
Co-rupture Count12
Co-rupture Rate1.02432E-5

Murphys Creek, 2.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNTIuMEFGUnk0
Connected?true
Directly Connected?false
Co-rupture Count12
Co-rupture Rate9.929066E-6

Horse Flat, 2.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNTIuMEFGUnk0
Connected?true
Directly Connected?true
Co-rupture Count18
Co-rupture Rate9.742288E-7

Pylap, 2.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNTIuMEFGUnk0
Connected?true
Directly Connected?true
Co-rupture Count29
Co-rupture Rate0.0

Logan Burn, 3.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNTIuMEFGUnk0
Connected?true
Directly Connected?true
Co-rupture Count11
Co-rupture Rate1.5738599E-6

Waihemo, 4.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNTIuMEFGUnk0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dunback Hill, 5.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNTIuMEFGUnk0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hyde North, 9.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNTIuMEFGUnk0
Connected?true
Directly Connected?false
Co-rupture Count20
Co-rupture Rate2.1094729E-7

Nichols Rock, 9.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNTIuMEFGUnk0
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0

Flat Stream - Glenpark, 9.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNTIuMEFGUnk0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Long Valley, 11.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNTIuMEFGUnk0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Cross Eden, 13.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNTIuMEFGUnk0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Sliver Stream - Merton, 18.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNTIuMEFGUnk0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
