Conway Trough East Details

PropertyValue
Rupture Count129
Ruptures Above Sect Min Mag125
Ruptures w/ Nonzero Rates2
Magnitude Range[6.61, 7.99]
Length Range[15, 340] km
Total Rate1.01982914E-4 /yr
Multi-Fault Rate1.01982914E-4 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults15

Table Of Contents

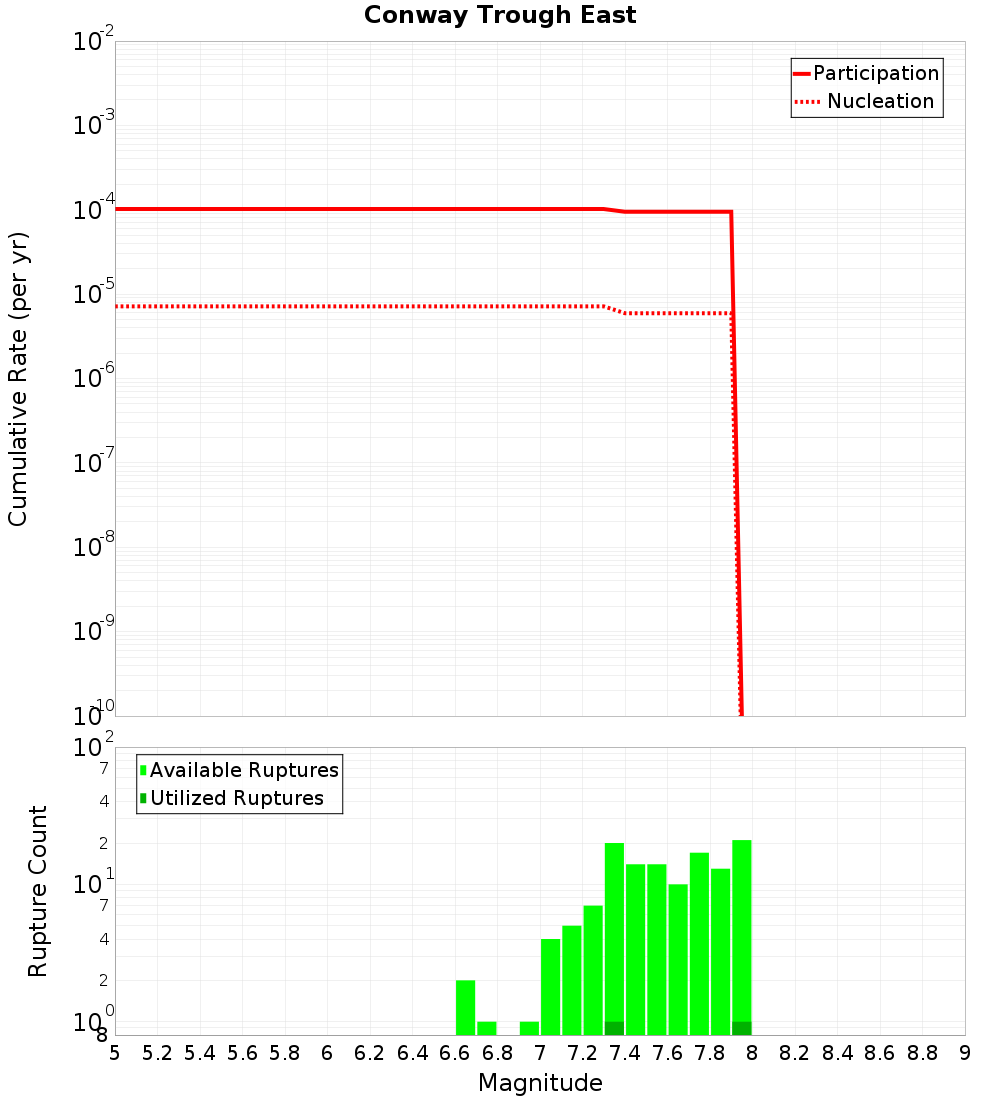

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

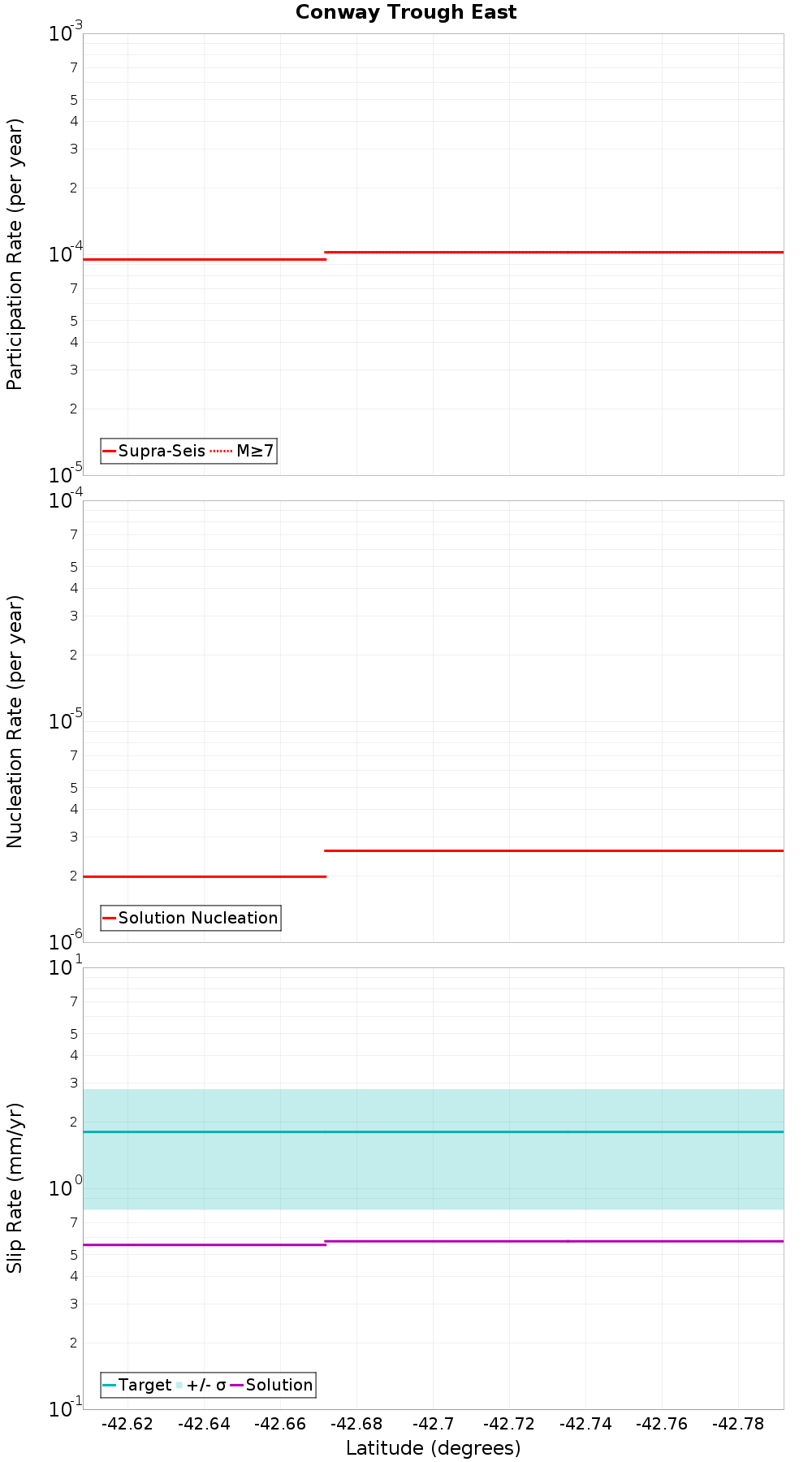

Along-Strike Values

(top)

Along-strike plot

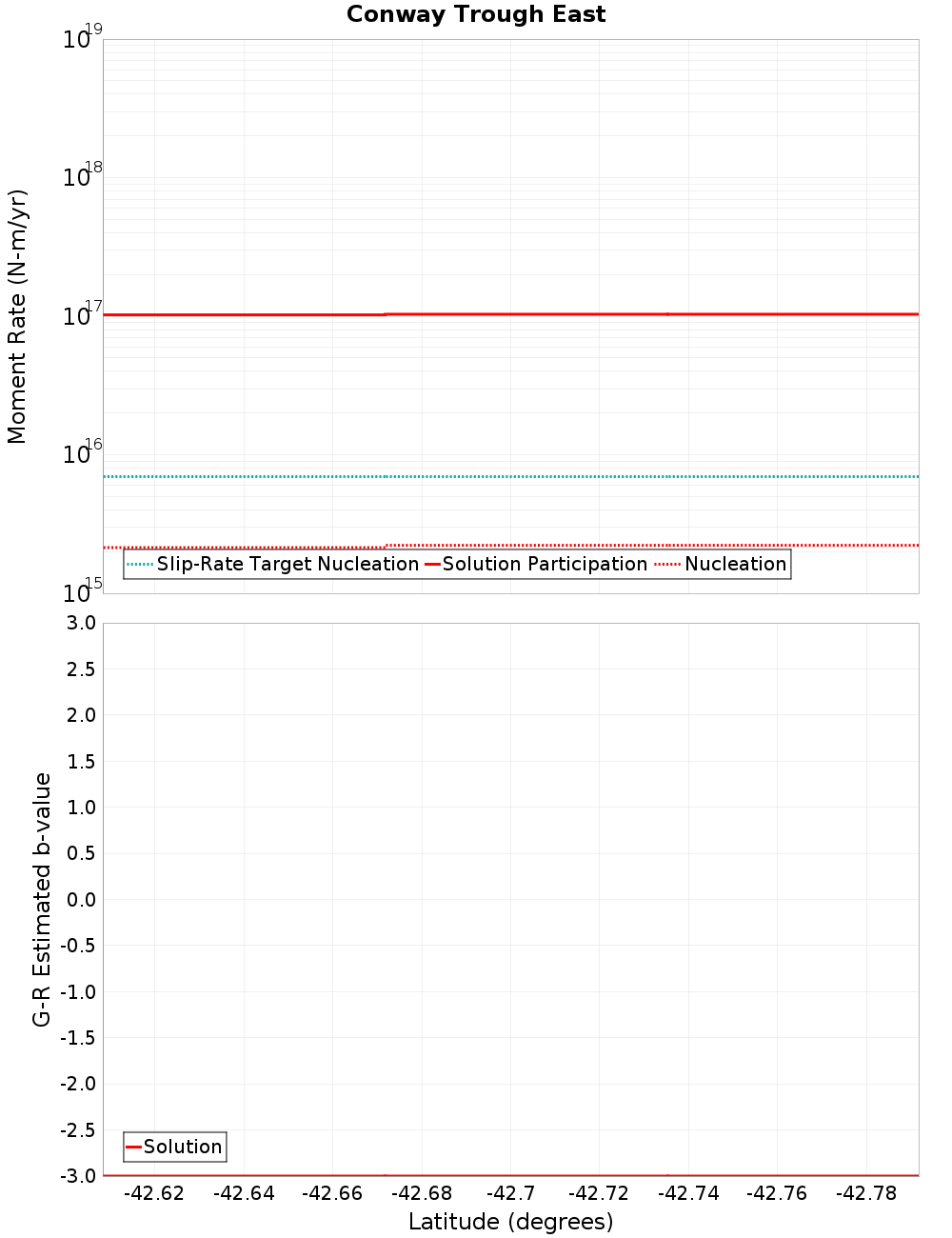

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Conway Trough West, 5.06 km away
Marlborough Slope 11, 8.46 km away
Hawkswood, 10.89 km away
Point Gibson, 11.43 km away
Marlborough Slope 9, 12.77 km away
Marlborough Slope 2, 13.46 km away
Hundalee, 15.71 km away
StoneJug, 19.67 km away

Conway Trough West, 5.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNTIuMEFGUnk0
Connected?true
Directly Connected?true
Co-rupture Count3
Co-rupture Rate0.0

Marlborough Slope 11, 8.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNTIuMEFGUnk0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hawkswood, 10.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNTIuMEFGUnk0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Point Gibson, 11.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNTIuMEFGUnk0
Connected?true
Directly Connected?true
Co-rupture Count59
Co-rupture Rate7.3644323E-6

Marlborough Slope 9, 12.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNTIuMEFGUnk0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Marlborough Slope 2, 13.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNTIuMEFGUnk0
Connected?true
Directly Connected?true
Co-rupture Count66
Co-rupture Rate9.461848E-5

Hundalee, 15.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNTIuMEFGUnk0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

StoneJug, 19.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNTIuMEFGUnk0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
