Motunau Details

PropertyValue
Rupture Count249
Ruptures Above Sect Min Mag237
Ruptures w/ Nonzero Rates9
Magnitude Range[6.57, 7.78]
Length Range[13, 196] km
Total Rate8.622163E-5 /yr
Multi-Fault Rate8.622163E-5 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults14

Table Of Contents

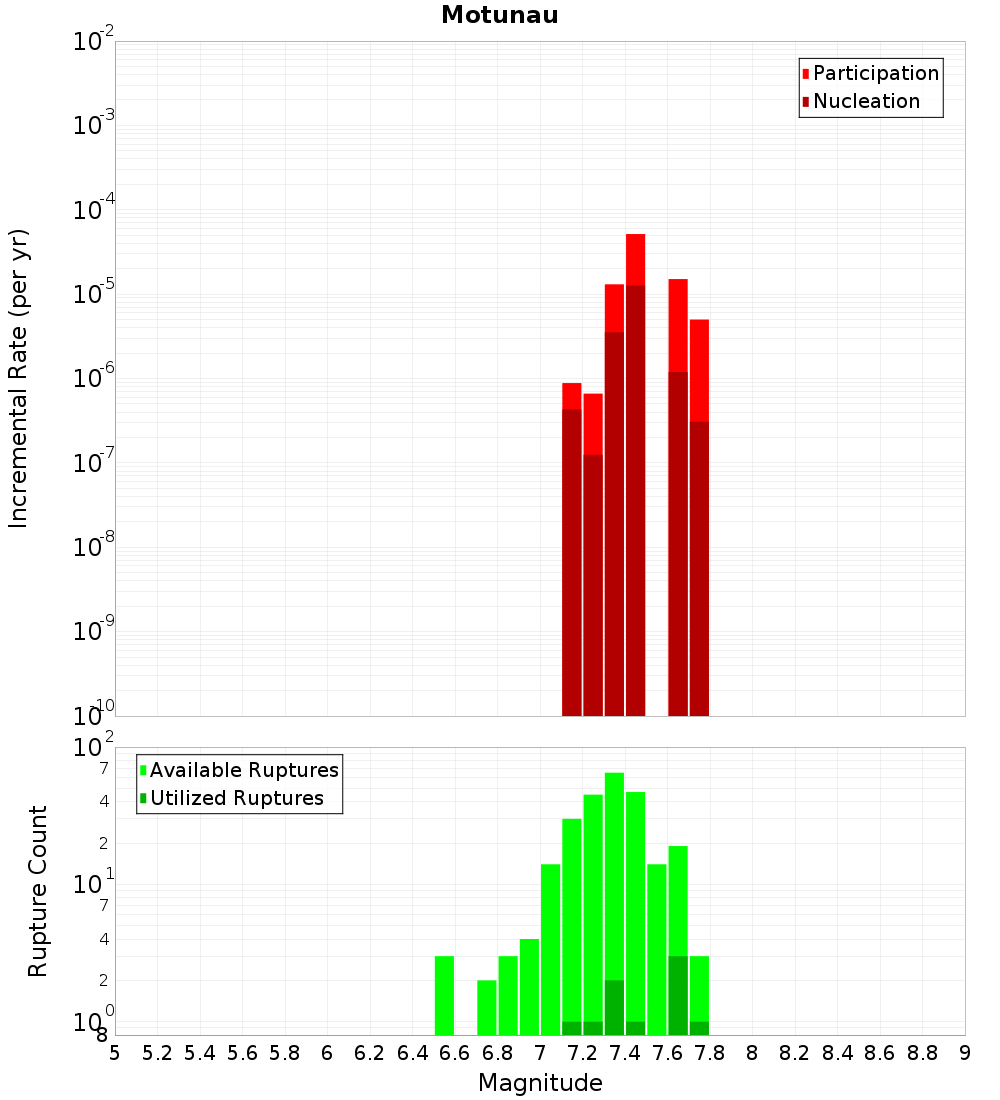

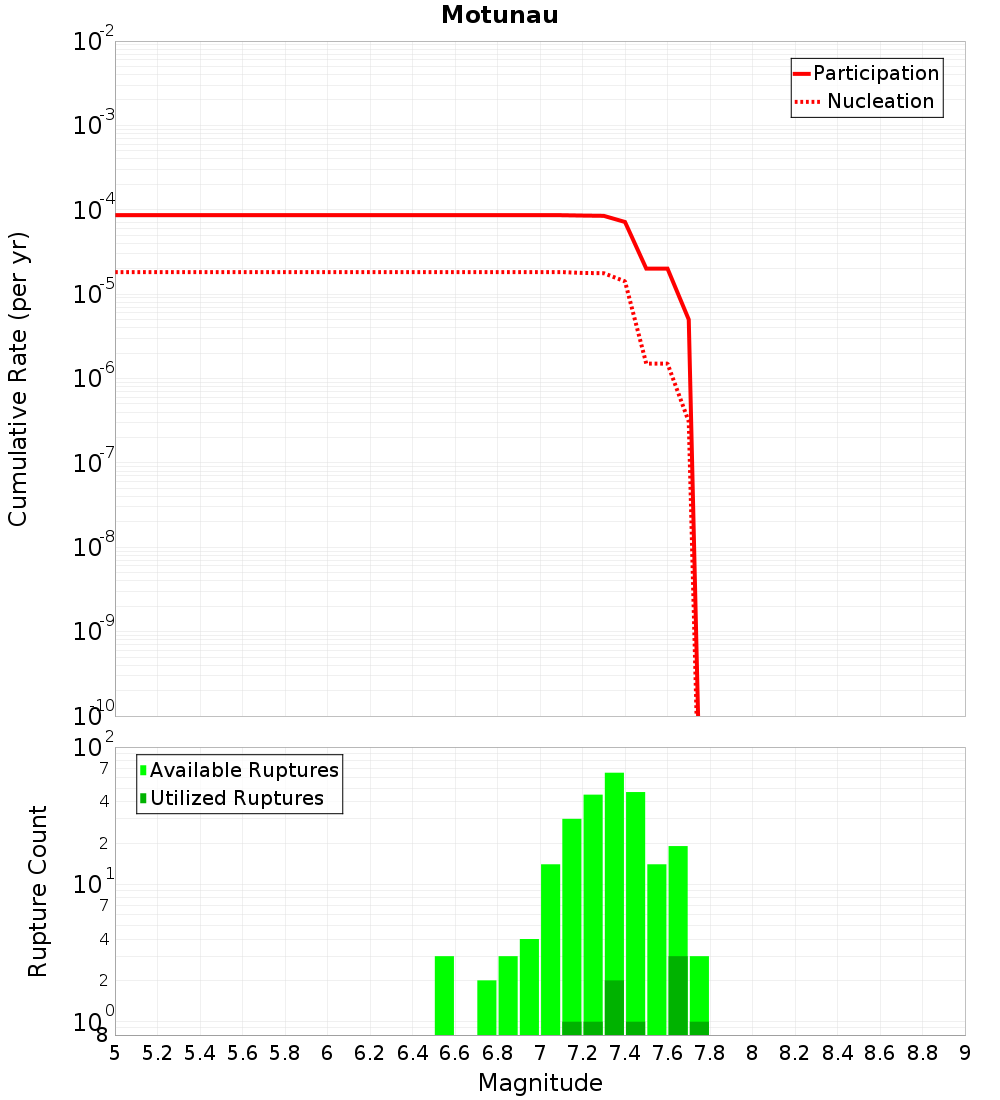

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

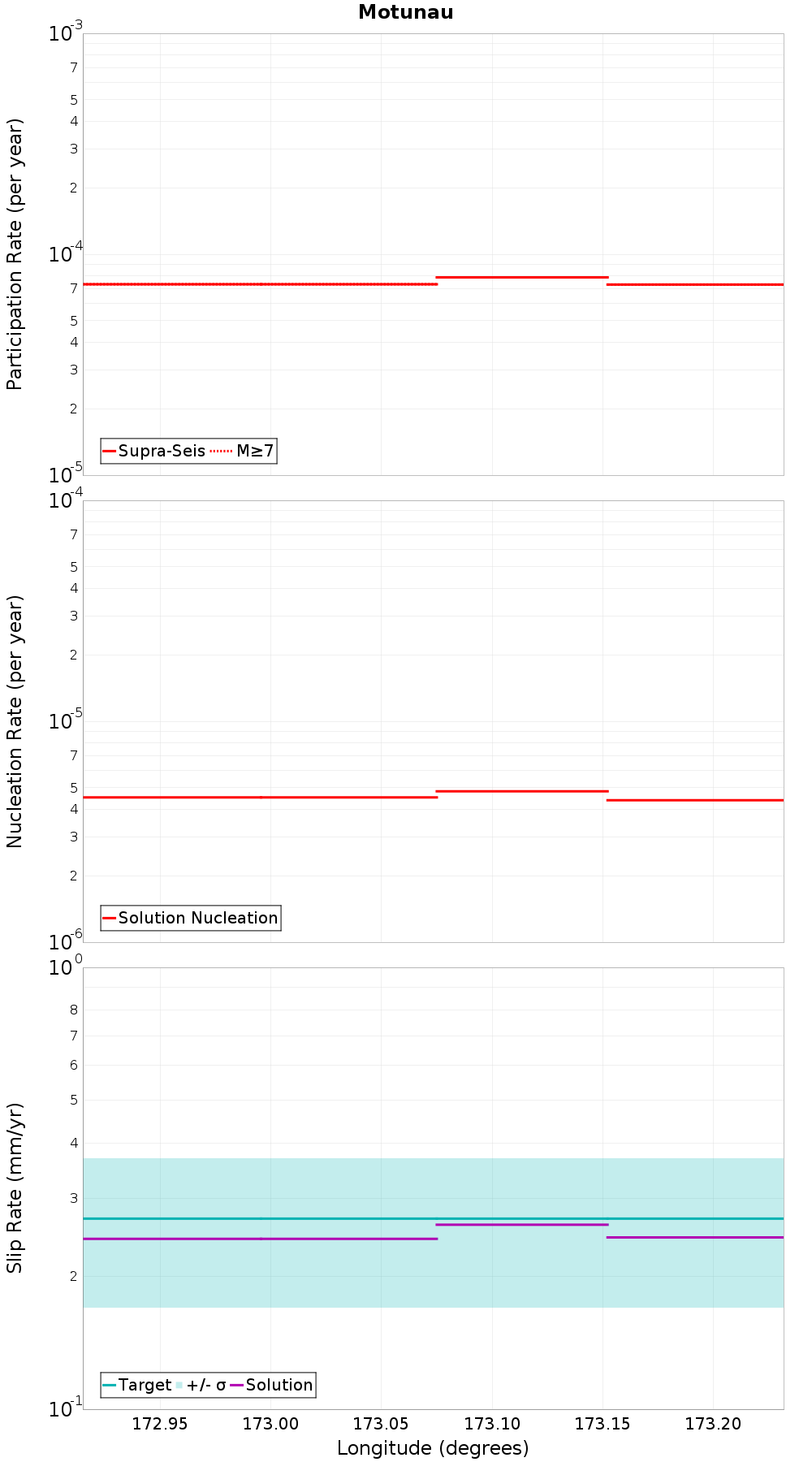

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

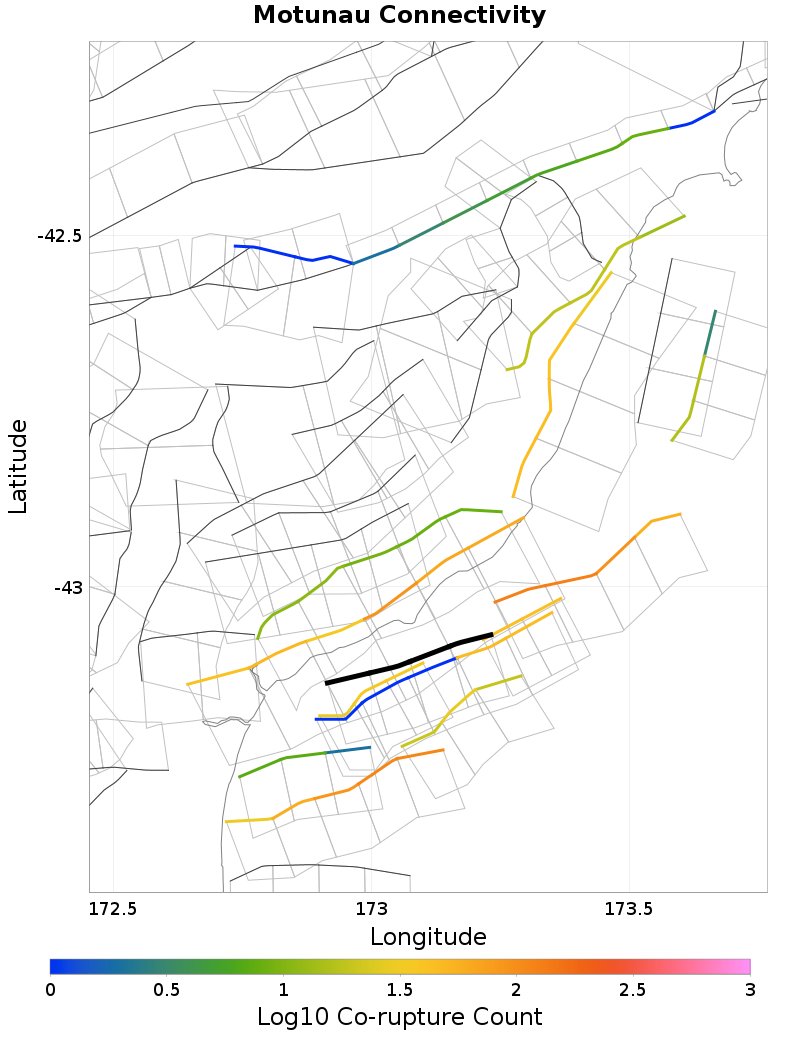

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
North Canterbury Shelf 11, 0.14 km away
North Canterbury Shelf 2, 0.72 km away
Leithfield - NCVI - NCVII, 1.34 km away
AmberBlyth, 2.59 km away
Point Gibson, 4.6 km away
North Canterbury Shelf 4, 6 km away
OmihiLwrHuru, 8.85 km away
Waikuku, 9.01 km away
Pegasus Bay, 11.59 km away
Boby Stream, 13.14 km away
Kaiwara South, 15.82 km away
Alexander, 19.72 km away

North Canterbury Shelf 11, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNTIuMEFGUnk0
Connected?true
Directly Connected?true
Co-rupture Count43
Co-rupture Rate7.055402E-5

North Canterbury Shelf 2, 0.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNTIuMEFGUnk0
Connected?true
Directly Connected?true
Co-rupture Count34
Co-rupture Rate1.31028155E-5

Leithfield - NCVI - NCVII, 1.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNTIuMEFGUnk0
Connected?true
Directly Connected?true
Co-rupture Count47
Co-rupture Rate5.704187E-6

AmberBlyth, 2.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNTIuMEFGUnk0
Connected?true
Directly Connected?true
Co-rupture Count116
Co-rupture Rate2.0741201E-5

Point Gibson, 4.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNTIuMEFGUnk0
Connected?true
Directly Connected?true
Co-rupture Count125
Co-rupture Rate6.692238E-5

North Canterbury Shelf 4, 6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNTIuMEFGUnk0
Connected?true
Directly Connected?true
Co-rupture Count28
Co-rupture Rate0.0

OmihiLwrHuru, 8.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNTIuMEFGUnk0
Connected?true
Directly Connected?false
Co-rupture Count11
Co-rupture Rate1.2440837E-5

Waikuku, 9.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNTIuMEFGUnk0
Connected?true
Directly Connected?false
Co-rupture Count7
Co-rupture Rate6.619786E-7

Pegasus Bay, 11.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNTIuMEFGUnk0
Connected?true
Directly Connected?true
Co-rupture Count111
Co-rupture Rate6.0756025E-5

Boby Stream, 13.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNTIuMEFGUnk0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kaiwara South, 15.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNTIuMEFGUnk0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Alexander, 19.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNTIuMEFGUnk0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
